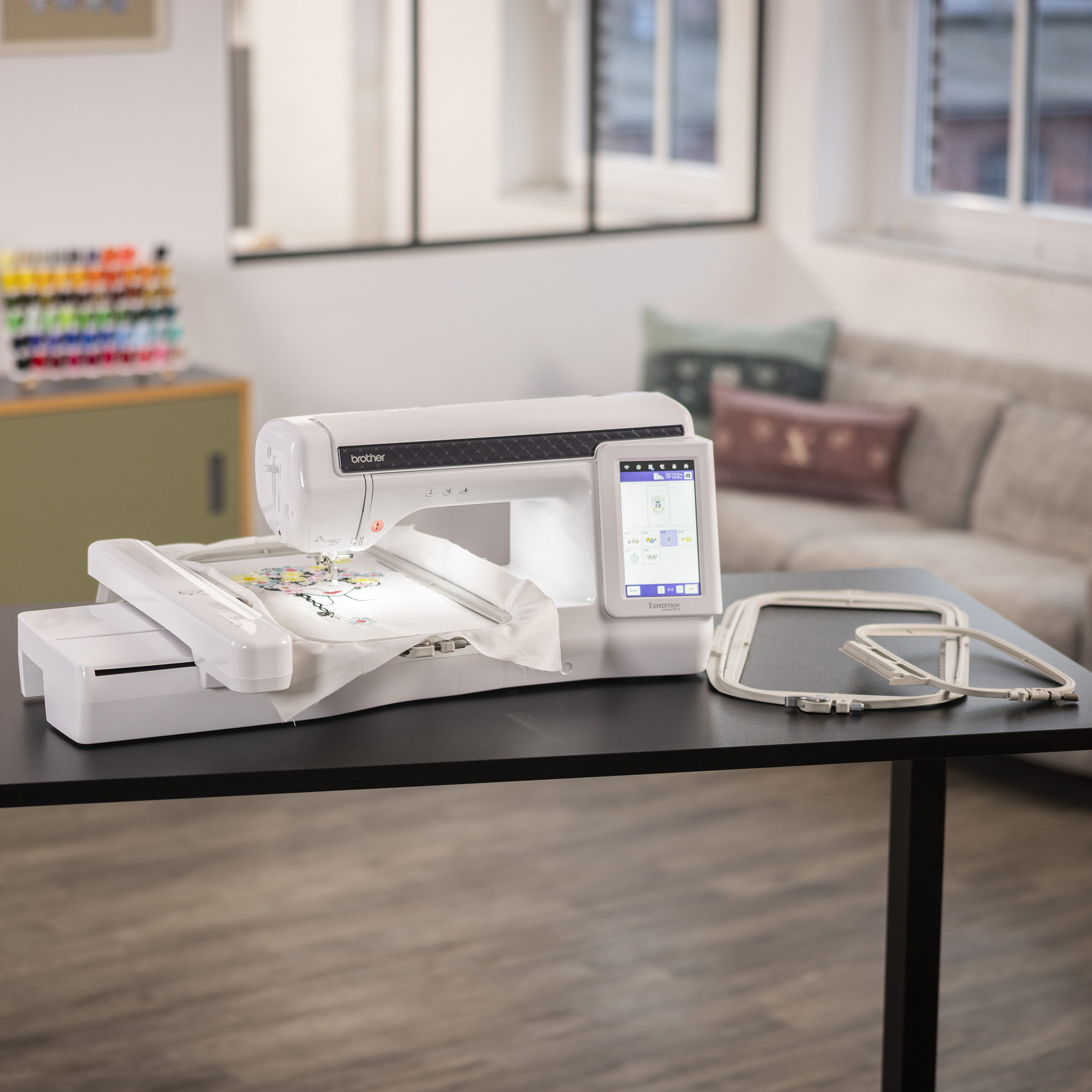

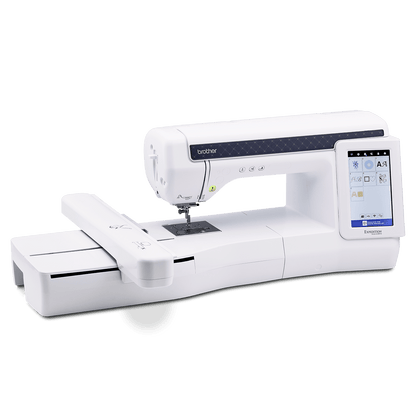

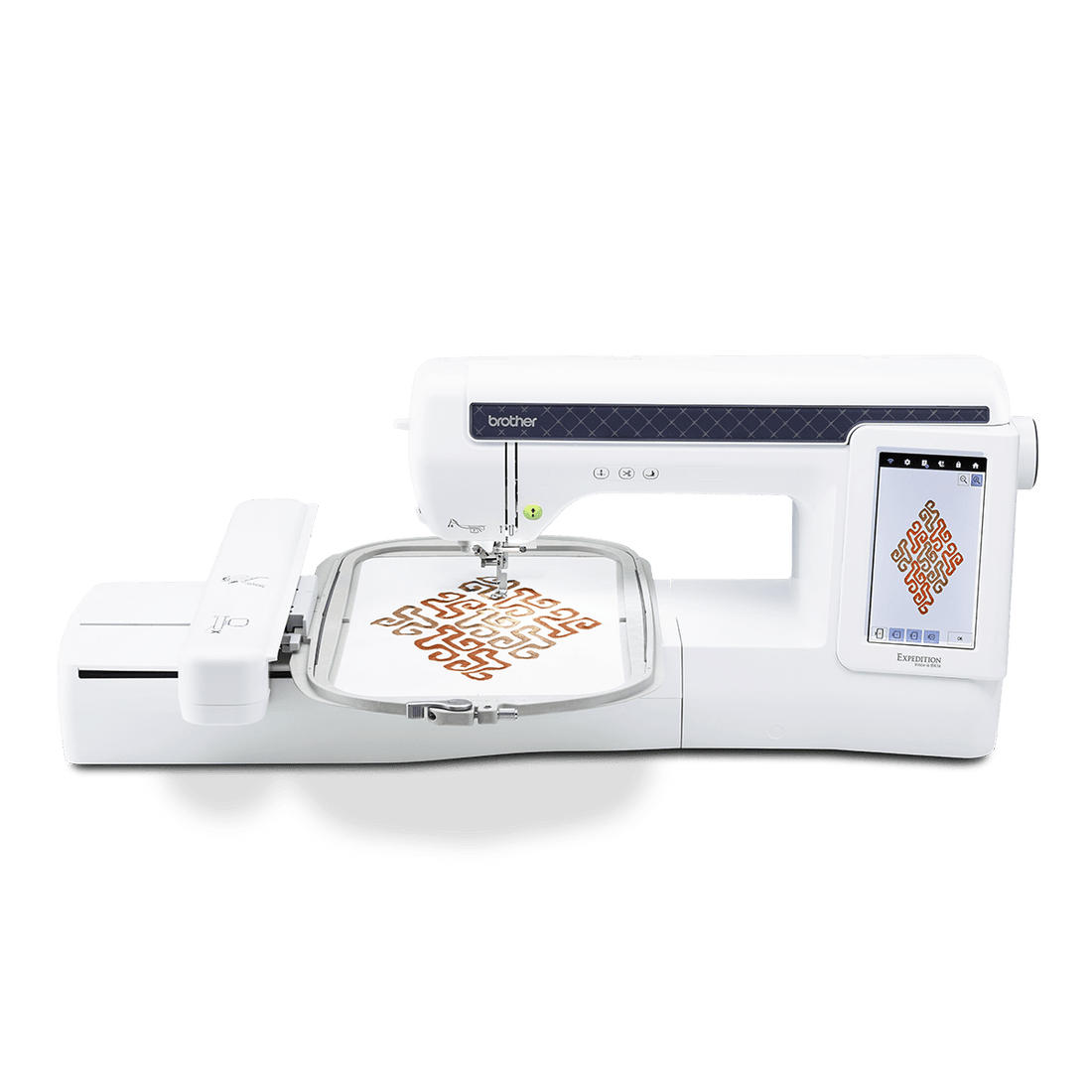

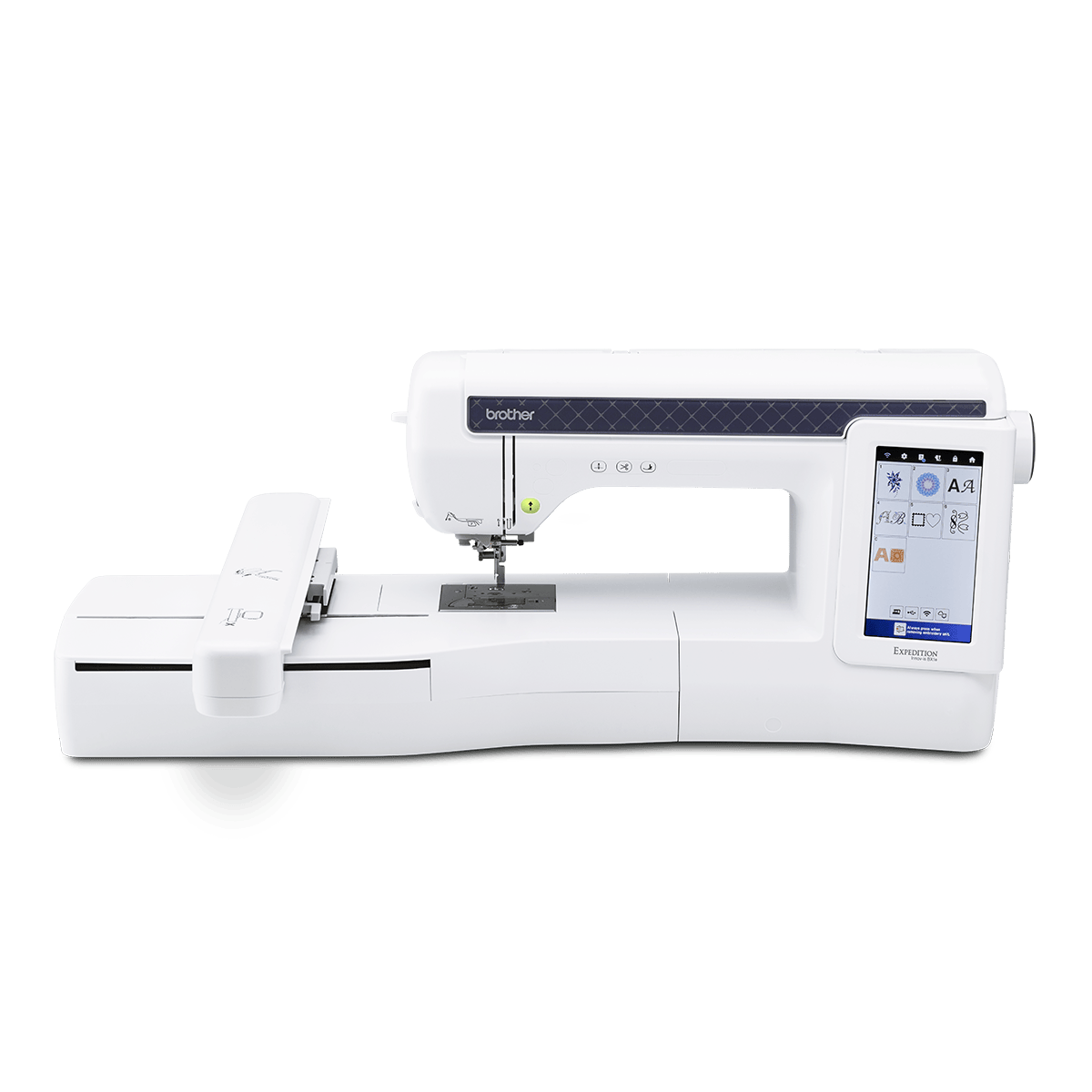

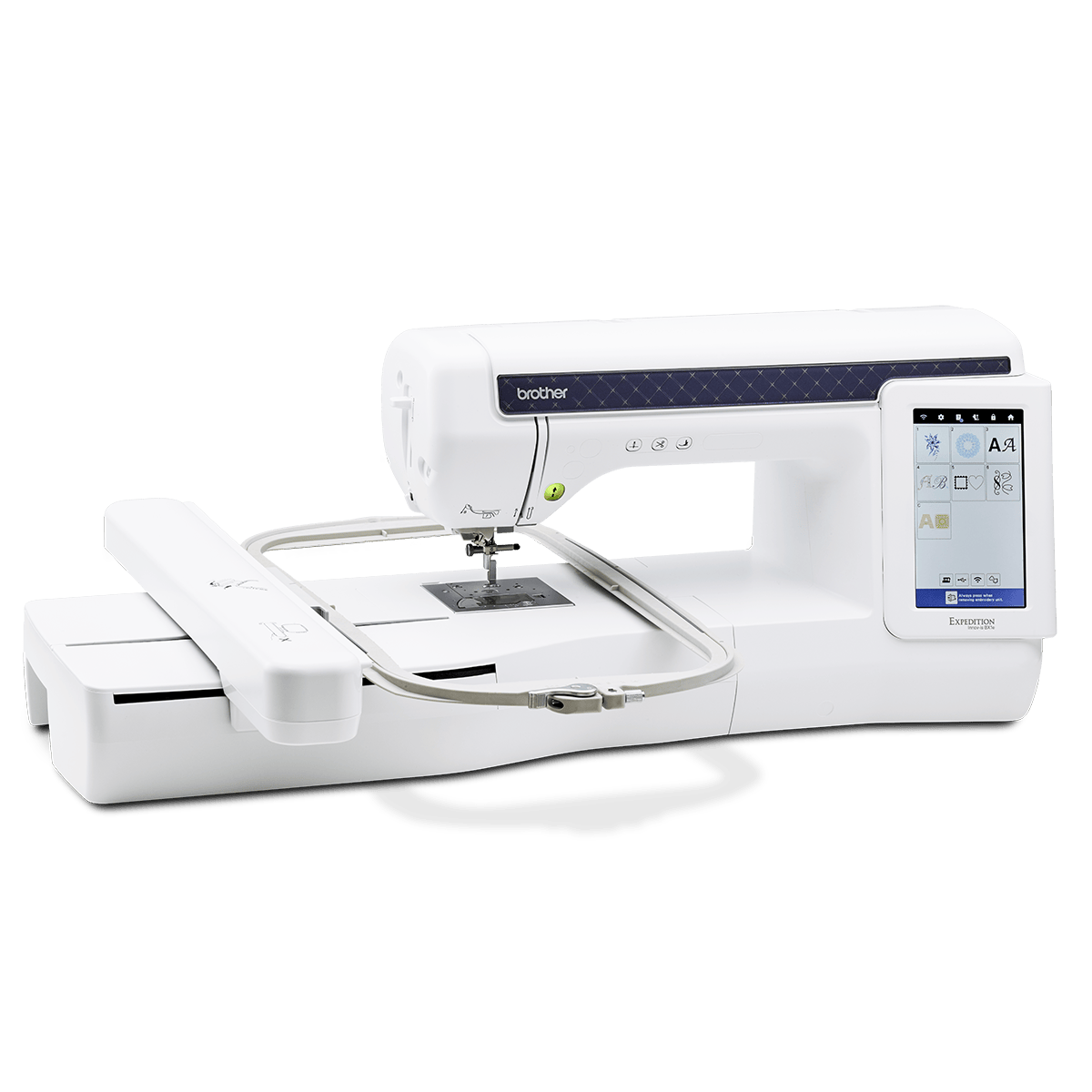

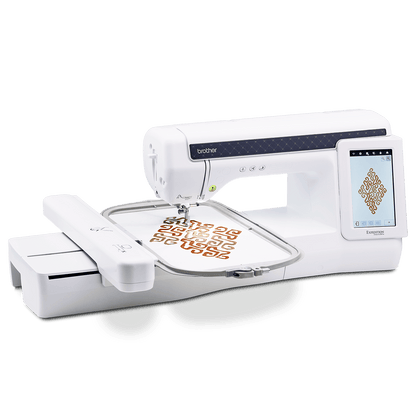

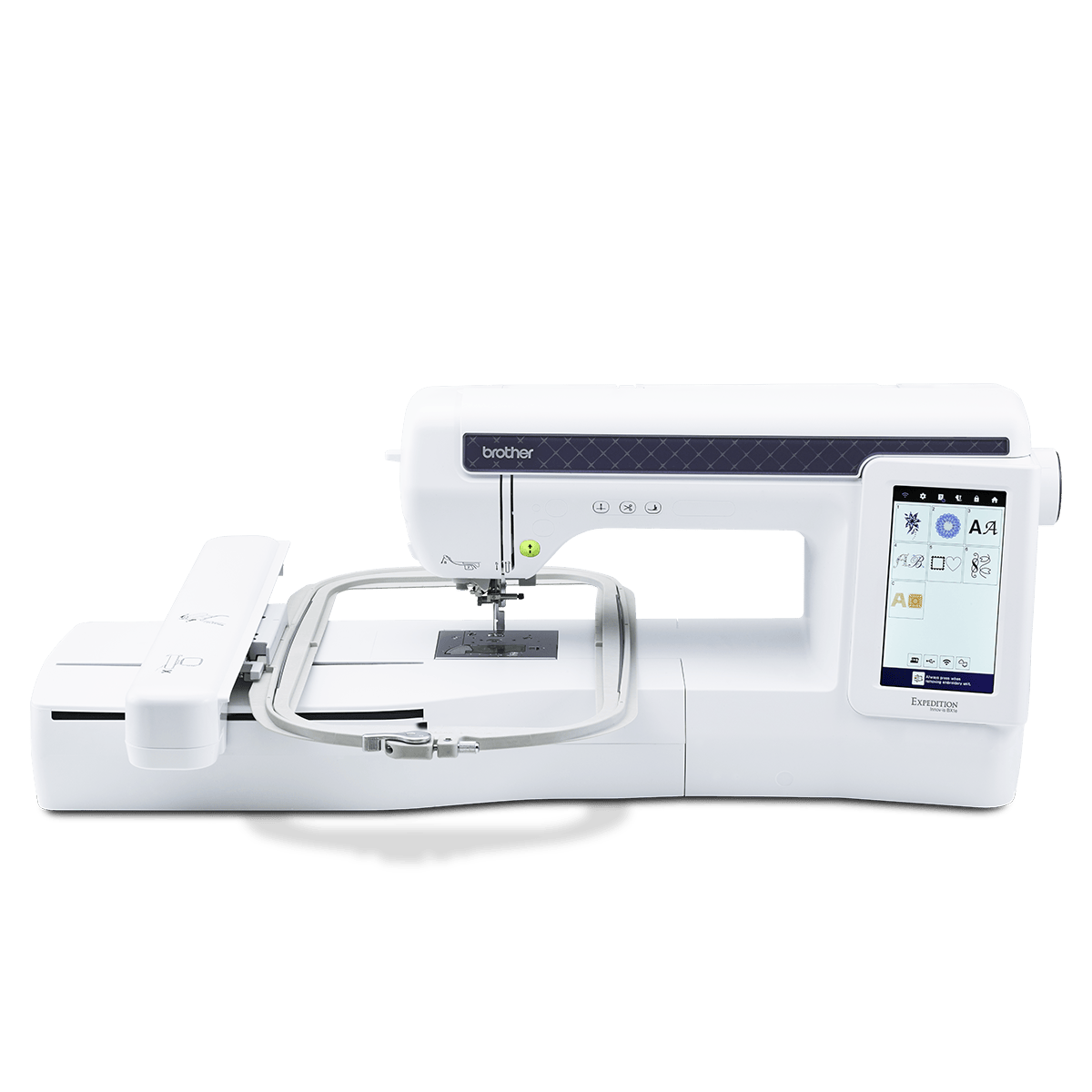

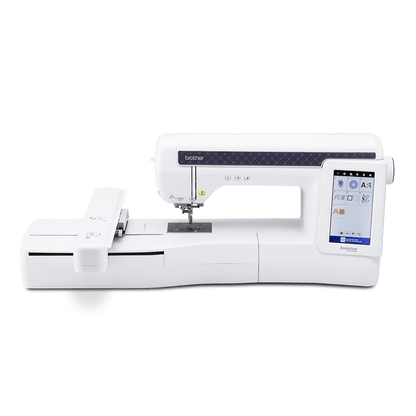

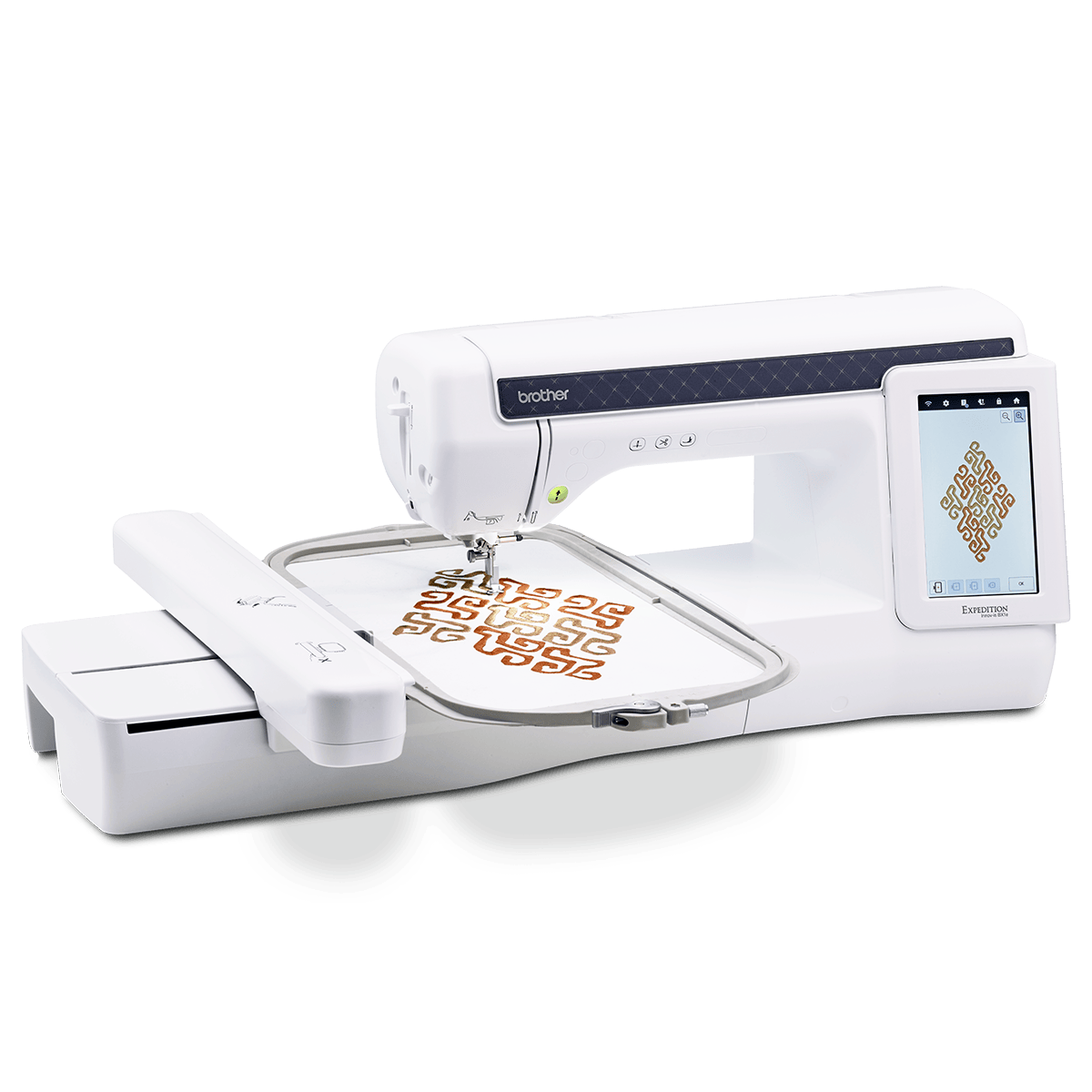

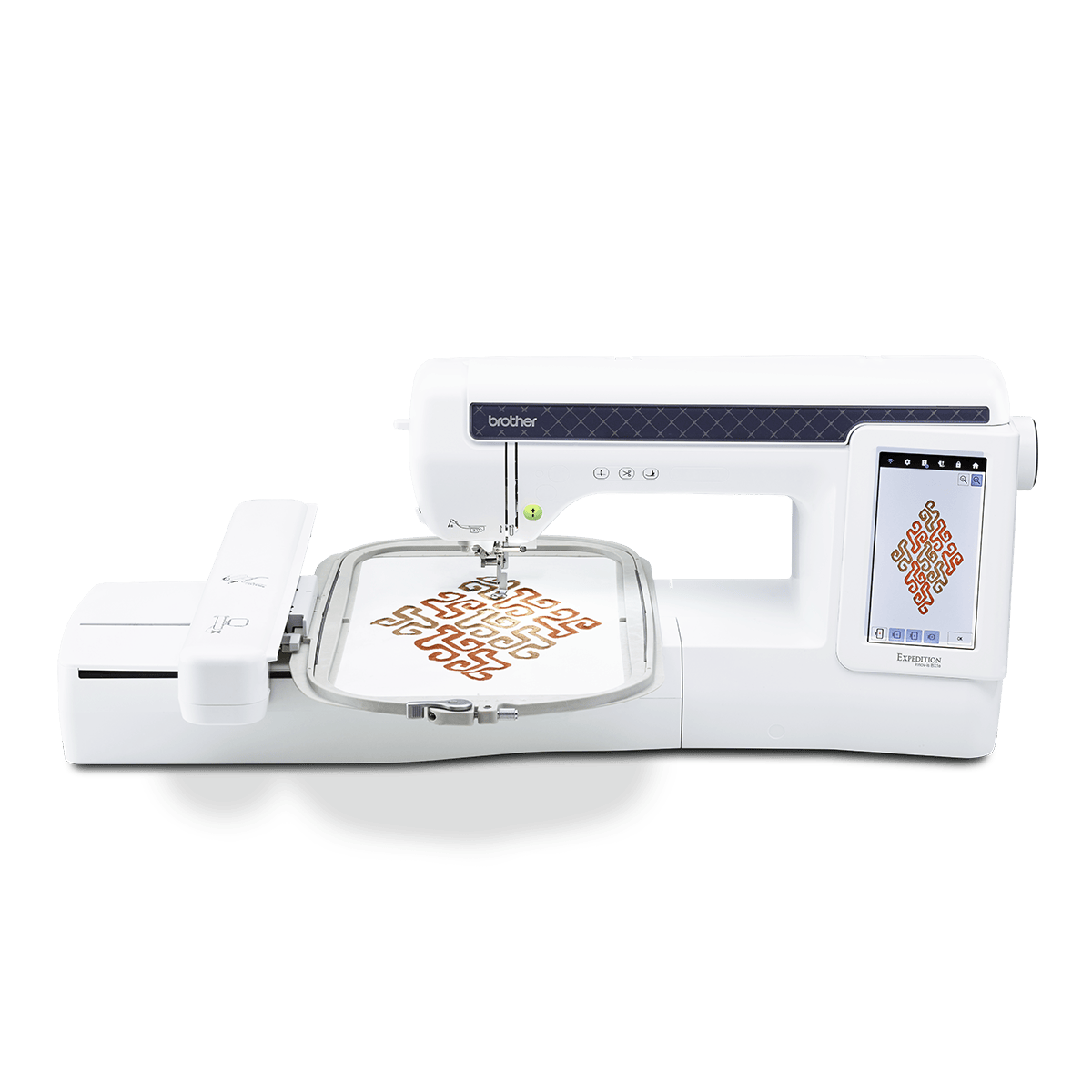

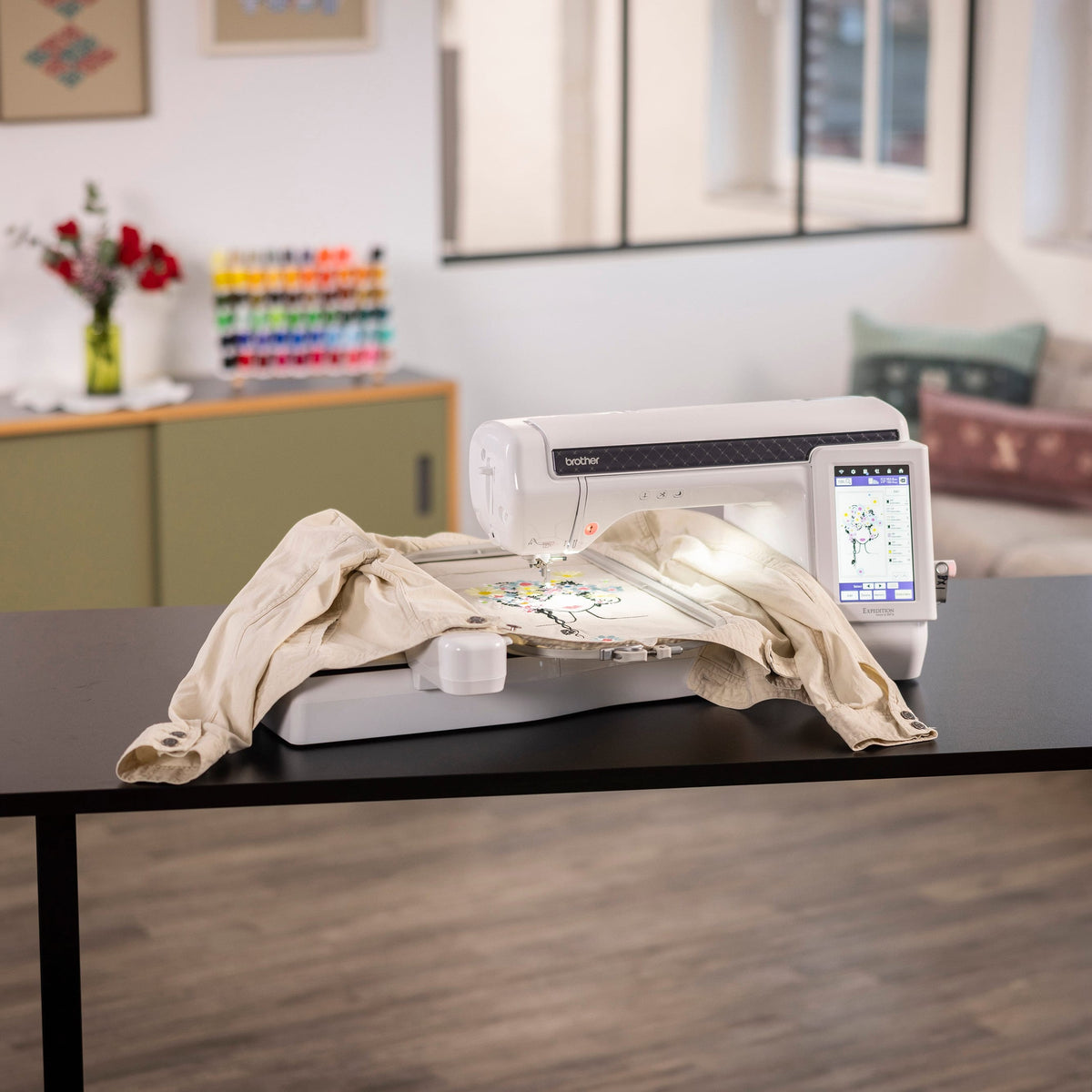

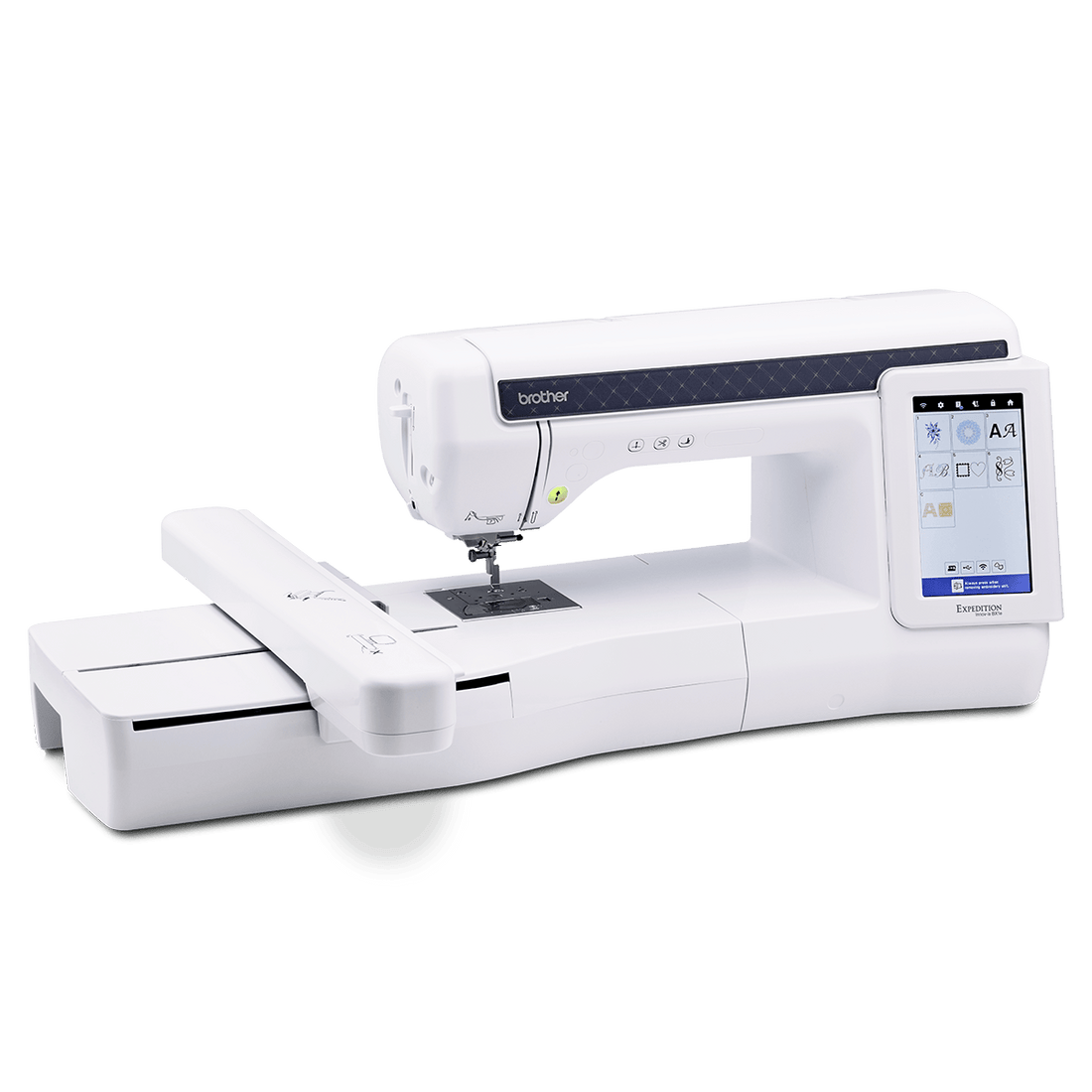

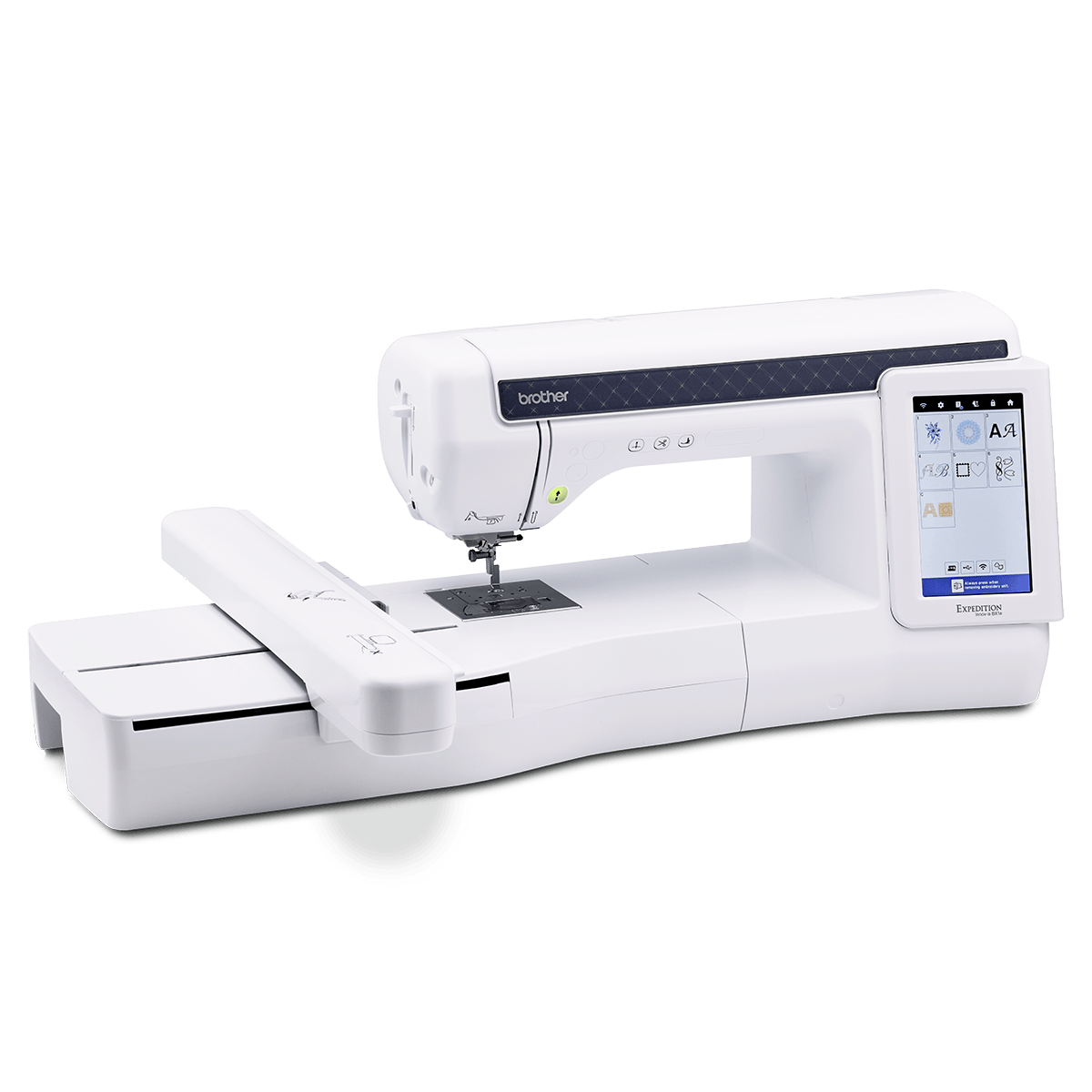

Brother Expedition Innov-is BX1e Embroidery Machine

The Brother Expedition Innov‑is BX1e is a premium, feature‑rich embroidery machine built for makers who want professional capability, intuitive control and exceptional stitch precision. Designed to be durable, flexible and innovative, the BX1e delivers advanced embroidery performance in a sleek, modern chassis that’s ready for everyday creativity and small‑business use.

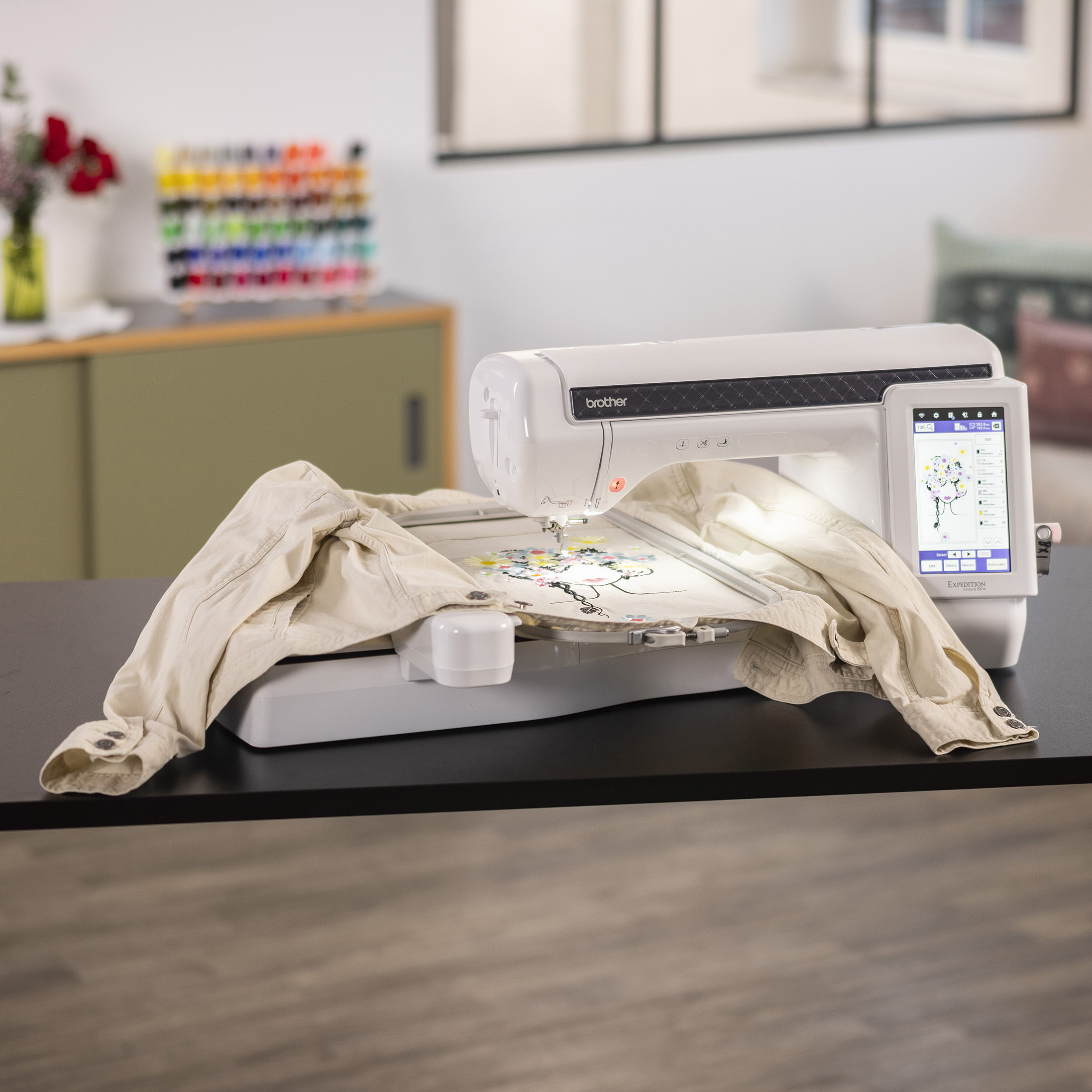

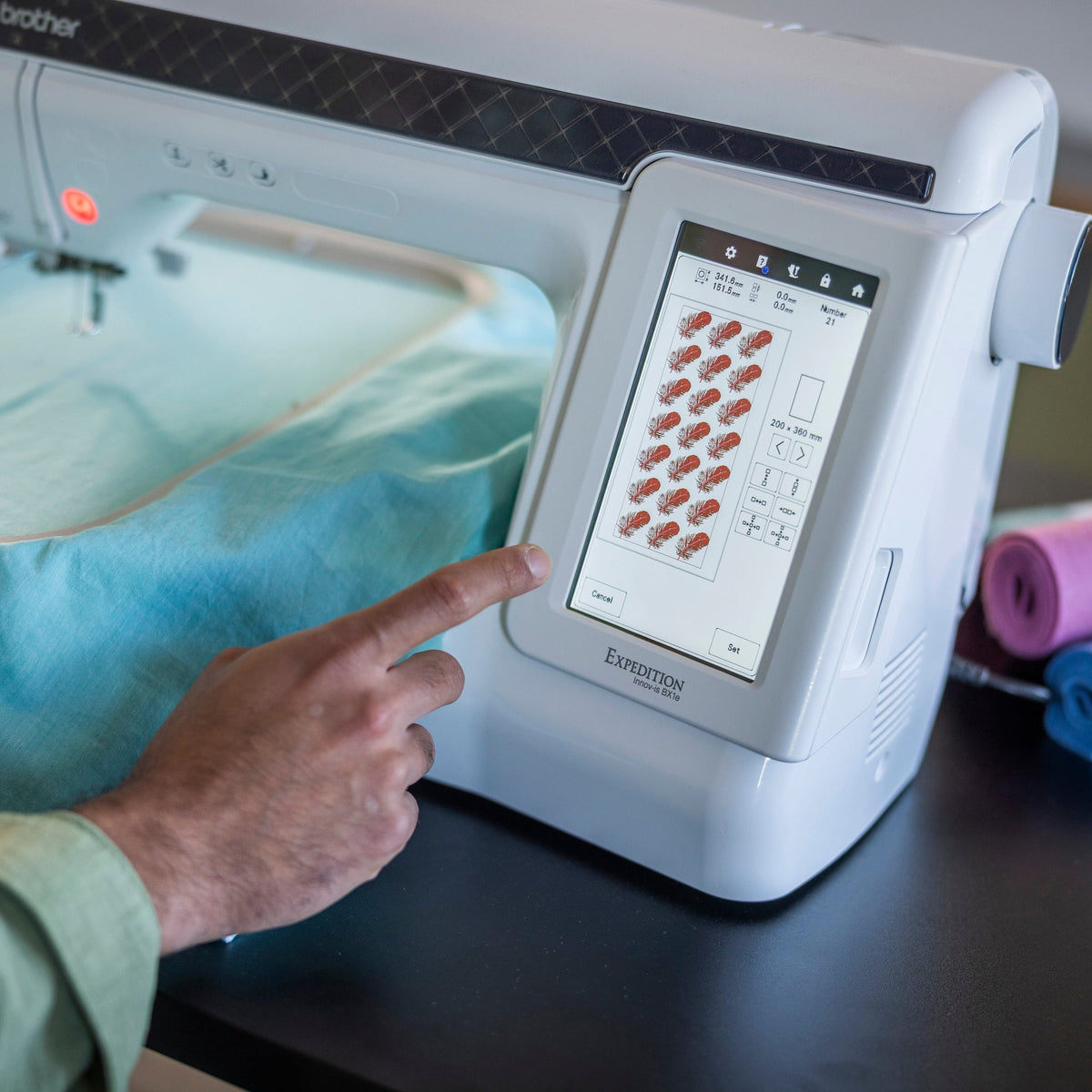

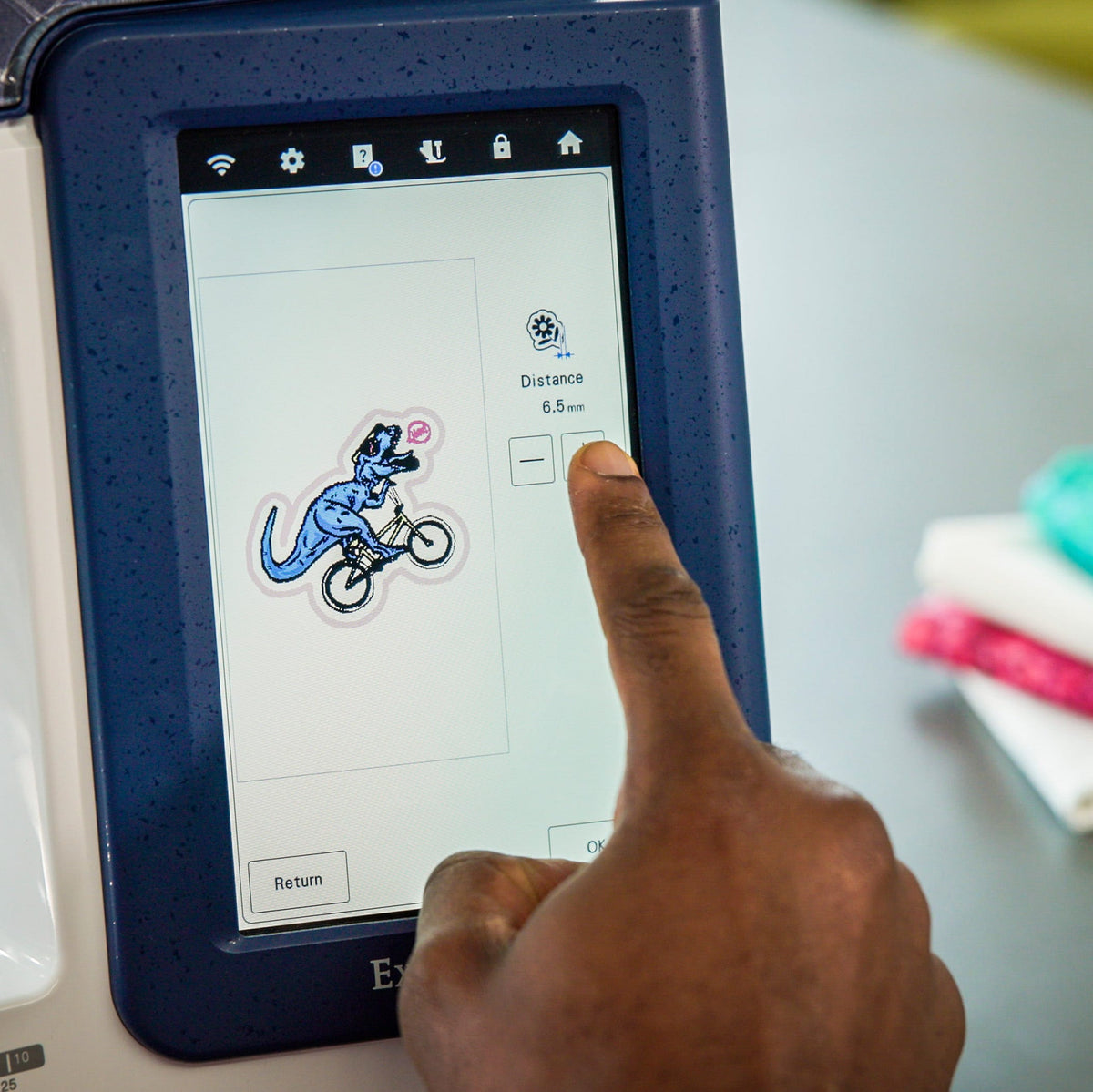

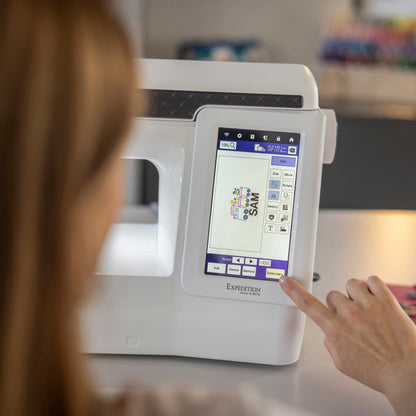

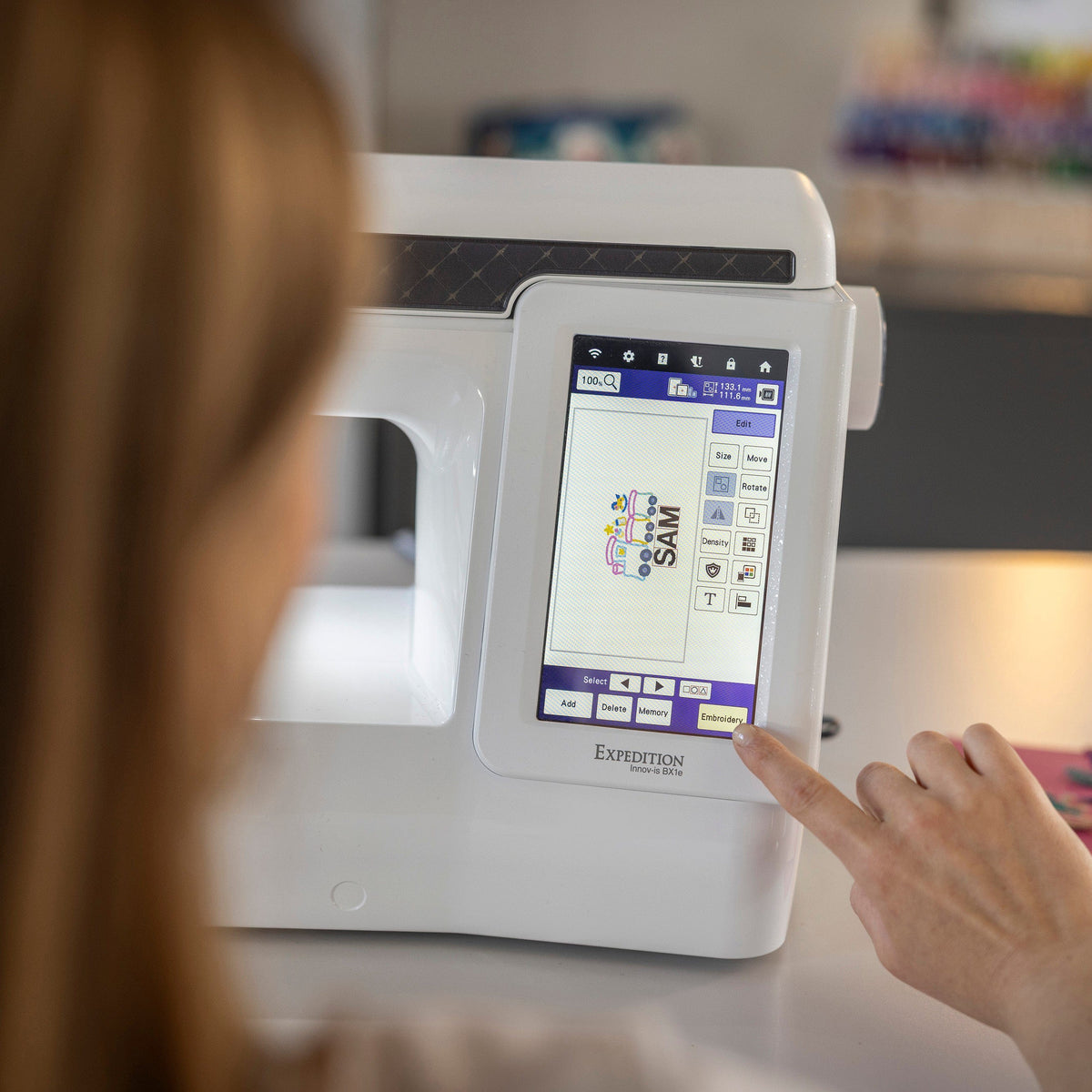

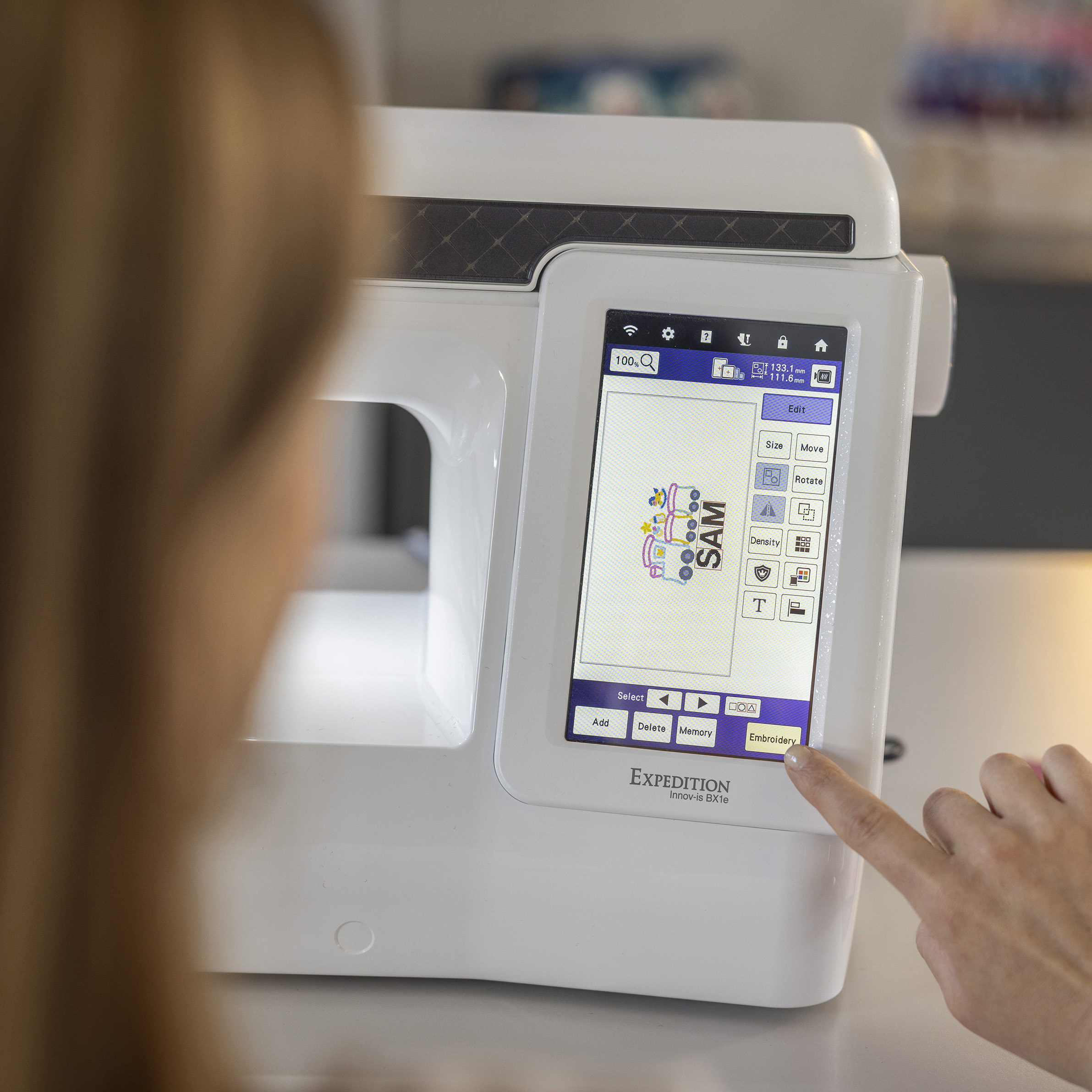

With a generous 360 × 200mm embroidery area, the BX1e offers space for large motifs, in‑the‑hoop projects and repeated designs. Its 7" colour LCD touchscreen provides a clear, intuitive interface for editing, positioning and previewing designs. The machine includes over 900 built‑in embroidery patterns, 140 frames, 23 fonts, plus specialist techniques such as 3D appliqué, crochet couching, French knot embroidery and lace crochet.

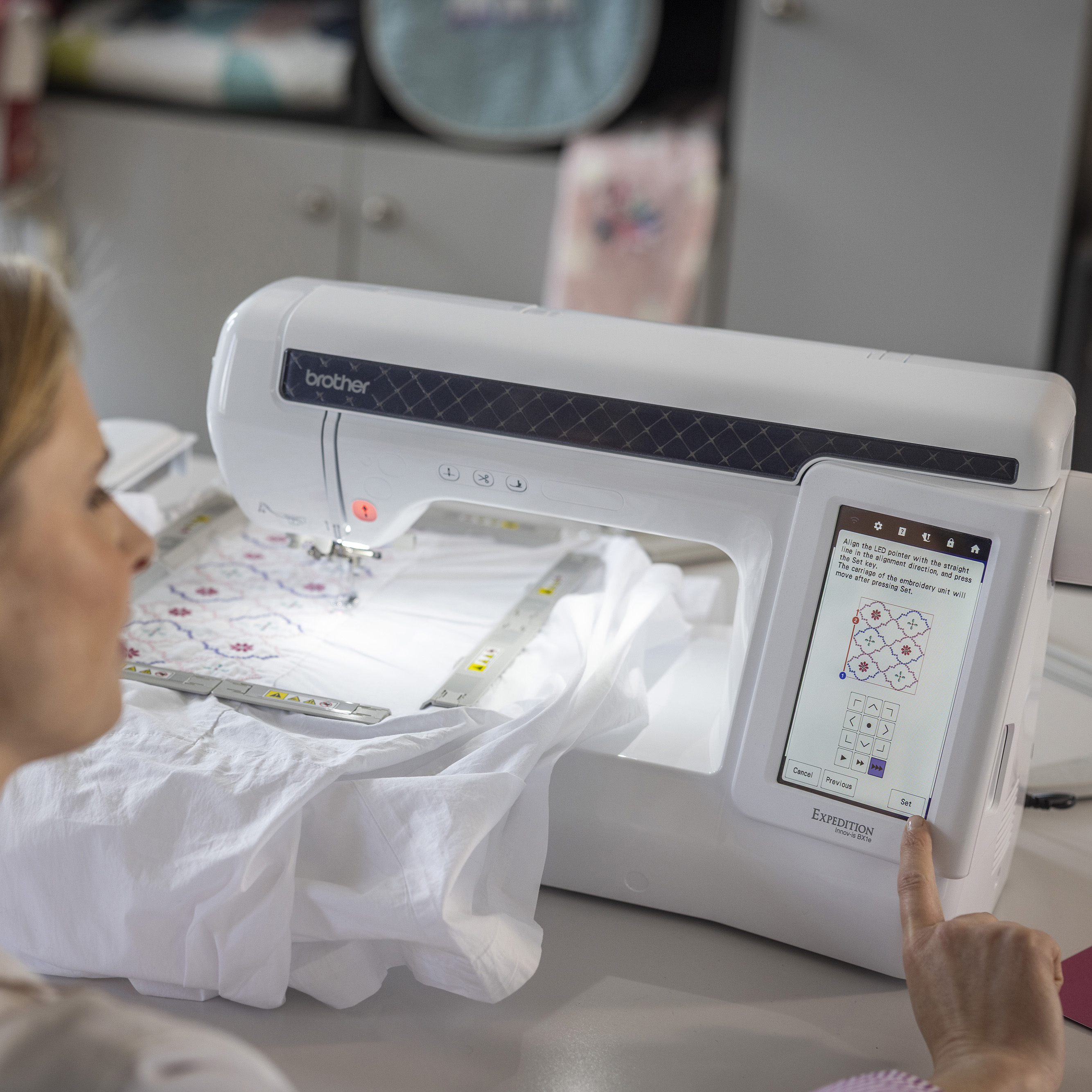

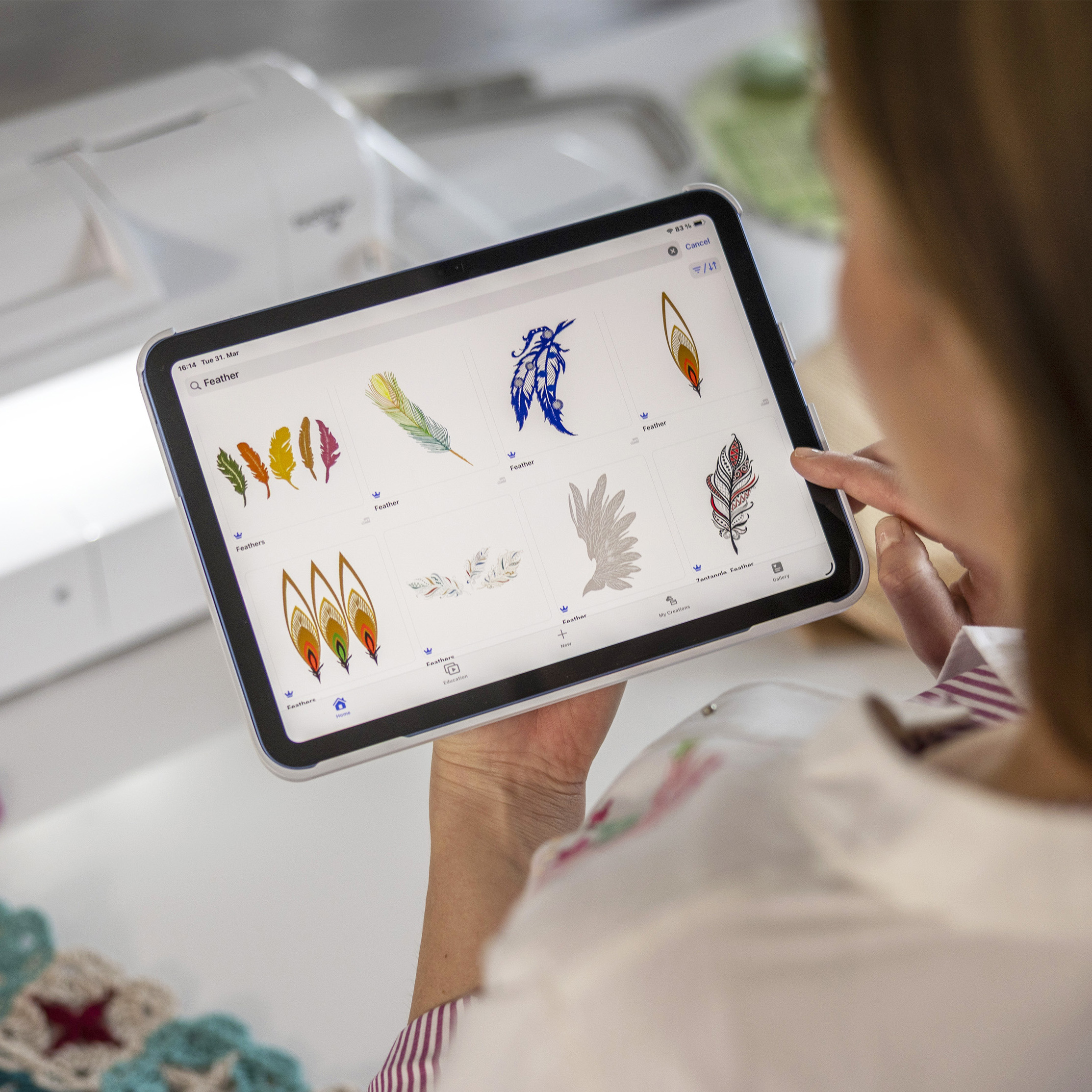

Precision comes as standard with the LED laser pointer, two‑point positioning, matrix copy function, colour sorting, auto density adjustment and programmable jump‑stitch cutting. Wireless connectivity allows you to receive updates and connect to Brother’s Artspira app or digitising software.

Packed with advanced engineering - automatic needle threading, drop‑in bobbin, upper/lower thread sensors and bright LED lighting - the BX1e is designed to support confident embroiderers, growing businesses and creative explorers.

A powerful, intuitive embroidery machine built to go the distance.

• 1 x Embroidery frame set 360 mm (H) × 200 mm (W)

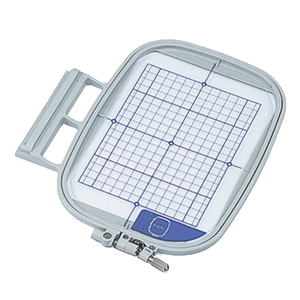

• 1 x Embroidery frame set 180 mm (H) × 130 mm (W)

• Embroidery foot "UH+" with LED pointer (on machine)
• Foobridery couching
• Yarn guide
• Yarn threader
• Ball point needle set
• 75/11 3 needles, 90/14 1 needle
• Bobbin × 10 (One bobbin is on machine.)
• Bobbin clip × 10
• Seam ripper
• Scissors
• Cleaning brush
• Screwdriver (large)
• Screwdriver (small)
• L-shaped screwdriver
• Disc-shaped screwdriver
• Spool cap (large)
• Spool cap (medium) (on machine)
• Spool cap (small)
• Thread spool insert (mini king thread spool)
• Spool net
• Embroidery needle plate cover
• Bobbin case (no color on the screw) (on machine)

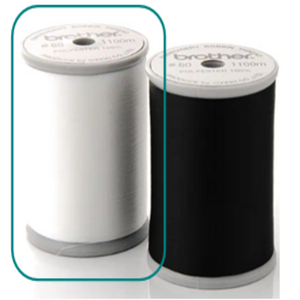

• Embroidery bobbin thread (#90, white)
• Stabilizer material
• Touch pen (stylus)
• Power cord
• Accessory bag
• Extra spool pin and instruction sticker
• Upper section of spool support
• Lower section of spool support
• Telescopic thread guide
• Spool pin × 2
• Spool cap (XL) × 2
• Spool cap base × 2
• Screw and washer
• Spool felt × 2
• Spool holder × 2
• Ring × 4
• Shell type machine cover
• Basic Operation Manual

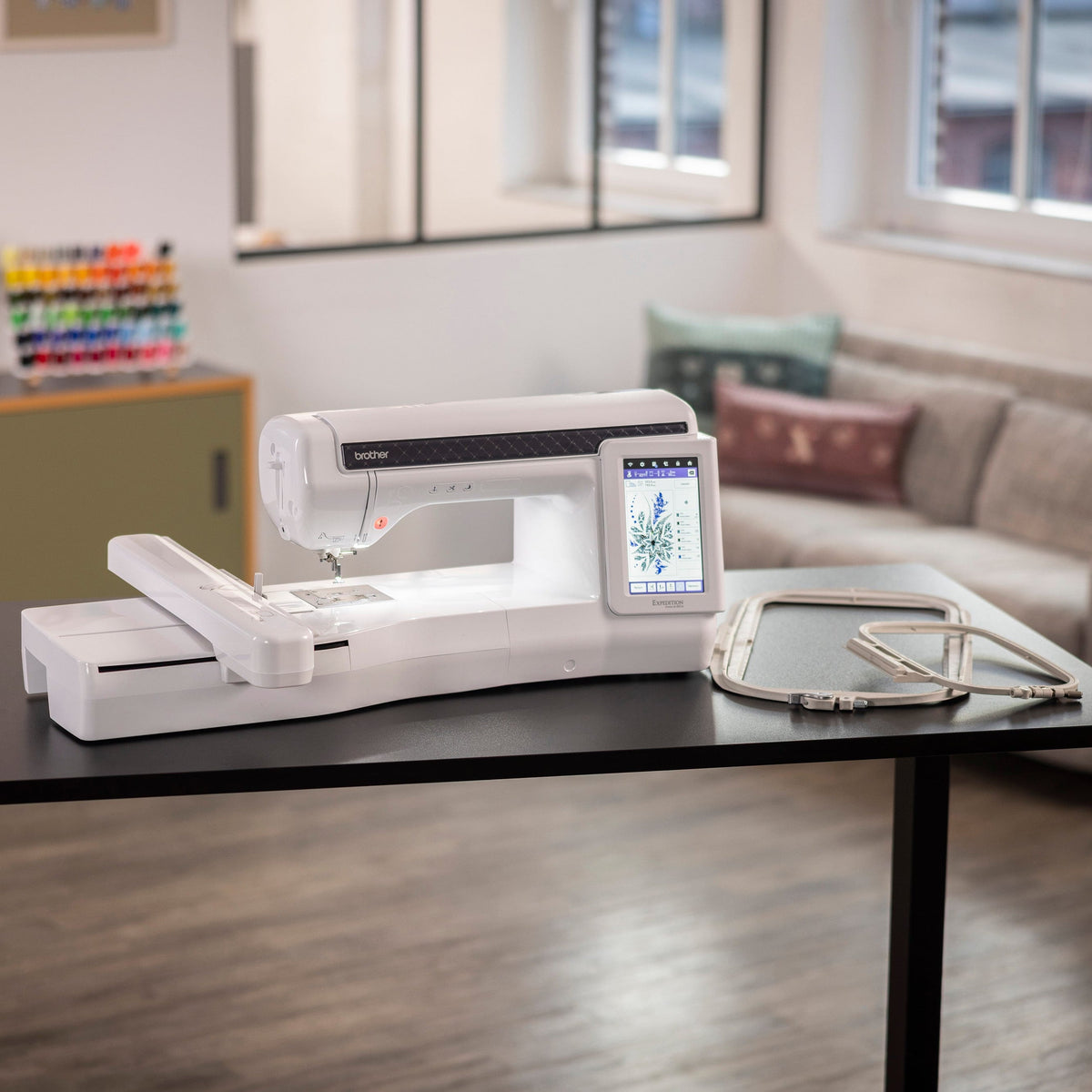

• 360 x 200mm embroidery area with two included frames
• 774 built-in embroidery designs, 140 frames and 23 fonts

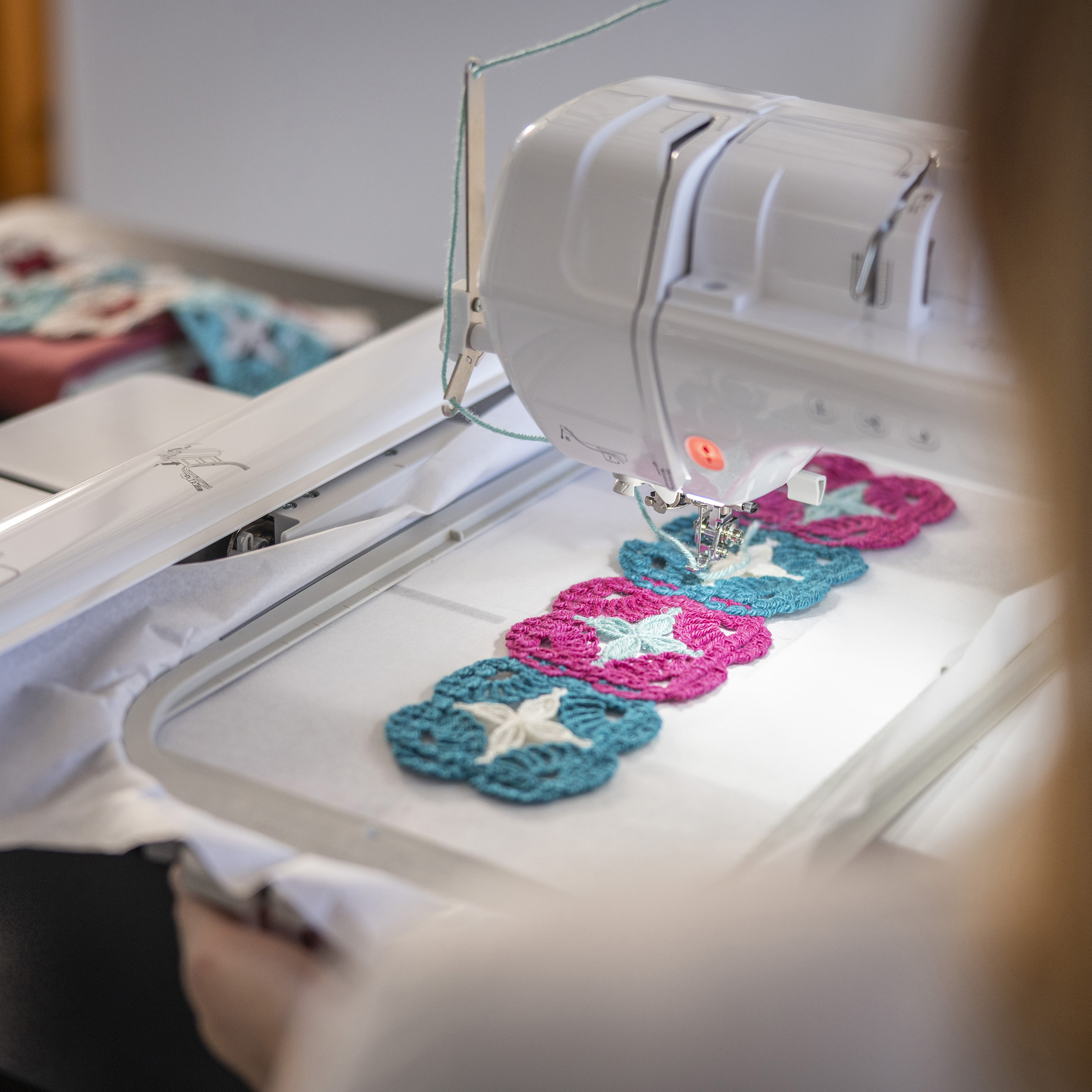

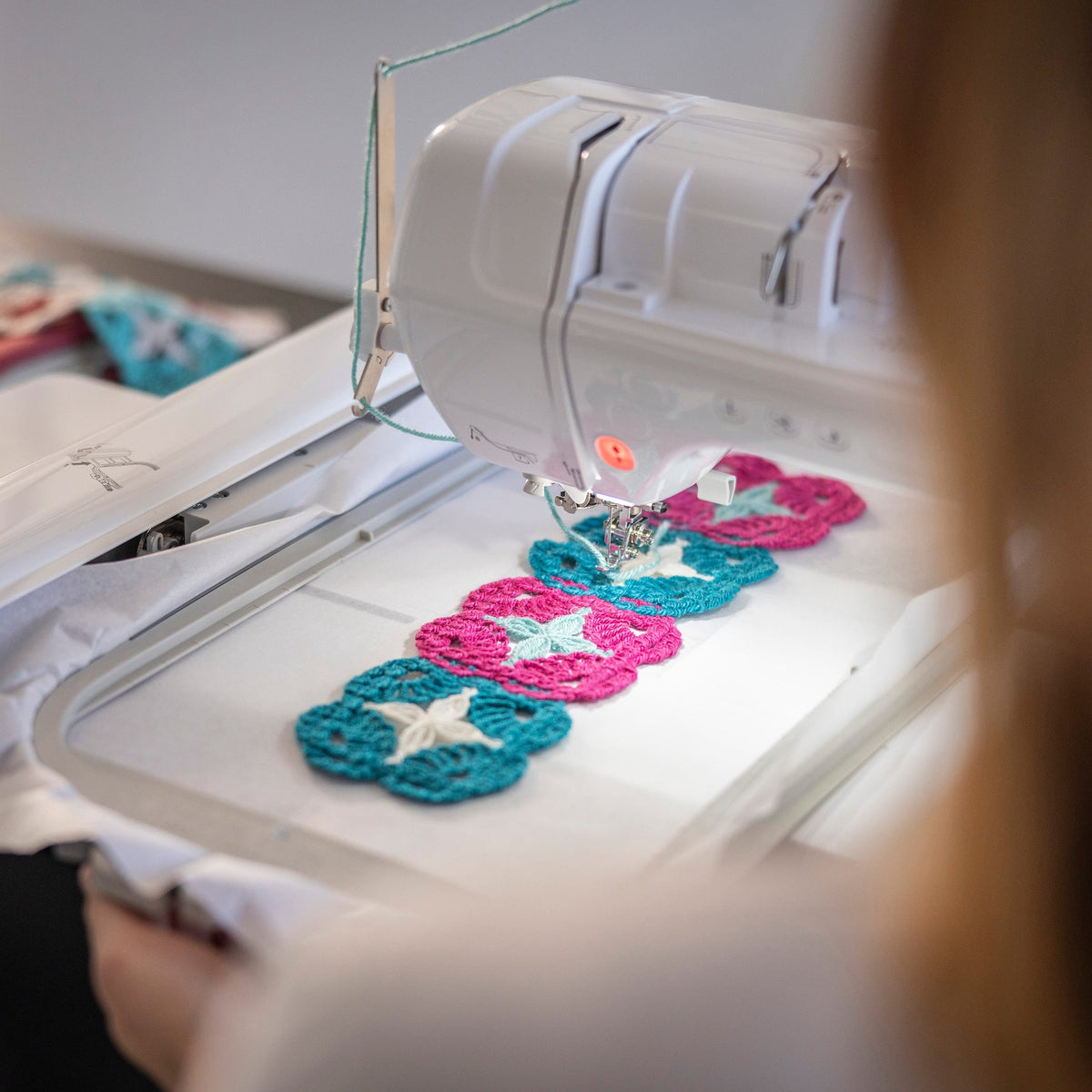

• 3D appliqué, crochet couching, lace crochet and French knot embroidery
• Appliqué function to create quick patches

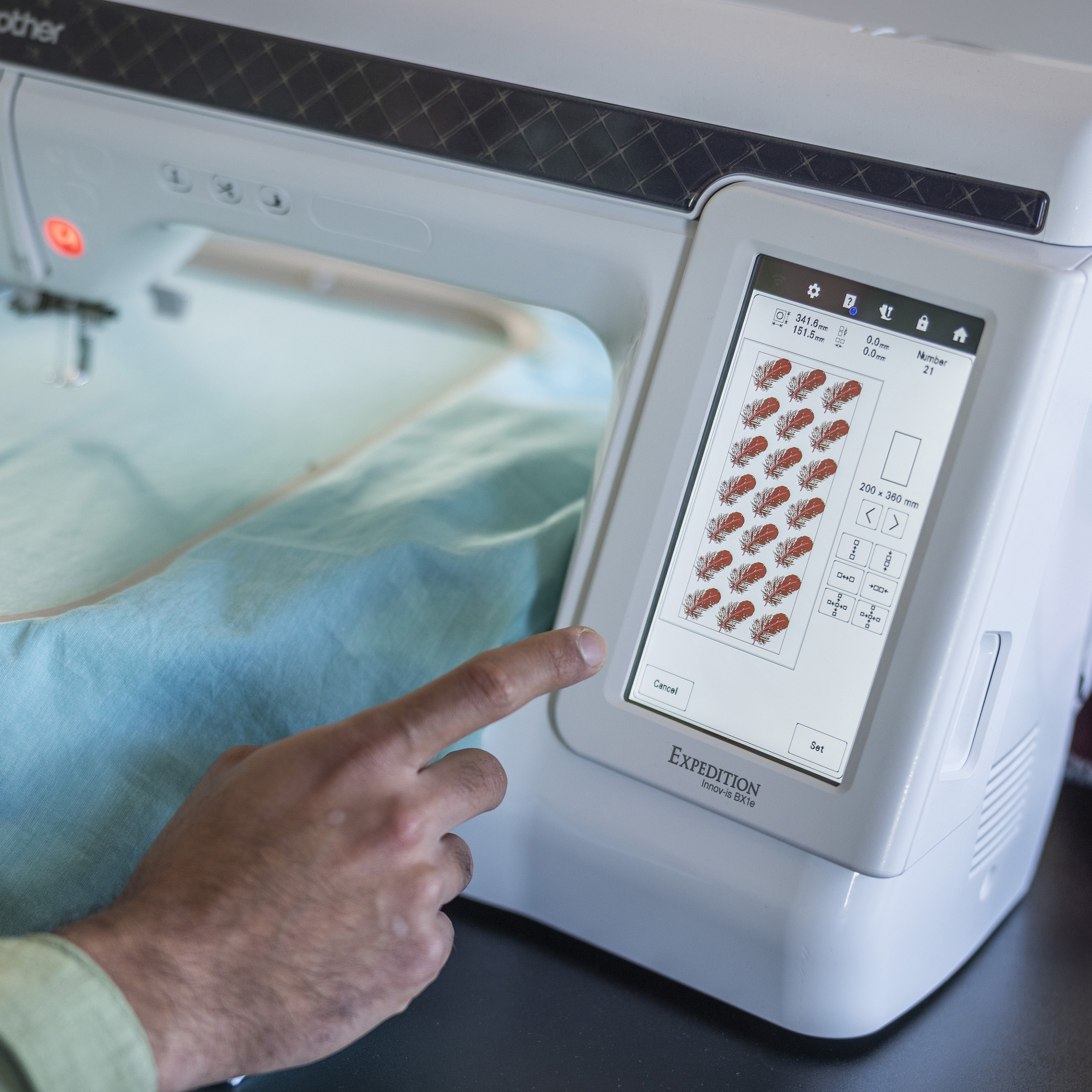

• Matrix copy function
• Colour sorting
• LED drop pointer, two-point positioning
• Automatic stitch density adjustment (Stitch to Block function)
• Programmable jump stitch cutting
• Wireless connectivity

• Product Type: Embroidery
• Skill Level: Expert, Intermediate, Small Business Use
• Bobbin Type: Horizontal
• Case: Semi-rigid soft case
• Machine Type: Electronic
• Insertion of Bobbin: Quick Set Bobbin
• Lighting: 3 LEDs
• Number Of Needles: 1
• One-Finger Needle Plate Removal: Yes
• Design Database Transfer app for Windows PC: Yes
• My Stitch Monitor App: Yes
• USB Port: USB Port
• Wi-LAN Function: Yes
• Wireless firmware updates: Yes
• Display Size: 7"
• Type of Screen: LCD-Touchscreen Colour
• Built-in Embroidery Frame Patterns: 140 (10 shapes x 14 stitch types)
• Built-In Lettering Styles (Embroidery): 23
• Built-In Patterns: 914
• Couching Embroidery: Yes
• Embroidery Area in mm: 360 x 200
• Embroidery Positioning Function: LED pointer
• Font Editing Functions/Multiple Lines and Alignment (L-C-R): L-C-R
• Font Size Selection (L-M-S): Yes
• Frames Included: 180 x 130 mm (7 x 5”), 200 x 360 mm (8 x 14”)
• Jump Stitch Trim: Yes
• LED Pointer: Embroidery foot included
• Max Embroidery Speed (Stitches per Minute): 850
• Multiple Line Text Input: Yes
• Number of Hoops (Standard Accessory): 2
• Number of Spool Stands: 2
• Pattern - Size, Change Rotation & Mirror: Yes
• Realistic Preview of Patterns: Yes
• Single Colour Pattern Converter: Yes
• Thread Colour Sorting: Yes
• Adjustable Thread Tension: Automatic
• Automatic Thread Cutter: Yes
• Bobbin Winder: Yes
• Lower Thread Sensor: Yes
• Needle Threading System: Extra Advanced
• Upper Thread Sensor: Yes
