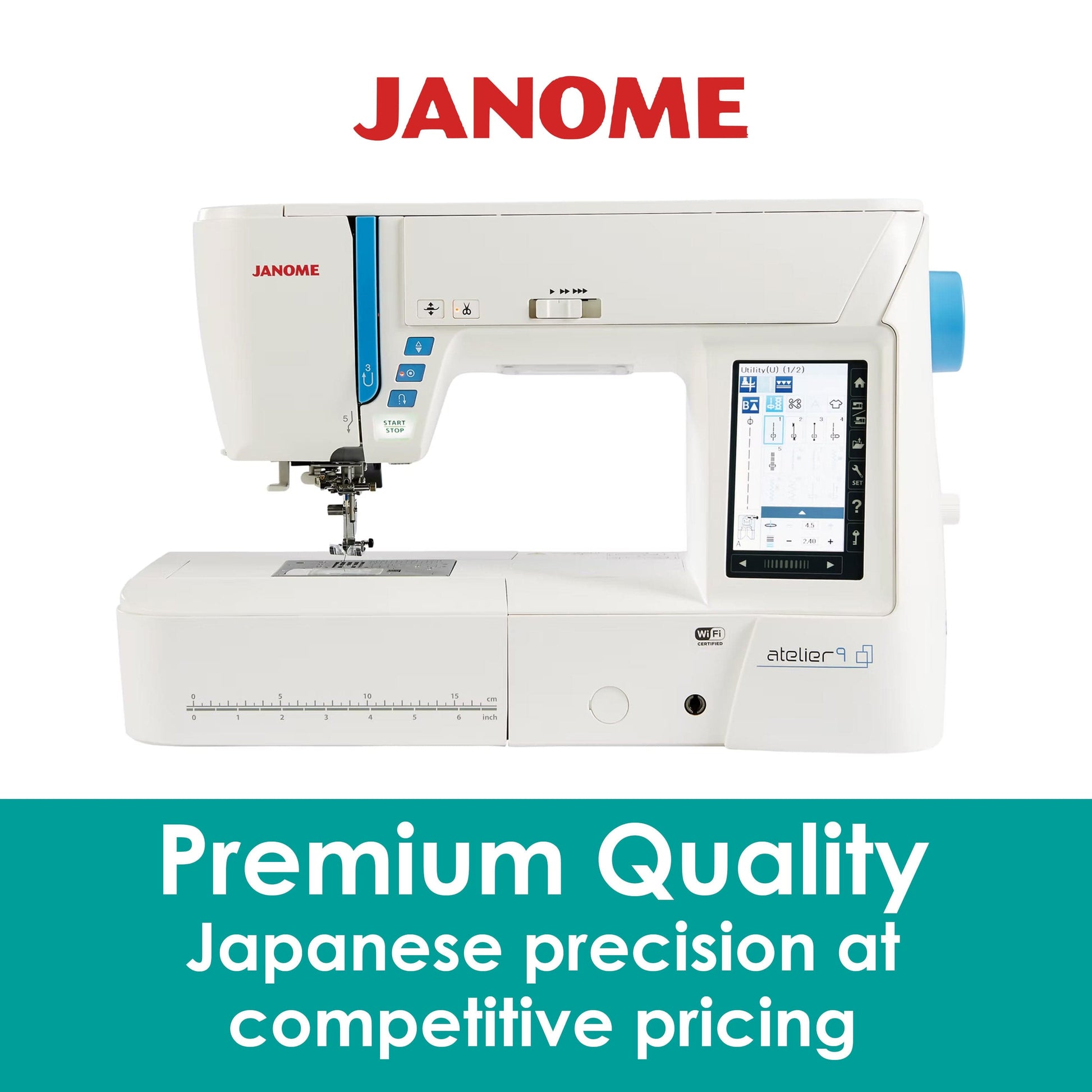

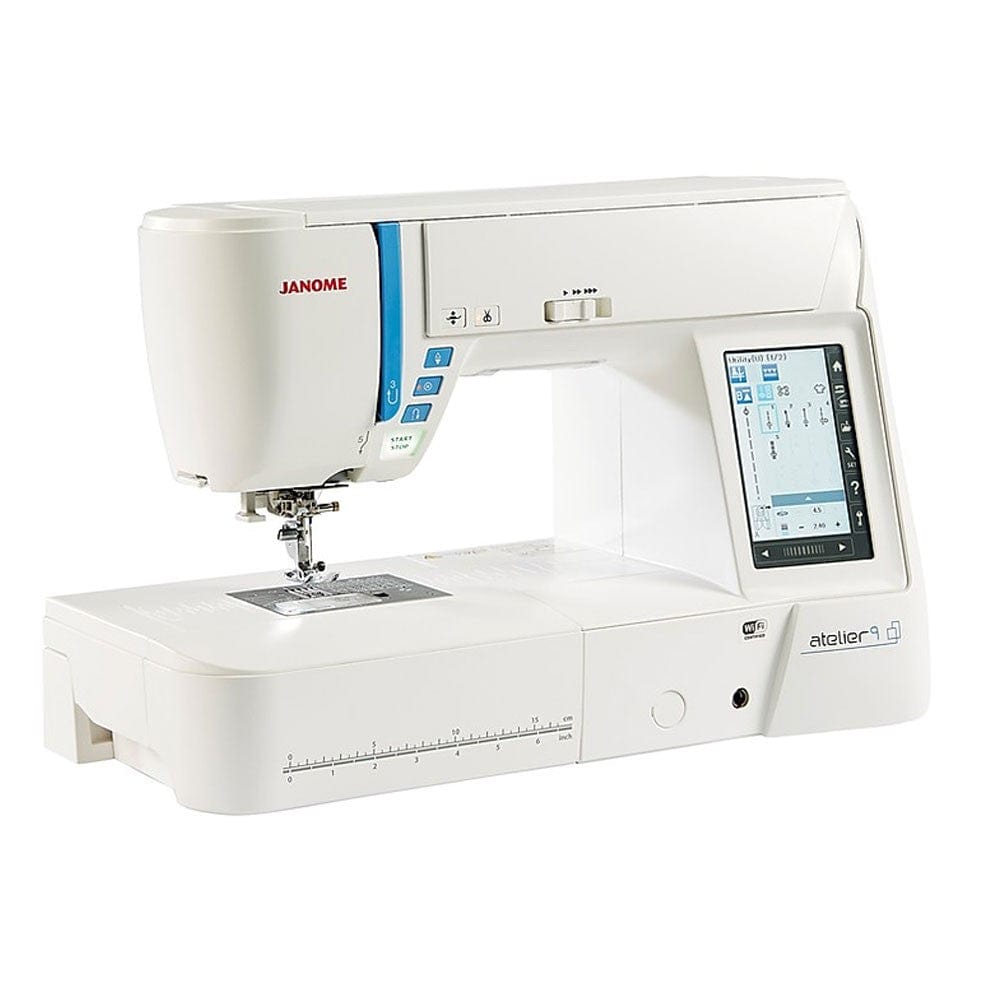

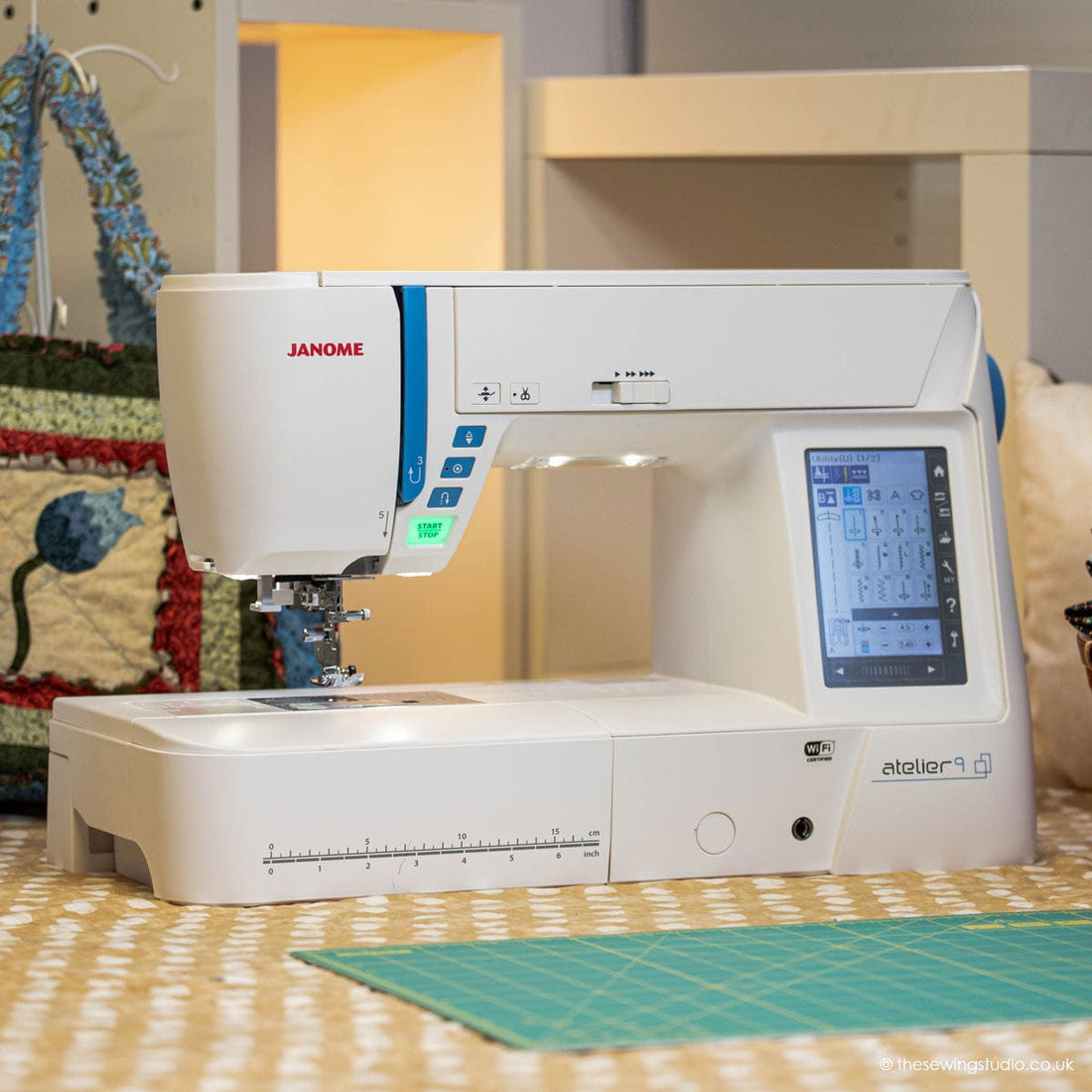

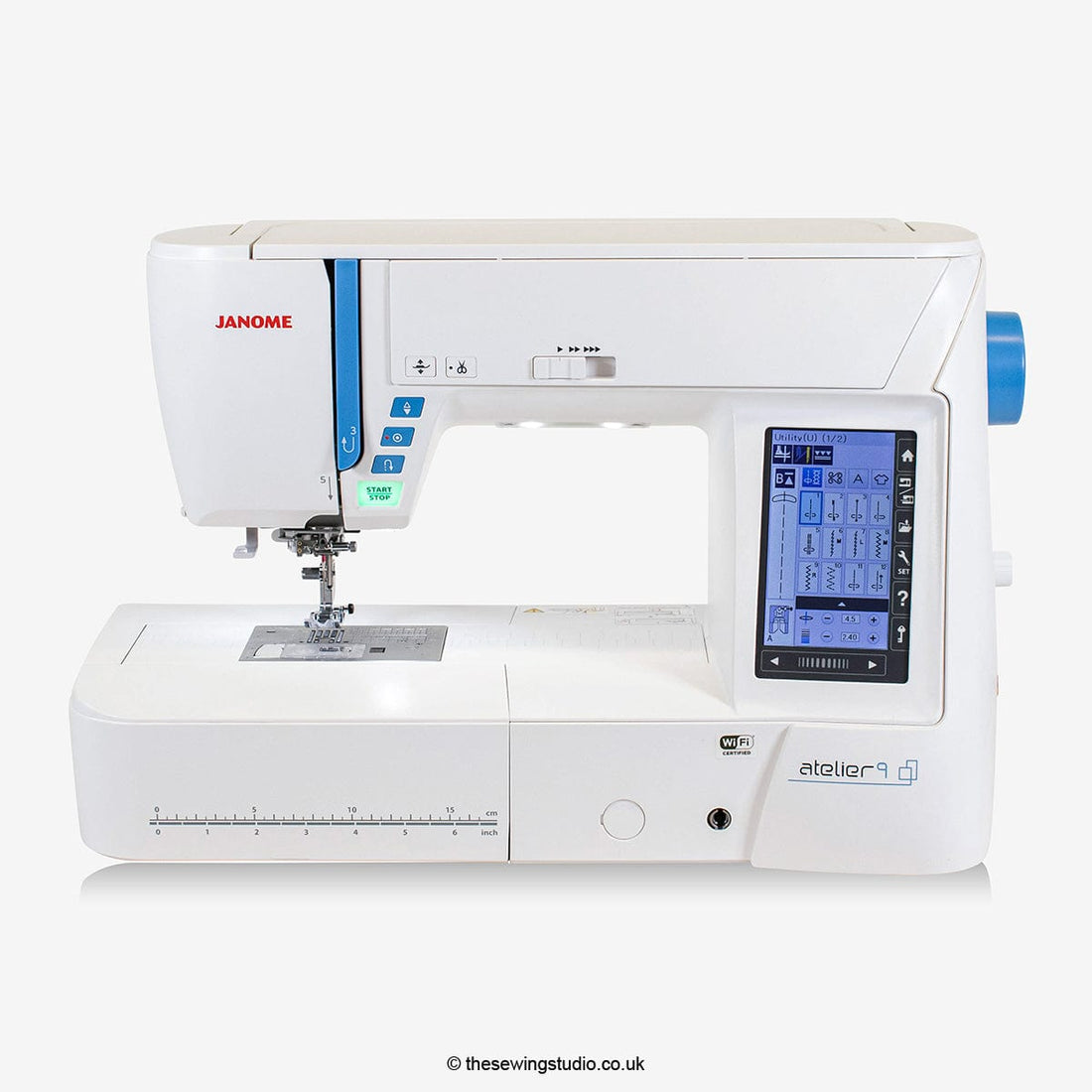

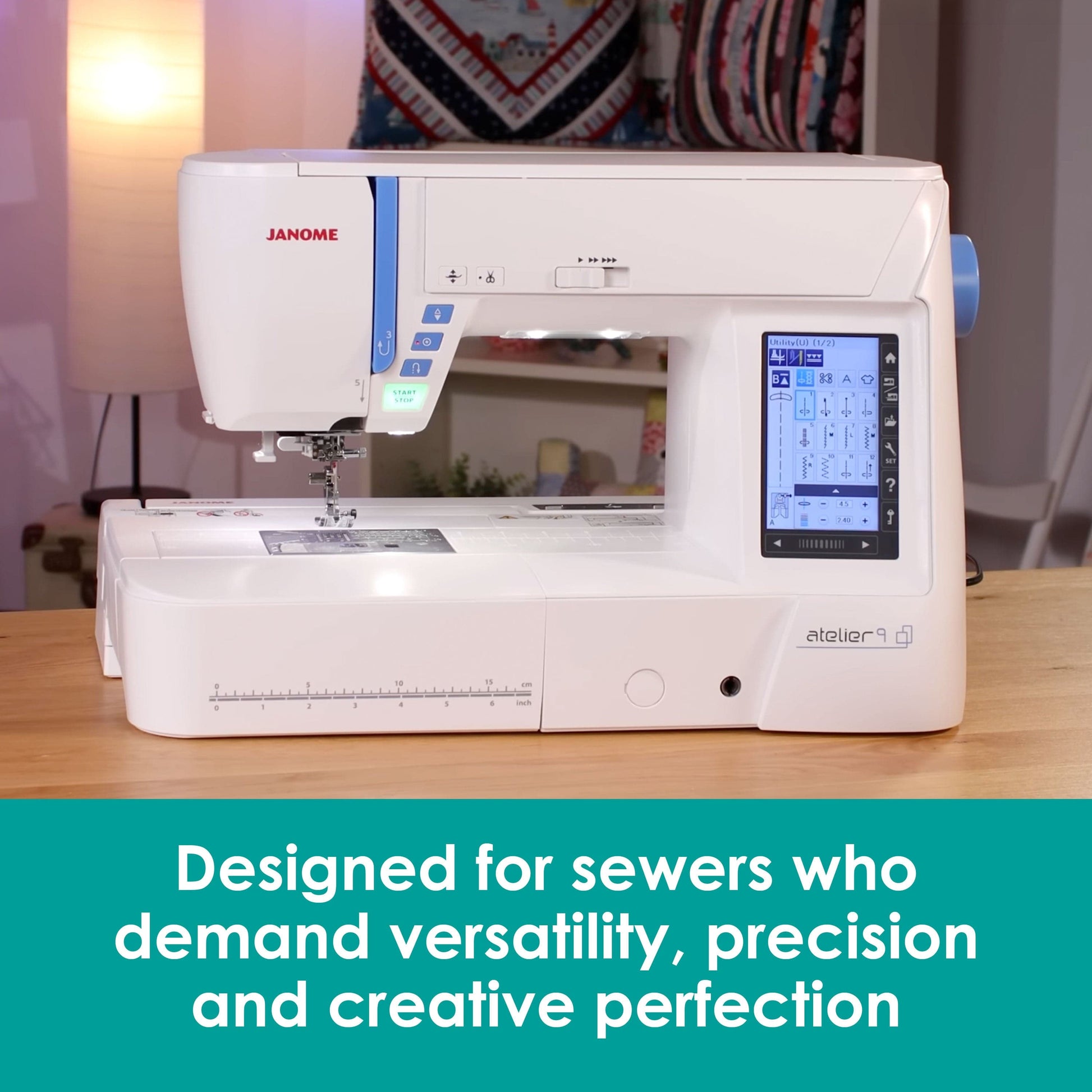

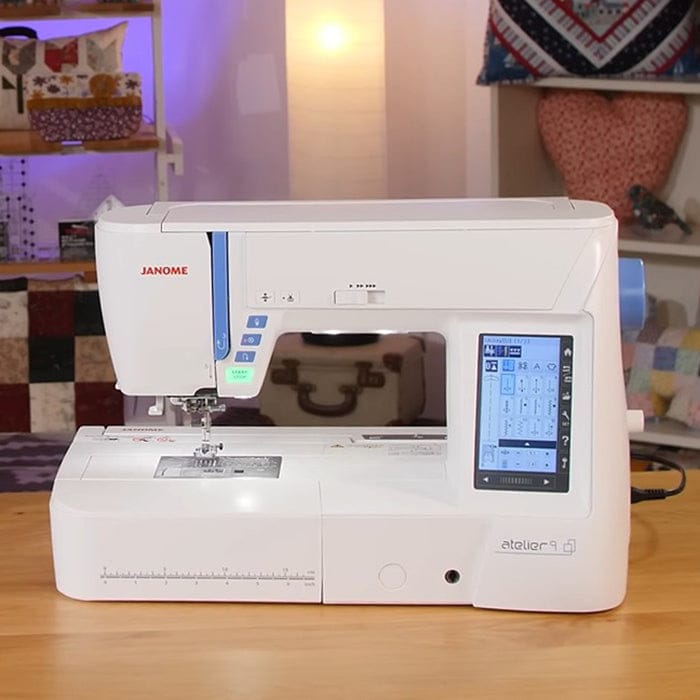

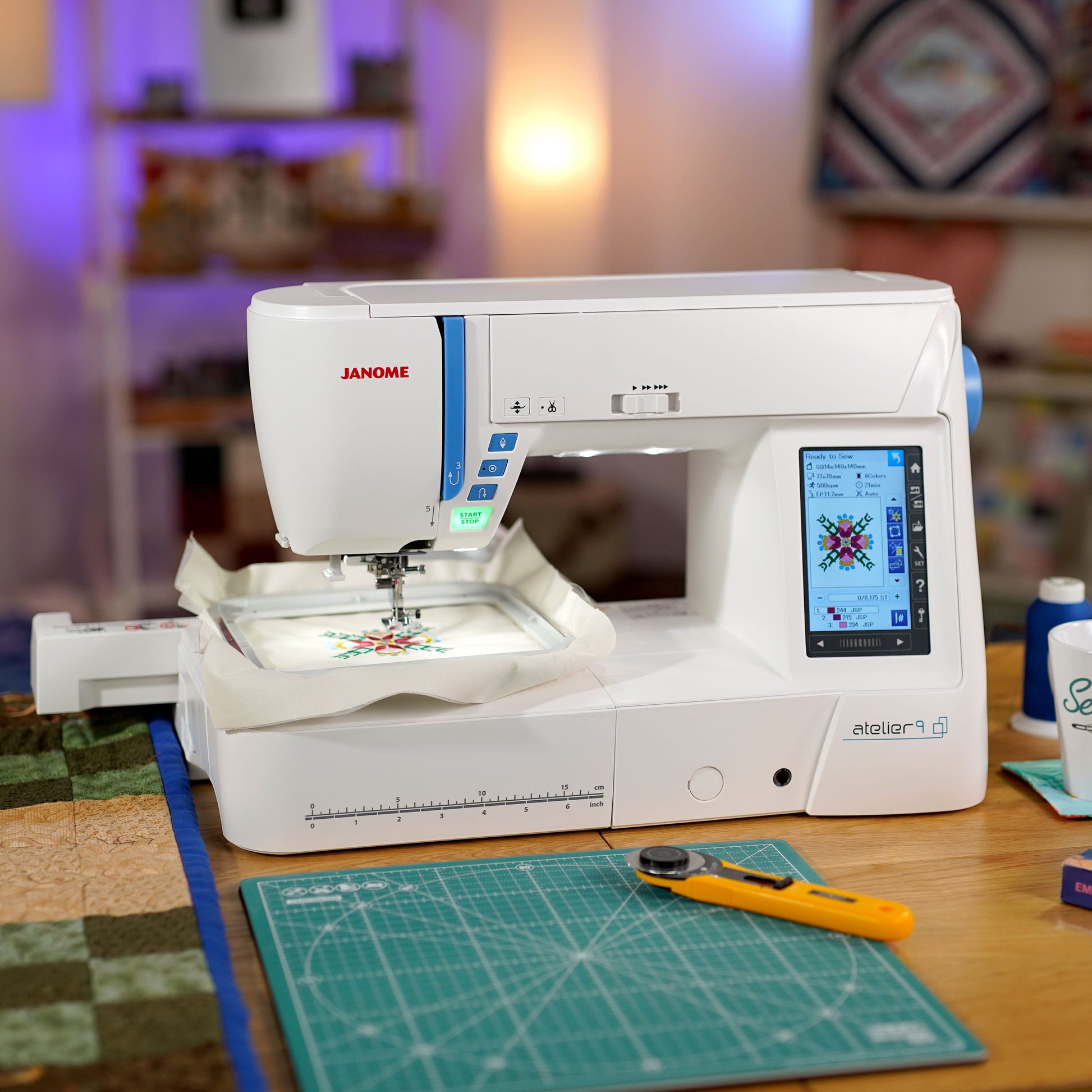

Janome Atelier 9 Sewing and Embroidery Machine
A premium combination sewing and embroidery machine combining power, precision and smart technology
£2,999.00
Spread the cost from
£79.70 per month over 48 months*
£9.00 £8.10 Save 10%
What our customers say
Shop with confidence today knowing that our sewing machine prices are the lowest possible. If we lower our prices within 14 days of your purchase, we'll refund you the difference.
Terms and Conditions apply*
This machine comes with Janome 2-year parts & labour warranty, which can be extended up to 5 years within 30 days of purchase. If you ever need support or servicing, our friendly team are always here to help.
Changed your mind? You've got 30 days to return any new, unused items in their original packaging.
Need advice?
Our in-house team knows every detail of this machine. Call, message or chat and get honest, expert advice from people who actually sew.
Our standard width fabric can be cut as a Fat Quarter, measuring 50cm x 1/2 the width of the bolt. Above is an example of how your fabric will be received, depending on the quantity ordered.
We also offer a sample service, where you can order 1 single fat quarter of any standard width fabric, to have at home and compare colours. When you are finished, you can send them back to us for a refund (feel free to contact us for more information on this service).
Our fabric can be cut as a Long Quarter, measuring a minimum of 25cm x width of bolt. We will supply the fabric as a continuous length (eg; if you bought 1.25m it will be sent as one piece of fabric).
Janome Atelier 9 Product Review & Demonstration
The Janome Atelier 9 is the flagship model in the Atelier range, a fully computerised sewing and embroidery machine built for quilters, dressmakers and makers who want precision across both disciplines. The AcuFeed Flex system feeds fabric simultaneously from top and bottom, which means consistent results on thick quilts, canvas, denim and other challenging materials that cause a standard presser foot to shift or drag. The 7-piece Superior Feed System works alongside AcuFeed Flex to keep fabric moving evenly throughout a seam.
The embroidery unit mounts to the back of the machine rather than extending to the left of the needle. This keeps the machine's footprint compact and, crucially, means the free arm remains accessible even when embroidery is in progress. The 170 x 200mm embroidery area is large enough for jacket backs, cushion fronts and substantial monogram work. With 250 stunning built-in designs, 10 monogramming fonts and a colour touchscreen for editing and positioning, the Atelier 9 covers the full range of embroidery work from personalised labels through to large decorative panels. Ambitious sewers will appreciate the advanced features such as Embroidery Couching, Variable Zig Zag, Jump Thread Trimming and more.

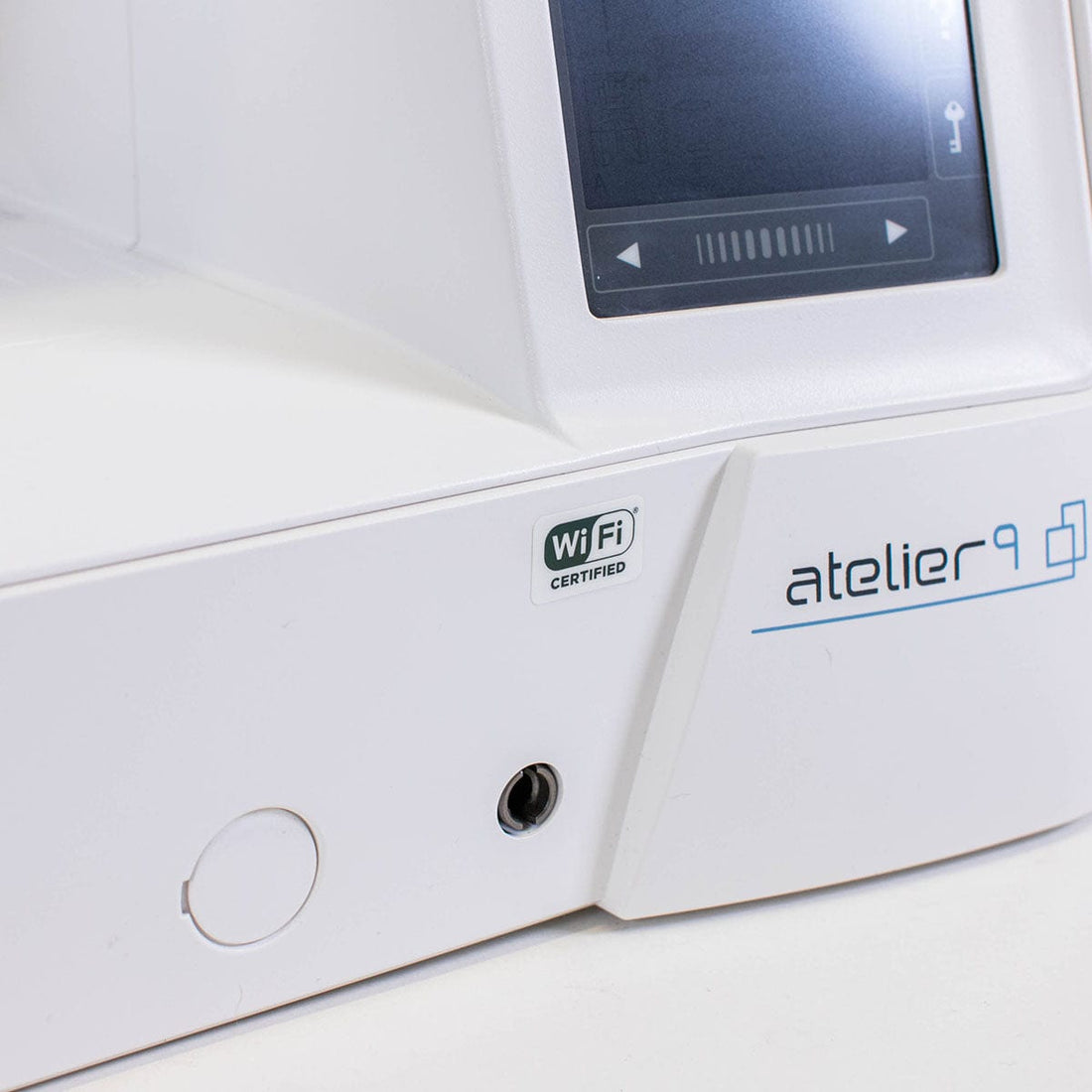

Wi-Fi connectivity allows you to send designs wirelessly from a tablet or computer directly to the machine, removing the need to transfer files via USB each time. Three dedicated Janome apps, AcuEdit, AcuMonitor and AcuSetter, extend what you can do away from the machine: edit designs, monitor stitch progress and adjust settings remotely. Automatic jump thread trimming cuts jump threads as the machine embroiders, so you spend less time finishing by hand and more time on the creative work.
On the sewing side, the Atelier 9 is a joy to sew with. Enjoy 300 built-in stitches, a 9mm maximum stitch width for bold decorative results and the Stitch Tapering function, a first for the Atelier range, which tapers the start and end of a stitch sequence for a clean, finished appearance. There are an unbelievable 91 needle positions for incredibly fine adjustments and precision.
Experience legendary Janome quality and innovation, all in one beautifully engineered machine.
Key Features
What makes this machine worth it
Machine Type
Sewing and embroidery machine, large size

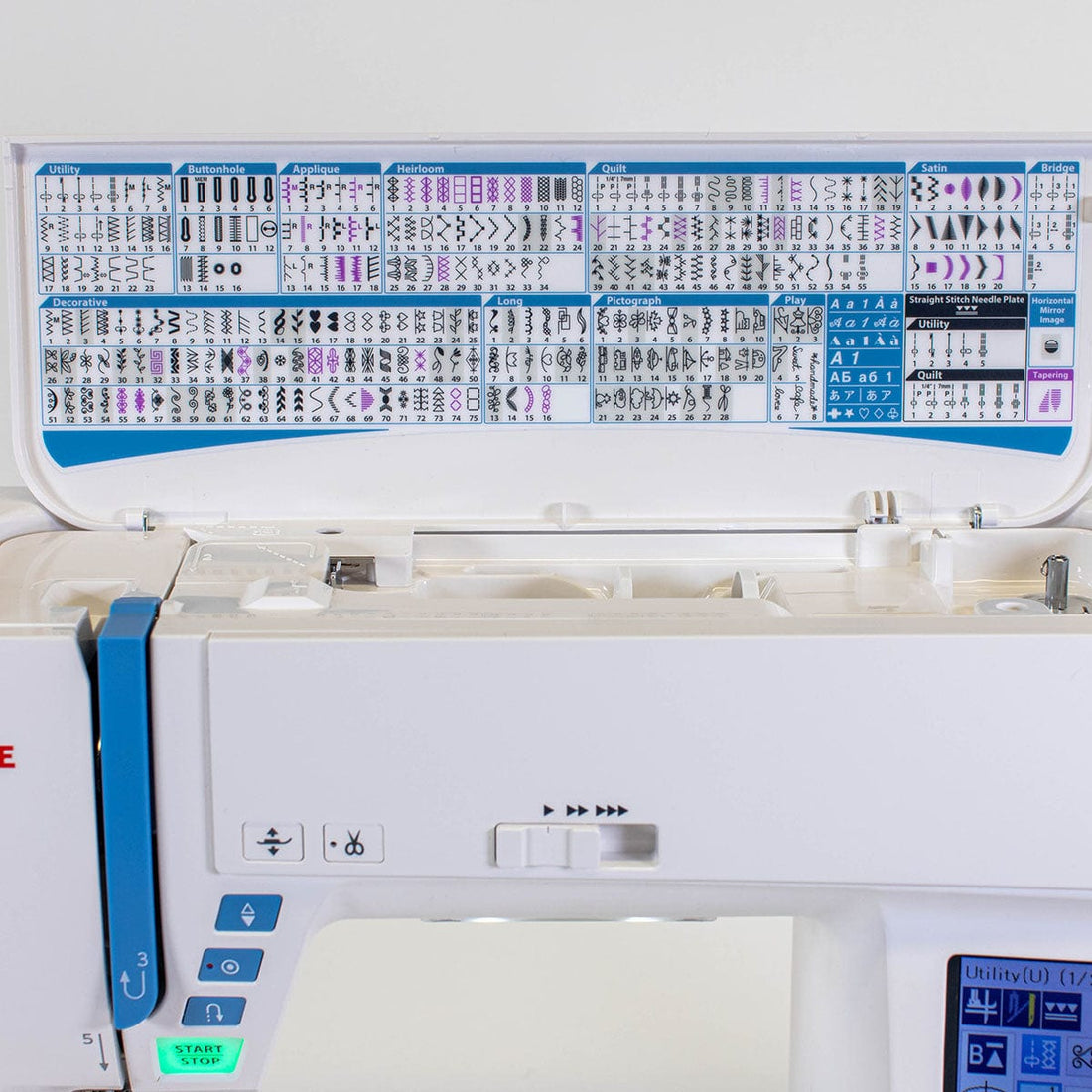

Stitch Range

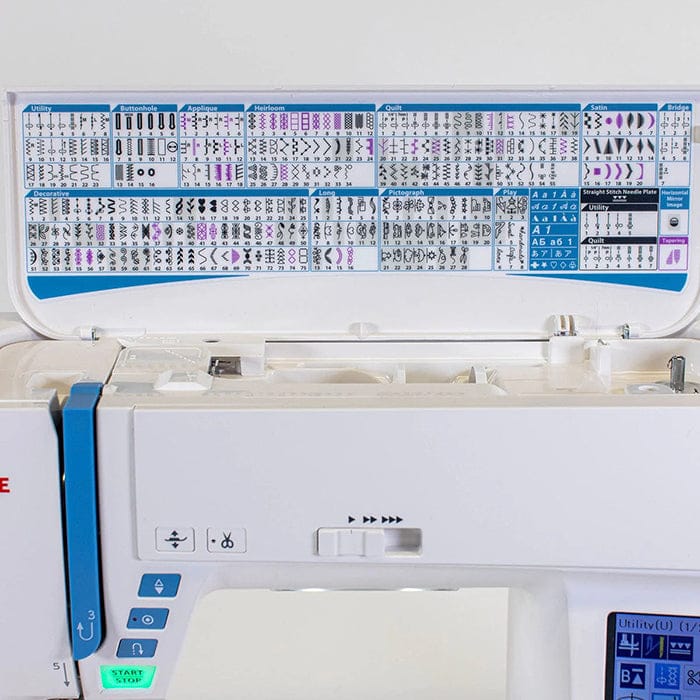

300 built-in stitches, 9mm maximum stitch width, 11 buttonhole styles

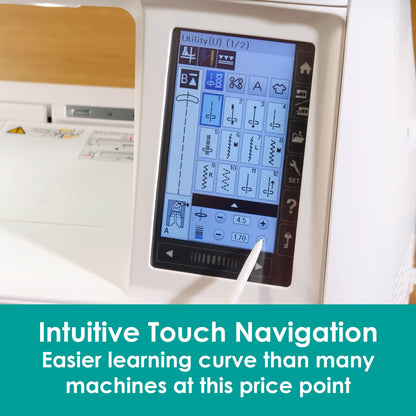

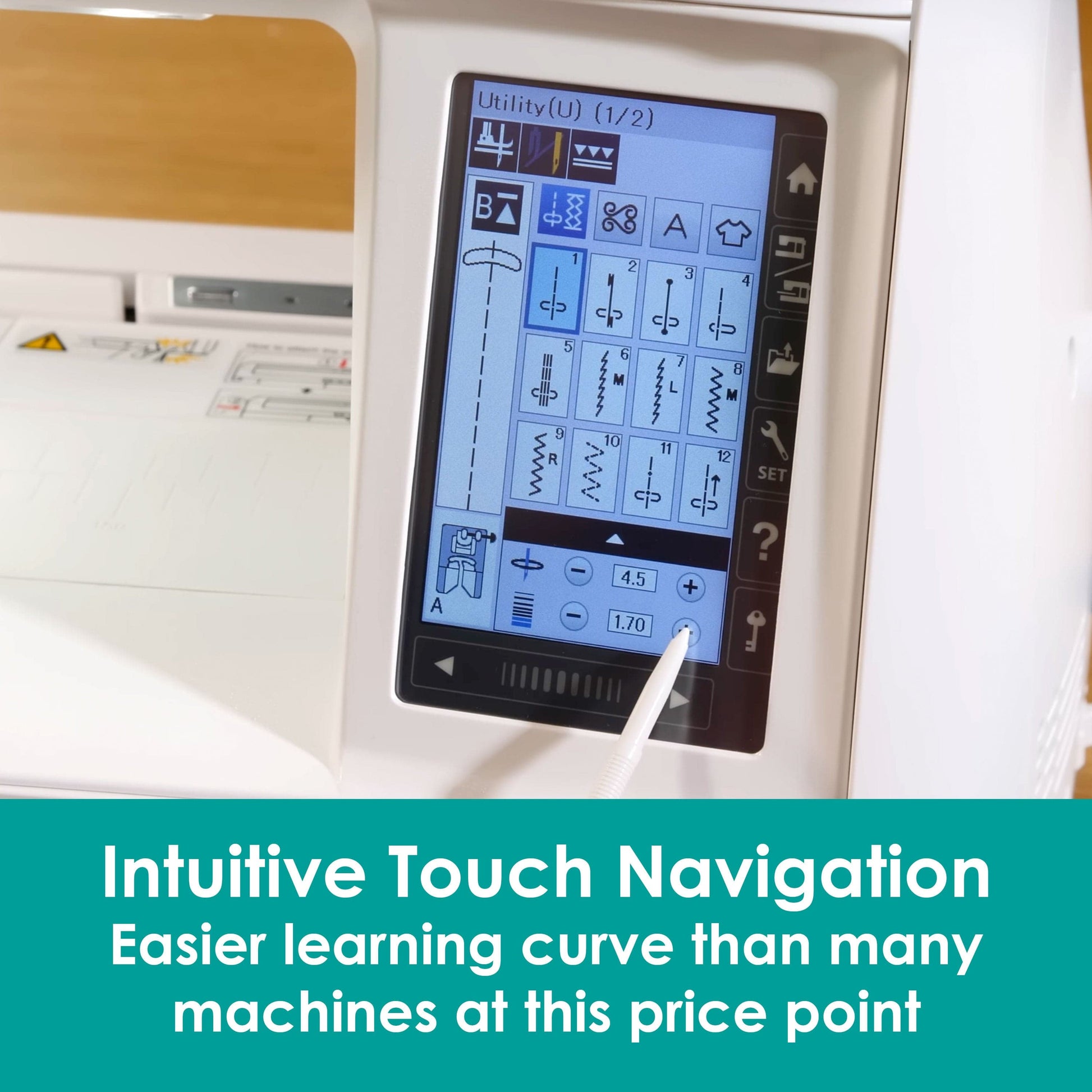

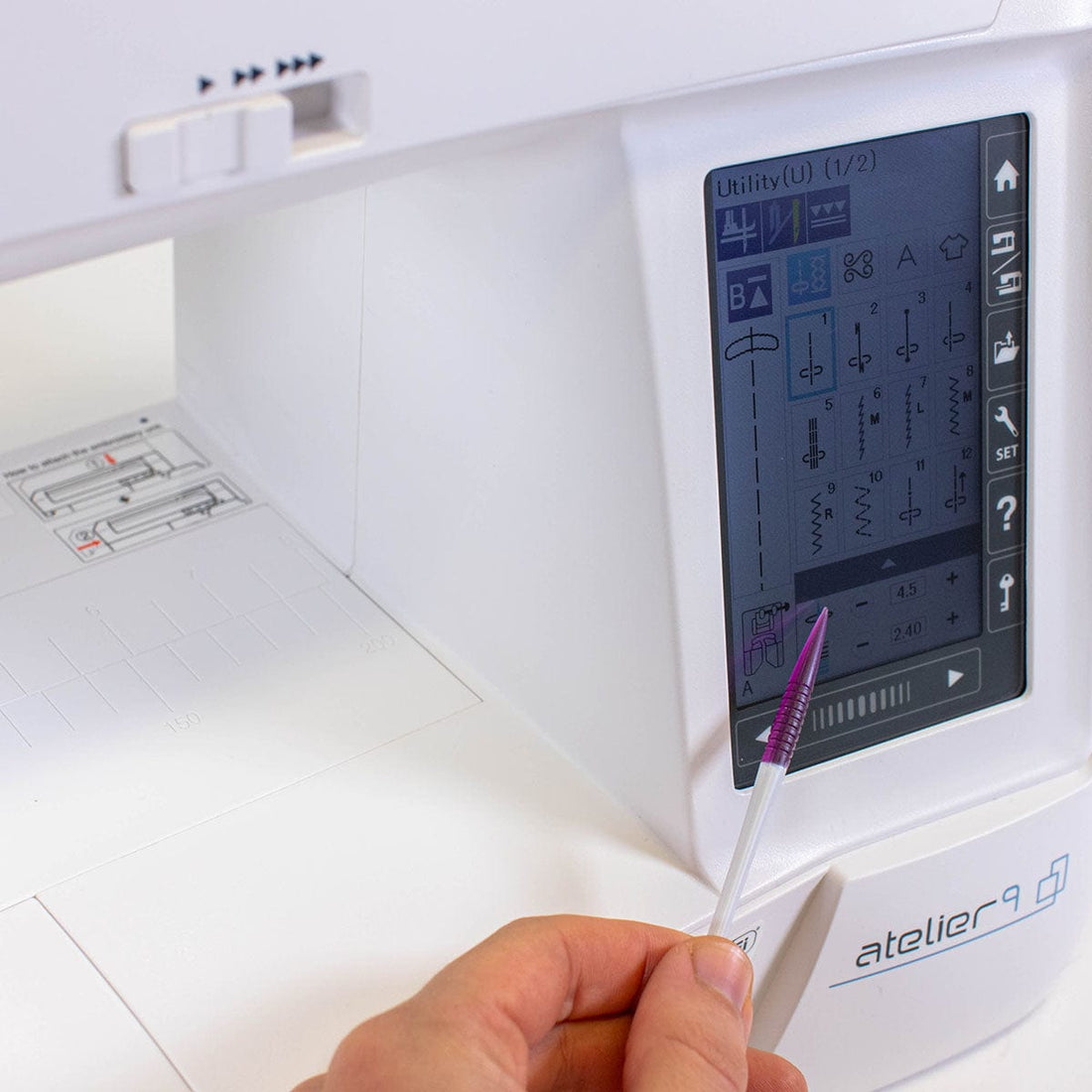

Control Type

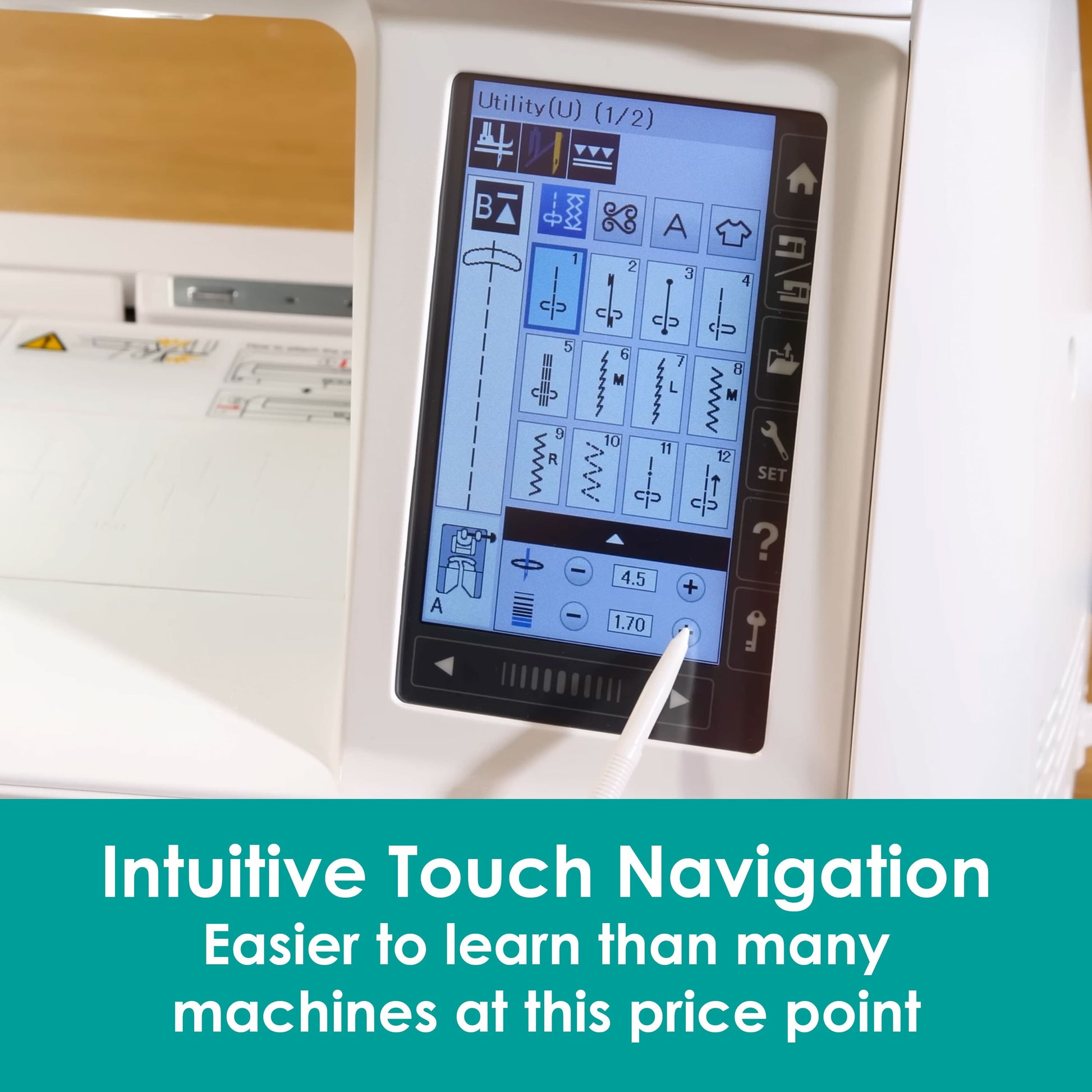

5-inch colour touchscreen with speed controller and start/stop button
Workspace
8.3 inches to the right of the needle

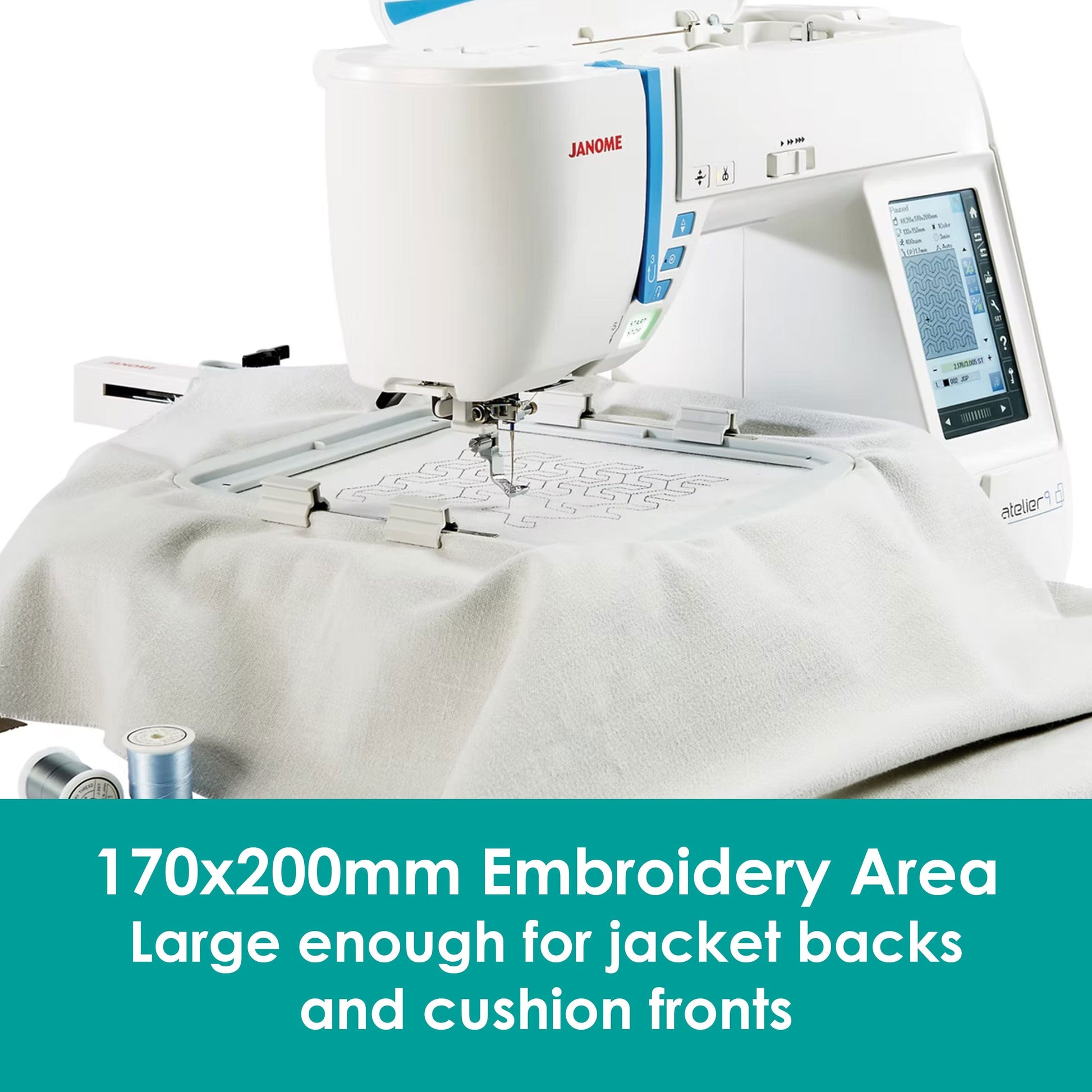

Embroidery Area
170 x 200mm, 3 hoops included
Design Options
250 stunning built-in designs, 10 monogramming fonts
Skill Level
Intermediate to advanced sewers and quilters
Machine Weight
11.9kg; 15.3kg with embroidery unit
This machine is perfect for
- Built for quilters, dressmakers and makers who want precision across both sewing and embroidery functions
- Quilters who want to add embroidery embellishments, labels and decorative detail to their quilts. The machine is also great for quilting multiple layers.
- Dressmakers wanting professional-looking monograms and personalisation on garments
Can sew but not ideal for
- Professional or high-volume production work - this is a combination machine so you can’t use it for other sewing tasks while it’s embroidering designs
Not suitable for
- Sewers needing the absolute largest embroidery area - dedicated embroidery machines offer more hoop options
Materials and Build Quality

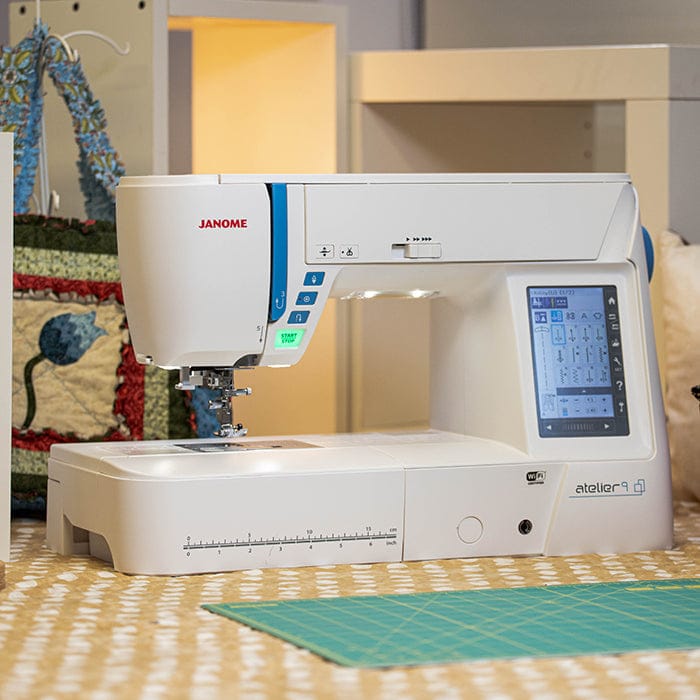

The Atelier 9 is built on a solid frame that keeps the machine stable during sustained sewing and embroidery sessions. At 11.9kg, the body has sufficient mass to minimise movement at speed, and the horizontal rotary hook paired with the 7-piece Superior Feed System is tuned for consistent stitch quality across a broad range of fabric weights.
Six ultra-bright LED lights positioned across three locations illuminate the needle area and embroidery bed, so you can work accurately on detailed stitching without straining to see the needle. The 5-inch colour touchscreen is clearly laid out with icons for stitches, feet and embroidery functions, making the full feature set accessible from early on.

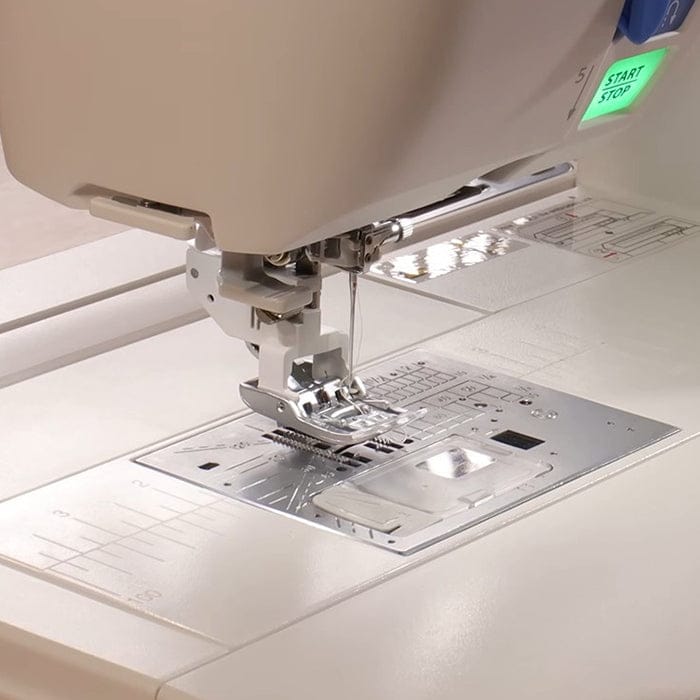

AcuFeed Flex is legendary in the sewing and quilting world for its amazing precision and power - a removable dual feed system that works with the feed dogs below to move fabric from both directions at once. This is particularly effective on thick quilts, canvas and denim where a standard presser foot causes the top layer to lag or distort over a long seam. The system is available in Twin and Single configurations to suit different project requirements.

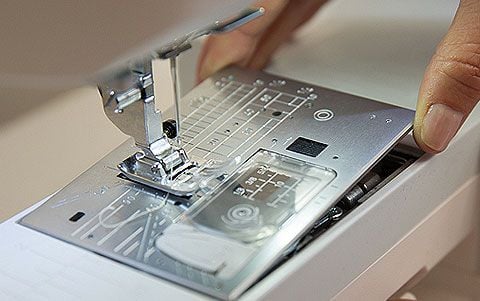

Switching between needle plates requires no tools: press the lever to release the current plate and snap the new one in place. The straight stitch needle plate includes a built-in sensor that prevents an incorrect stitch from being selected while it is fitted, so there is no risk of a broken needle.

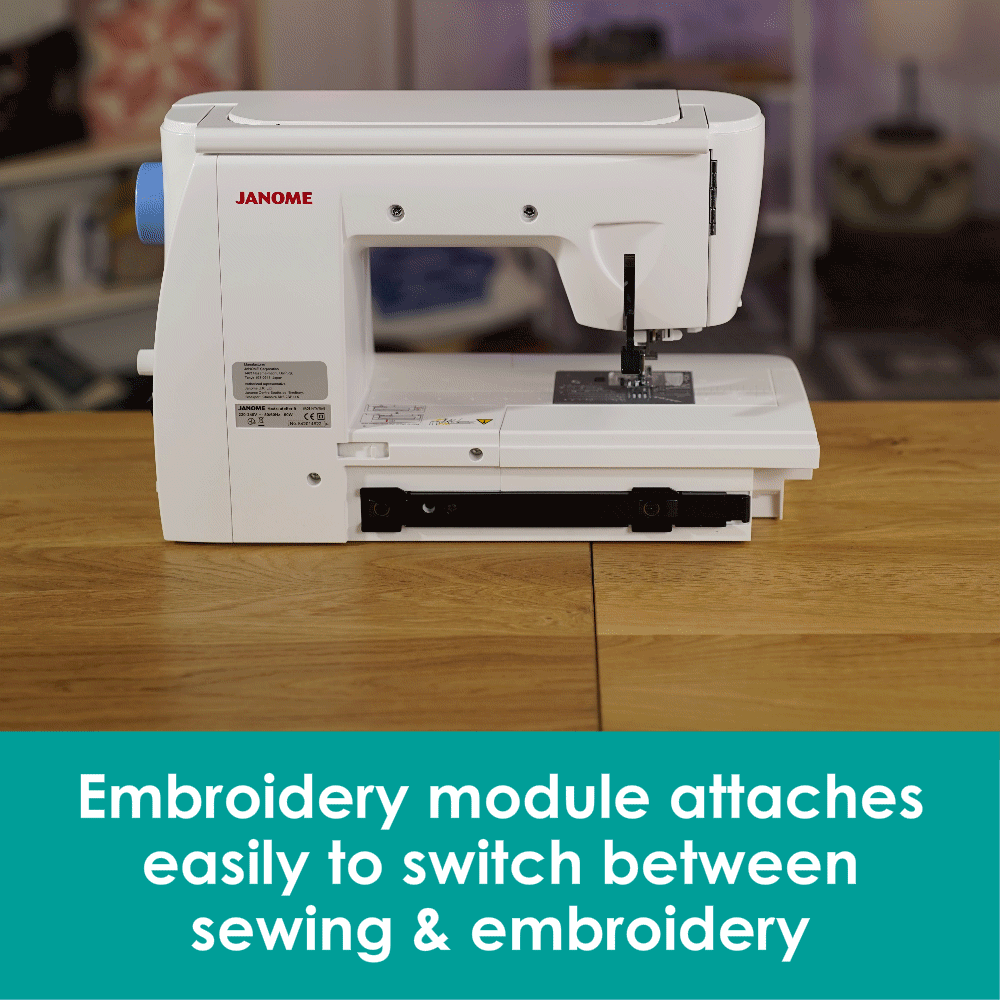

The embroidery unit snaps into the back of the machine rather than extending to the left of the needle, keeping the overall footprint compact and the free arm accessible for tubular work even with the unit attached. Three hoops are included: the RE20a (170 x 200mm), SQ14a (140 x 140mm) and FA10a (100 x 40mm), covering full panel embroidery down to narrow border and label work.
The 4MB built-in memory holds imported designs alongside the 250 built-in designs and any saved stitch combinations. Designs can be transferred to the machine via USB or directly over Wi-Fi, so your design library is always within reach.
The Difference is in the Details

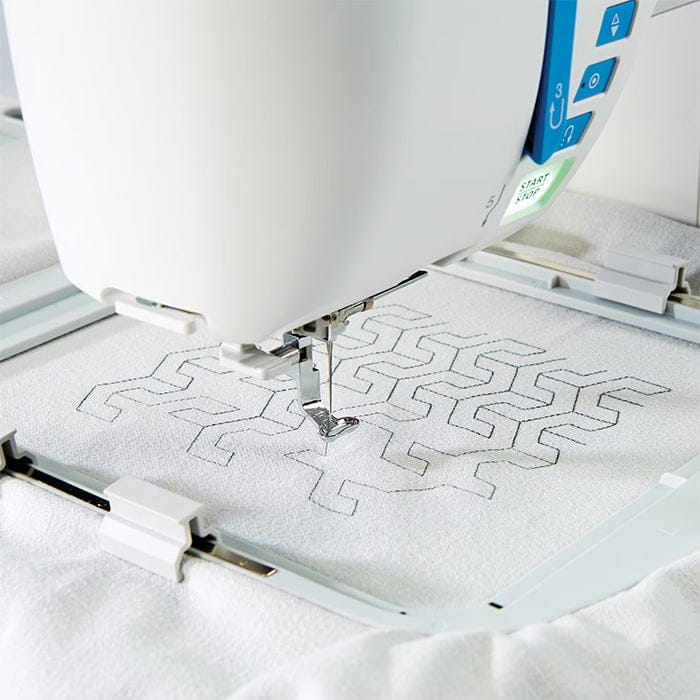

At 1,000 stitches per minute for sewing and up to 800 stitches per minute for embroidery, the Atelier 9 keeps pace with large and detailed projects. The automatic thread cutter, start/stop button and programmable needle up/down keep the work moving, and automatic jump thread trimming removes the need to pause a design mid-stitch to tidy threads.

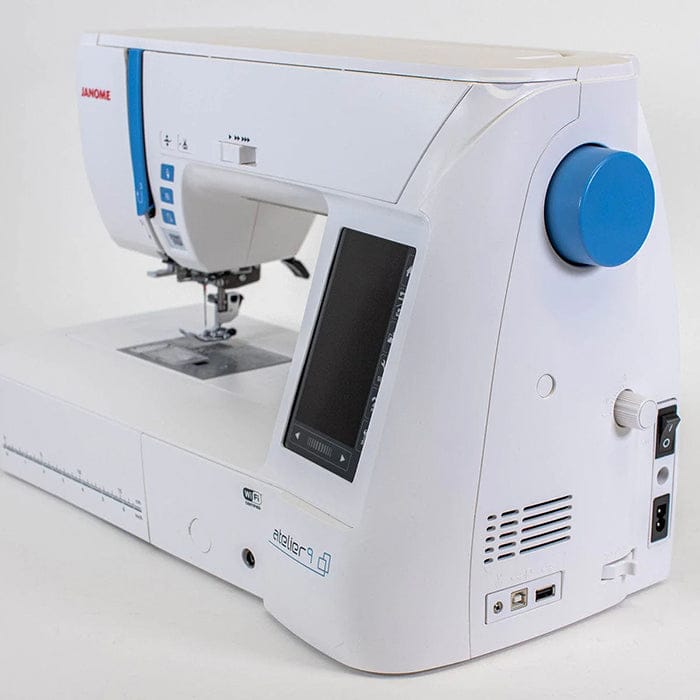

Weighing close to 12kg, the Atelier 9 has a solid, stable frame that reflects its robust construction and ability to handle regular use with ease. Janome’s reputation for reliability and longevity means that with proper care and routine servicing, it’s a machine designed to deliver consistent performance for many years to come.

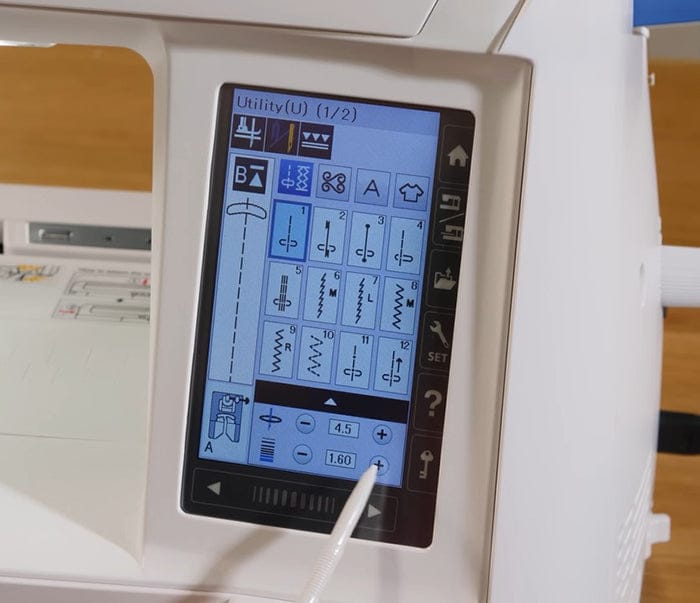

The on-screen help function and sewing tutorials guide you through stitch selection and embroidery settings without needing the manual. The three Janome apps, AcuEdit, AcuMonitor and AcuSetter, give you additional control and monitoring from a phone or tablet. You can also find a full tutorial to help you get started with the Atelier 9 on our YouTube channel.

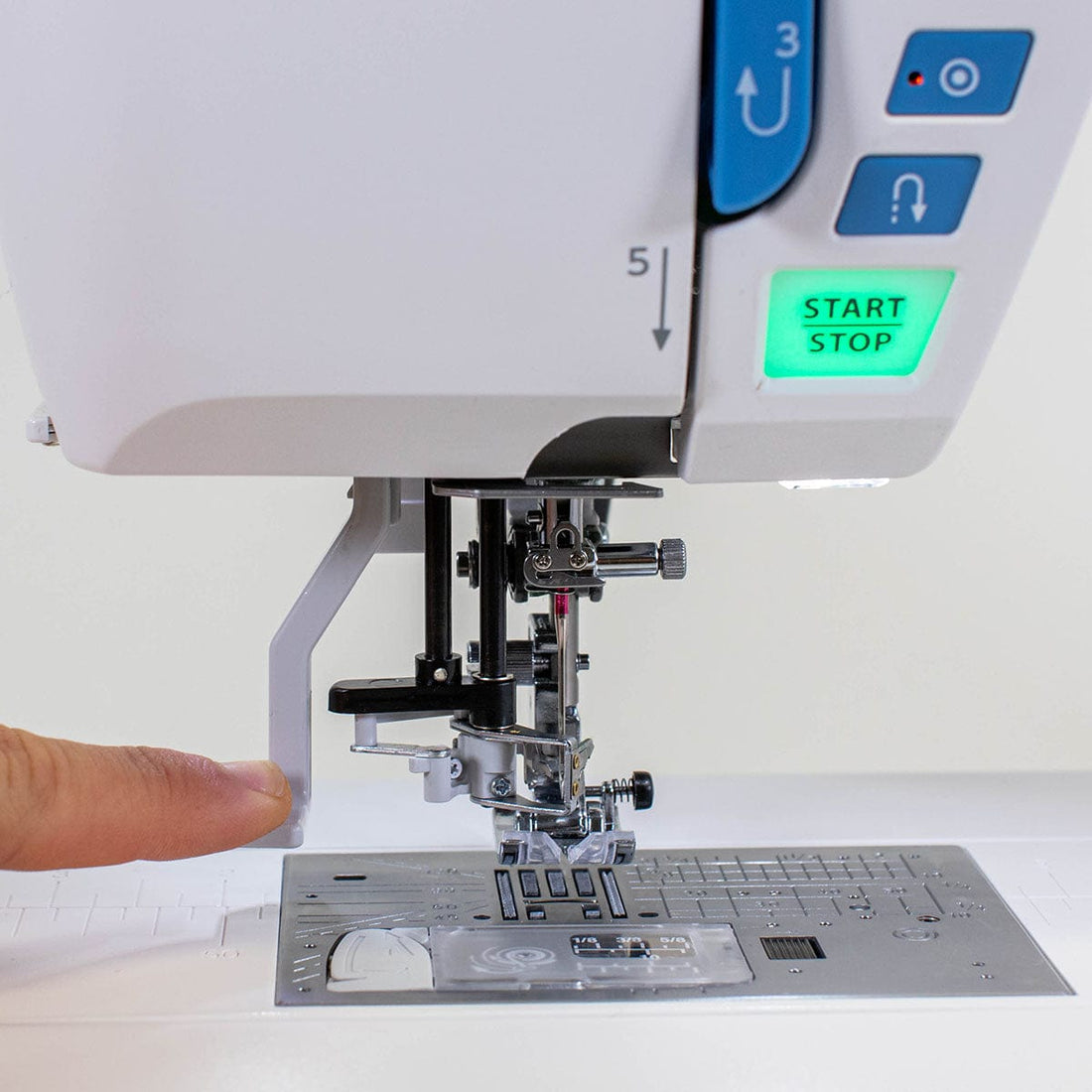

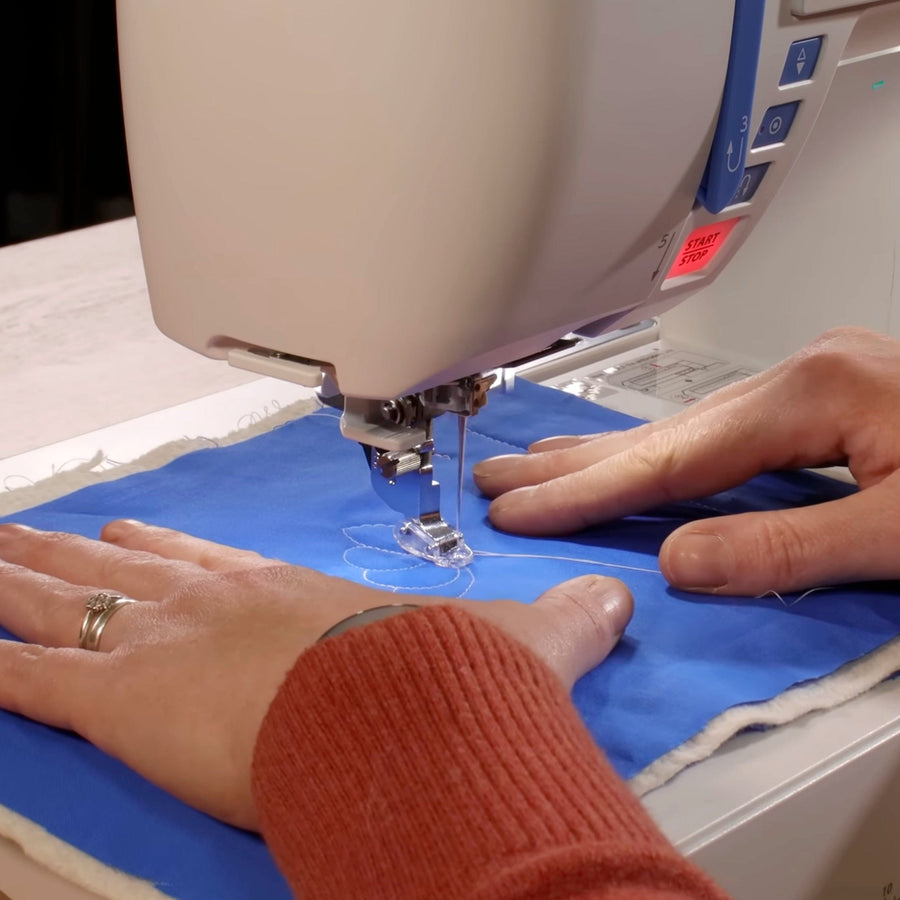

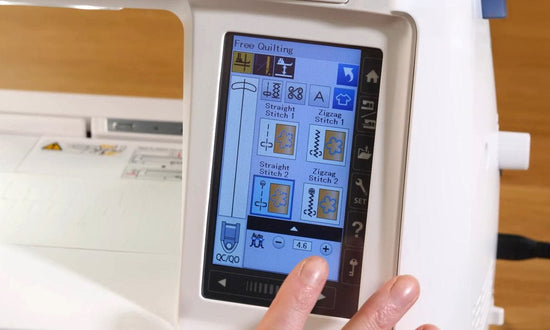

The electronic knee lift keeps both hands on the fabric during free-motion work, while the auto presser foot lift raises the foot automatically at the end of each seam. Adjustable foot height for free-motion quilting can be memorised, so the machine is set up for your preferred working style each time you sit down. The variable speed controller gives full control at any pace without losing power.
Janome Atelier 9: A Machine for Every Maker
And every project

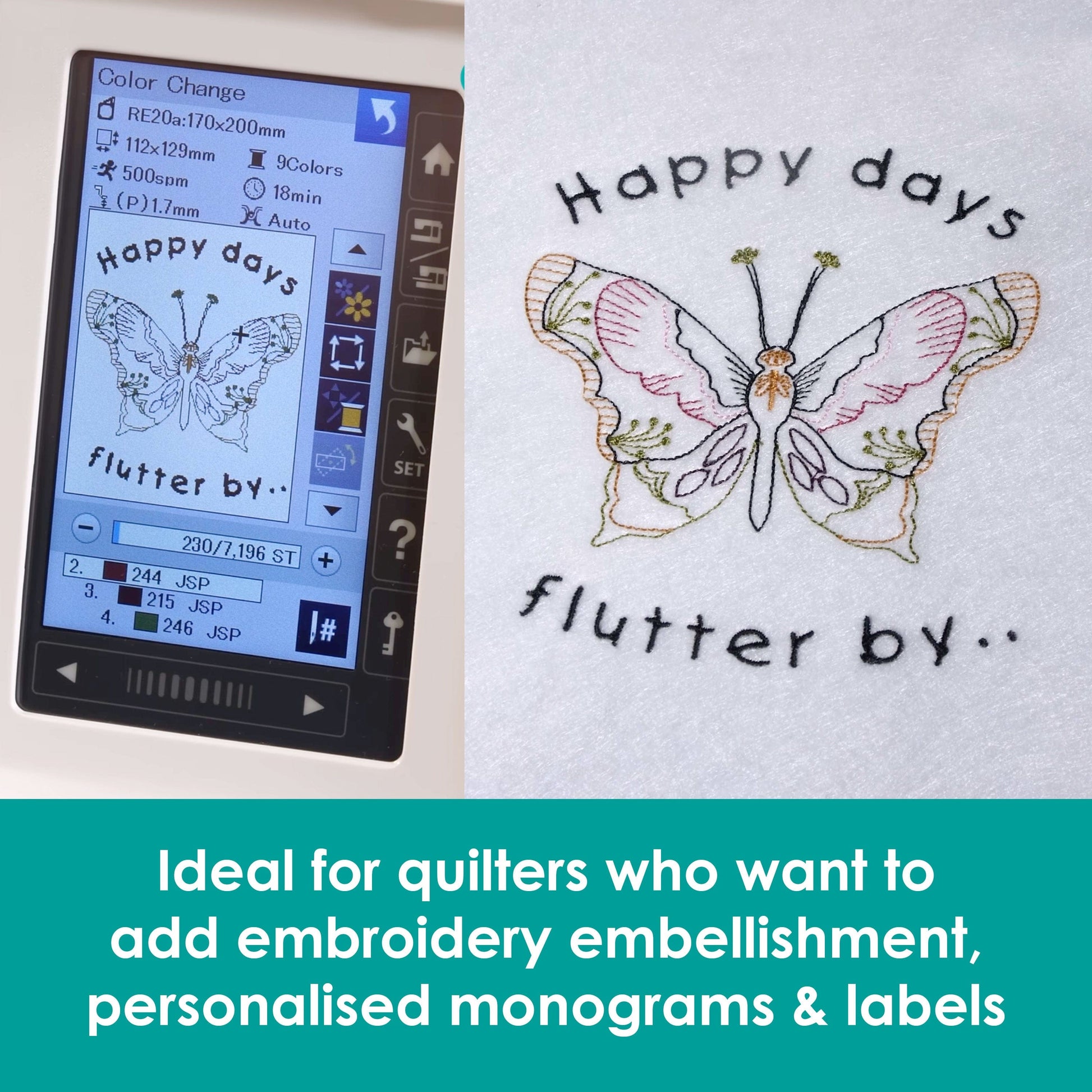

Ideal for Quilters Who Want to Add Embroidery
The large embroidery area and AcuFeed Flex make the Atelier 9 a practical choice for quilters adding stunning embroidery embellishments, personalised labels and monograms to finished work, without needing a separate dedicated embroidery machine.

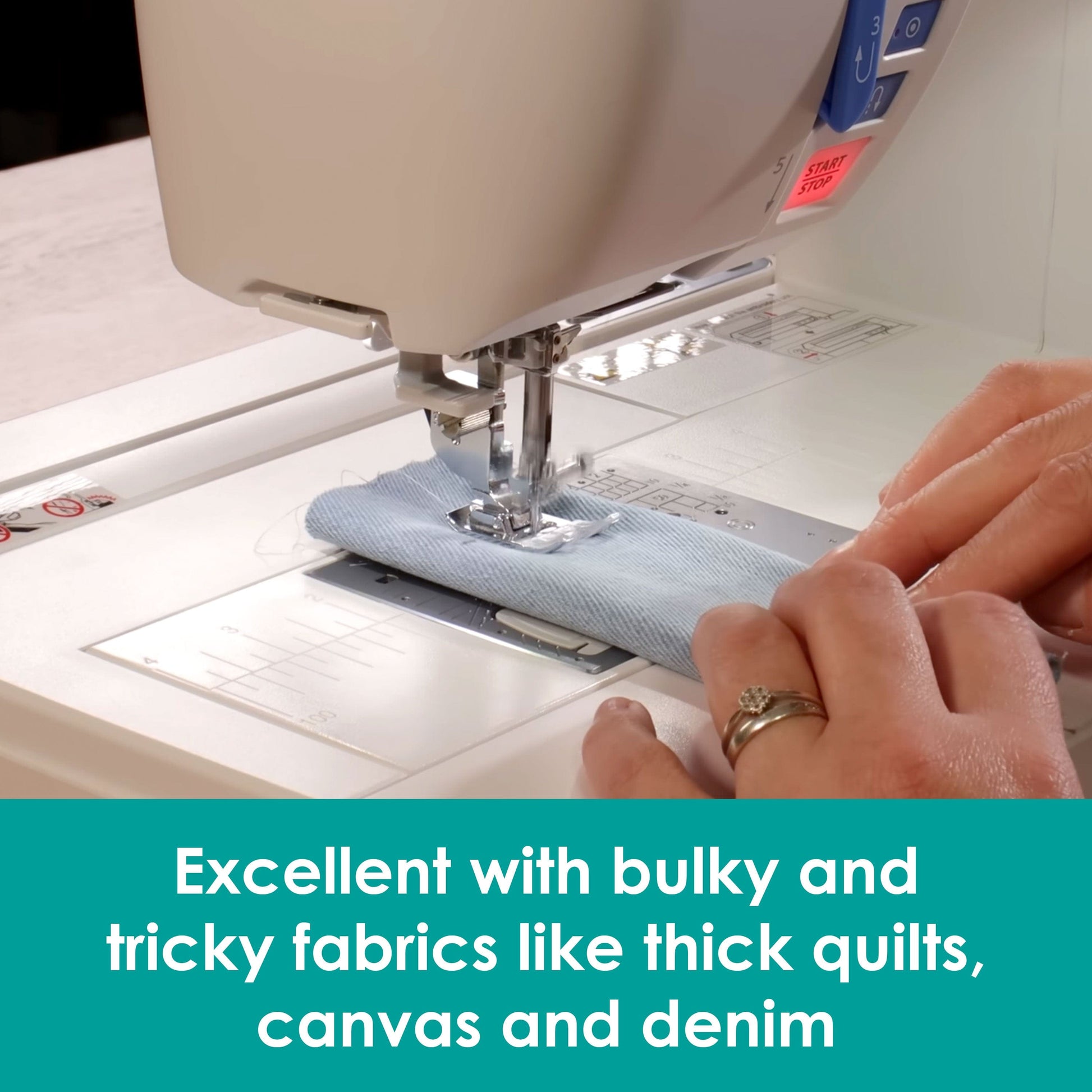

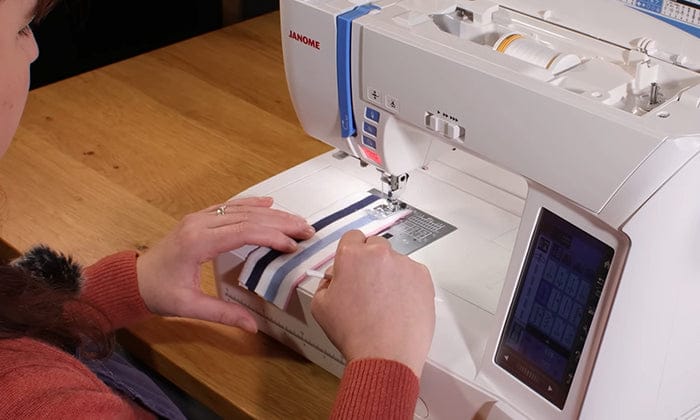

Precision on Difficult Fabrics

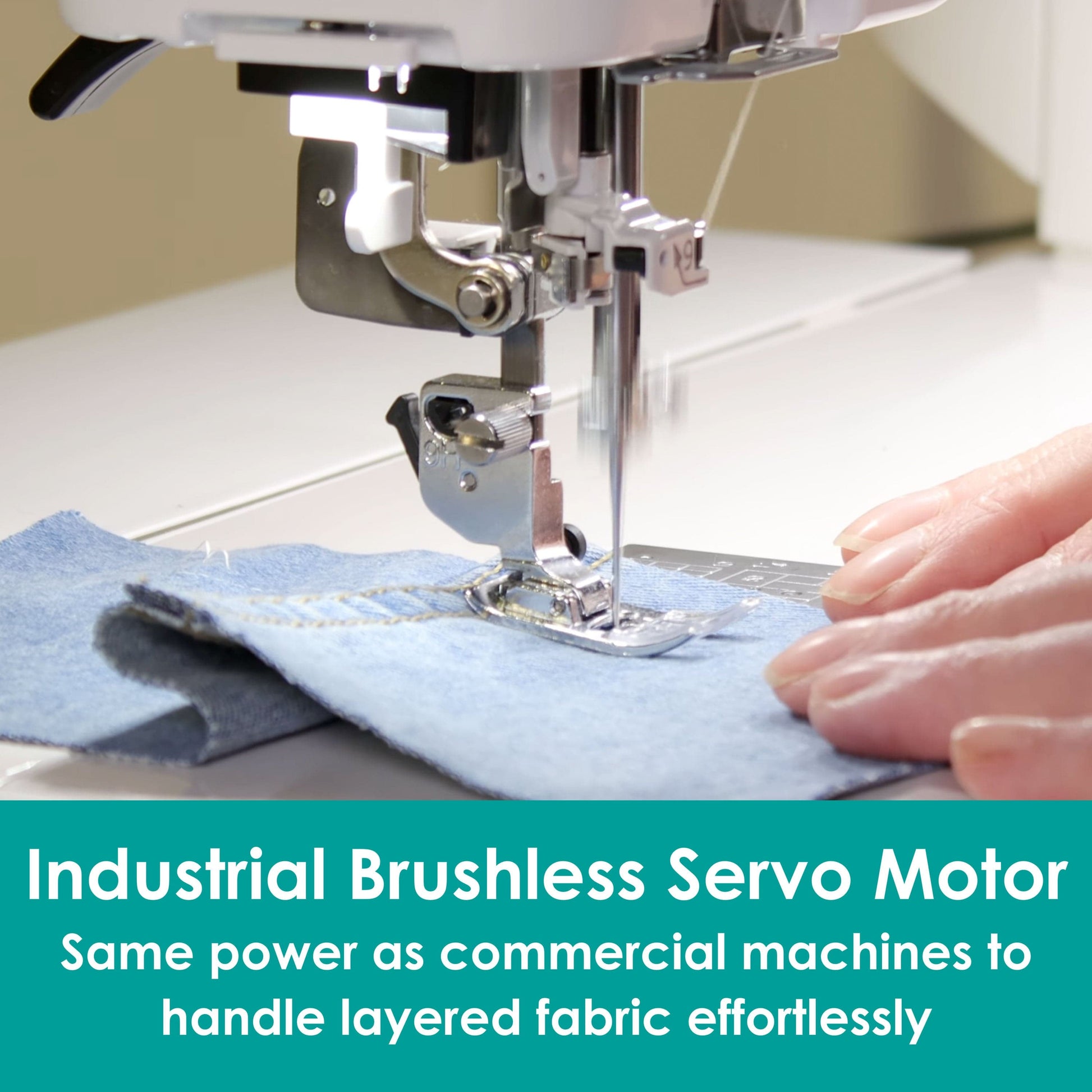

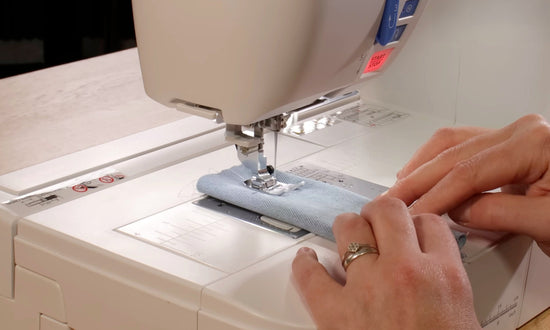

AcuFeed Flex feeds thick quilts, canvas and denim evenly from top and bottom, so long seams on bulky or tricky materials stay straight and consistent from start to finish.
A Stitch Library That Grows with You
The combination of a large built-in stitch library, custom composition tools and sequence tapering means your creative options expand the more time you spend with the machine.
Inside the Janome Atelier 9

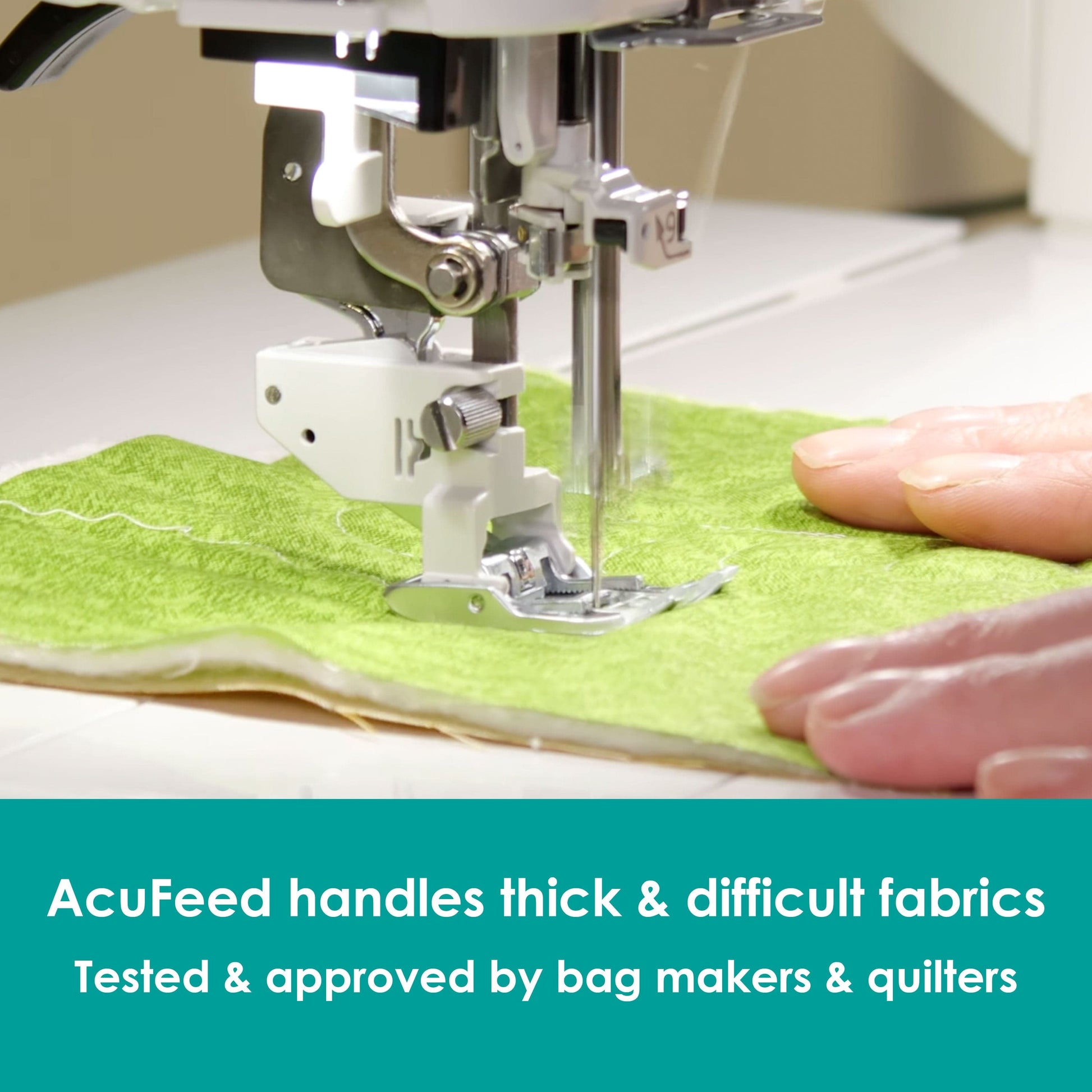

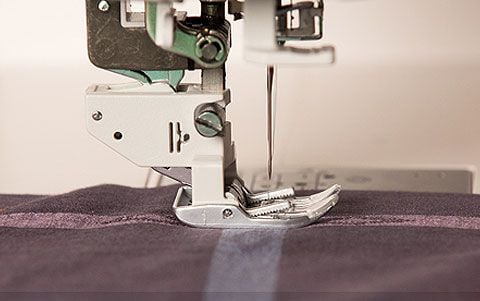

AcuFeed Flex Dual Feed System
A removable dual feed system that pairs with the 7-piece Superior Feed System to feed the top and bottom layers of fabric simultaneously, with tool-free needle plate switching.

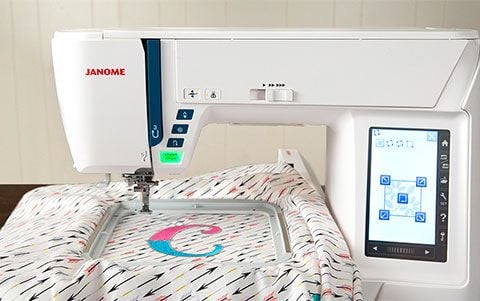

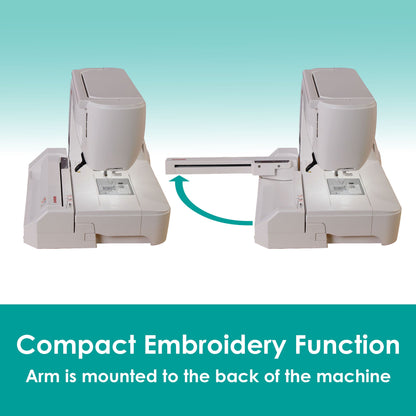

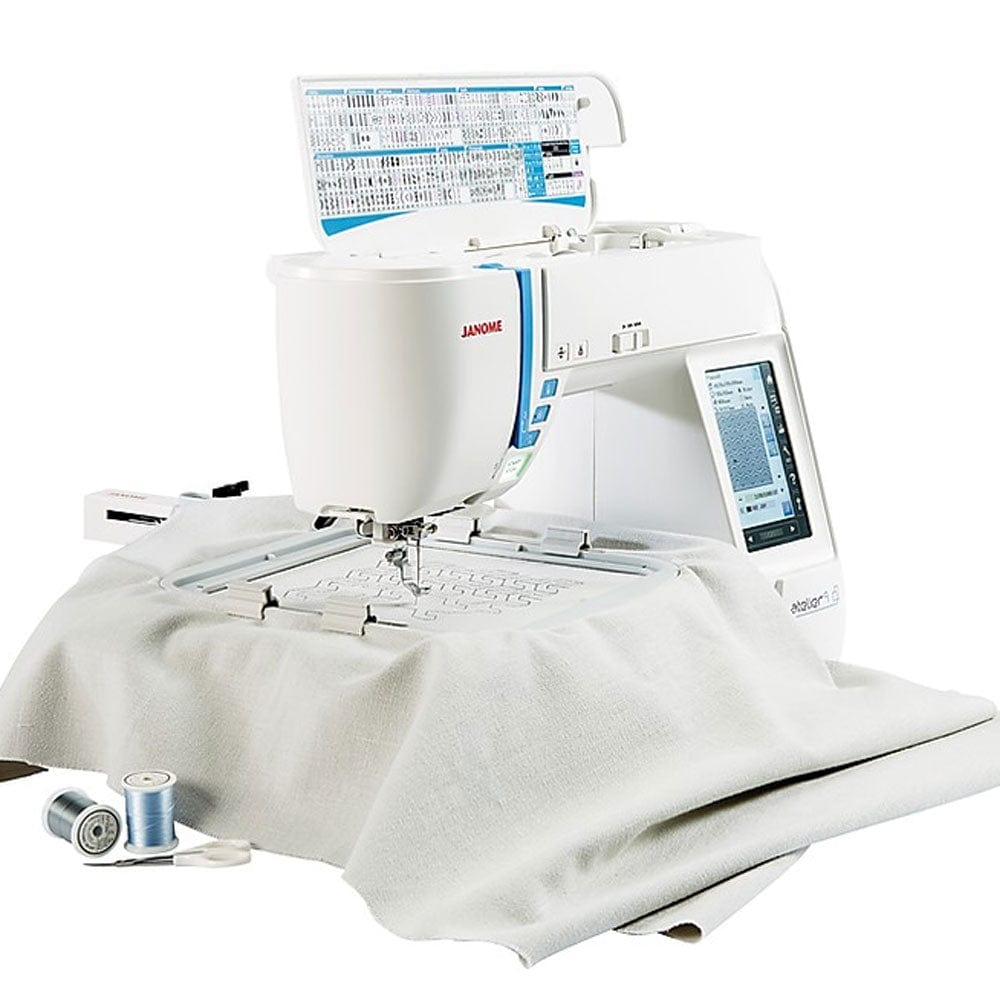

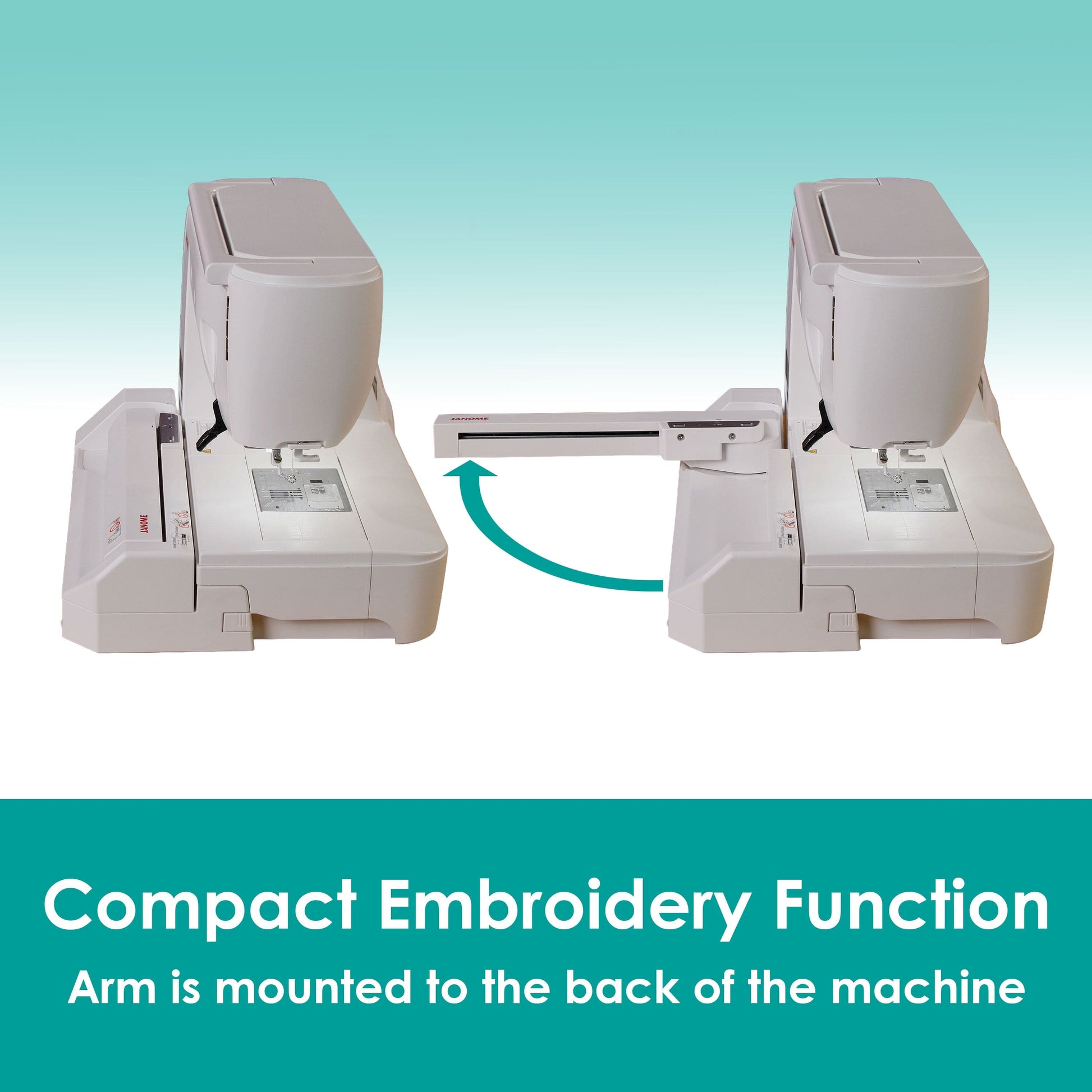

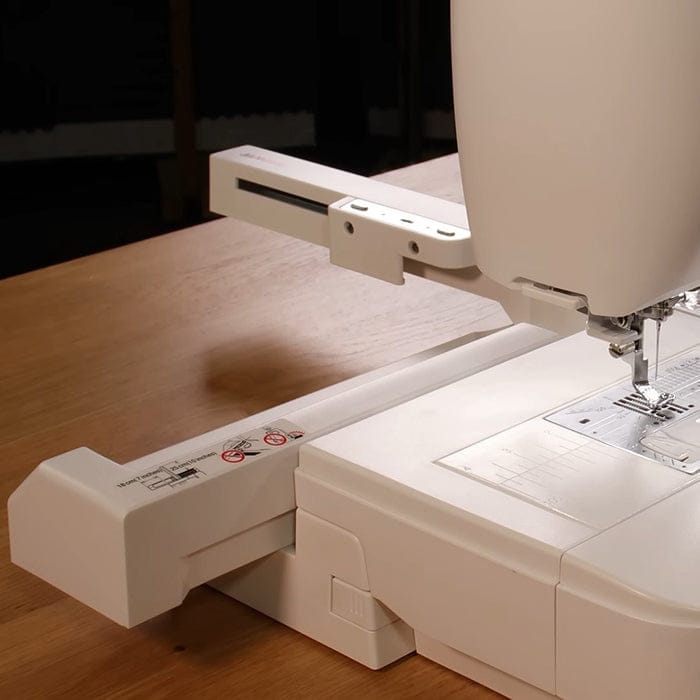

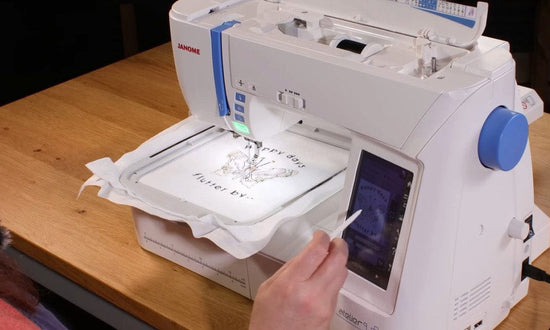

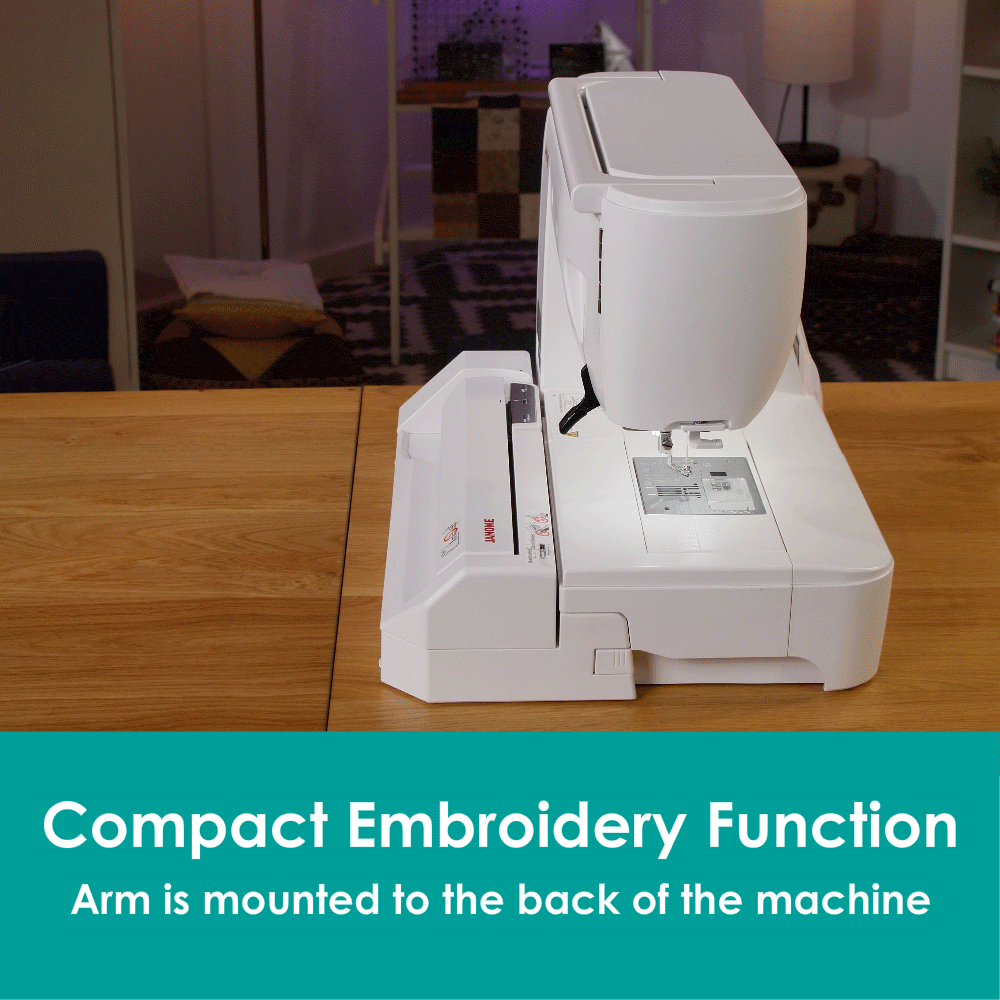

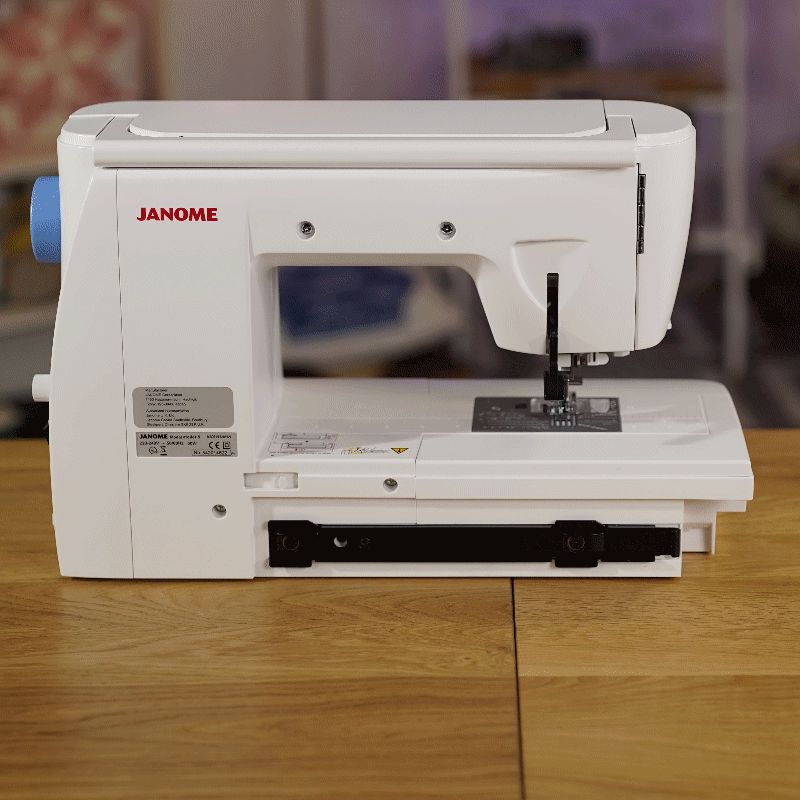

Compact Embroidery Unit and Wi-Fi Design Transfer
The embroidery unit mounts to the back of the machine, keeping the free arm accessible during embroidery work. Wi-Fi connectivity connects to the AcuEdit, AcuMonitor and AcuSetter apps to manage and track designs remotely.
Stitch Memory and Stitch Tapering Function
Combine stitch patterns and save to the machine's memory directly on the touchscreen. The Stitch Tapering function tapers the start and end of a sequence automatically for a clean, finished result.
Automatic Jump Thread Trimming and Cutwork
Jump threads are cut continuously as the machine embroiders, with no mid-design stops required. The built-in cutwork function displays imported designs with correct needle guidance and adjusts thread sensor settings automatically.
Bobbin System and Thread Sensing
The top-loading easy-set bobbin uses a horizontal rotary hook for consistent stitch formation. The bobbin thread sensor has adjustable sensitivity to suit large embroidery runs or short seams across different thread weights.
Product Specifications

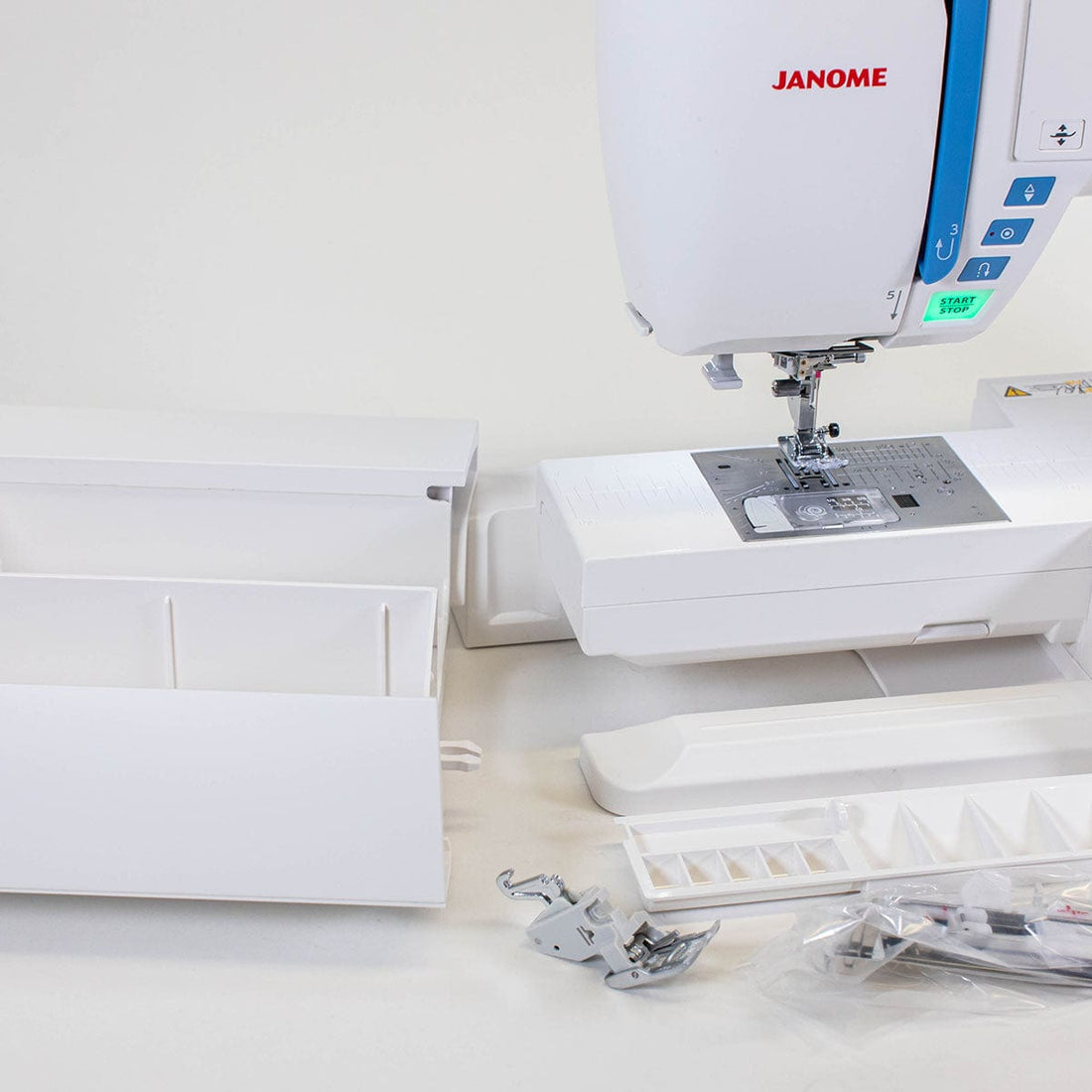

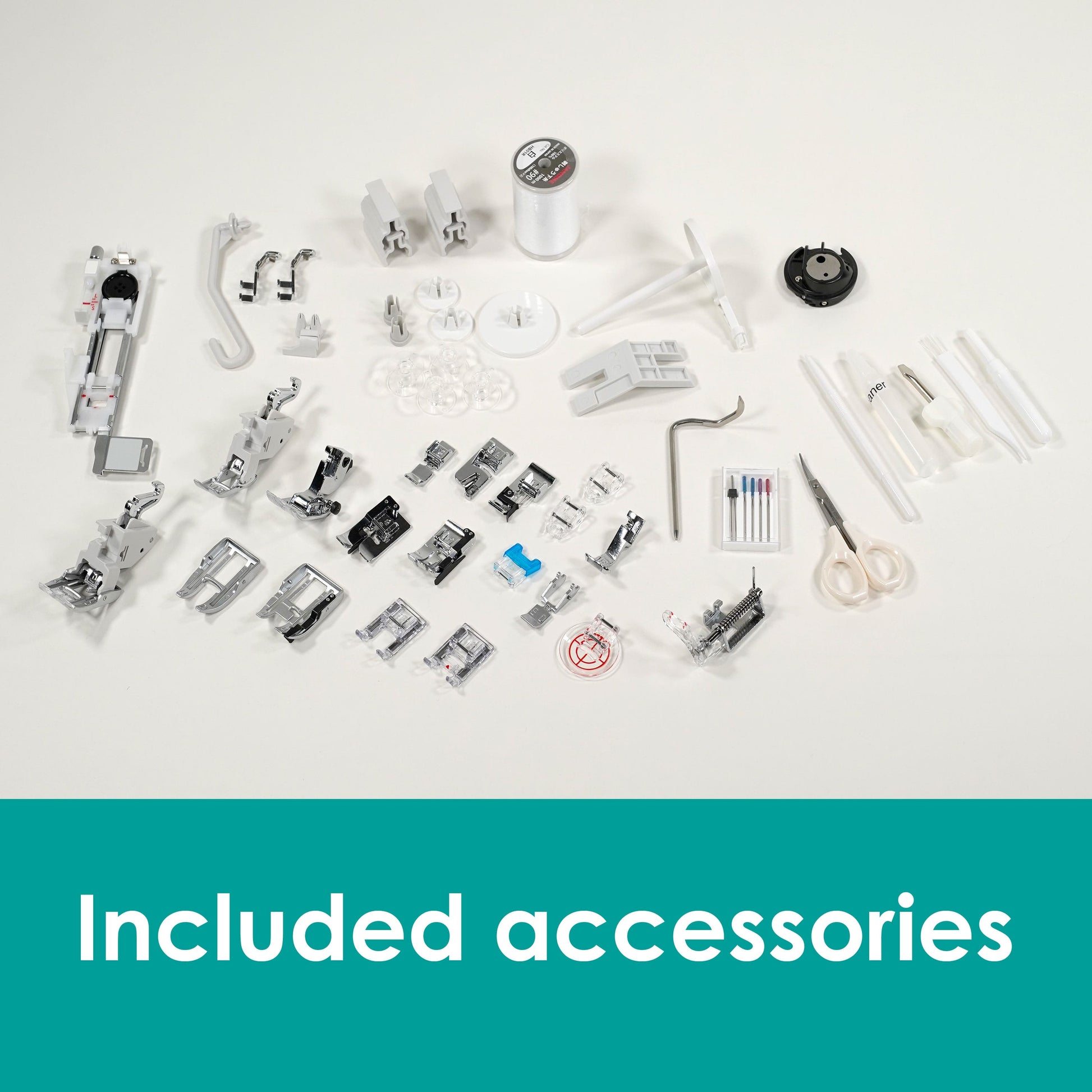

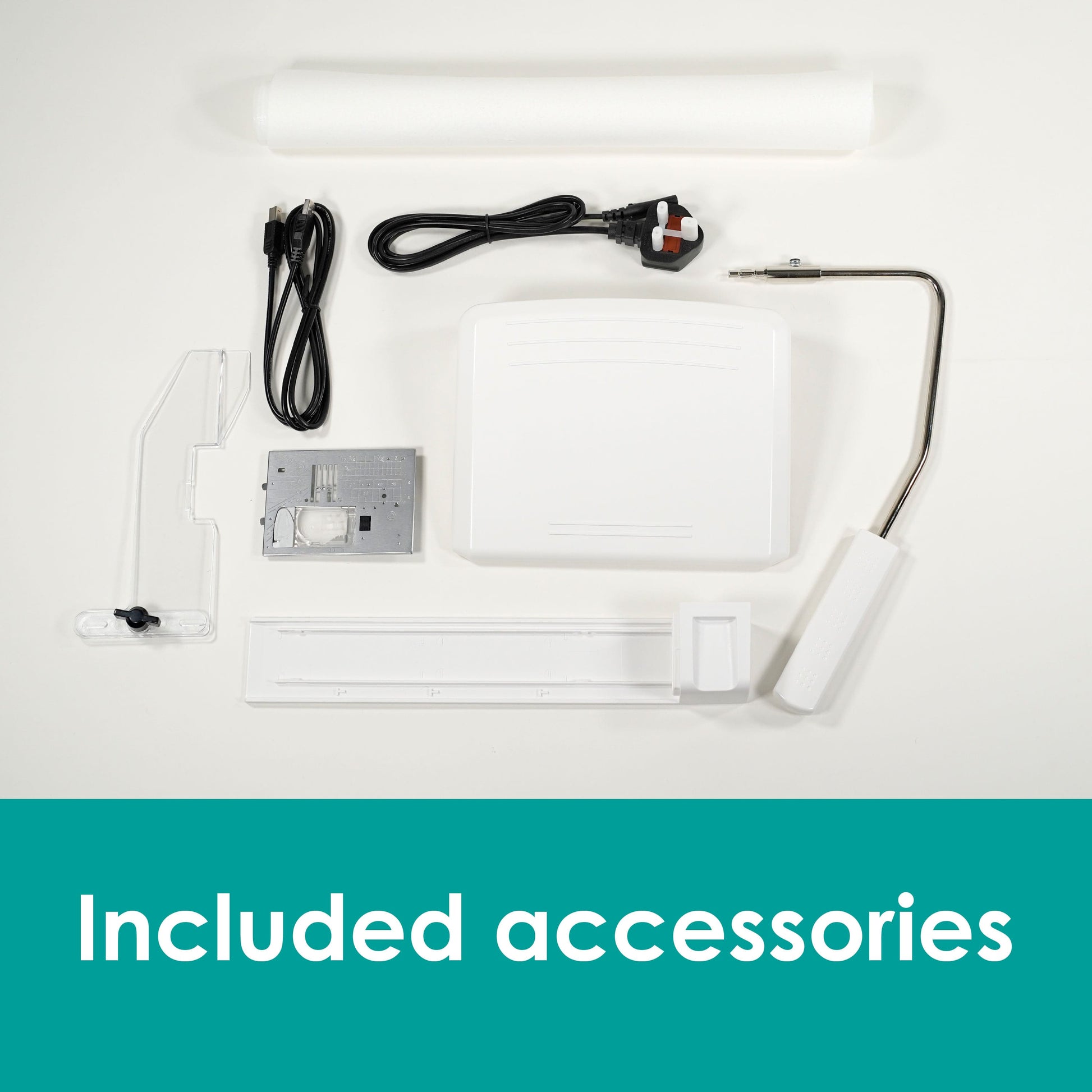

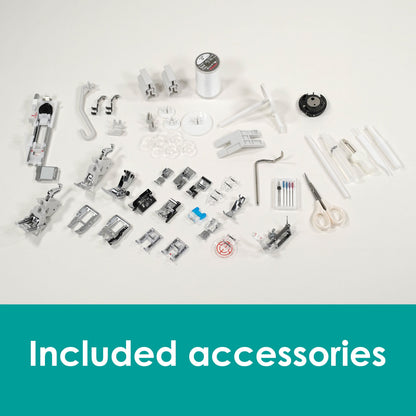

Accessories In The Box
- 1 x Buttonhole Stabiliser Plate
- 1 x Bobbin Holder for embroidery – Yellow
- 1 x Bobbin Holder Cleaner
- 1 x Button Shank Plate
- 1 x Cloth Guide
- 1 x Couching Yarn Guide Bar
- 1 x Couching Yarn Guide

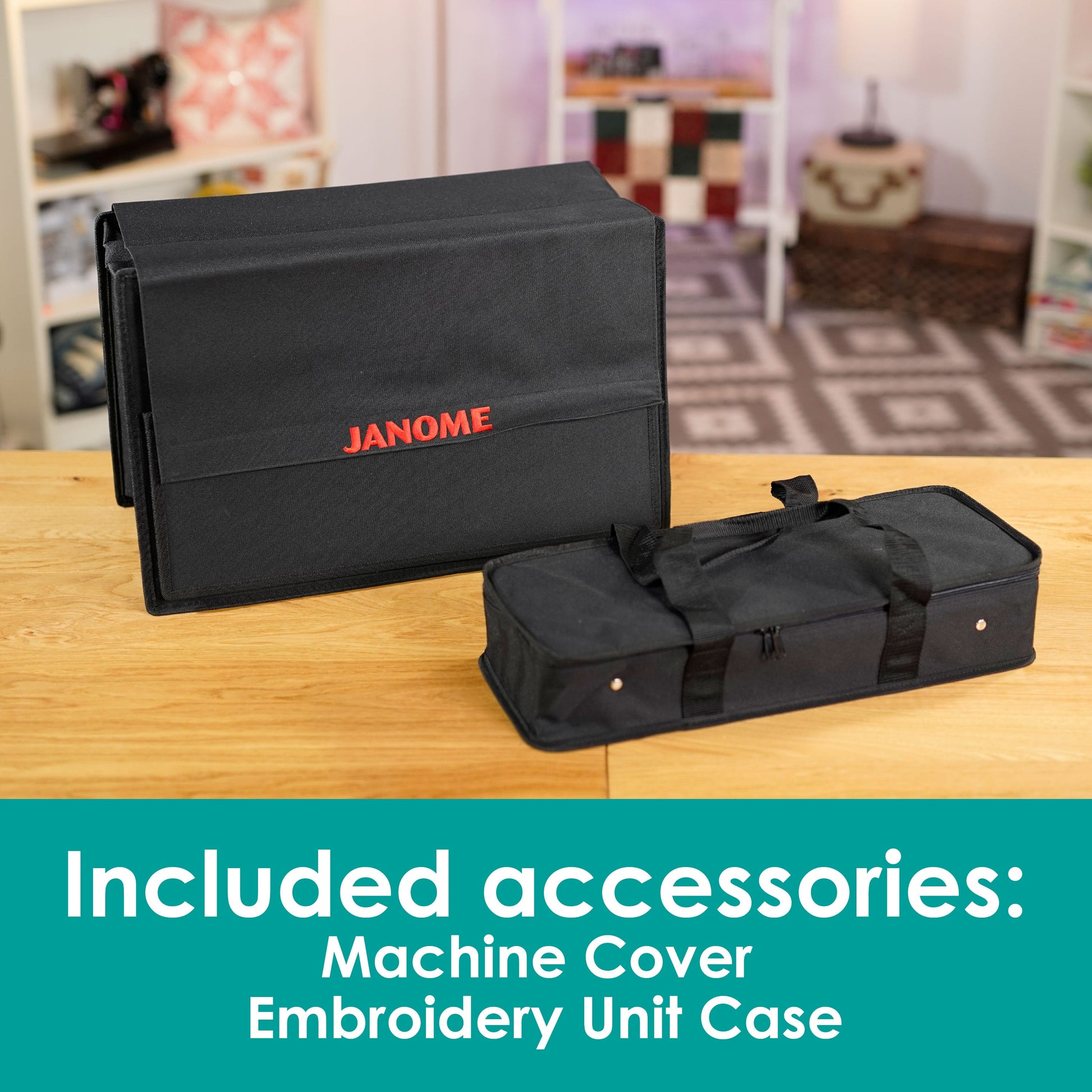

- 1 x Embroidery Unit Case
- 1 x Hook Cover Plate (Slide Plate)
- 1 x Hoop Template RE20a
- 1 x Hoop Template FA10a
- 1 x Hoop Template SQ14a
- 1 x Knee Lifter (Straight Adj. small screw)
- 1 x Lint Brush
- 4 x Magnetic clamps
- 1 x Quilt Guide Bar
- 1 x Scissors (White)
- 1 x Screw Driver (Winged)
- 1 x Seam Ripper
- 2 x Spool Cap/Holder (Large)
- 2 x Spool Cap/Holder (Small)
- 2 x Spool Holders (Special)
- 1 x Spool Pin (Spare)
- 1 x Straight Stitch Needle Plate
- 1 x Stylus Pen
- 1 x USB Cable
- 1 x Acutools S CD-ROM
- 1 x Foot Control
- 1 x Instruction Book
- 1 x Power Lead
- 4 x Bobbins (Plastic)
- 1 x Needles
Feet In The Box
- 1 x 1/4 Inch Seam Foot (O)
- 1 x Automatic Button Hole Foot (R)
- 1 x Blind Hem Foot (G)
- 1 x Button Sewing Foot (T)
- 1 x Couching Foot PC-1
- 1 x Couching Foot PC-2
- 1 x Dual Feed Foot Holder (Twin)
- 1 x Dual Feed Foot Holder (Single)
- 1 x Dual Feed Foot (AD) (Twin)
- 1 x Dual Feed Foot (VD) (Single)
- 1 x Dual Feed Open Toe Foot (UD) (Twin)
- 1 x Dual Feed Piecing Foot (OD) (Twin)
- 1 x Dual Feed Zipper Foot (ED) (Single)
- 1 x Embroidery Foot (P)
- 1 x Embroidery/Darning Foot (PD-H)
- 1 x Free Motion Quilting Foot (QC)
- 1 x Free Motion Quilting Foot (QO)
- 1 x Free Motion Quilting Zigzag Foot (QV)
- 1 x Overedge Foot (M)
- 1 x Rolled Hem Foot (D)
- 1 x Satin Stitch Foot (F)
- 1 x Satin Stitch Foot Open Toe (F2)
- 1 x Standard Foot (A)
- 1 x Zipper Foot (E)

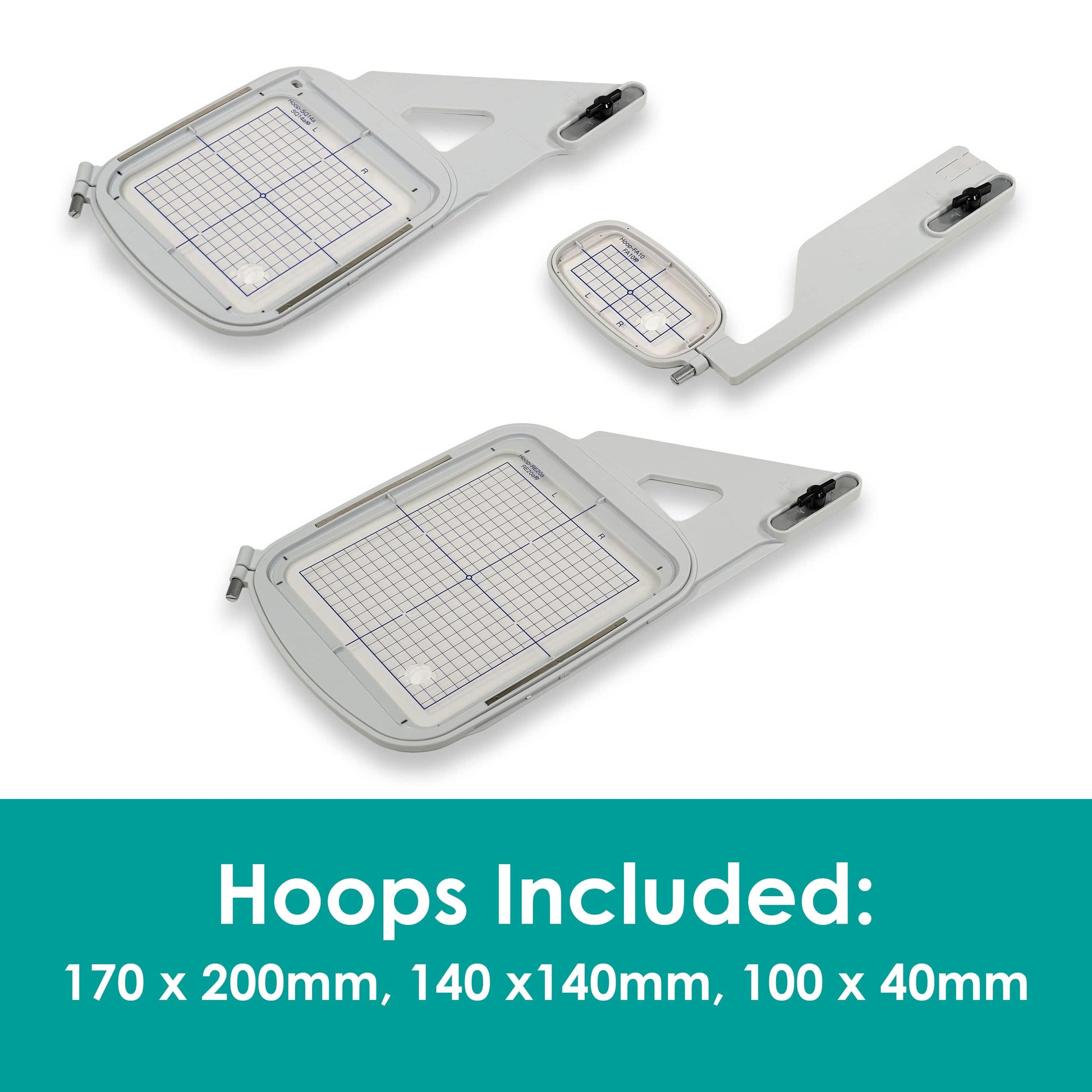

Hoops In The Box
- Embroidery hoop SQ14a (with template) (140 x140mm)
- Embroidery hoop RE20a (with template) (170 x 200mm)
- Embroidery hoop FA10a (with template) (100 x 40mm)
Manufacturer Specifications
- Computerised Sewing/Embroidery Machine
- Horizontal Full Rotary Hook
- Free Arm / Flat Bed Conversion
- Top Loading – Category D
- Machine Size (exc. Emb. Unit) : W508xH316xD237mm
- Approximate Machine Weight: 11.9kg
- Work Space Width 8.3”
- Approximate Weight with Embroidery Unit 15.3kg
- Superior Feed System (SFS) / 7 Piece Feed Dog
- Full Colour Touch Screen 62.8mm x 110.8mm
- Maximum Stitch Width: 9mm
- Maximum Sewing Speed: 1000 s.p.m.
- Maximum Stitch Length: 5mm
- Built In Stitches: 300 including 11 Buttonholes
- USB & Direct PC Connection
- WiFi
- Acufeed Flex (Dual Feed)
- Lettering – Upper & Lower Case
- Variable Zigzag
- Remote Thread Cutter Port
- Needle Up / Down with Memory
- Built in Memory (4MB)
- 91 Needle Positions
- Tracing Function
- Needle Threader
- Detachable Embroidery Unit
- Snap On Feet
- Up to 200,000 Stitches per Design
- Easy Change Needle Plate
- Built in Embroidery – 250 Designs – 10 Fonts
- Easy Set Bobbin
- Monogramming – 2 & 3 letter
- Automatic Tension
- Horizontal Spool Pin
- Automatic Thread Cutter (scissors)
- Auto De Clutch Bobbin Winder
- Drop Feed
- Speed Control Slider
- Memory + Turnover Memory
- Tapering Function
- Satin Stitch Elongation
- Multi Language: 13 Languages
- Start / Stop Button
- Multi Voltage
- Automatic Presser Foot Pressure
- Cover – Semi Rigid (Black Canvas)
- Twin Needle Limitation Key

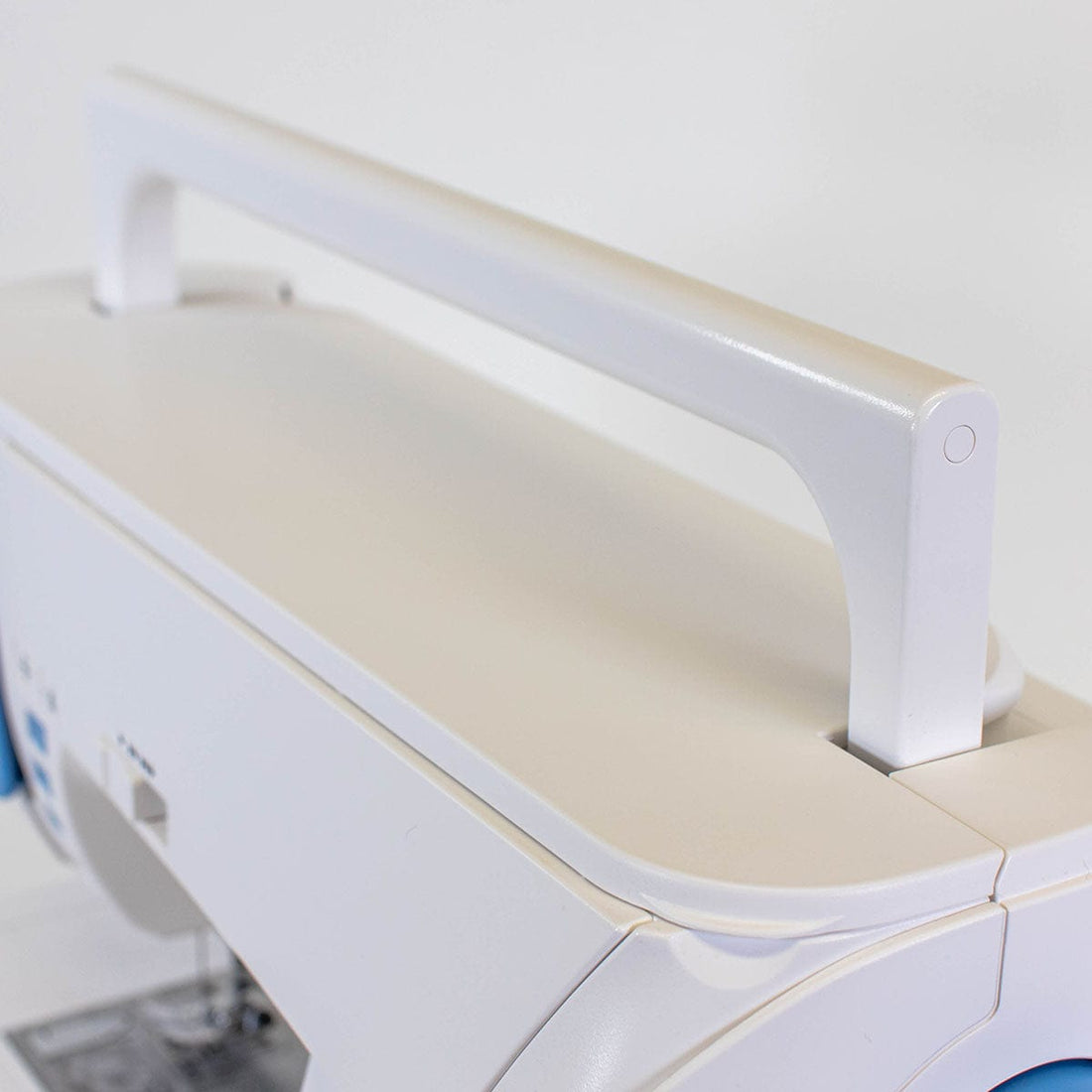

- Carry Handle
- Upper Thread & Bobbin Thread Sensor
- Origin: Taiwan
Machine Dimensions & Weight
- Machine size (exc. embroidery unit): W508 x H316 x D237mm
- Workspace: 8.25 inches to the right of the needle
- Machine weight: 11.9kg
- Machine weight with embroidery unit: 15.3kg
- Touchscreen: 5 inches (62.8mm x 110.8mm)
Design Options and Controls
- Built-in stitches: 300
- Maximum stitch width: 9mm
- Maximum stitch length: 5mm
- Buttonhole styles: 11
- Built-in embroidery designs: 250
- Monogramming fonts: 10
- Maximum embroidery area: 170 x 200mm
- Embroidery speed: 400 to 800 stitches per minute
- Maximum sewing speed: 1,000 stitches per minute
- Built-in memory: 4MB
- Colour touchscreen: 5 inches
Sewing and Embroidery Features and Functions
- Fully computerised
- AcuFeed Flex dual feed system (Twin and Single configurations)
- 7-piece Superior Feed System
- Stitch Composer
- Stitch Tapering function
- Variable Zig Zag
- Embroidery Couching (11 designs for yarn couching, two couching feet included)
- Cutwork function
- Automatic jump thread trimming
- Corner layout for embroidery
- Single colour sewing (monochrome embroidery)
- Wi-Fi connectivity
- USB port
- Auto needle threader
- Automatic thread cutter
- Auto cutter on bobbin winder
- Auto presser foot lift
- Electronic knee lift
- Programmable needle up/down
- Lock stitch feature
- Start/stop button
- Maximum speed controller
- Memorise stitch and alphabet combinations
- Free-motion quilting foot height adjustable and memorisable
- Direct input of stitch numbers
- On-screen help and sewing tutorial
- 6 ultra-bright LED lights (three locations)
- Compatible with Janome apps: AcuEdit, AcuMonitor, AcuSetter
Bobbin and Needle System
- Hook system: horizontal rotary hook
- Bobbin: top-loading easy-set bobbin
- Bobbin winder plate: five cutting blades
- Bobbin thread sensor with adjustable sensitivity
- Free arm / flatbed conversion

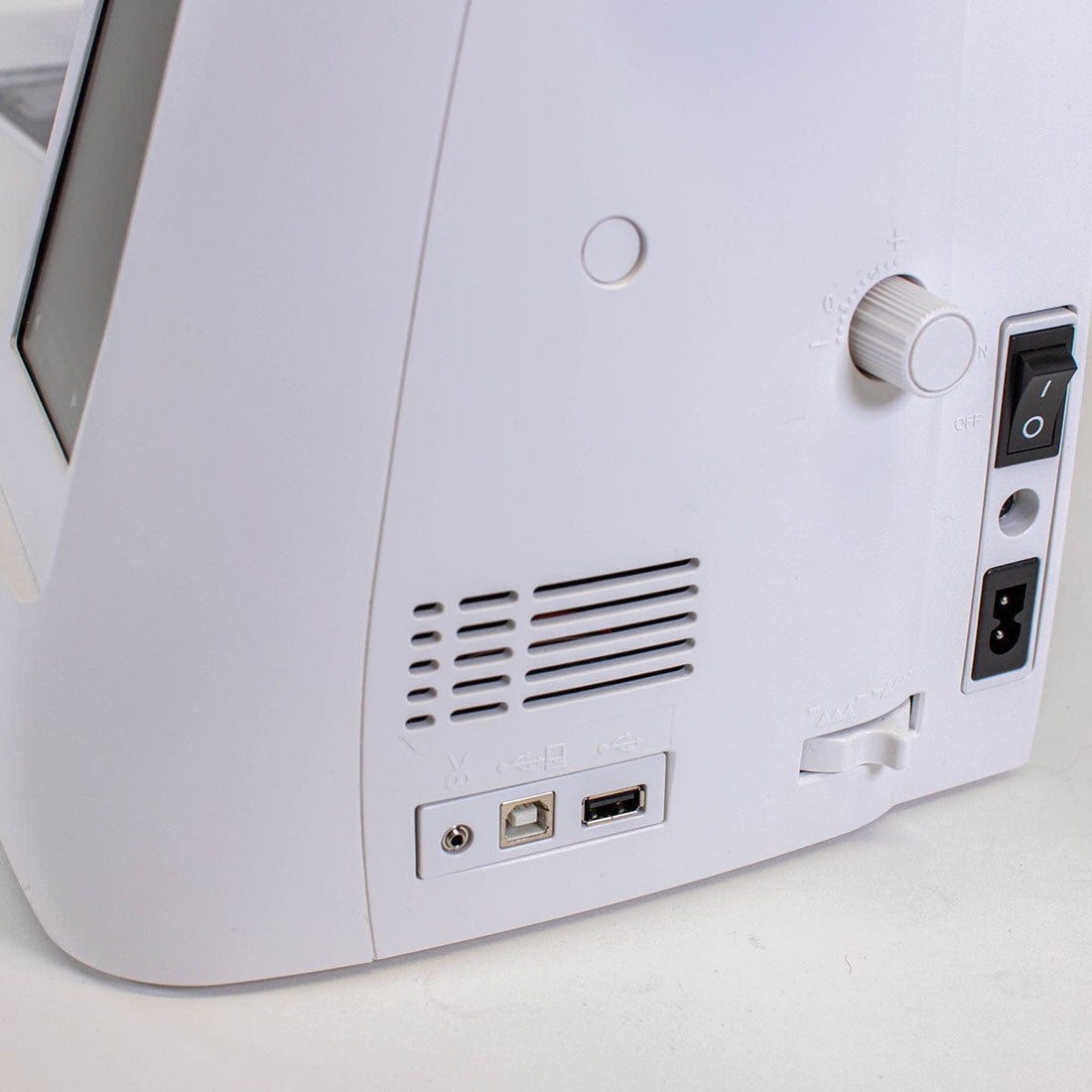

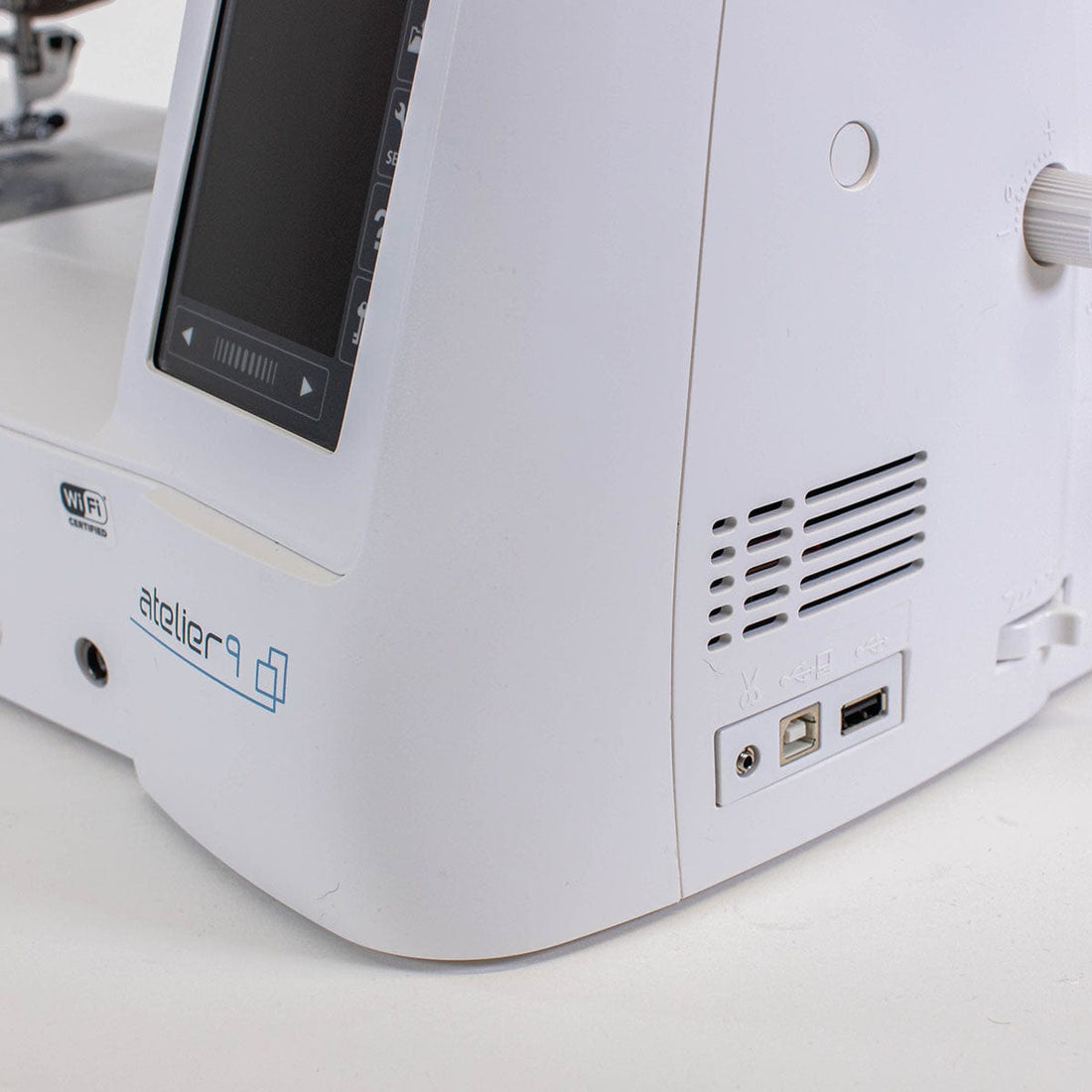

Connectivity
- USB port for design transfer and PC connection
- Wi-Fi for wireless design transfer
- Compatible with AcuEdit, AcuMonitor and AcuSetter apps
Warranty & Support
The Janome Atelier 9 is covered by a full Janome warranty for 2 years, extendable to 5 years warranty with Janome. As an authorised Janome retailer and service centre, The Sewing Studio is here to help with advice, servicing and support for the lifetime of your machine.
Product Downloads
Ratings & Reviews
Frequently Asked Questions
Let us help with the answers.
What is the difference between the Atelier 9 and a standalone embroidery machine?
The Atelier 9 combines full sewing and embroidery capability in one machine, which means you can piece a quilt, sew garments and embroider designs without switching between separate machines. The compact embroidery unit mounts to the back rather than extending to the left of the needle, so the machine's sewing footprint stays the same whether the embroidery unit is attached or not.
Can the Atelier 9 handle thick fabrics like denim and canvas?
Yes. The AcuFeed Flex dual feed system feeds fabric from both the top and the bottom simultaneously, which prevents the top layer from lagging on thick or layered materials. Bag makers, quilters working with wadded layers and anyone sewing with canvas or heavy denim will find the AcuFeed Flex system handles these fabrics with consistent results.

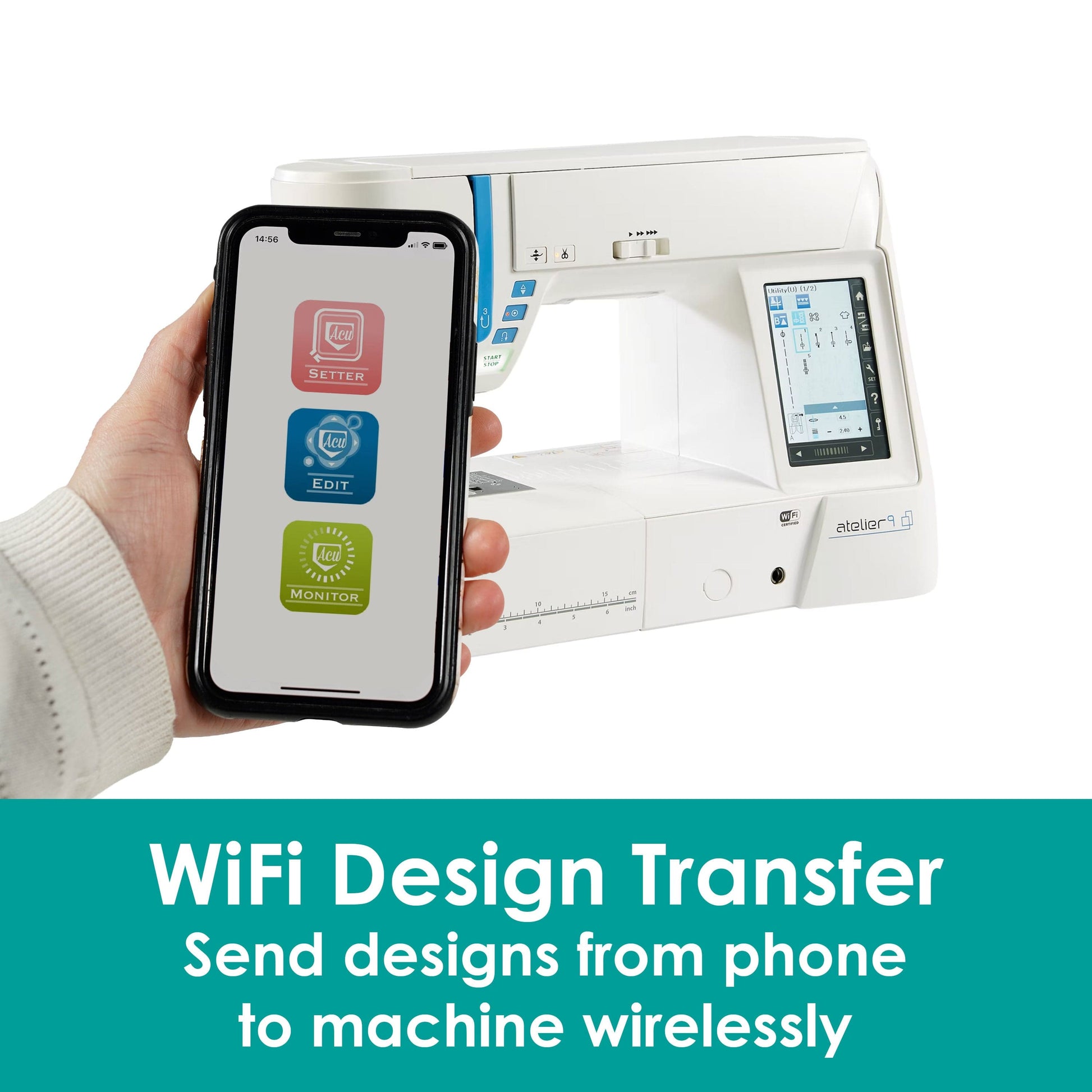

How does Wi-Fi design transfer work?
The Atelier 9 connects to your home Wi-Fi network. Once connected, you can send embroidery designs wirelessly from a phone, tablet or computer to the machine using the Janome AcuEdit app, removing the need to save files to a USB stick and transfer them manually each time.
What size embroidery projects can the Atelier 9 handle?
The maximum embroidery area is 170 x 200mm using the large RE20a hoop, which is large enough for jacket backs, cushion fronts and full monogram panels. The SQ14a hoop (140 x 140mm) suits square motifs and badges, while the FA10a (100 x 40mm) is suited to narrow border work, labels and sleeve bands.
Do I need to stop mid-design to trim jump threads?
No. Automatic jump thread trimming cuts jump threads as the machine embroiders, so the design runs continuously without you needing to pause, trim and restart. This is particularly useful on designs with multiple colour changes or dense fill areas that produce a high volume of jump threads.
Can I create my own embroidery and stitch designs on the machine?
The Stitch Composer lets you build and save custom stitch combinations directly on the touchscreen. For embroidery, the AcuEdit app allows you to create and edit designs on a connected device before sending them to the machine over Wi-Fi. Finished designs are stored in the machine's 4MB built-in memory and available to use again on future projects.
