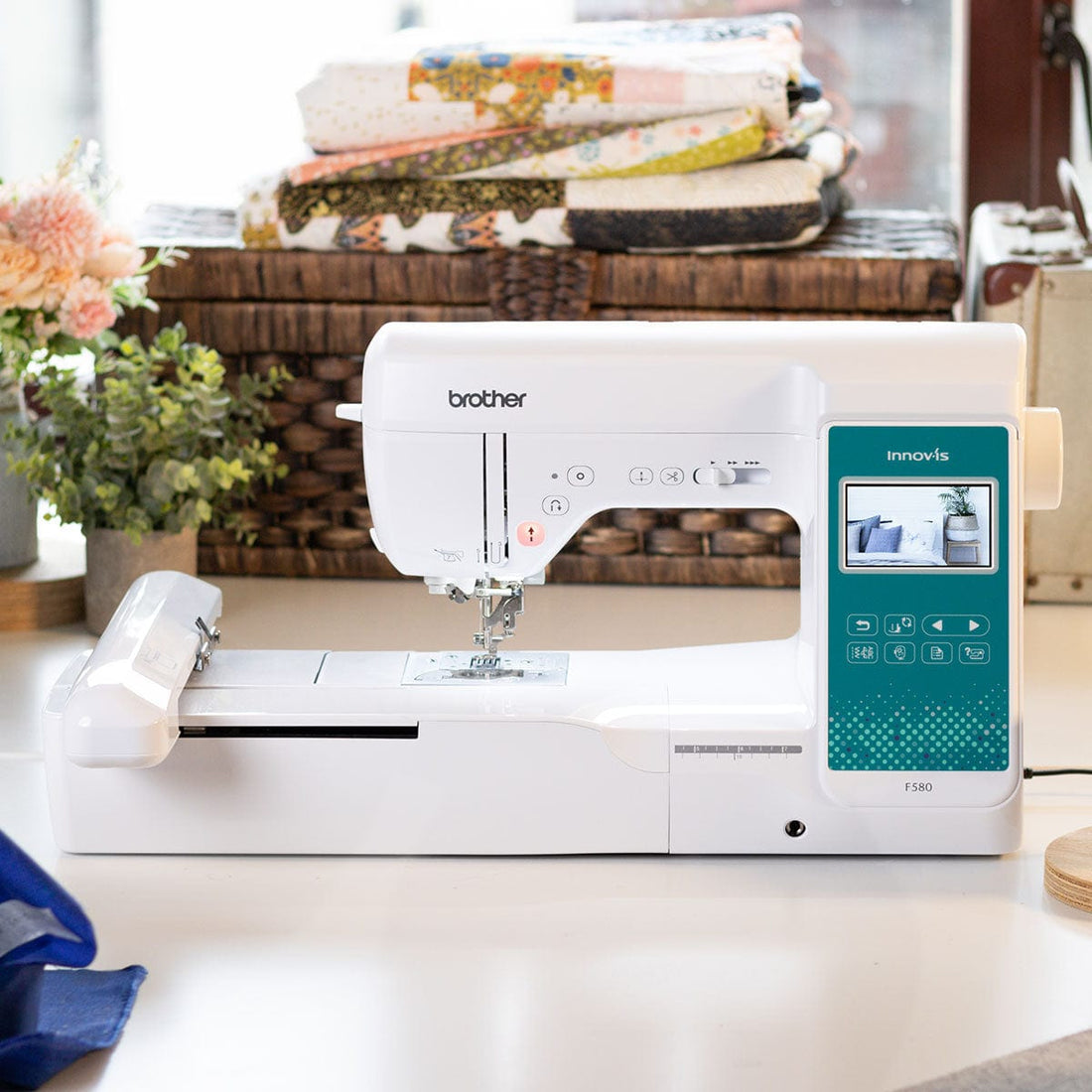

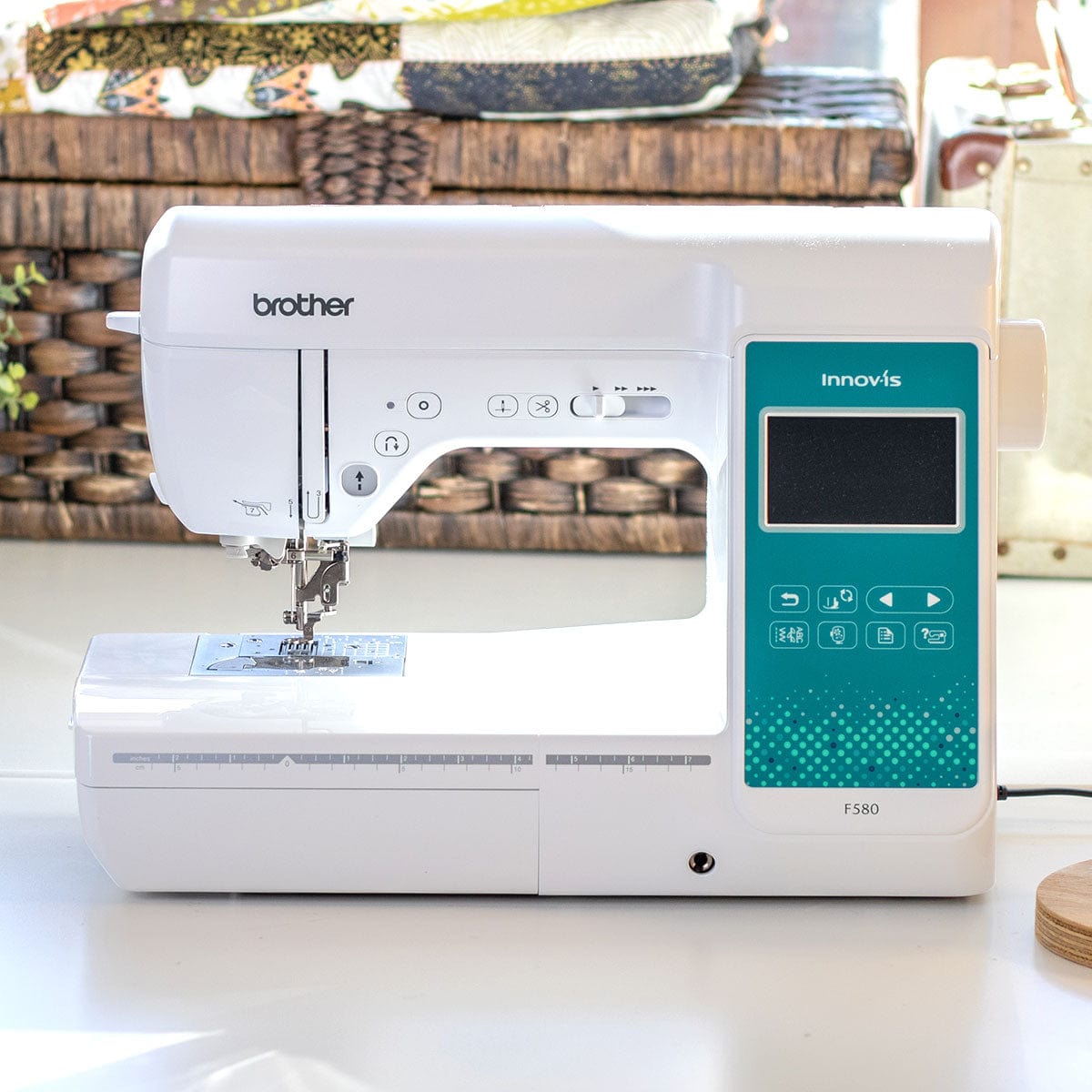

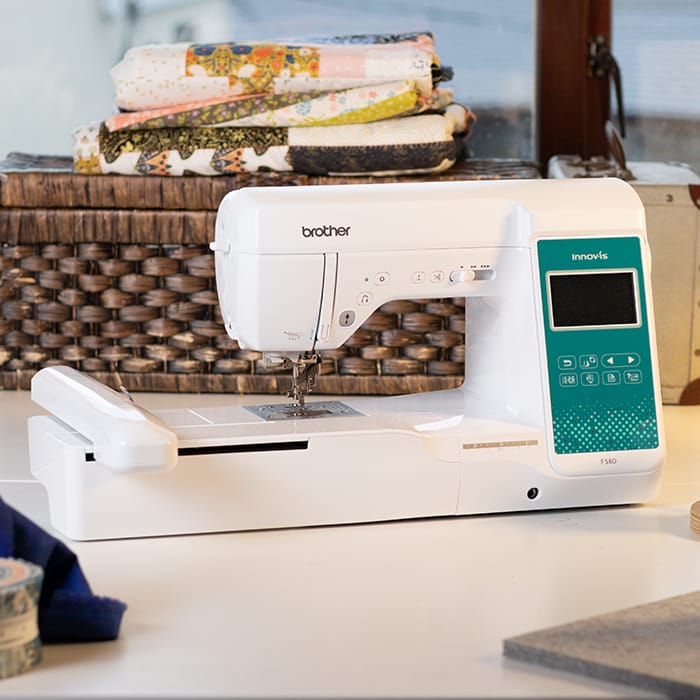

Brother Innov-is F580 Sewing & Embroidery Machine

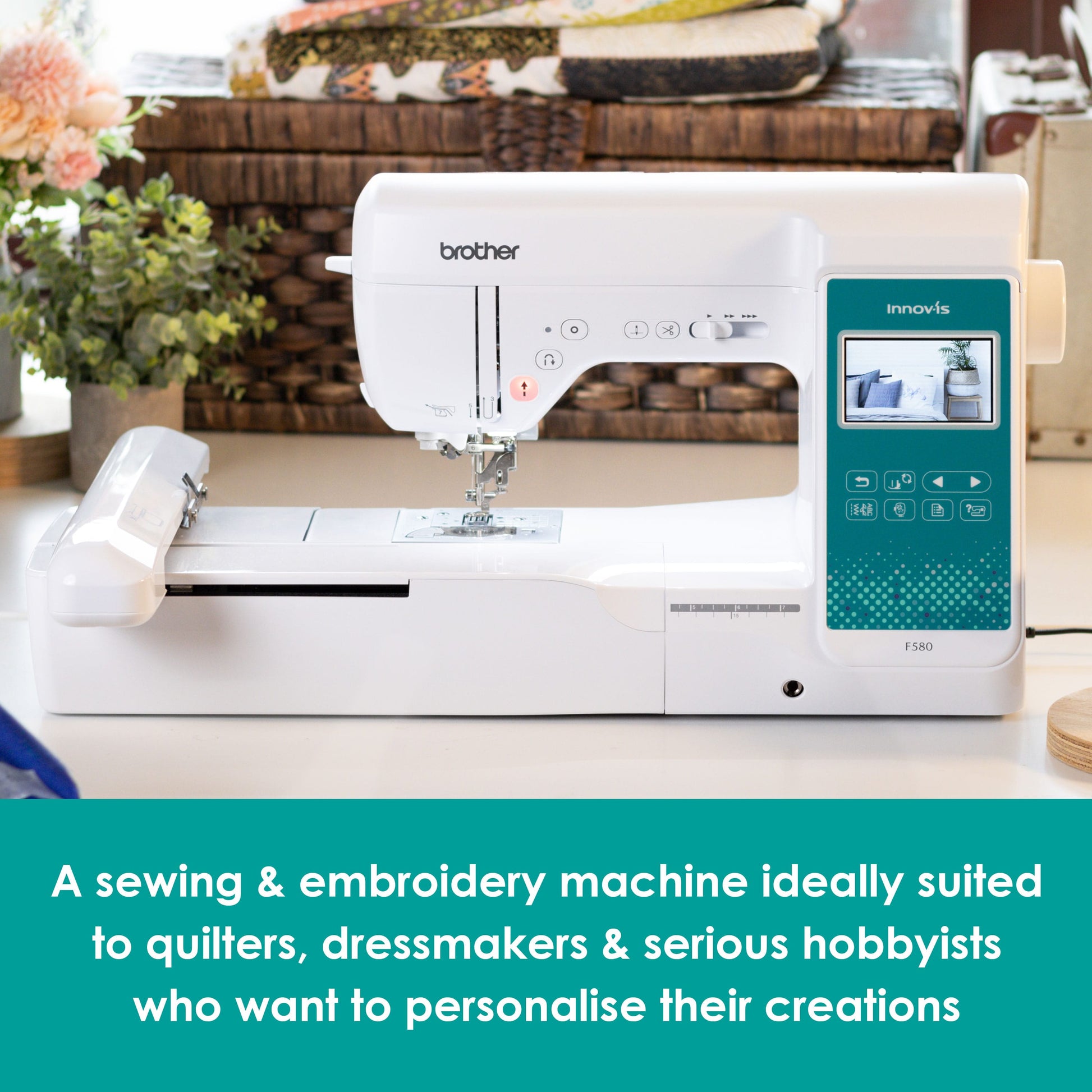

A sewing and embroidery machine ideally suited to quilters, dressmakers and serious hobbyists who want to personalise their creations
Spread the cost from
£45.15 per month over 48 months*
£46.99 £42.30 Save 10%
£399.00 £219.00 Save £180.00
Brother 3-Year Warranty
The Brother Innov-is F580 is covered by a full 3-year Brother warranty (commercial use only 1 year warranty). If you ever need support or servicing, our team are always here to help.
30-Day Satisfaction Guarantee
Changed your mind? You've got 30 days to return any new, unused items in their original packaging.
Need advice?
Our in-house team knows every detail of this machine. Call, message or chat and get honest, expert advice from people who actually sew.
Start a live chat
Our standard width fabric can be cut as a Fat Quarter, measuring 50cm x 1/2 the width of the bolt. Above is an example of how your fabric will be received, depending on the quantity ordered.
We also offer a sample service, where you can order 1 single fat quarter of any standard width fabric, to have at home and compare colours. When you are finished, you can send them back to us for a refund (feel free to contact us for more information on this service).
Our fabric can be cut as a Long Quarter, measuring a minimum of 25cm x width of bolt. We will supply the fabric as a continuous length (eg; if you bought 1.25m it will be sent as one piece of fabric).
Brother Innov-is F580 Product Review & Demonstration
The Brother Innov-is F580 is the perfect combination machine for makers who love both sewing and embroidery. There is an extensive library of 193 beautiful embroidery designs to choose from plus 13 embroidery lettering styles for endless customisation.
Quilters will love the generous embroidery area and ample room for medium to large quilts. There is 7.4" of workspace to the right of the needle plus essential accessories like a ¼" foot, walking foot and a quilting guide are also included. The Square Feed Drive System (SFDS) feeds fabric smoothly from all four directions, which means consistent stitch quality across a wide range of fabric weights and layers from stretch jersey to fine fabrics and denim.

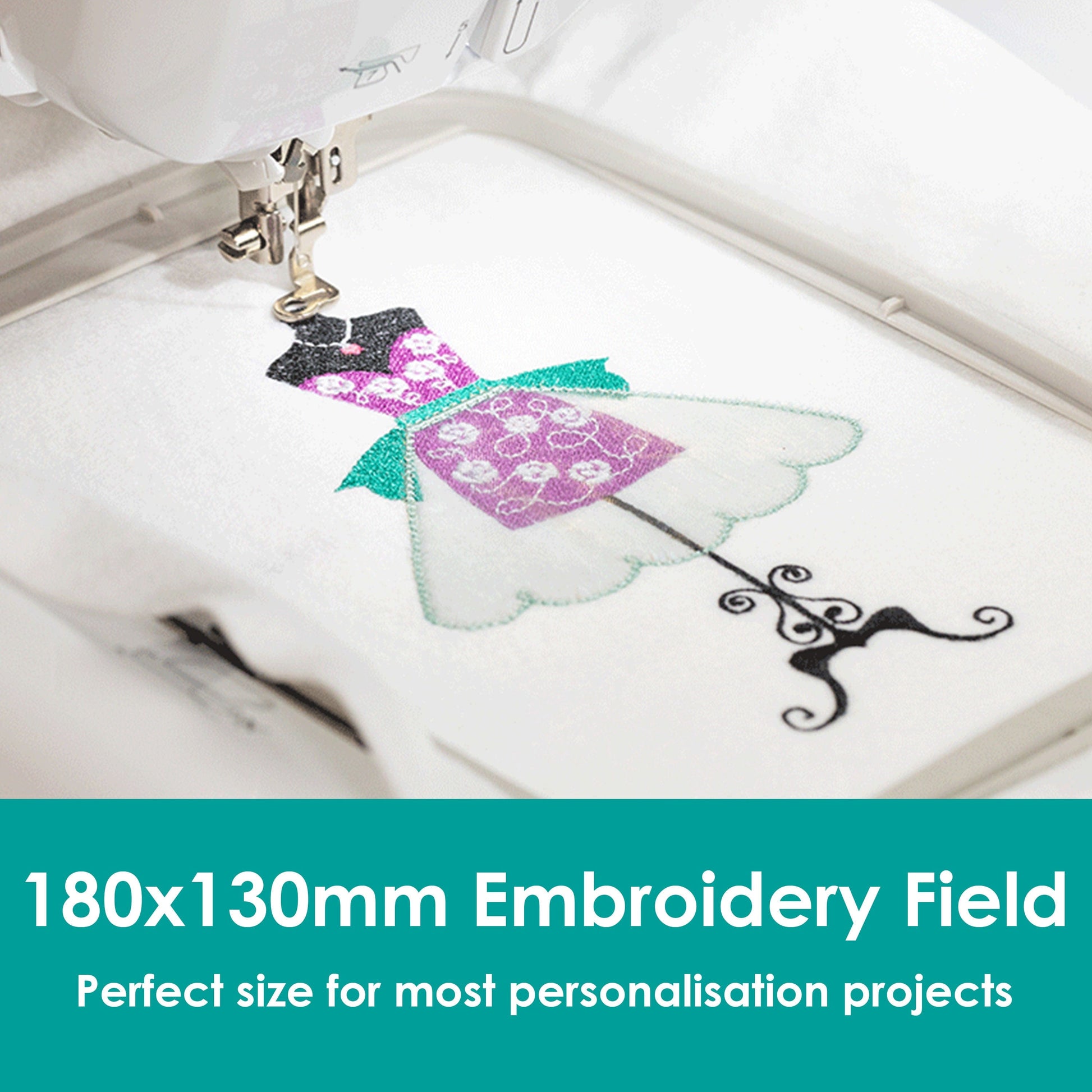

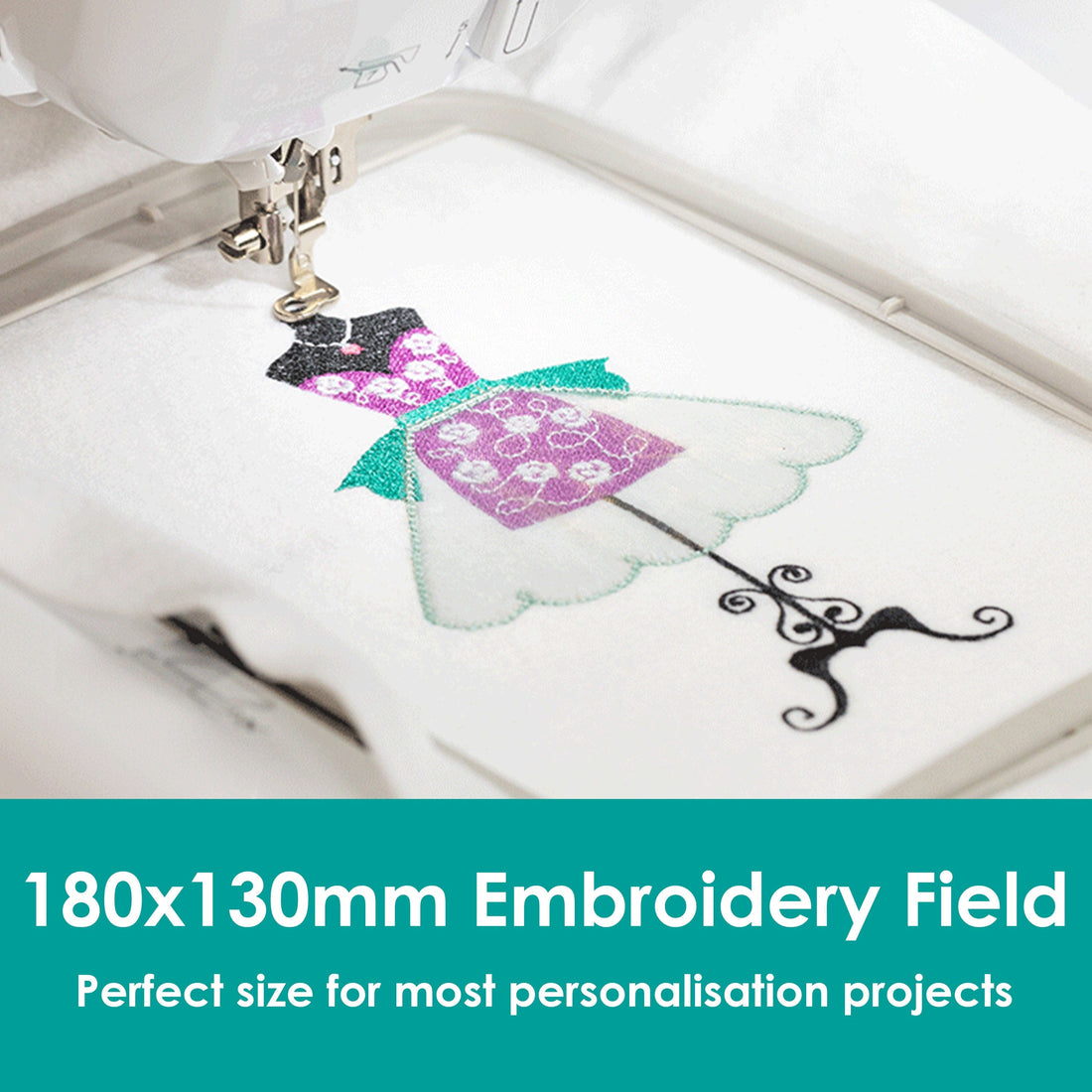

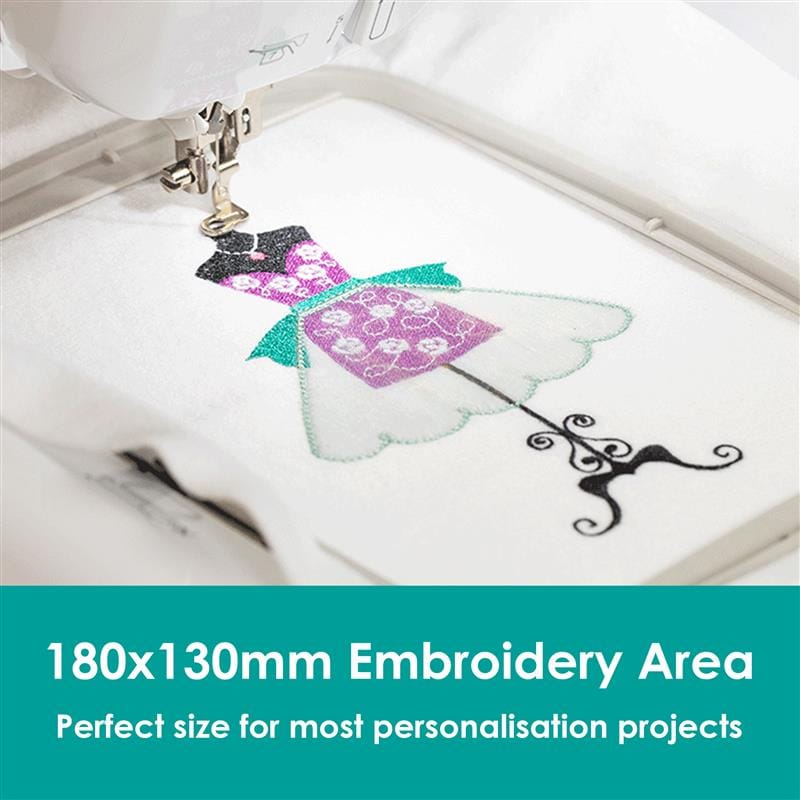

The 180 x 130mm embroidery area is large enough for most personalisation projects from monograms and labels to florals and seasonal motifs. Wireless LAN connectivity allows design transfer from the Artspira app where you can draw your own embroidery designs. For true customisation, My Custom Stitch lets you draw and save your own decorative stitch patterns directly on the machine.
Other essential features include the automatic thread cutter, lockstitch button, knee lift, slide speed control and upper and lower thread sensors. This is a fun, versatile and creative machine guaranteed to take quilting, dressmaking, crafting and sewing to another level of creativity.
Key Features
What makes this machine worth it
Machine Type
Sewing, quilting and embroidery machine
Stitch Range
241 built-in stitches including 10 one-step buttonhole styles, plus 5 lettering fonts
Control Type

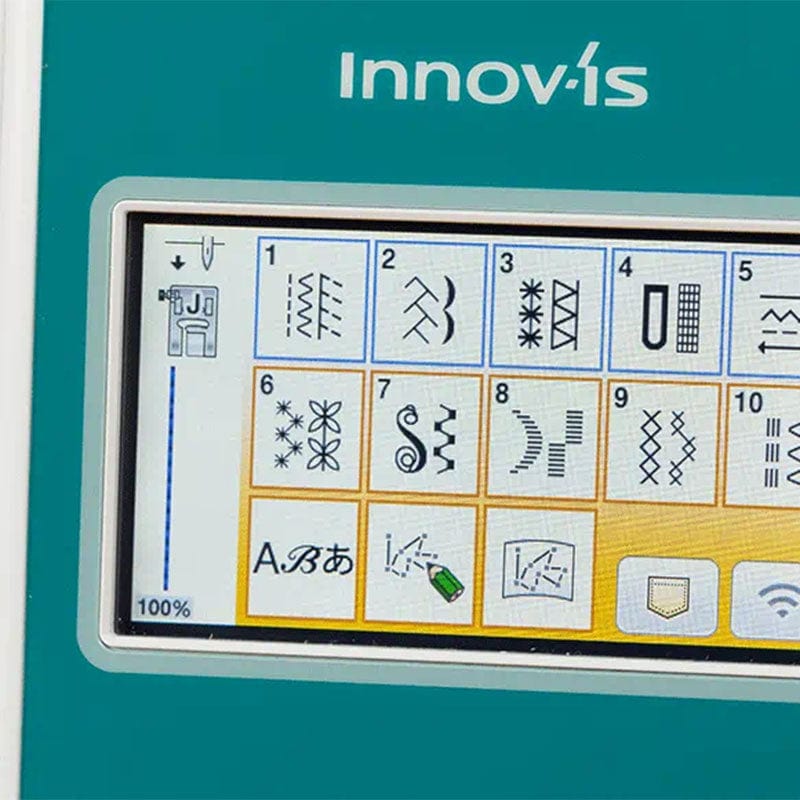

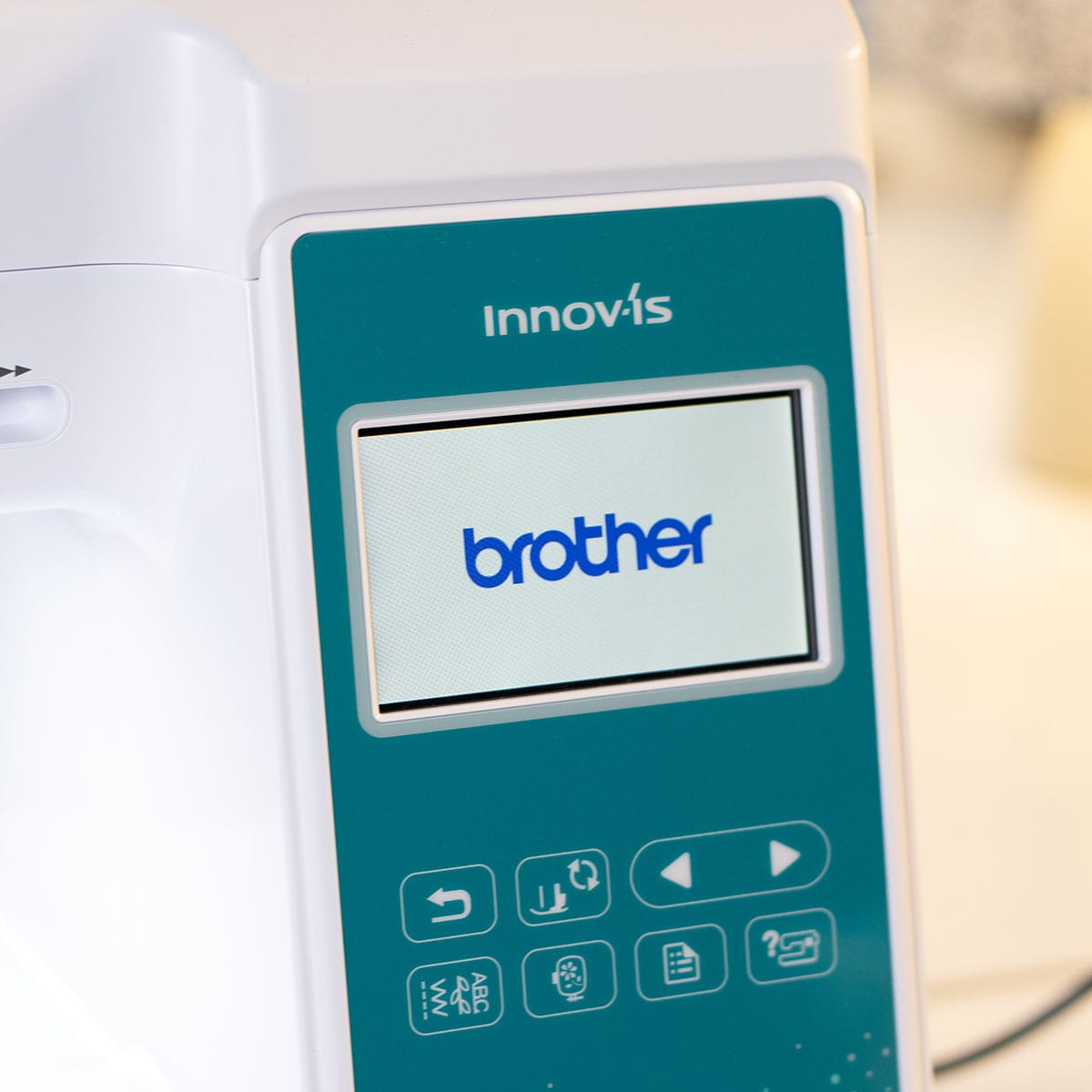

LCD screen: 3.7-inch colour touchscreen
Workspace
7.4 inches (190mm) to the right of the needle
Needle System
Advanced needle threading system with free arm
Embroidery Area
180 x 130mm, with 193 built-in designs and 13 embroidery font styles
Skill Level
Beginner to intermediate sewers and embroiderers
Machine Weight
9.3kg
This machine is perfect for
- Passionate sewers who want both excellent sewing and embroidery in one machine
- Quilters who also embroider - the walking foot included means you're ready for working with layers
- Dressmakers who sew clothing and want to customise with embroidery
Can sew but not ideal for
- Maximum embroidery area - the 180x130mm is generous but dedicated embroidery machines offer larger
Not suitable for
- Commercial embroidery work or production volumes
Materials and Build Quality
The SFDS feeds fabric in four directions for consistent stitch quality across any weight of fabric, from fine jersey to denim and multiple layers. Adjustable presser foot pressure delivers pucker-free results on stretch fabrics without needing to swap feet between fabric changes.

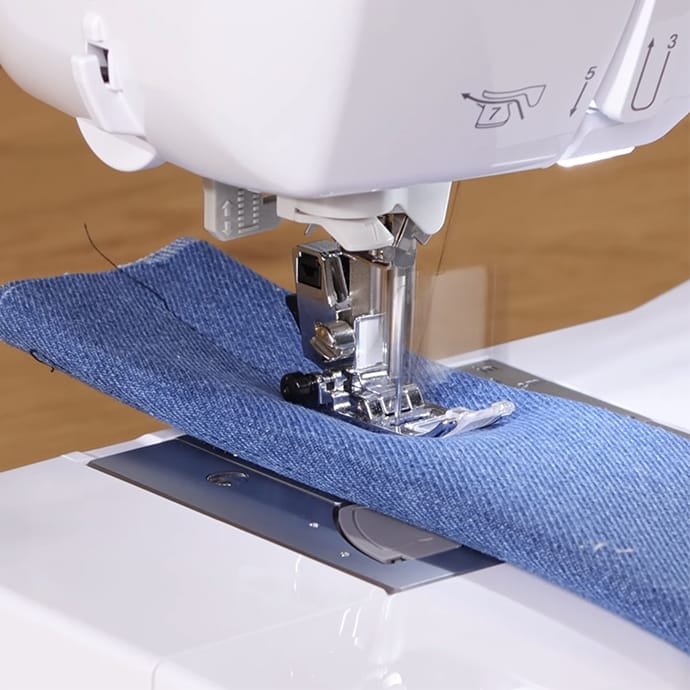

Square Feed Drive System
The SFDS feeds fabric in four directions for consistent stitch quality across any weight of fabric, from fine jersey to denim and multiple layers. Adjustable presser foot pressure delivers pucker-free results on stretch fabrics without needing to swap feet between fabric changes.

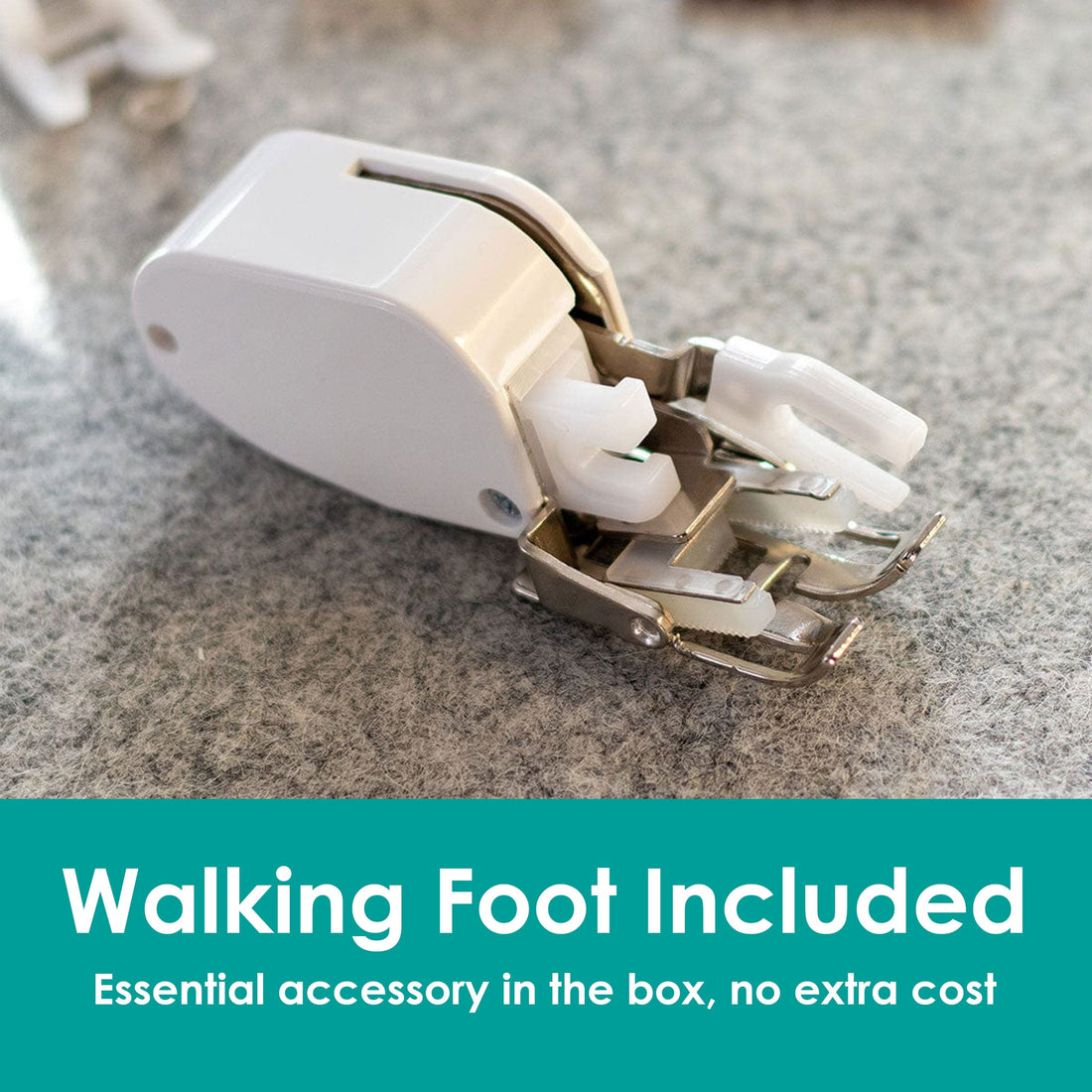

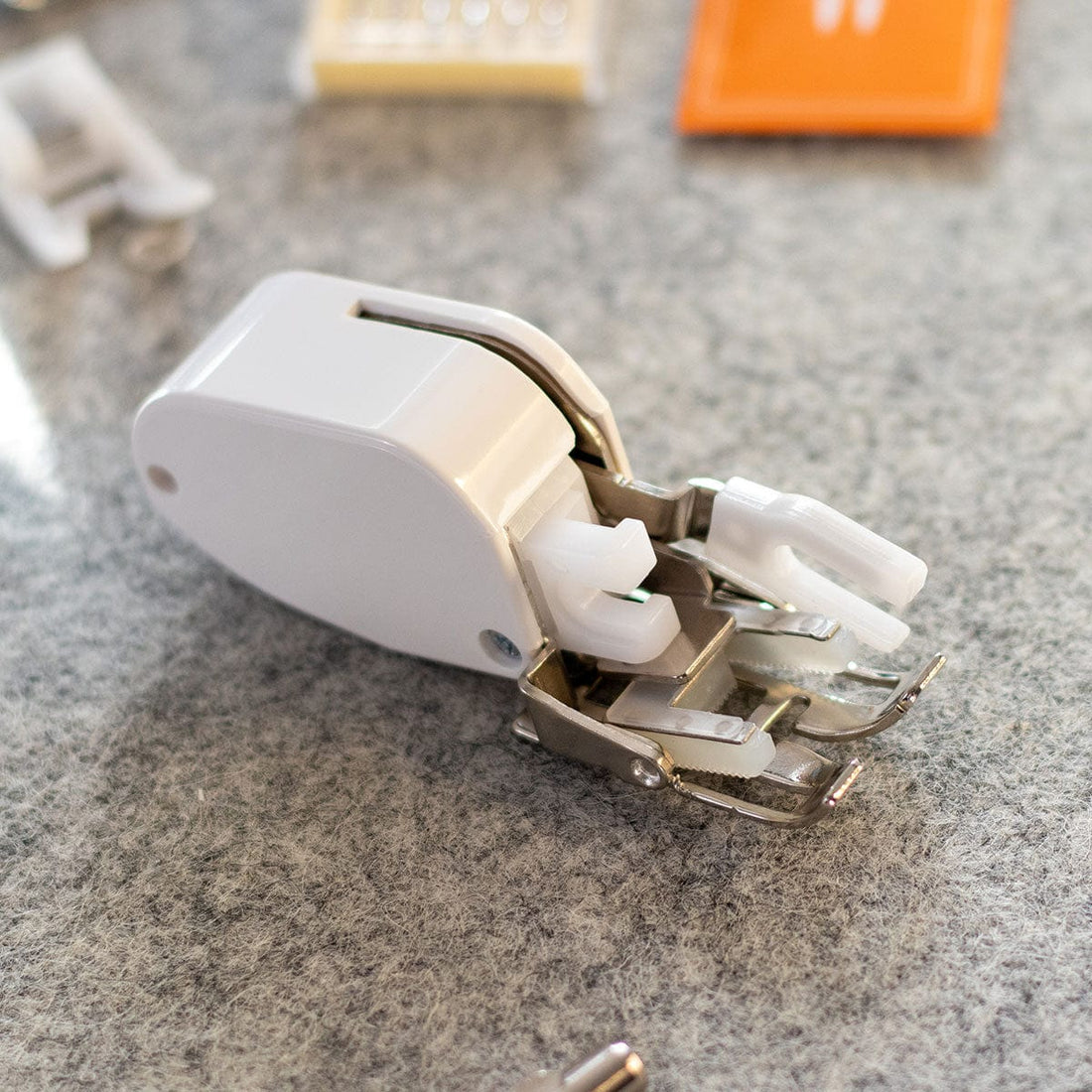

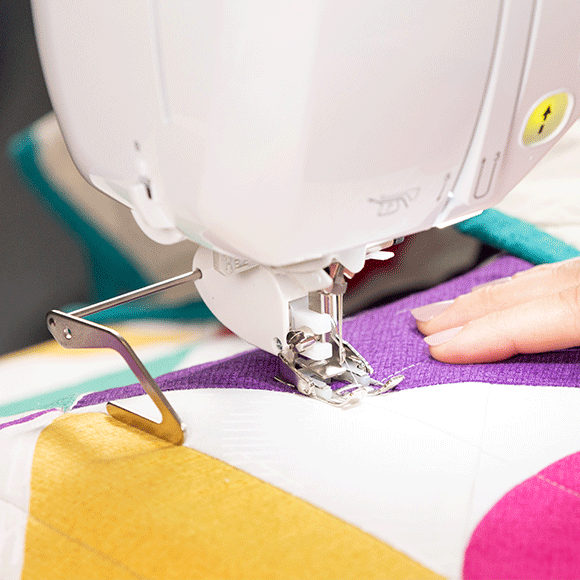

The walking foot is included in the box, so you can tackle quilts and layered projects straight out of the box. Adjustable presser foot pressure gives you control over how much pressure is applied to the fabric beneath the foot, which means pucker-free results on stretch fabrics and fine materials.
Walking Foot and Presser Foot System
The walking foot is included in the box, so you can tackle quilts and layered projects straight out of the box. Adjustable presser foot pressure gives you control over how much pressure is applied to the fabric beneath the foot, which means pucker-free results on stretch fabrics and fine materials.

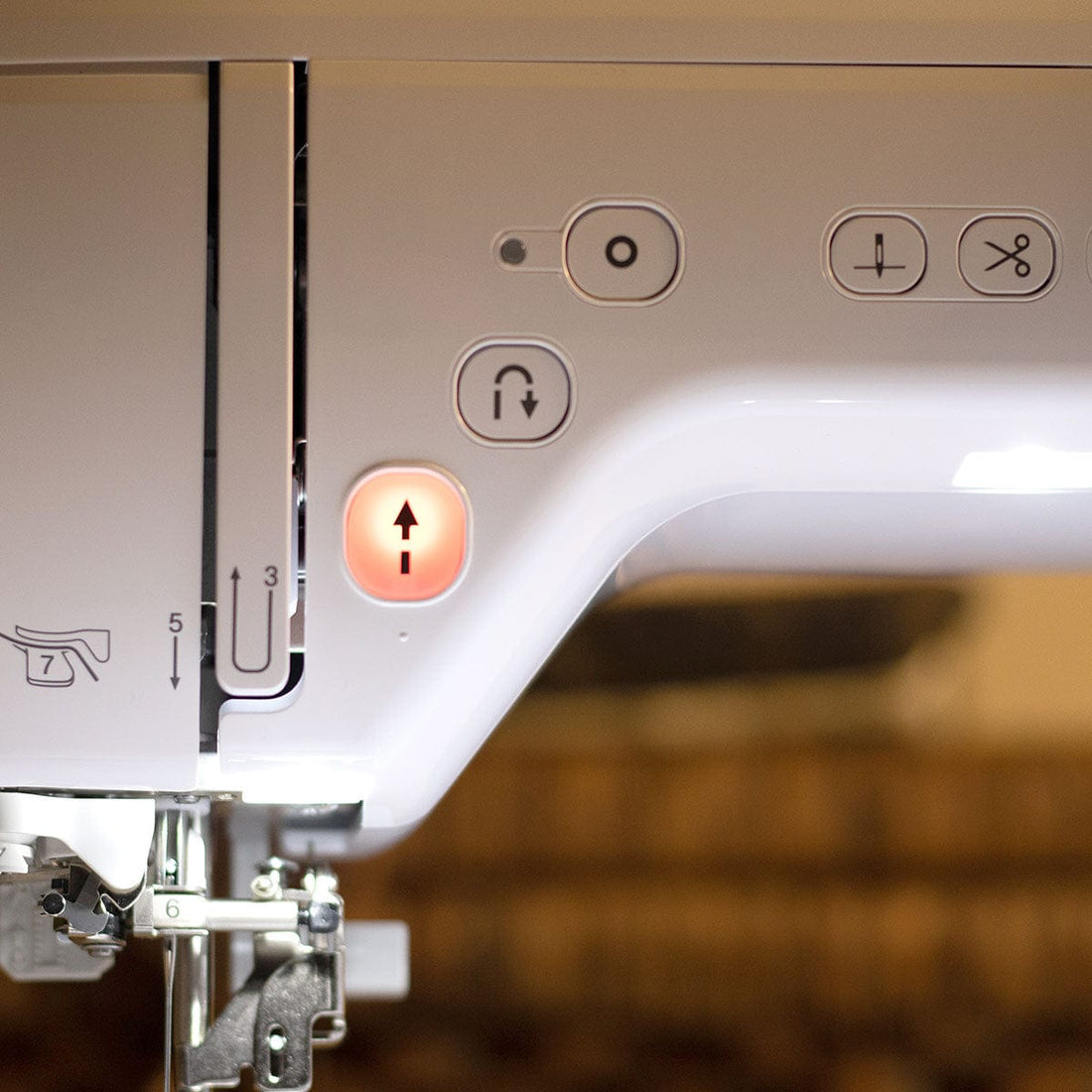

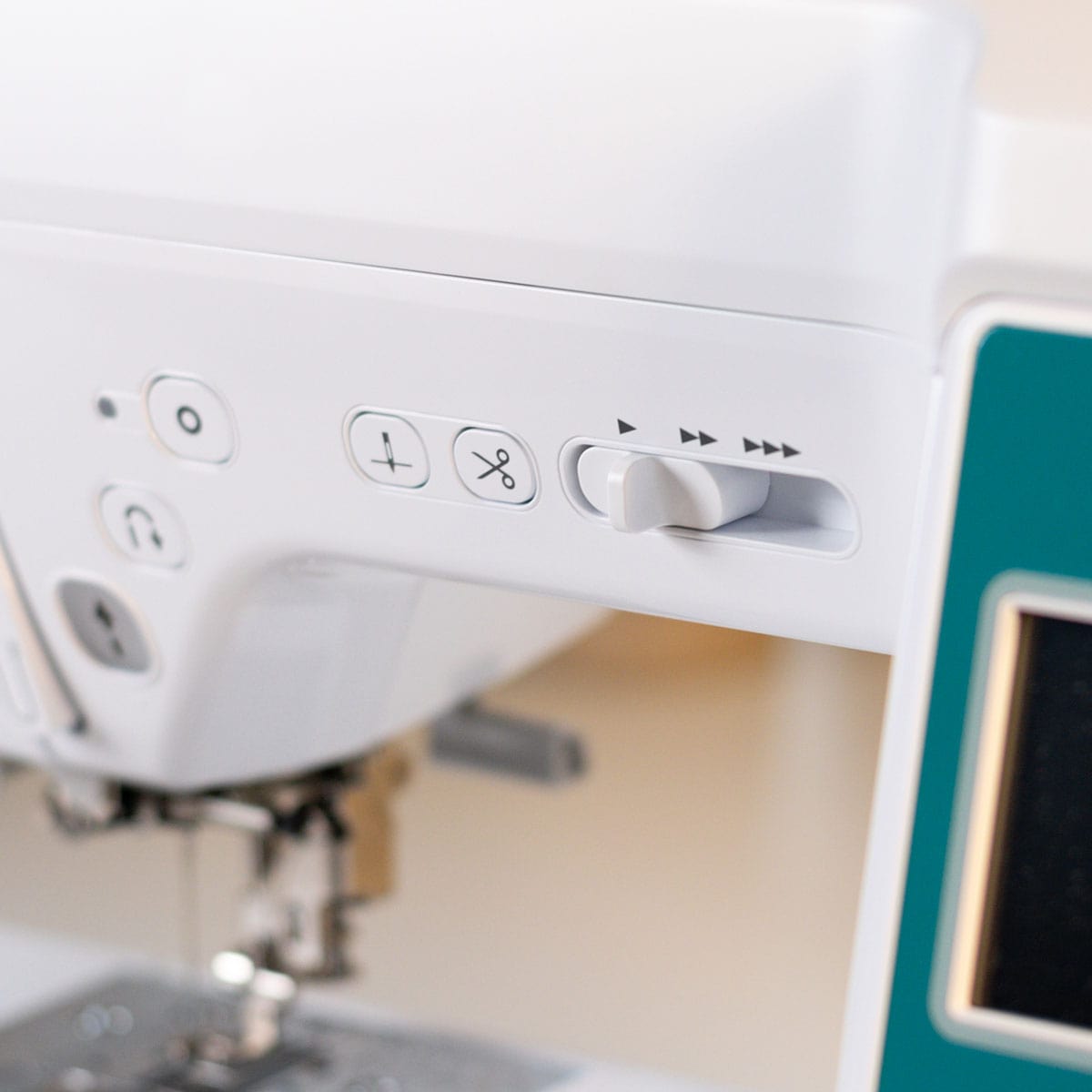

The automatic thread cutter trims upper and lower threads at the touch of a button and the lockstitch button ties off stitches at the beginning and end of a seam without manual intervention. Upper and lower thread sensors monitor both thread supplies while you sew, alerting you when either runs low or breaks so you can address it before a seam is compromised. Adjustable thread tension with automatic control adjusts for different fabric types, so stitch quality remains consistent across the whole project.
Thread Handling and Sensors
The automatic thread cutter trims upper and lower threads at the touch of a button and the lockstitch button ties off stitches at the beginning and end of a seam without manual intervention. Upper and lower thread sensors monitor both thread supplies while you sew, alerting you when either runs low or breaks so you can address it before a seam is compromised. Adjustable thread tension with automatic control adjusts for different fabric types, so stitch quality remains consistent across the whole project.
The Difference is in the Details

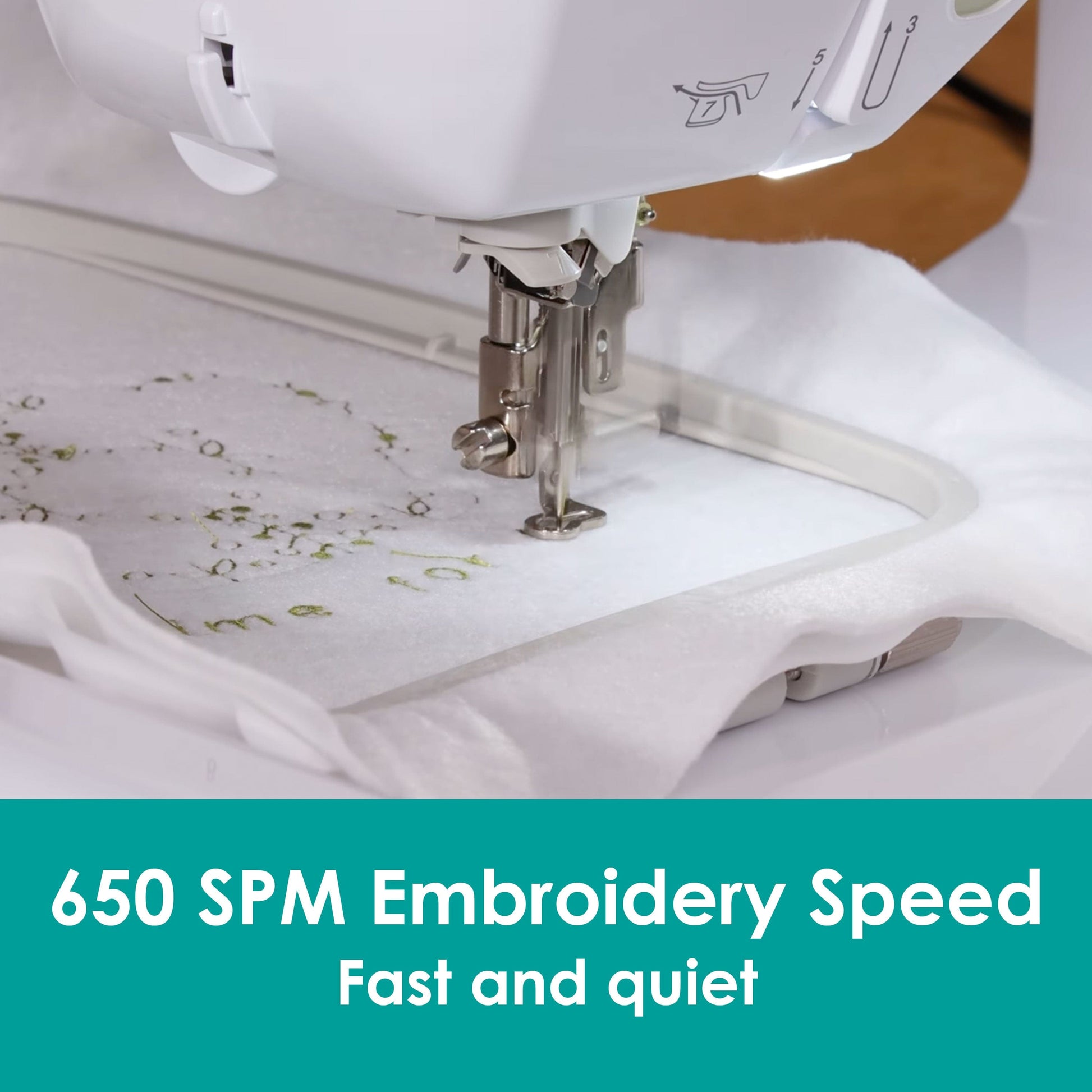

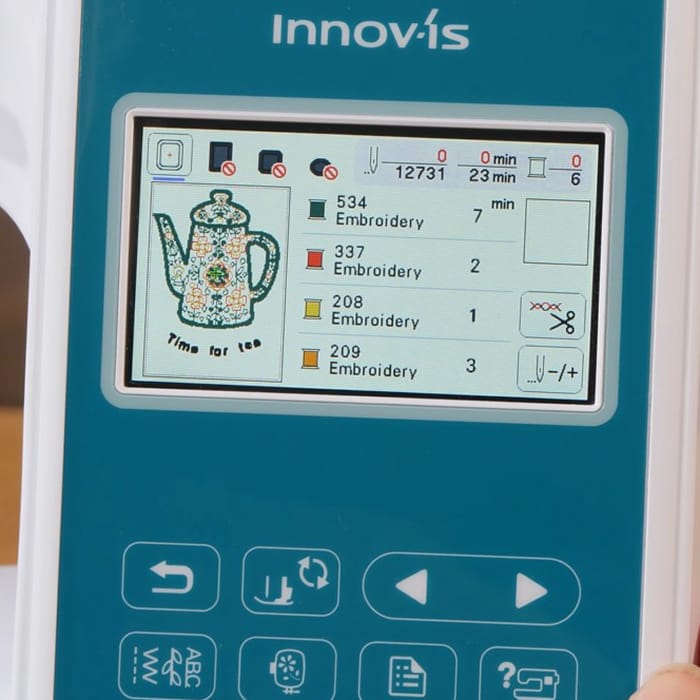

At up to 850 stitches per minute for sewing and 650 stitches per minute for embroidery, the F580 moves through projects efficiently. The automatic thread cutter trims upper and lower threads at the end of each seam or colour change, and the colour sorting function reorders embroidery thread changes to minimise the number of times you need to swap threads during a design.
Productivity & Speed
At up to 850 stitches per minute for sewing and 650 stitches per minute for embroidery, the F580 moves through projects efficiently. The automatic thread cutter trims upper and lower threads at the end of each seam or colour change, and the colour sorting function reorders embroidery thread changes to minimise the number of times you need to swap threads during a design.
The Brother Innov-is F580 is covered by a full 3-year Brother warranty (commercial use only 1 year warranty), which reflects the build quality and reliability of the machine. A hard case is included for safe storage and transport when the embroidery module is not attached, protecting the machine between sessions and when travelling to classes or groups.
Built for Longevity
The Brother Innov-is F580 is covered by a full 3-year Brother warranty (commercial use only 1 year warranty), which reflects the build quality and reliability of the machine. A hard case is included for safe storage and transport when the embroidery module is not attached, protecting the machine between sessions and when travelling to classes or groups.
As authorised Brother retailers, our team at The Sewing Studio can answer questions before and after purchase. Whether you need help choosing the right accessories, setting up the embroidery unit or troubleshooting a stitch issue, you can reach us by chat, call or email at any point.

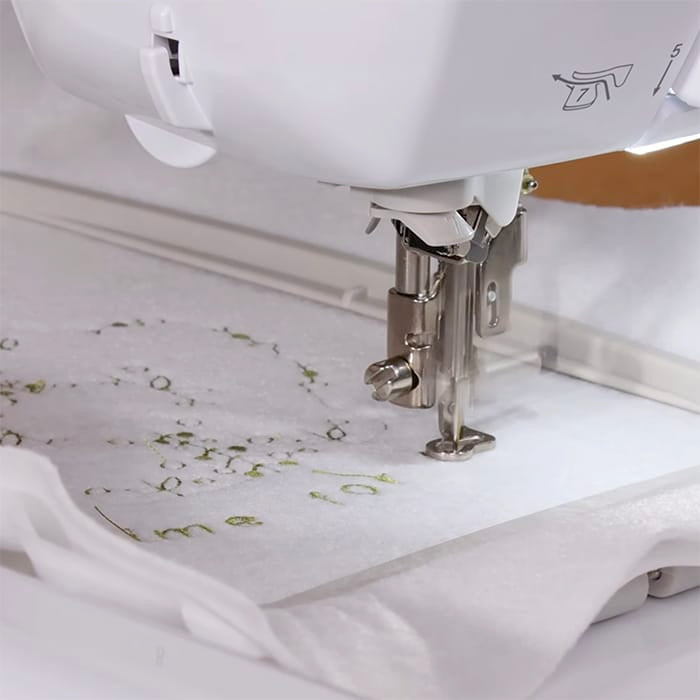

Expert Support
As authorised Brother retailers, our team at The Sewing Studio can answer questions before and after purchase. Whether you need help choosing the right accessories, setting up the embroidery unit or troubleshooting a stitch issue, you can reach us by chat, call or email at any point.

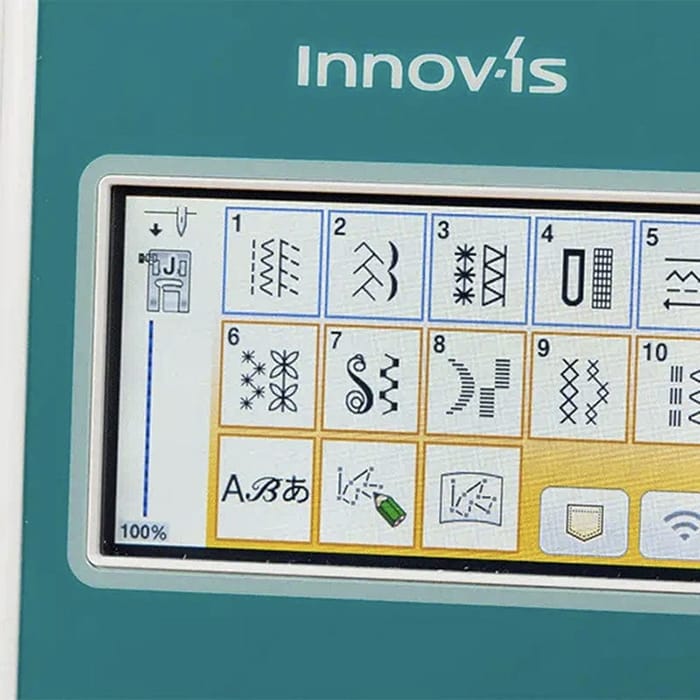

The built-in stitch reference guide provides on-screen help for every stitch type and function. Wireless connectivity gives you access to the Artspira app for design inspiration and transfer. You can also find tutorials and project ideas for the F580 on our YouTube channel to help you get the most from the machine.
Learning Resources
The built-in stitch reference guide provides on-screen help for every stitch type and function. Wireless connectivity gives you access to the Artspira app for design inspiration and transfer. You can also find tutorials and project ideas for the F580 on our YouTube channel to help you get the most from the machine.

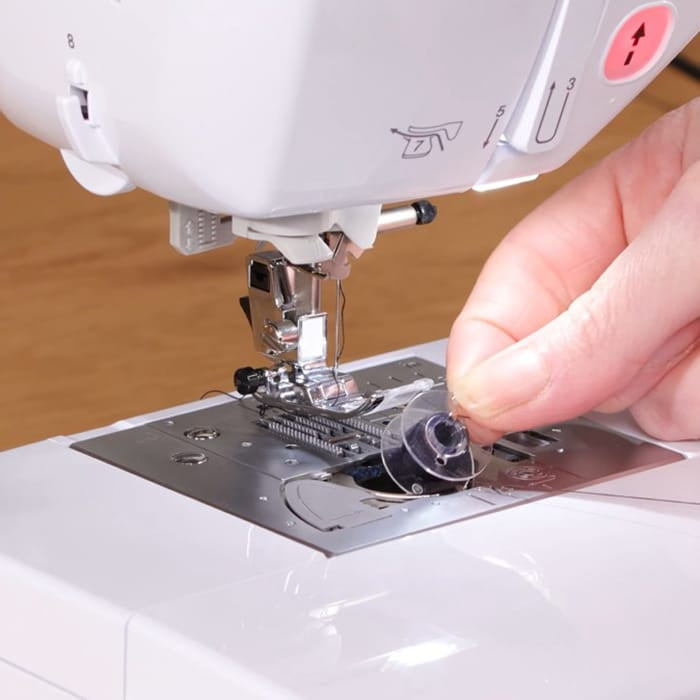

The drop-in bobbin system makes bobbin changes quick and straightforward. The advanced needle threading system takes the strain out of threading, and the free arm allows easy access for sewing cuffs, hems and other tubular items. The knee lift frees both hands for fabric guidance, and the slide speed control lets you adjust sewing speed without taking your hands off the work.
Comfort & Ease of Use
The drop-in bobbin system makes bobbin changes quick and straightforward. The advanced needle threading system takes the strain out of threading, and the free arm allows easy access for sewing cuffs, hems and other tubular items. The knee lift frees both hands for fabric guidance, and the slide speed control lets you adjust sewing speed without taking your hands off the work.

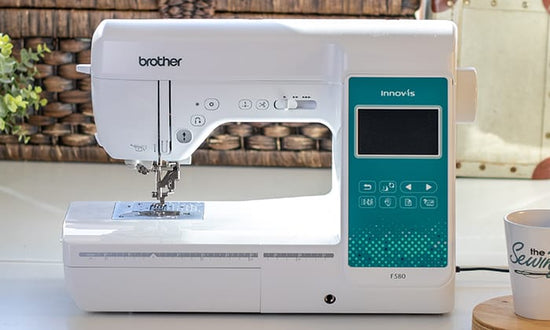

Brother Innov-is F580: A Machine for Every Maker
And every project

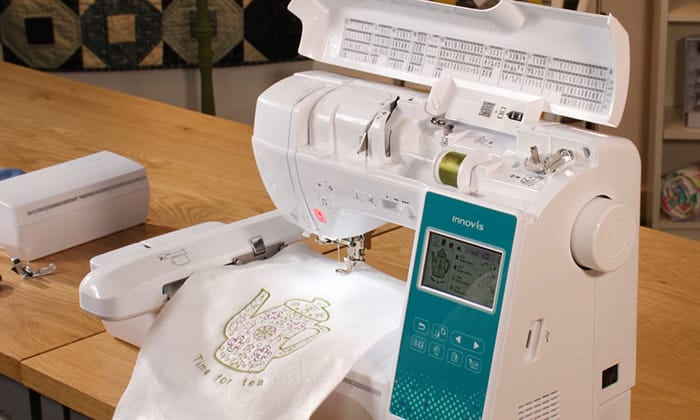

From sewing to embroidery in a few steps

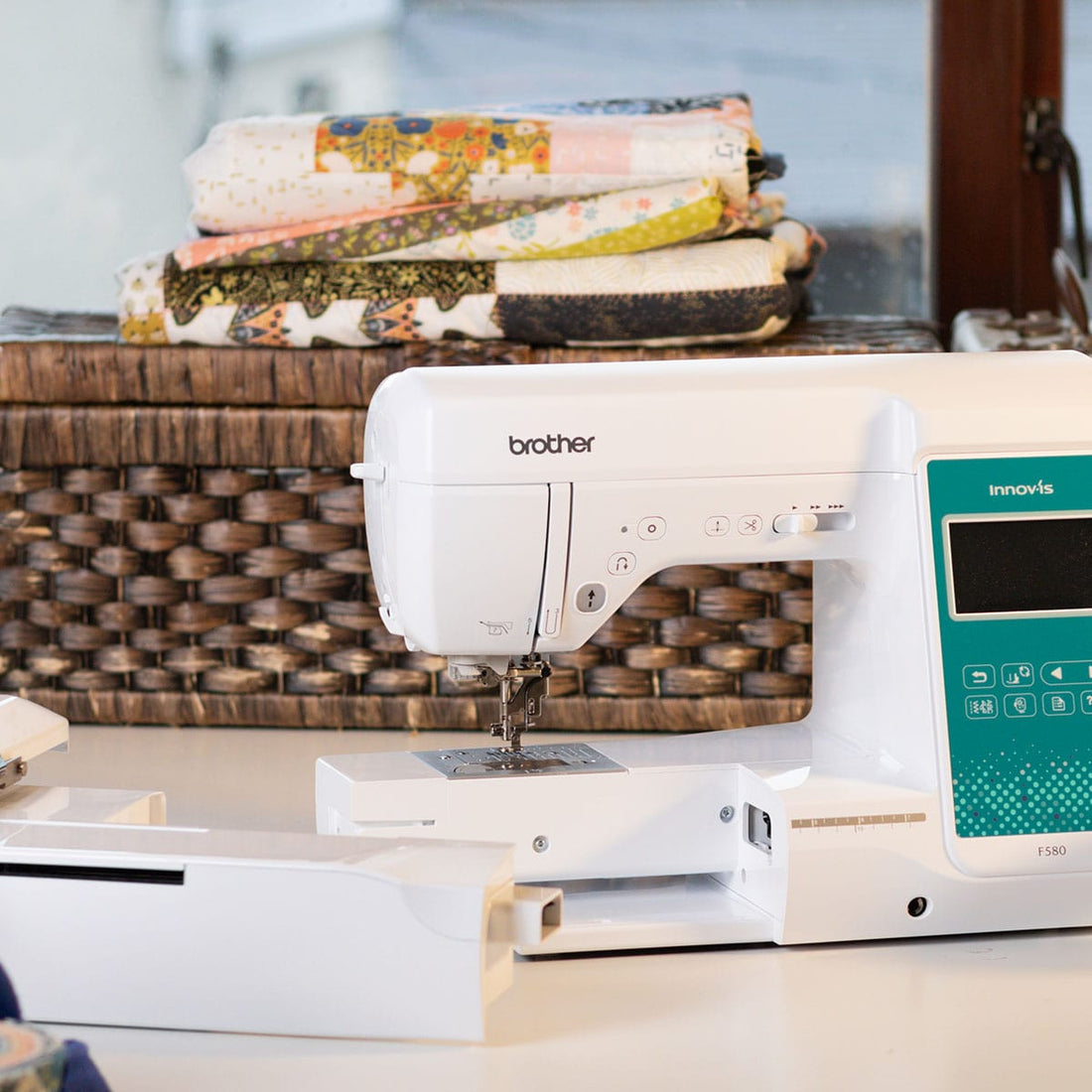

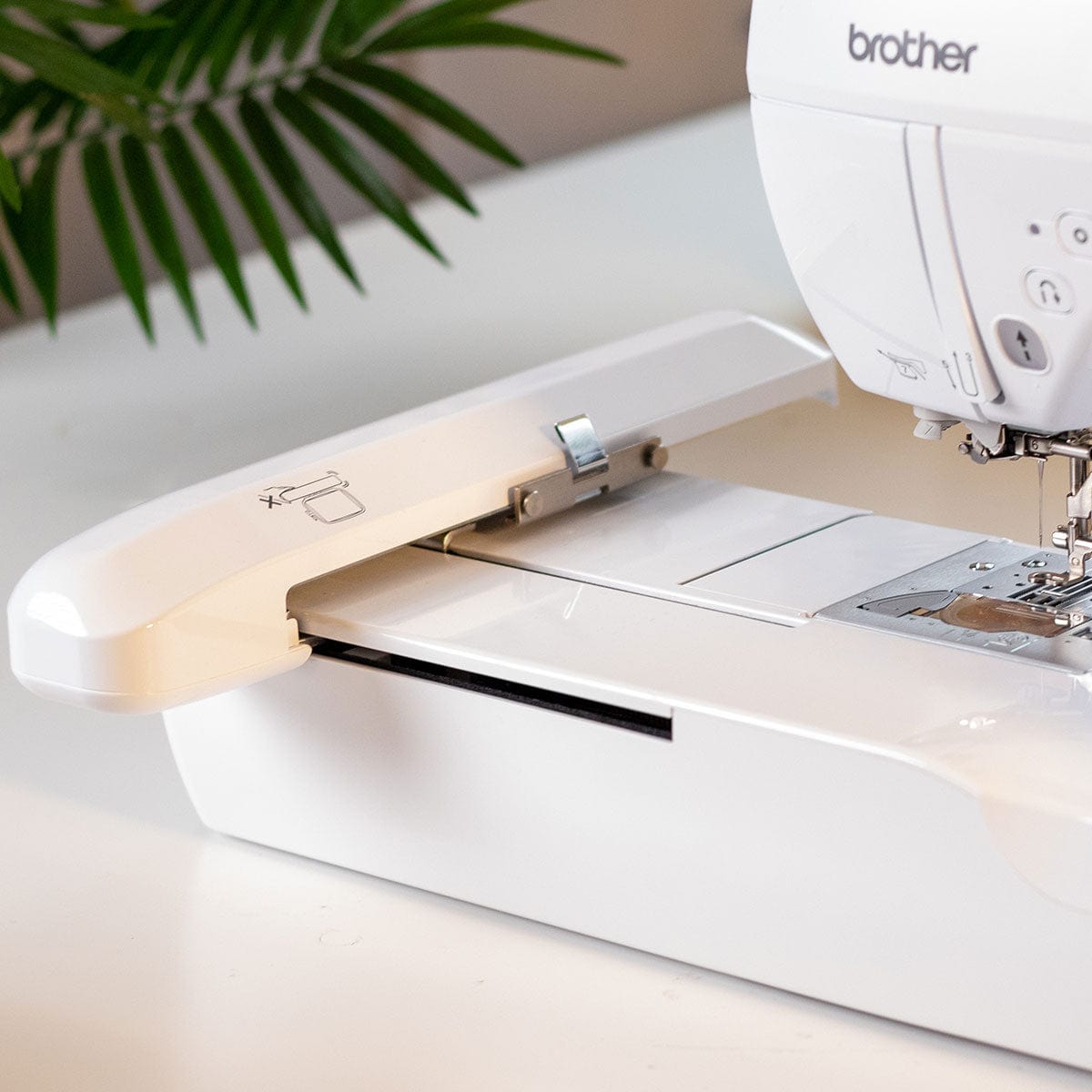

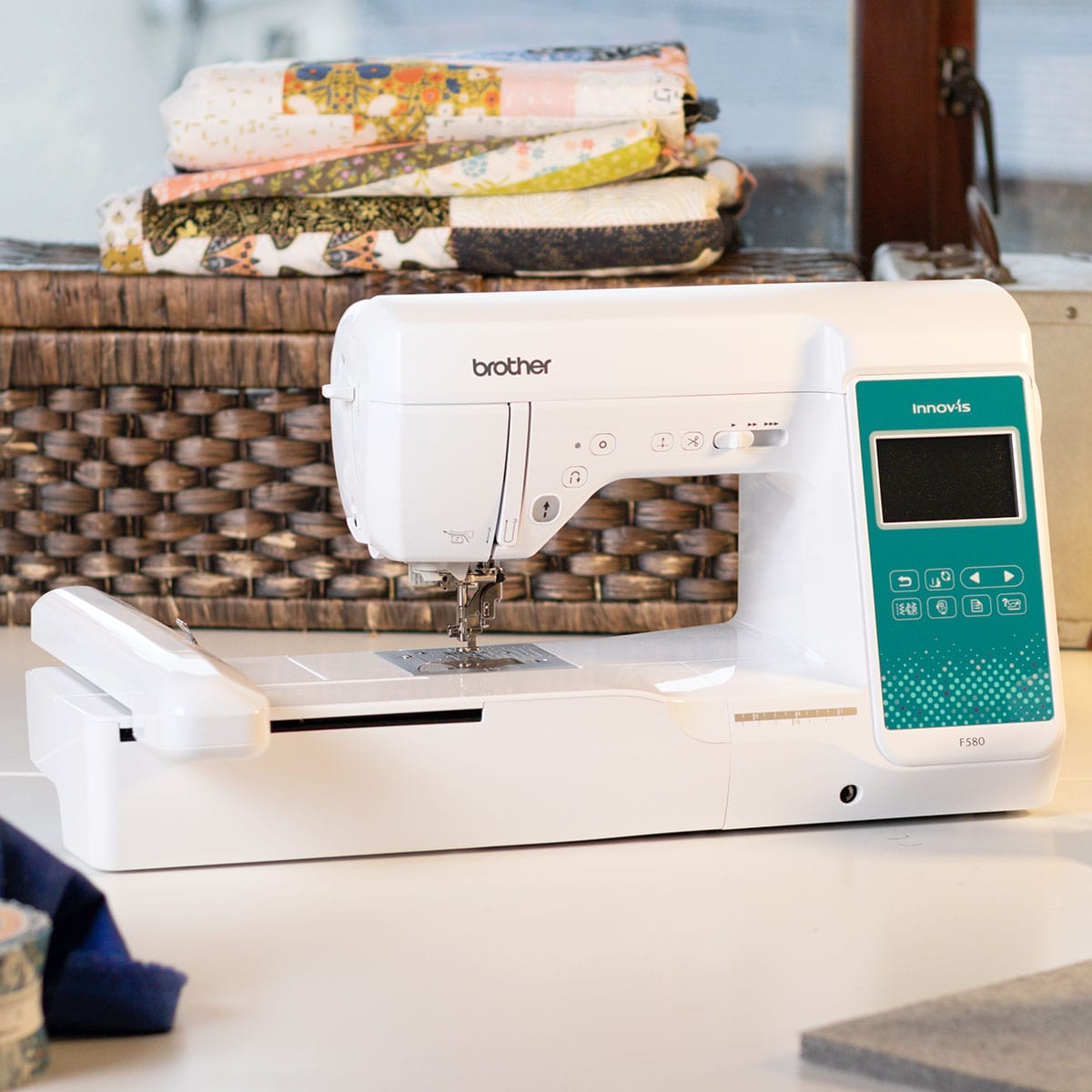

The embroidery unit slides on and off without tools. When attached, the machine detects it automatically and switches to embroidery mode. Switching back to sewing is just as quick, which makes the F580 practical for mixed sessions where you are working on both functions in the same sitting.

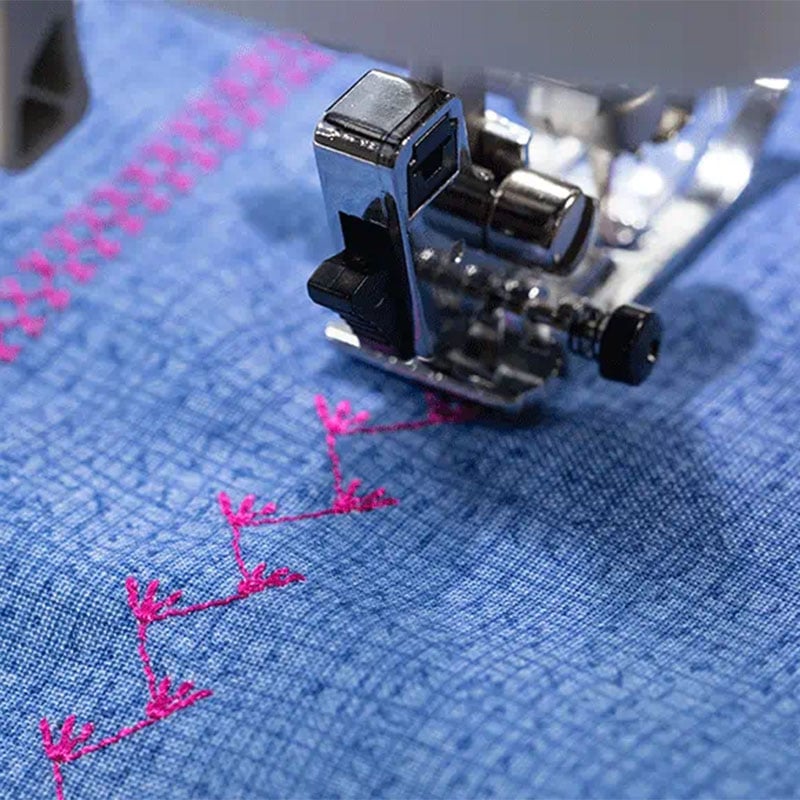

A stitch library built for every technique

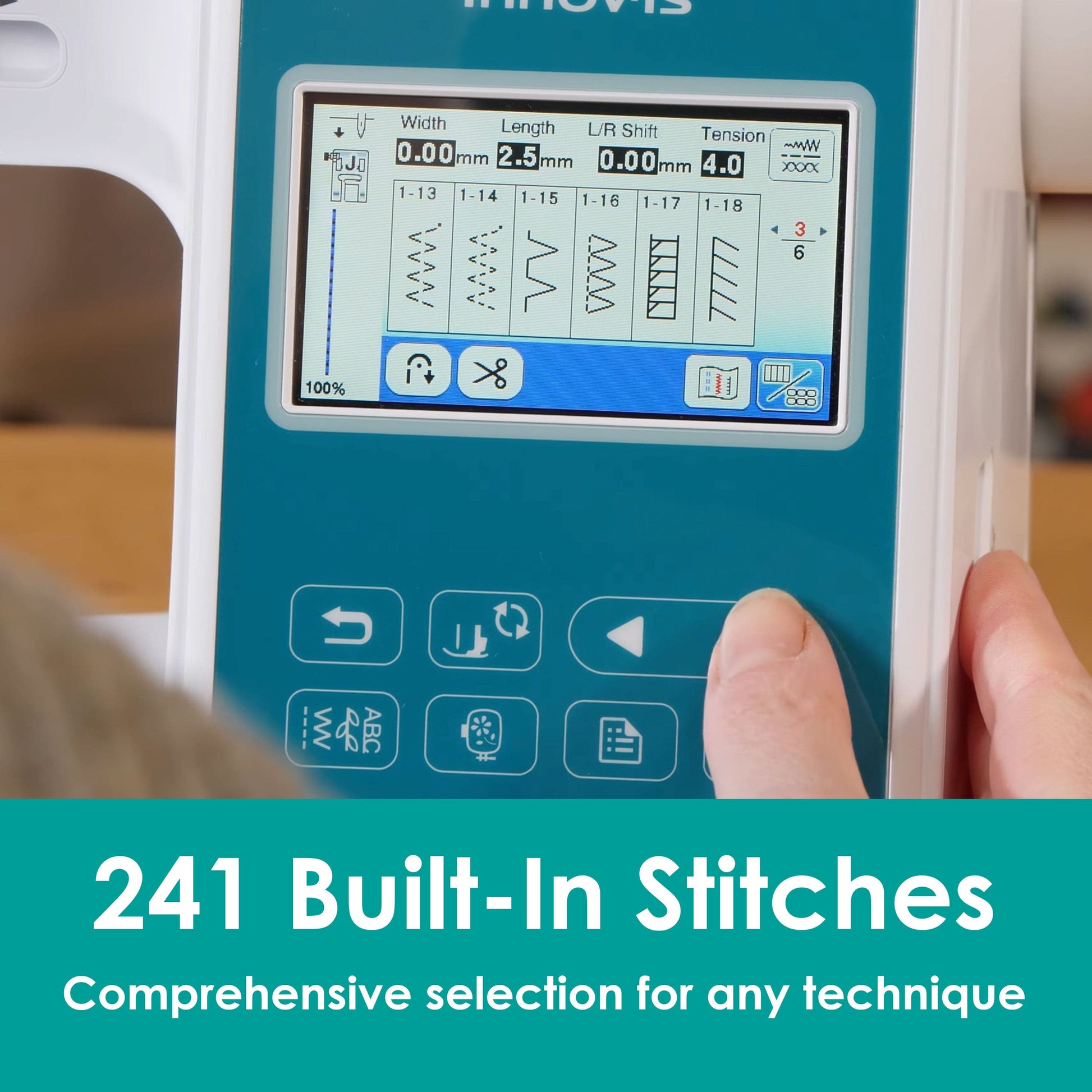

With 241 built-in stitches, My Custom Stitch for creating your own decorative patterns and the ability to combine up to 70 patterns and save them to memory, the F580 gives you a wide creative range that grows with your skills and projects.
Designed to travel
At 9.3kg, the F580 is light enough to carry to classes, retreats and sewing groups. The included hard case protects the machine during transport when the embroidery module is not attached, so it arrives ready to sew wherever you take it.
Inside the Brother Innov-is F580

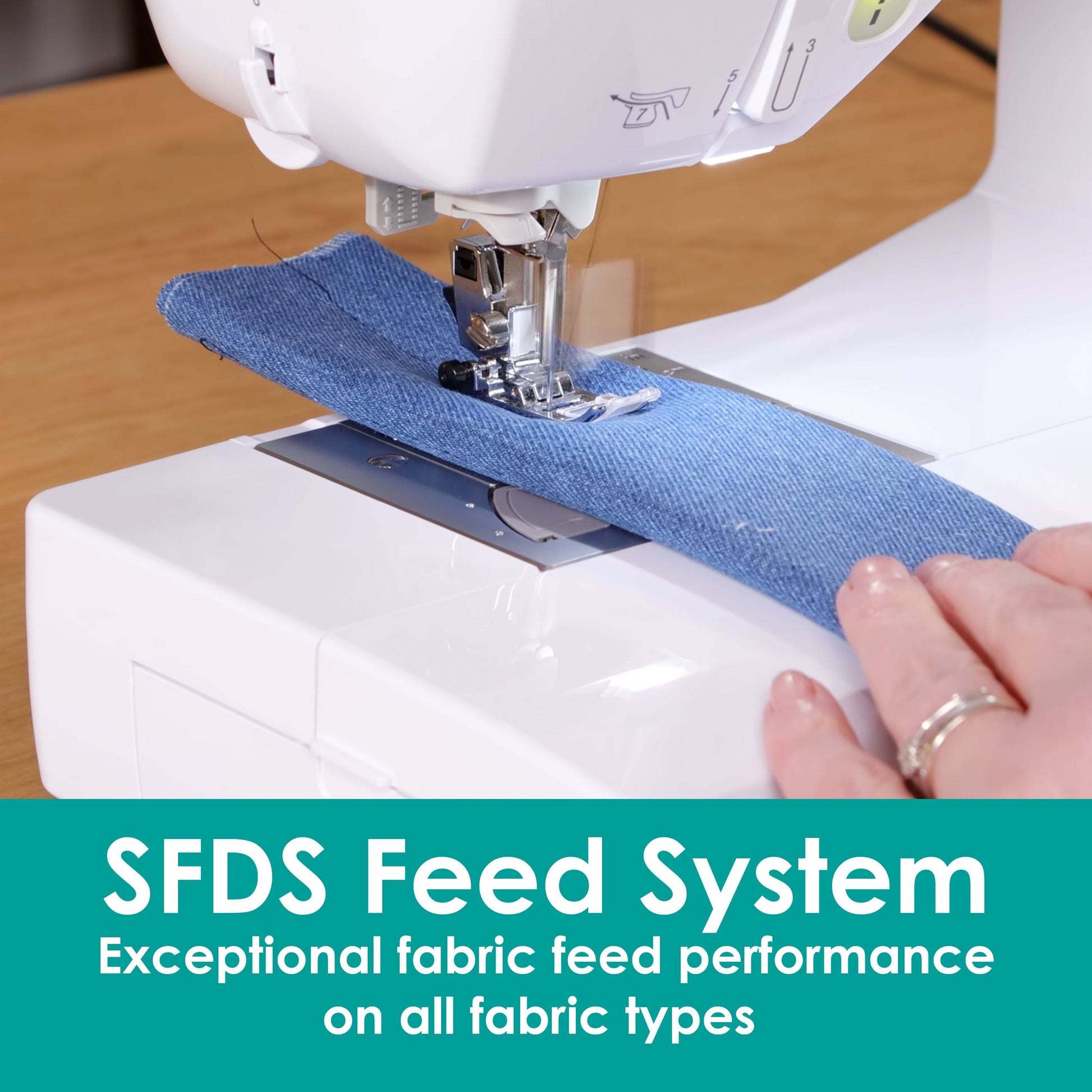

Square Feed Drive System (SFDS)

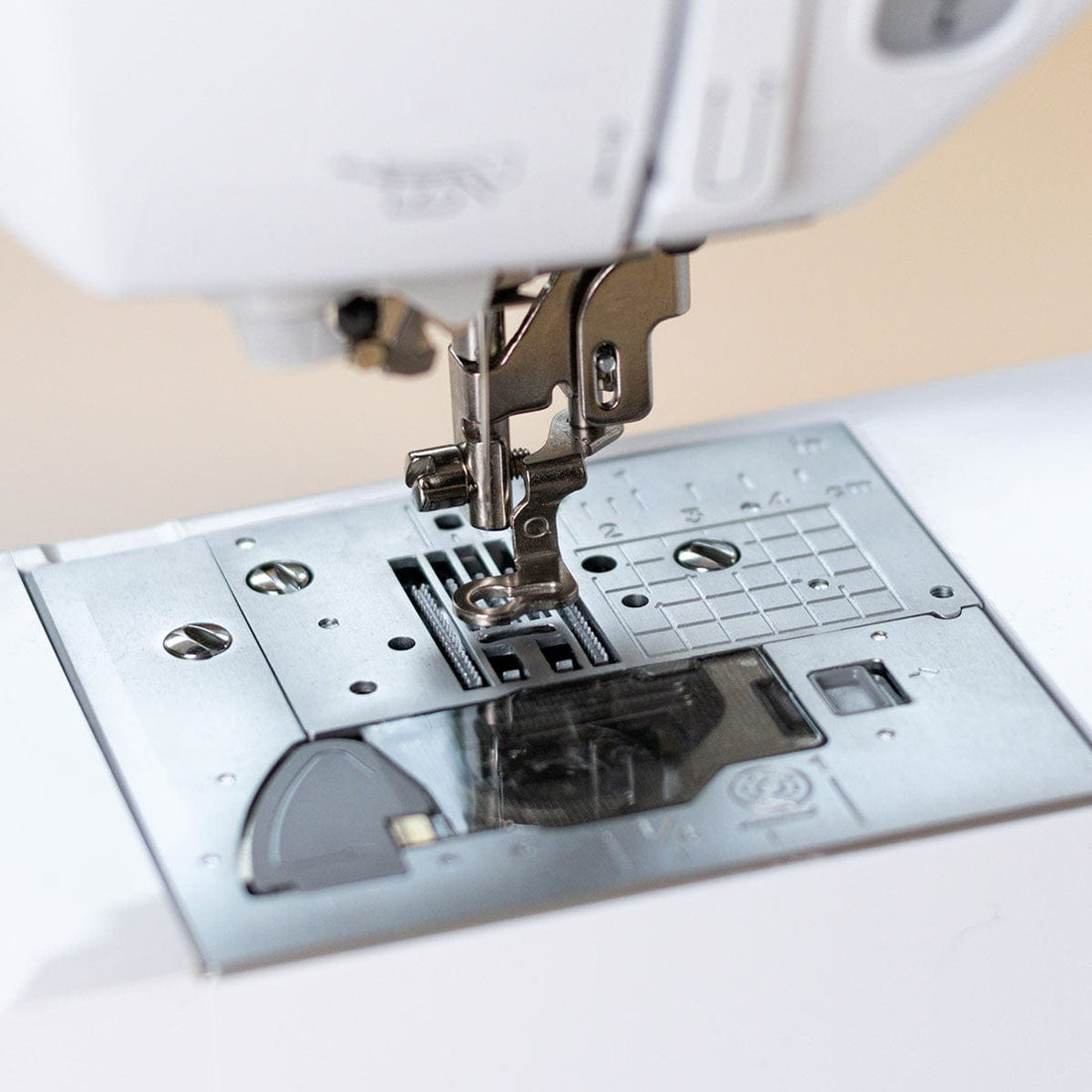

The SFDS feeds fabric in four directions rather than just forward and back, which means consistent stitch quality on any weight of fabric from fine jersey to denim and multiple layers. This system is particularly effective when quilting through varying thicknesses or sewing across seam intersections where fabric layers change.

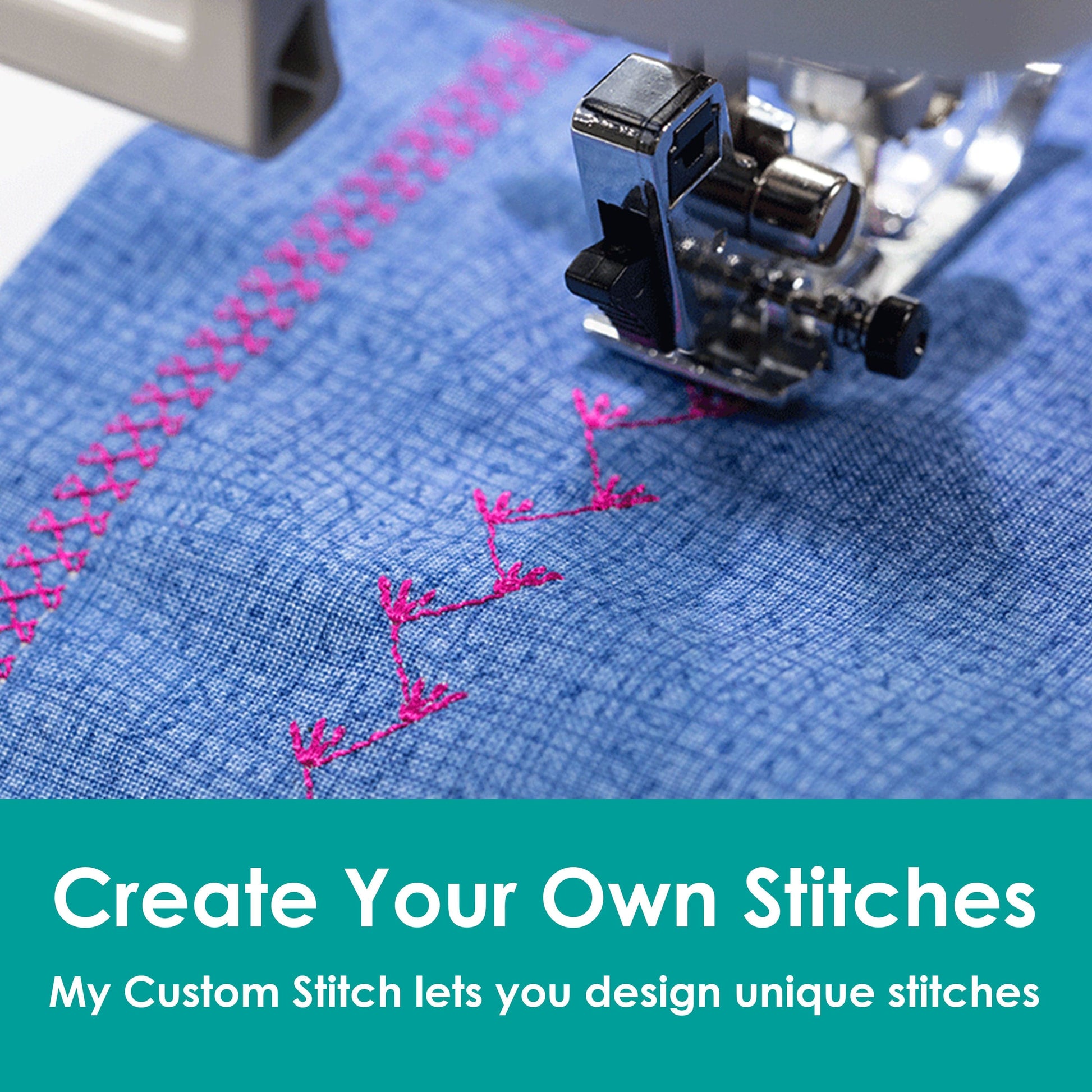

My Custom Stitch
My Custom Stitch lets you create and save your own decorative stitch patterns directly on the machine's touchscreen. You can start from scratch or modify one of the built-in template designs, then store the finished pattern for use on future projects without needing any external software or computer connection.

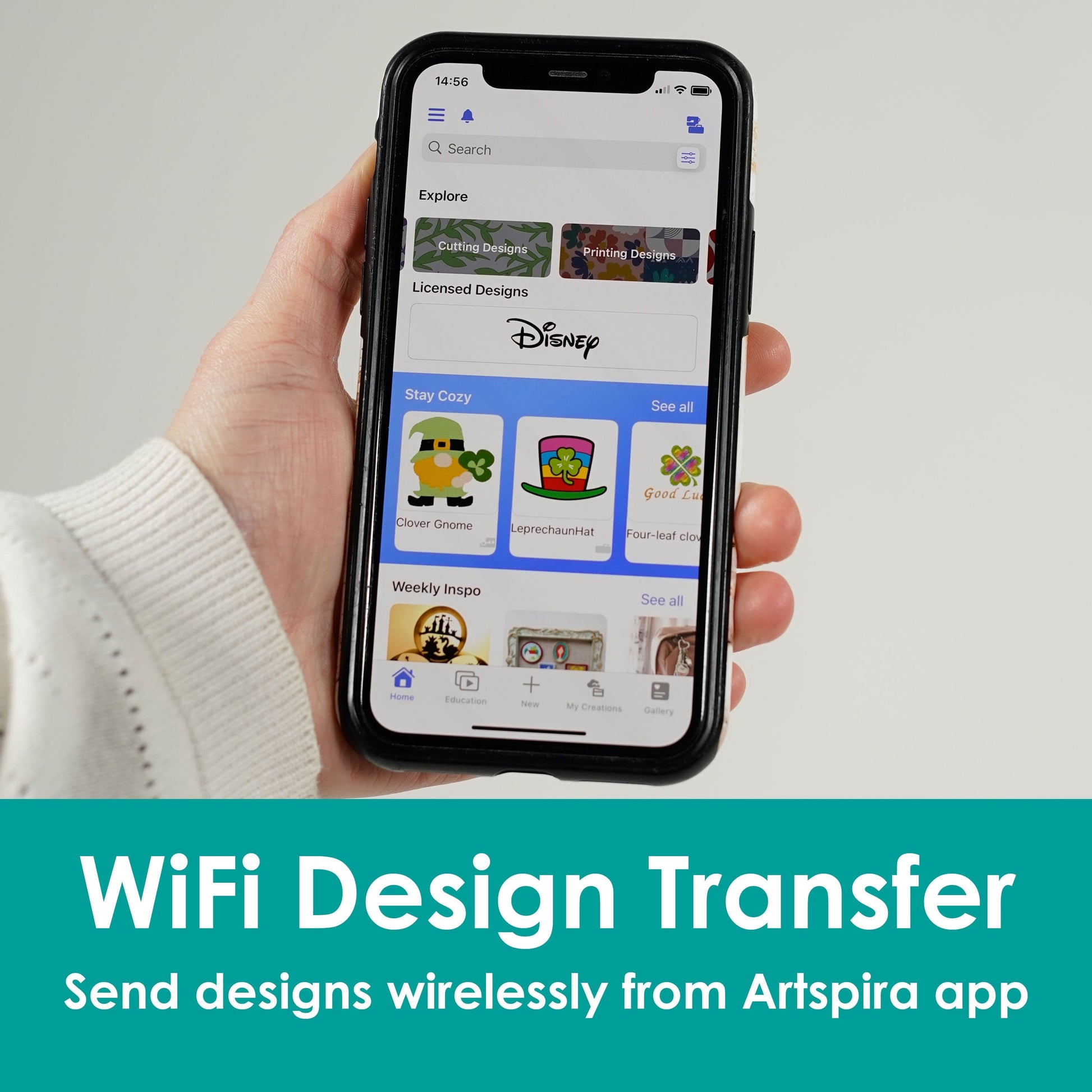

Wireless Connectivity and Artspira
Wireless LAN connects the F580 to the Artspira app, where you can browse designs, draw your own embroidery patterns and transfer them directly to the machine. Designs can also be loaded via the USB port from a flash drive or card reader, giving you flexibility in how you get designs onto the machine.

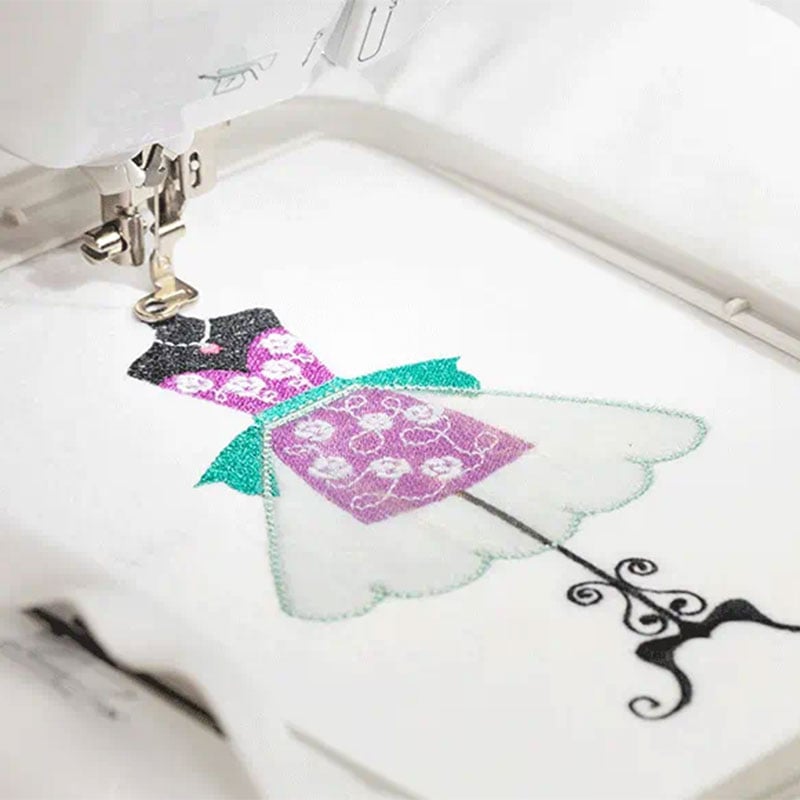

Embroidery Design Library and Editing Tools

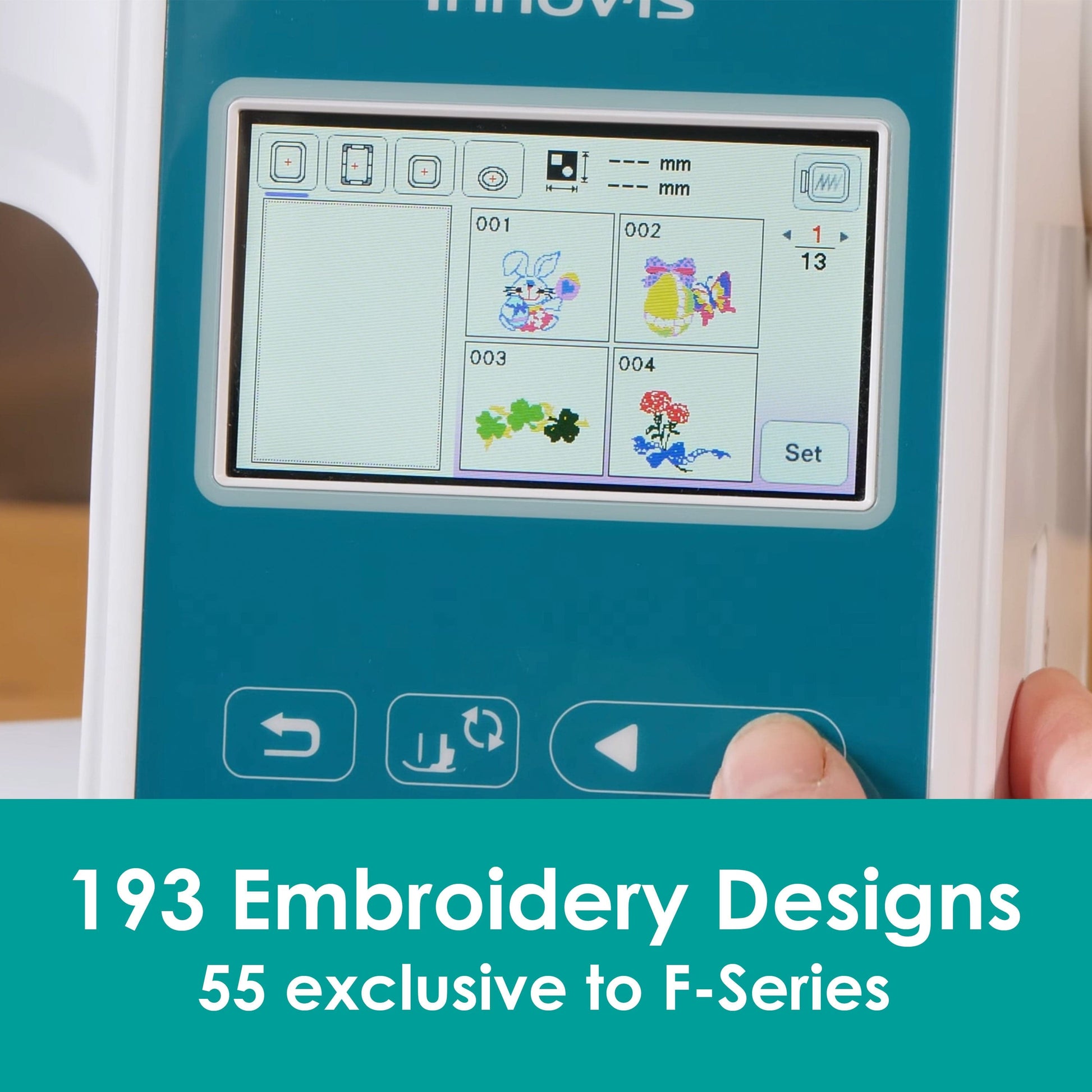

The F580 comes with 193 built-in embroidery designs (55 exclusive to the F-Series) and 13 embroidery font styles for lettering and monograms. On-screen editing tools let you resize, rotate, mirror and reposition designs before stitching. The colour sorting function reorders thread changes to reduce the number of colour swaps during a design.
Embroidery Frame Patterns and Patterned Borders
The machine includes 140 embroidery frame pattern combinations created from 10 frame shapes and 14 stitch types. These patterns are useful for adding decorative borders to quilts, table linens, garments and home decor projects without needing to source or import external designs.
Product Specifications

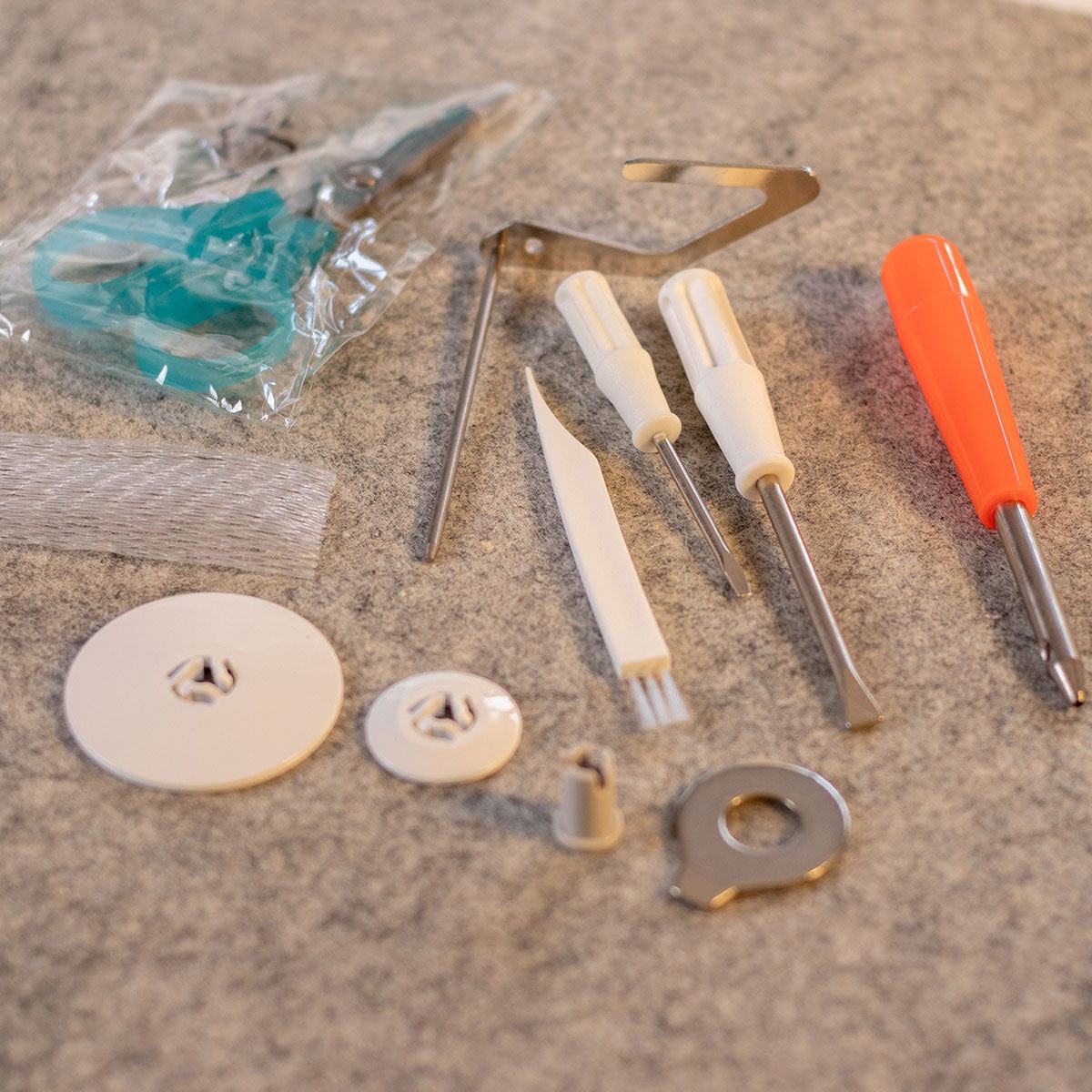

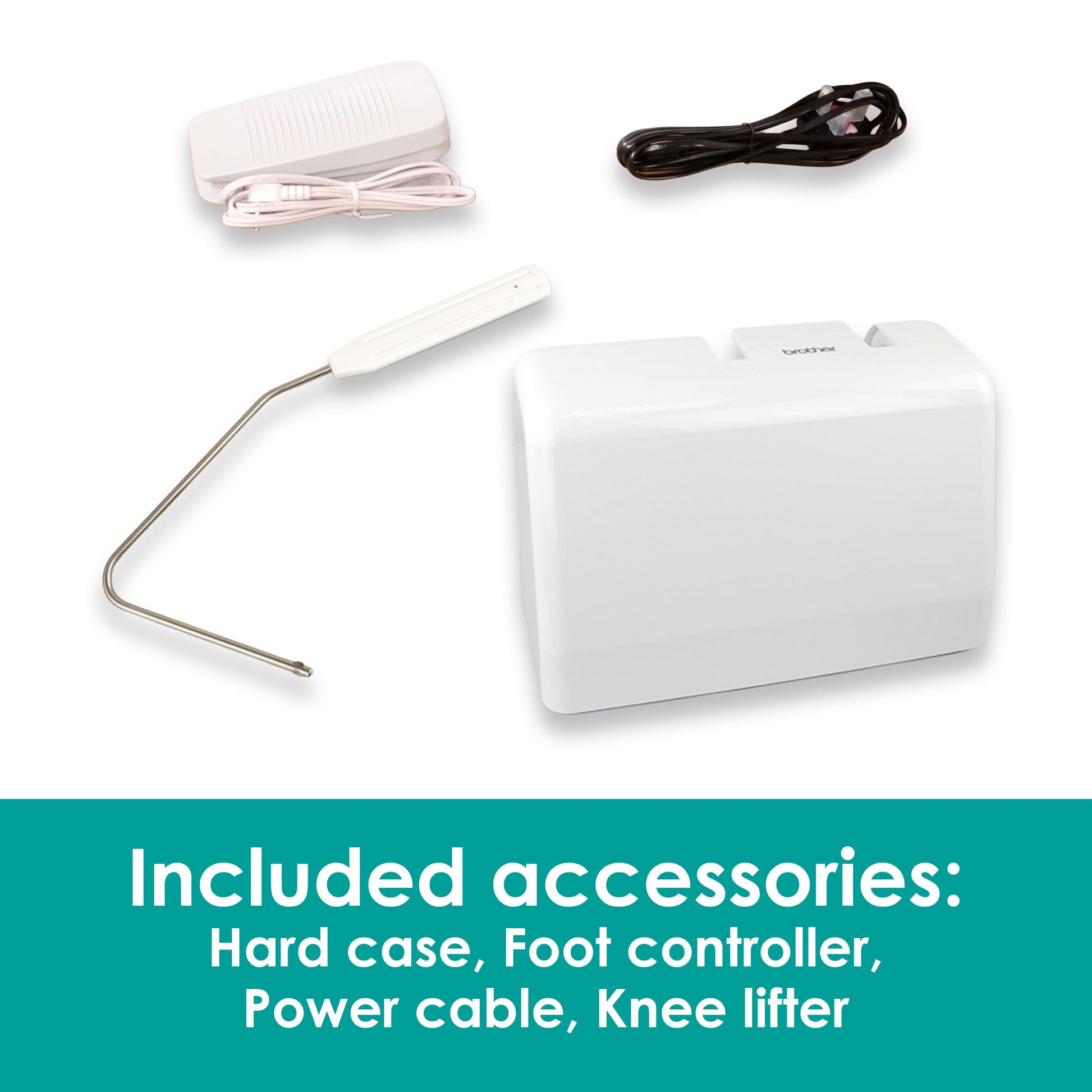

Accessories In The Box
- 1 x Quilting guide
- 1 x Side cutter S
- 1 x Needle set
- 1 x Twin needle
- 1 x Bobbin x 4 (one bobbin is on machine)
- 1 x Seam ripper
- 1 x Scissors
- 1 x Cleaning brush
- 1 x Eyelet punch
- 1 x Screwdriver (large)
- 1 x Screwdriver (small)
- 1 x Disc‑shaped screwdriver
- 1 x Horizontal spool pin
- 1 x Spool cap (large)
- 1 x Spool cap (medium) x 2 (one spool cap is on machine)
- 1 x Spool cap (small)
- 1 x Thread spool insert (mini king thread spool)
- 1 x Spool net

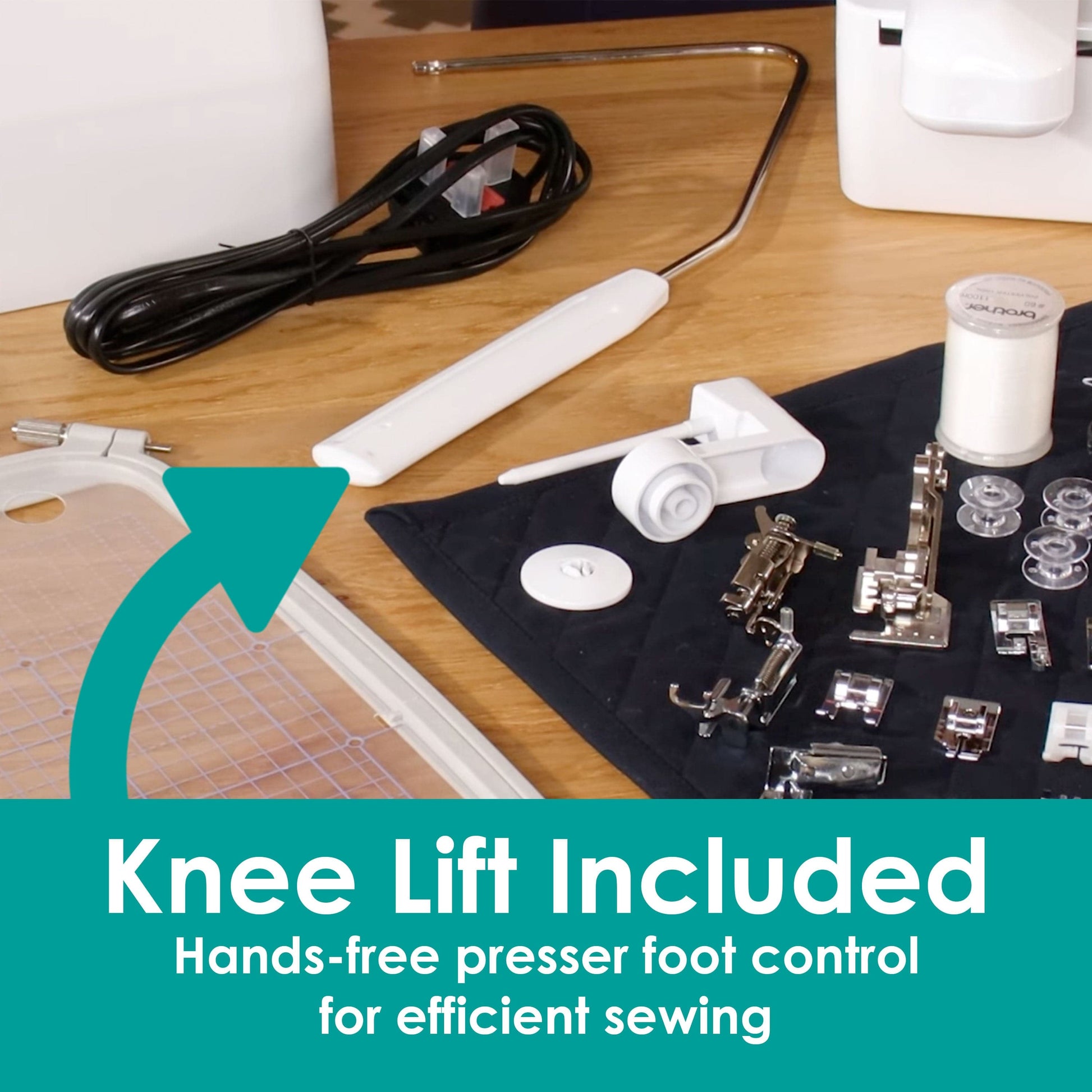

- 1 x Knee lifter
- 1 x Standard bobbin case (on machine)
- 1 x Alternate bobbin case (no colour on the screw)
- 1 x Foot controller
- 1 x Embroidery bobbin thread (60 weight, white)
- 1 x Accessory bag
- 1 x Hard case
- 1 x Grid sheet set
- 1 x Operation manual
- 1 x Quick reference guide

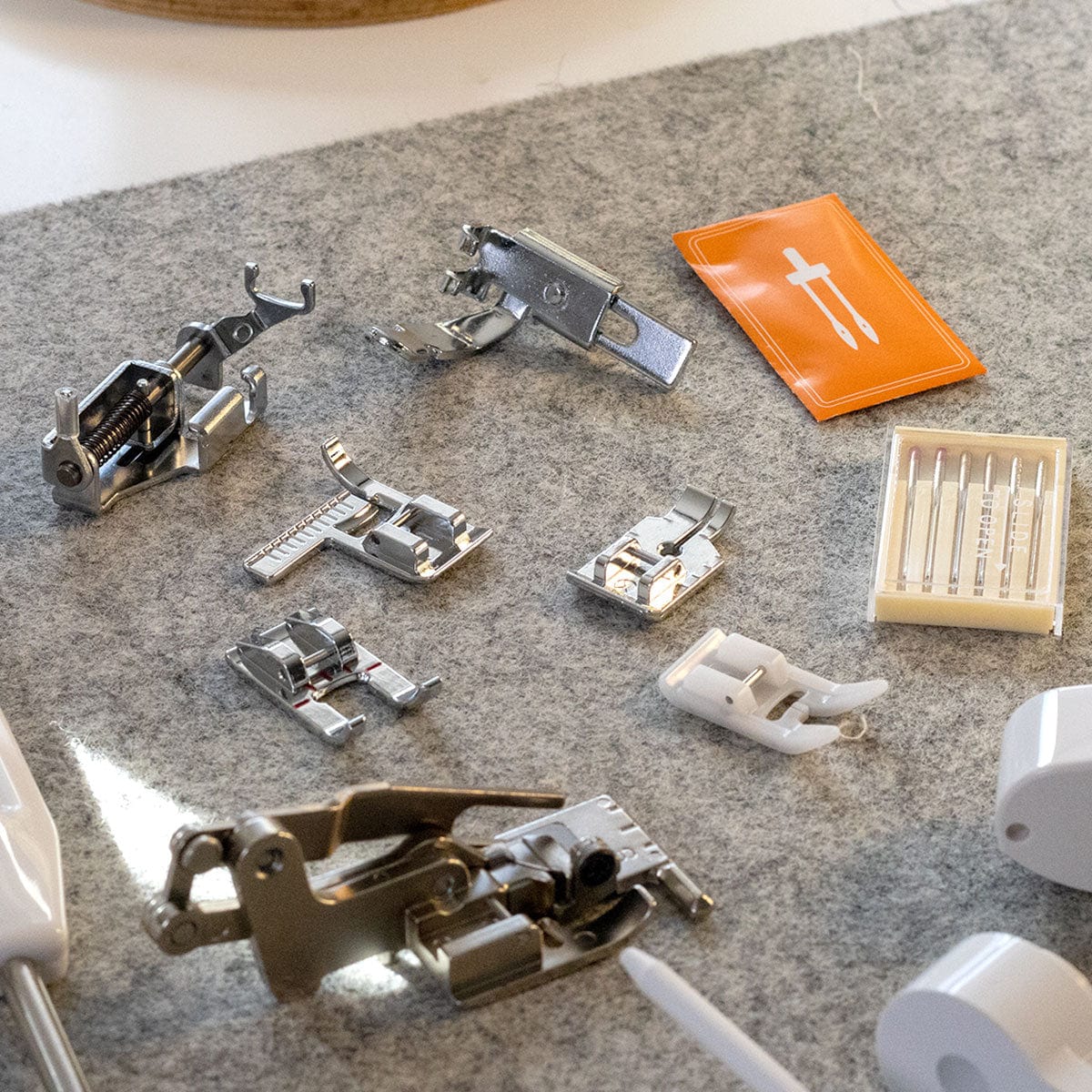

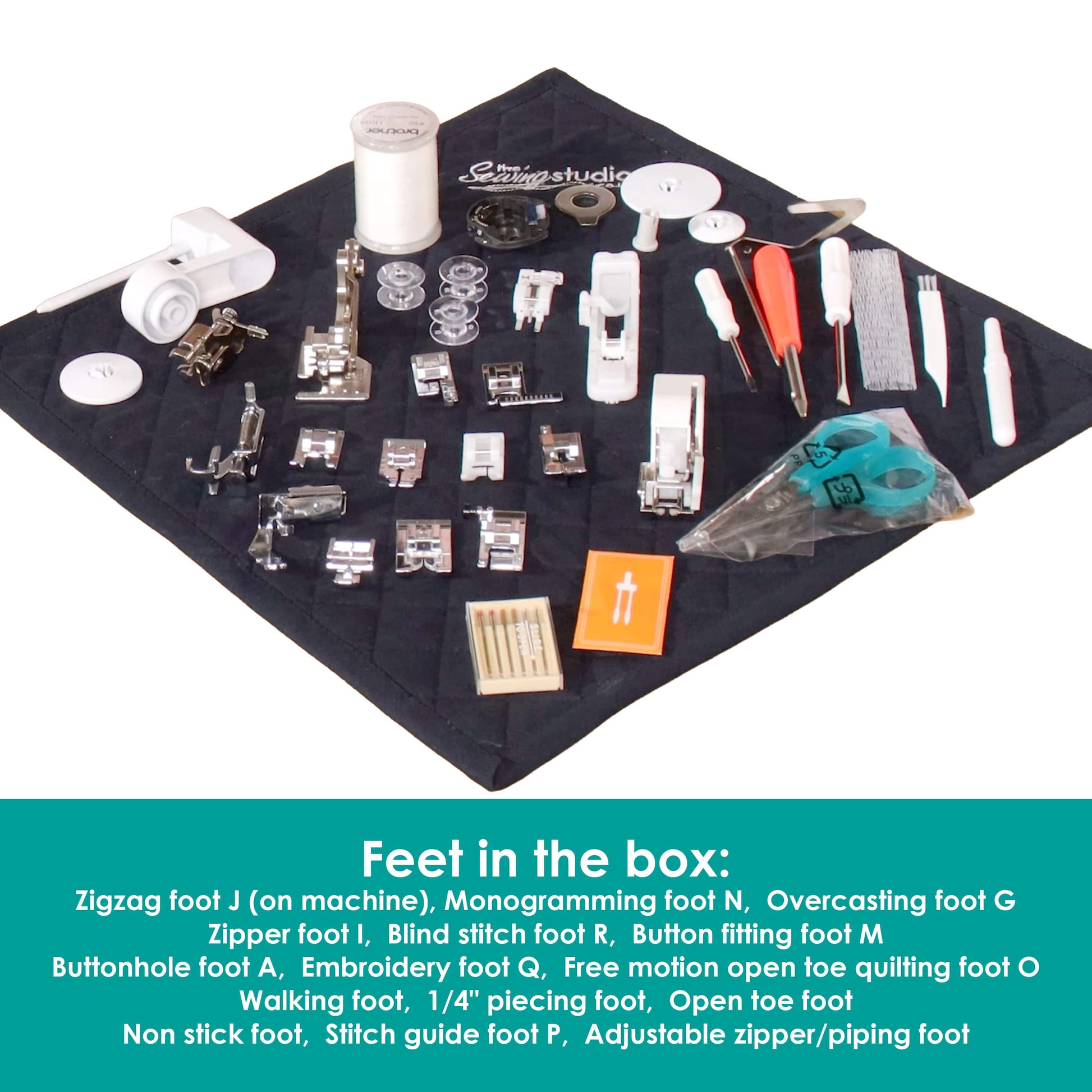

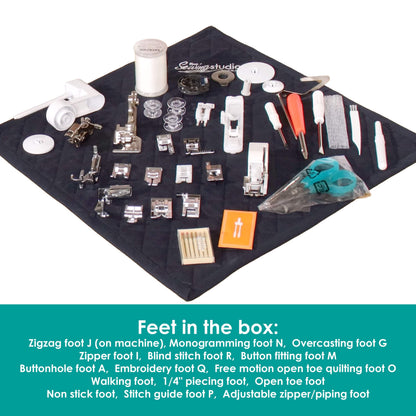

Feet In The Box
- 1 x Zigzag foot J (on machine)
- 1 x Monogramming foot N
- 1 x Overcasting foot G
- 1 x Zipper foot I
- 1 x Blind stitch foot R
- 1 x Button fitting foot M
- 1 x Buttonhole foot A
- 1 x Embroidery foot Q
- 1 x Free motion open toe quilting foot O
- 1 x Walking foot
- 1 x 1/4" piecing foot
- 1 x Open toe foot
- 1 x Non‑stick foot
- 1 x Stitch guide foot P
- 1 x Adjustable zipper/piping foot

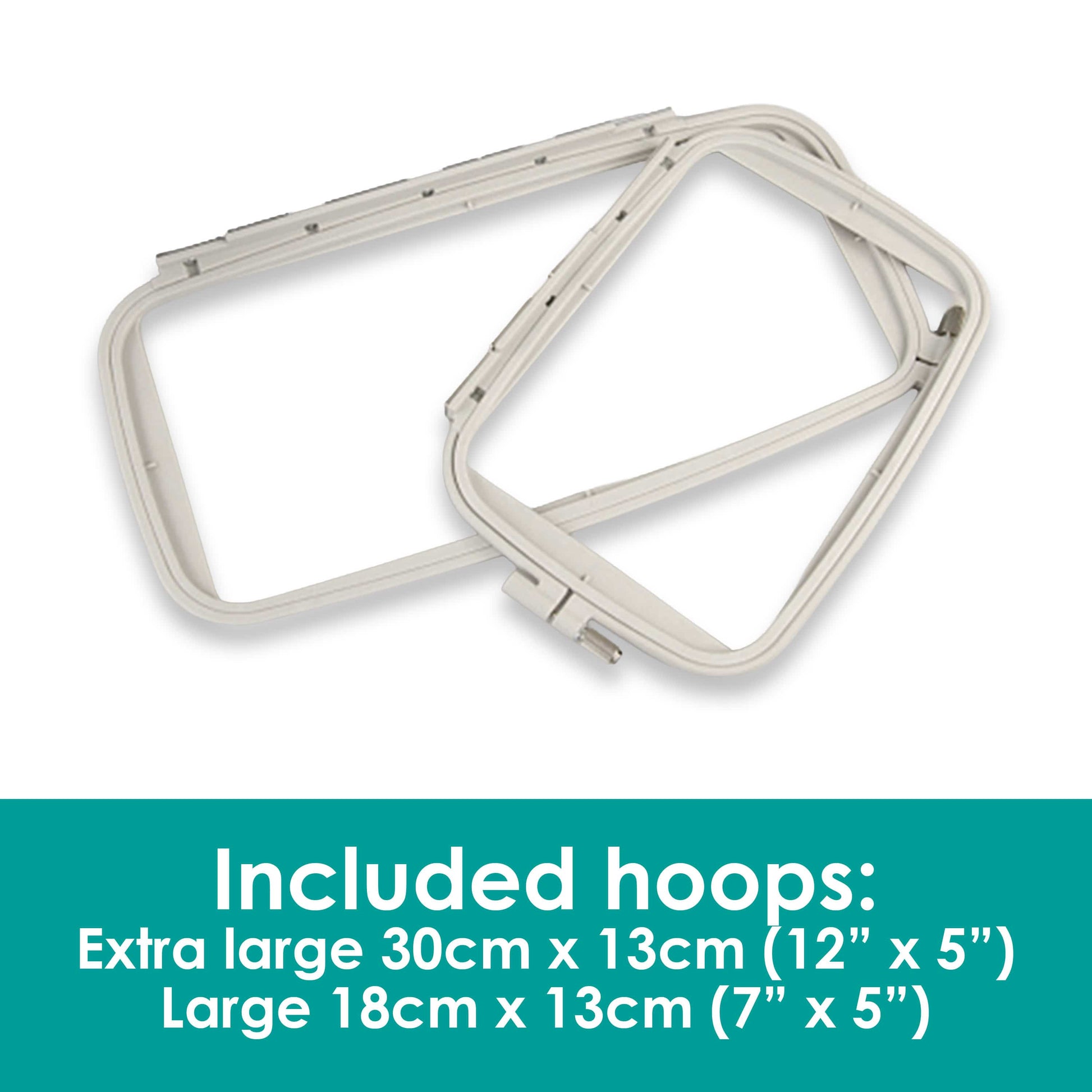

Hoops In The Box
- 1x Embroidery frame set extra large multi-position 30 cm (H) × 13 cm (W) 12 inches (H) × 5 inches (W)
- 1x Embroidery frame set large 18 cm (H) × 13 cm (W) 7 inches (H) × 5 inches (W)
Manufacturer Specifications
- Machine size: Medium
- Product type: Embroidery, quilting, sewing
- Skill level: Beginner, intermediate

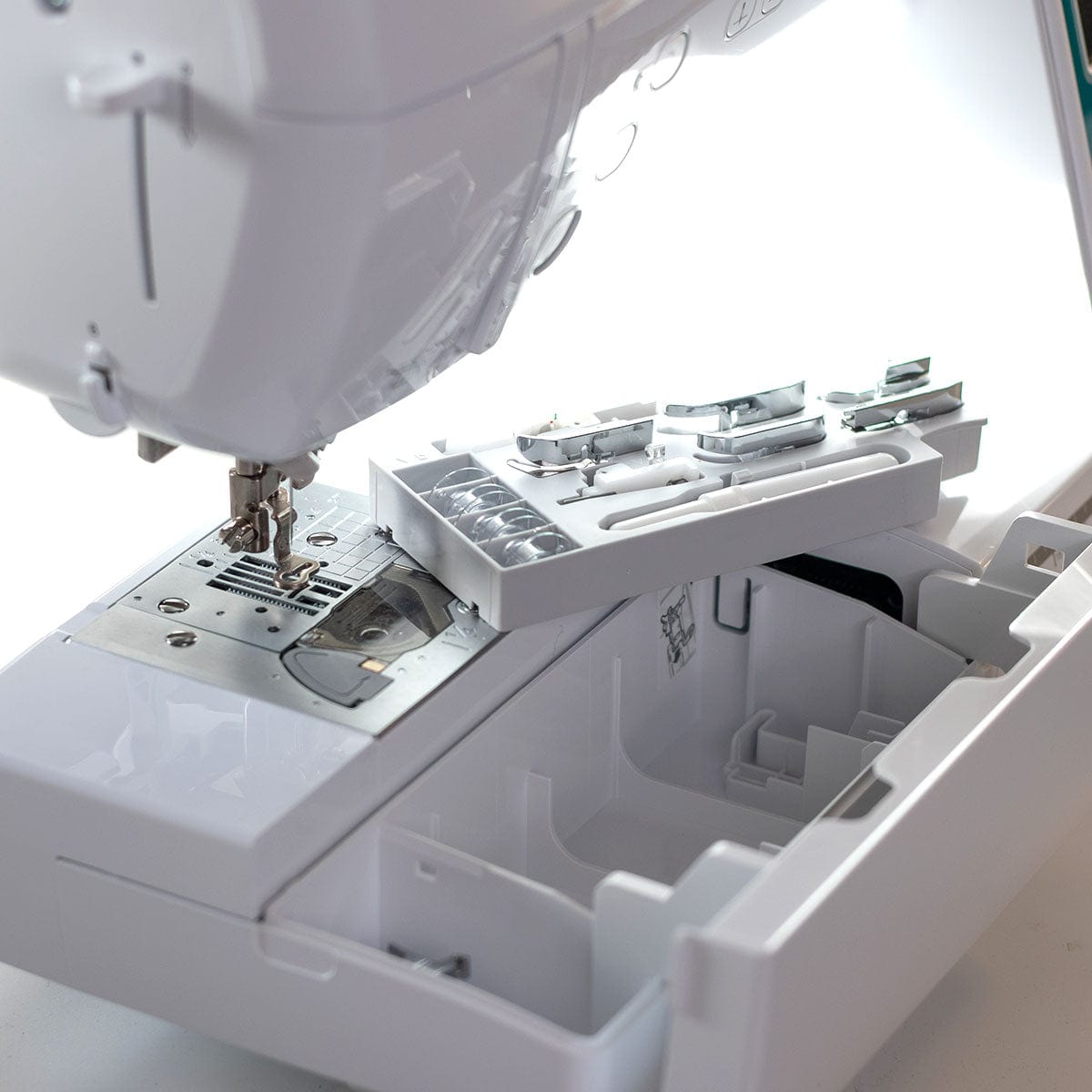

- Accessory compartment: Yes
- Bobbin type: Horizontal
- Case: Hard case
- Machine type: Electronic
- Insertion of bobbin: Quick set bobbin
- Number of needles: 1

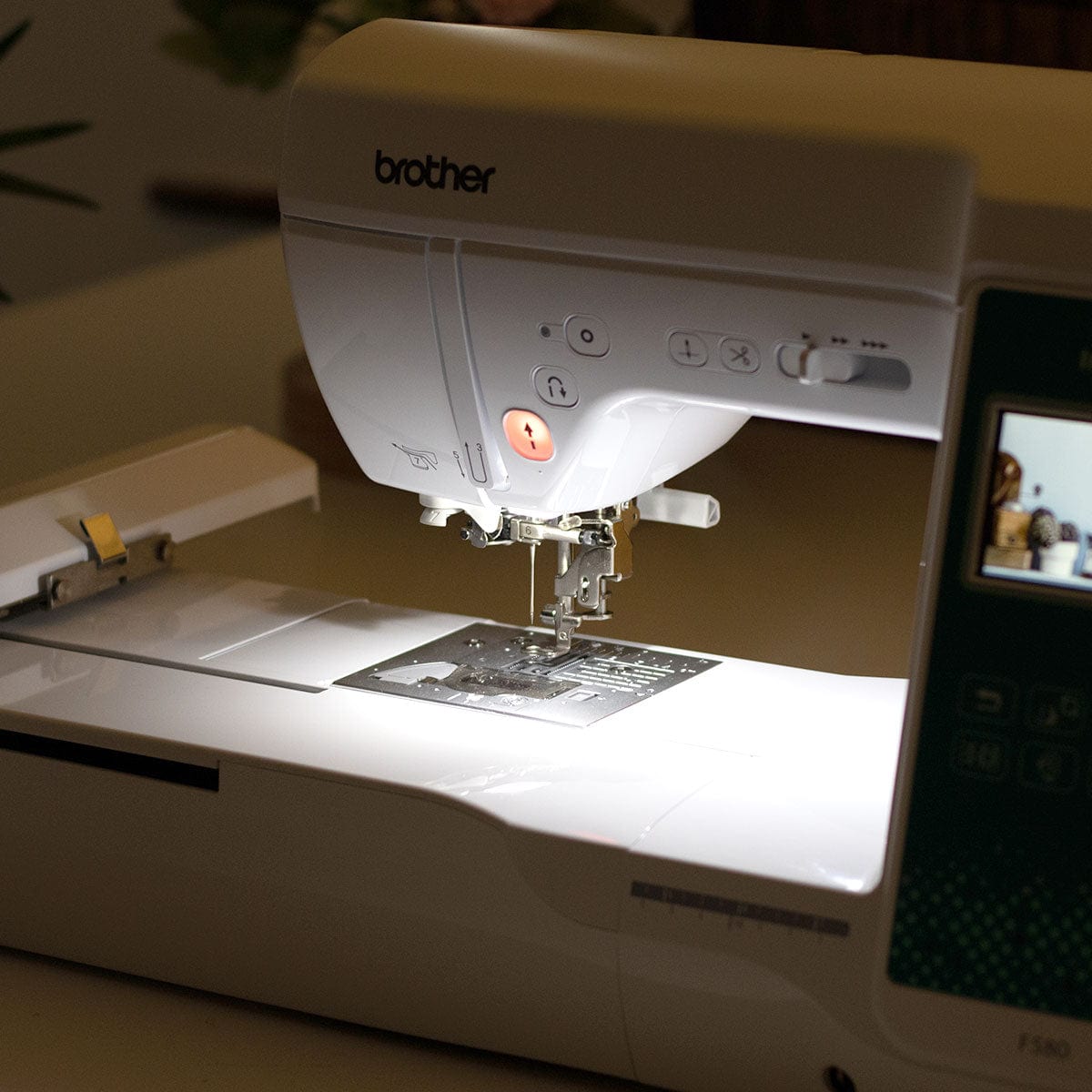

- Lighting: 2 LEDs
- Design Database Transfer app for Windows PC: Yes
- USB port: USB port
- Wi‑LAN function: Yes
- Type of screen: LCD touchscreen colour
- Display size: 3 x 7 inch
- Font size selection (L‑M‑S): Yes
- Max embroidery speed (stitches per minute): 650
- Number of hoops (standard accessory): 2
- Number of spool stands: 1
- Pattern – size, change rotation & mirror: Yes
- Realistic preview of patterns: Yes
- Built‑in embroidery frame patterns: 140 (10 shapes x 14 stitch types)
- Built‑in lettering styles (embroidery): 13
- Built‑in patterns: 193
- Embroidery area in mm: 180 x 130
- Font editing functions / multiple lines and alignment (L‑C‑R): C
- Jump stitch trim: Yes
- Thread colour sorting: Yes
- Voltage: 220–240V
- 7‑point feed dog: Yes – SFDS (Square Feed Drive System)
- Automatic reverse/reinforcement stitch: Yes
- Bobbin work: Optional
- Built‑in lettering styles: 5
- Buttonholes: 10
- Circular sewing: Optional
- Combine stitches: Yes
- Drop feed setting: Manual
- Electronic slide speed control: Yes
- Extension wide table: Optional
- Knee lift: Yes
- Longer feed dog: Yes
- Longer J‑foot: Yes
- Max sewing speed (stitches per minute): 850
- Mechanical dual feed: Yes
- Mirror imaging: Yes
- Multi‑directional sewing: Yes (up to 4 sideways)
- Multi‑function foot controller: Optional
- My Custom Stitch: Yes
- Needle positions: 15
- Needle stop position control up/down: Yes
- Presser foot levelling button: Yes
- Repeated single sewing: Yes
- Snap‑on presser feet system: Yes
- Speed control customised for zigzag width: Yes
- Workspace (cm): 19
- Adjustable presser foot: Yes
- Free arm sewing: Yes
- Lock stitch button: Yes
- Number of sewing stitches including buttonholes: 241
- SFDS (Square Feed Drive System): Yes
- Stitch length: 5mm
- Stitch width: 7mm
- Warranty: Brother 3‑year warranty (commercial use: 1‑year warranty)
- Automatic thread cutter: Yes
- Bobbin winder: Yes
- Lower thread sensor: Yes
- Needle threading system: Extra advanced
- Upper thread sensor: Yes
- Adjustable thread tension: Automatic
- Machine dimension (mm): 446 x 248 x 300
- Weight (kg): 9.3
Machine Dimensions & Weight
- Machine Dimensions: 446 × 248 × 300 mm (W × D × H)
- Machine weight: 9.3kg
- Workspace: 7.4 inches (190mm) to the right of the needle
- LCD screen: 3 x 7-inch colour LCD touchscreen

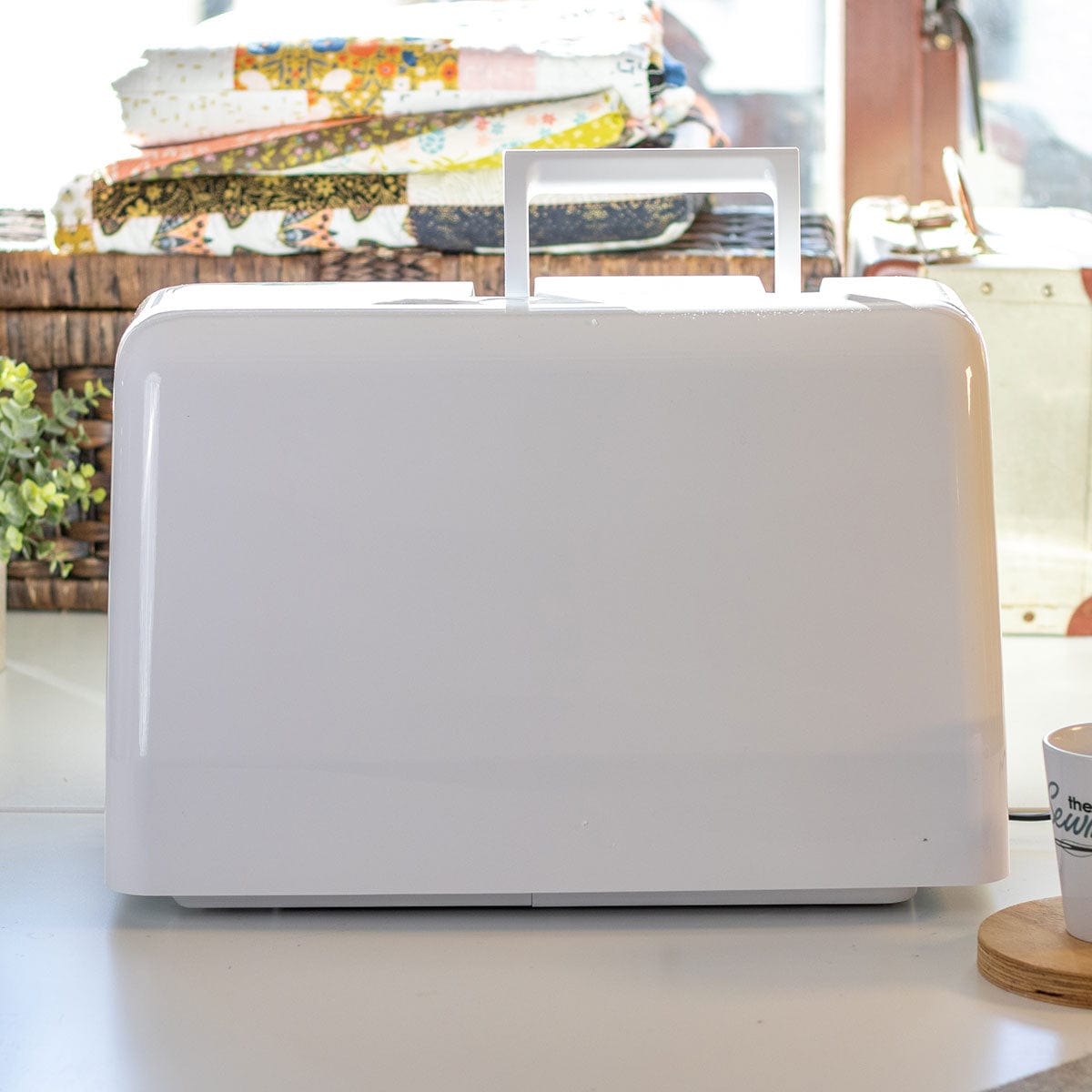

- Hard case included (without embroidery module attached)
Stitch Options and Controls
- Total built-in stitches: 241 (including 10 one-step buttonhole styles)
- Lettering fonts: 5
- Built-in embroidery designs: 193 (55 exclusive to the F-Series)
- Embroidery font styles: 13
- Embroidery frame pattern combinations: 140 (10 shapes x 14 stitch types)
- Maximum sewing speed: 850 stitches per minute
- Maximum embroidery speed: 650 stitches per minute
- Stitch combinations: combine up to 70 patterns and save to memory
- Multi-directional sewing: four directions
- My Custom Stitch: create, edit and save custom decorative stitch patterns
Sewing and Embroidery Features and Functions
- Square Feed Drive System (SFDS) with four-direction fabric feeding
- Adjustable presser foot pressure
- Adjustable thread tension with automatic control
- Upper and lower thread sensors
- Automatic thread cutter (upper and lower)
- Lockstitch button
- Slide speed control
- Advanced needle threading system
- Independent bobbin winding
- Free arm
- Knee lift
- Built-in stitch reference guide
- Needle up/down position control
- Start/stop button
- Embroidery area: 180 x 130mm
- Embroidery unit auto-detect
- On-screen embroidery editing (resize, rotate, mirror, reposition)
- Colour sorting for embroidery thread changes
- Jump stitch trimmer
Bobbin and Needle System
- Drop-in bobbin system
- 4 bobbins included (one on machine)
Connectivity
- Wireless LAN for design transfer and Artspira app connection

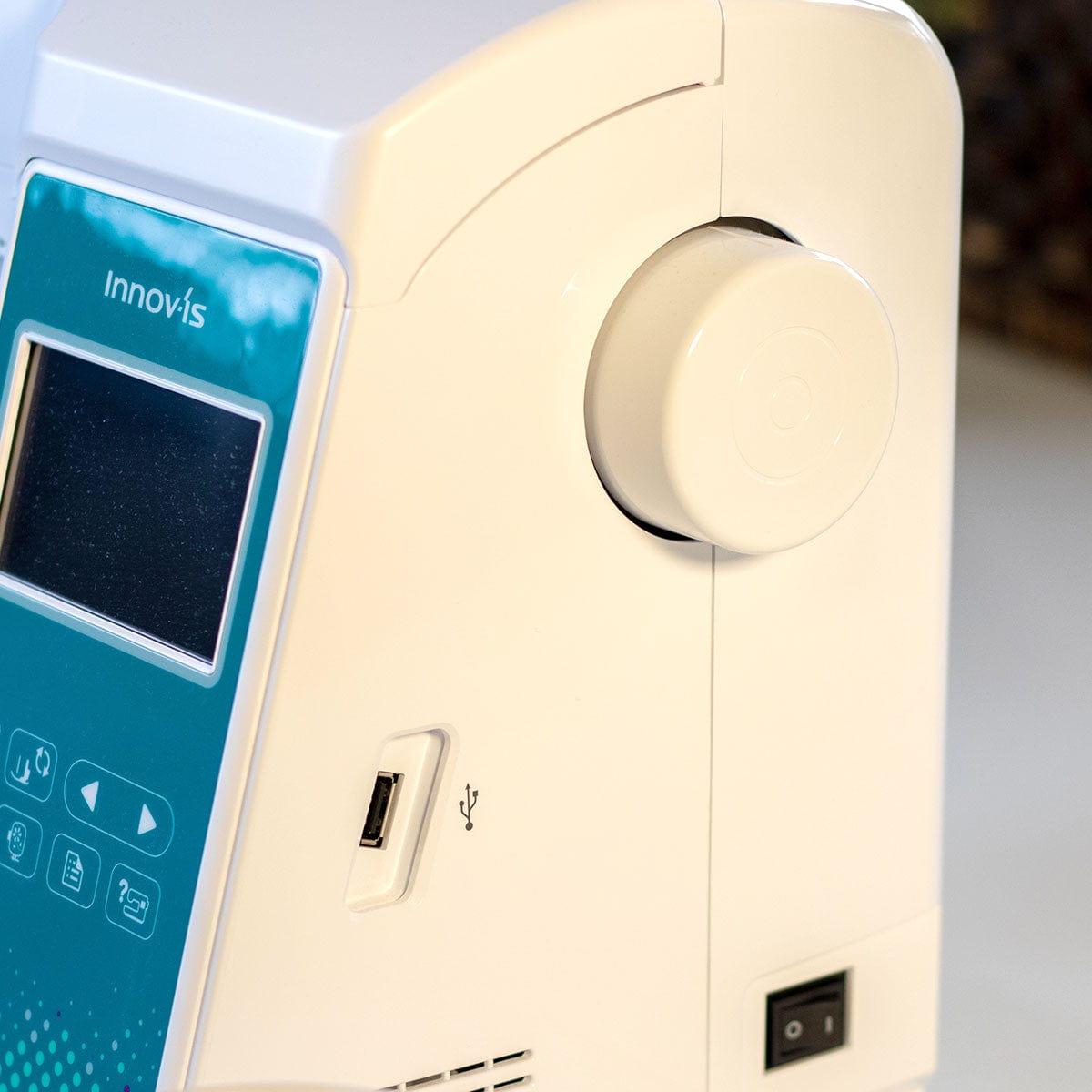

- USB port for flash drive or card reader
Warranty & Support
The Brother Innov-is F580 is covered by a full 3-year Brother warranty (1 year for commercial use). Our support team at The Sewing Studio are here if you ever need help or servicing.
Ratings & Reviews
Frequently Asked Questions
Let us help with the answers.
How does the F580 switch between sewing and embroidery?
The embroidery unit slides on and off without tools. When it is attached, the machine detects it and switches to embroidery mode automatically. Switching back to sewing mode is equally straightforward, which makes the F580 practical for mixed sessions where you are working on both functions in the same sitting.
Can I use my own embroidery designs on the F580?
Yes. Designs can be transferred to the machine via the USB port or wirelessly from the Artspira app. This means designs purchased or downloaded online, as well as designs created in embroidery software, can be loaded and stitched out without being limited to the built-in library.
What does the Square Feed Drive System do?
The SFDS moves fabric in four directions rather than just forward and back, which means the machine feeds cleanly on any weight of fabric without the top layer creeping or the fabric shifting sideways.
Is the walking foot included or does it cost extra?
The walking foot is included in the box at no extra cost. It is the right foot to use when sewing through multiple layers, such as quilts or projects combining fabrics of different weights, so you can tackle layered work from the start without an additional purchase.
What is My Custom Stitch and how do I use it?
My Custom Stitch is a built-in tool that lets you design your own decorative stitch patterns directly on the machine. You can draw from scratch or edit one of the existing built-in template designs, then save the finished pattern for future use. No external software or computer connection is needed to create or store patterns.
