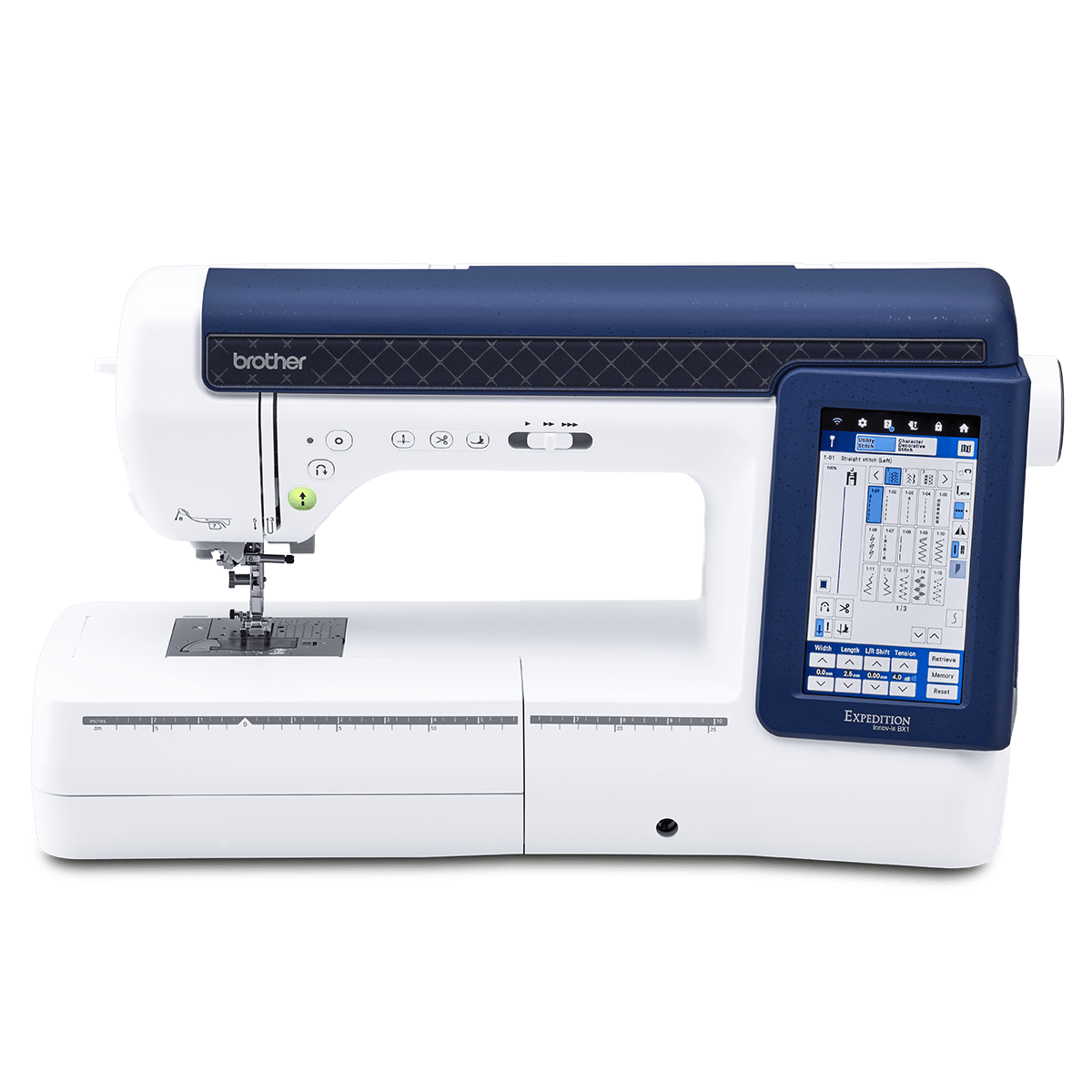

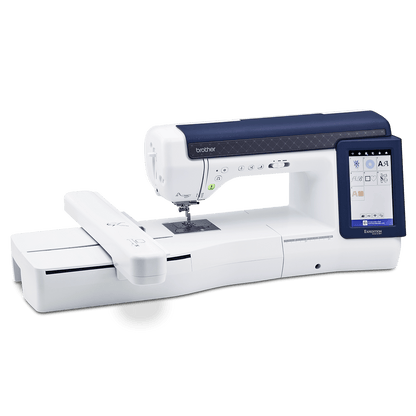

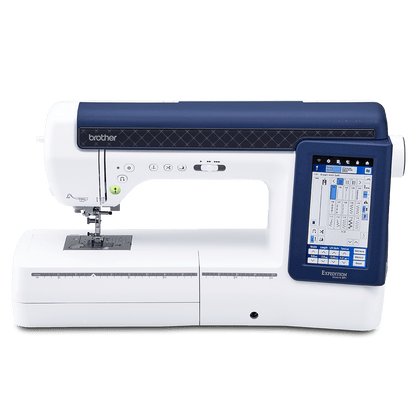

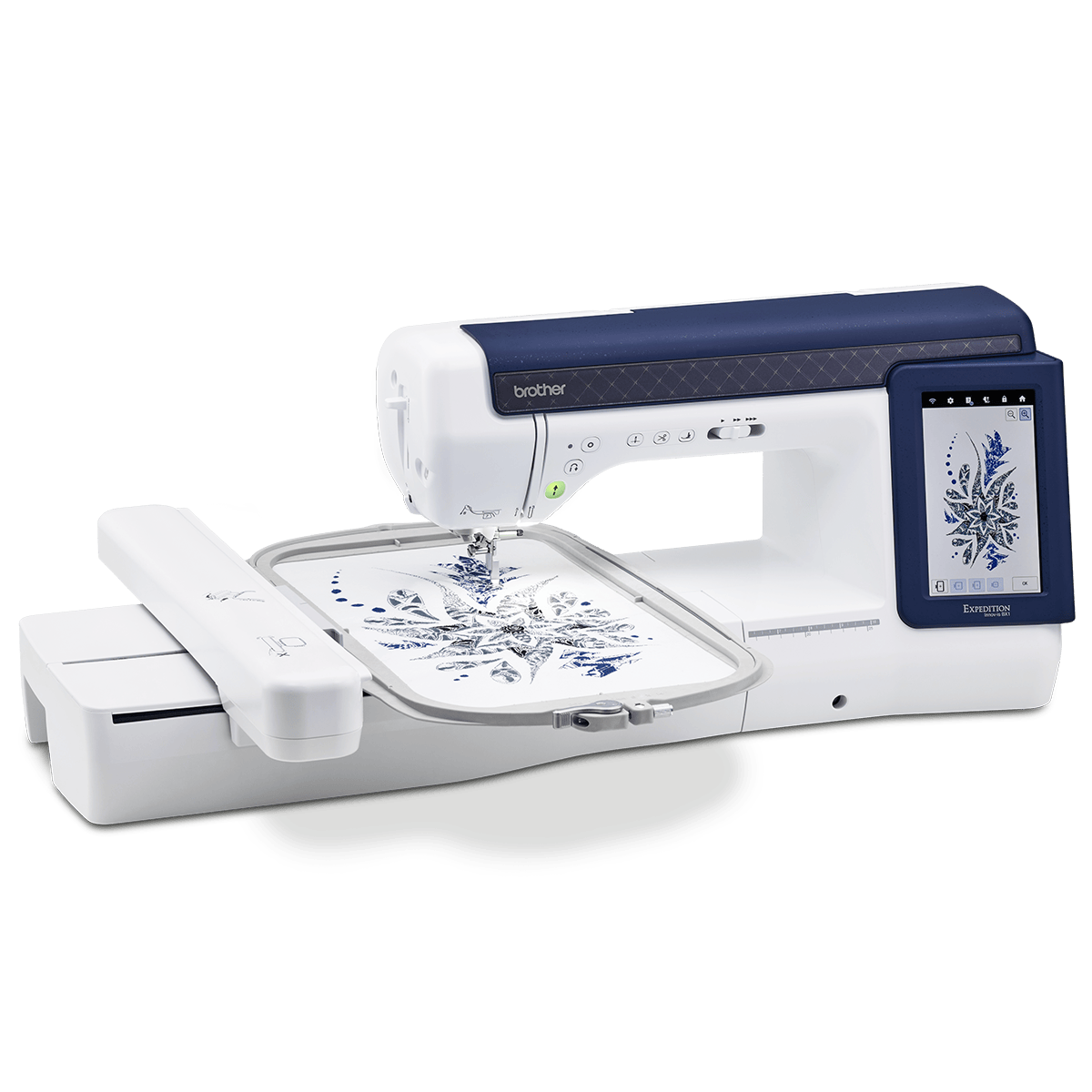

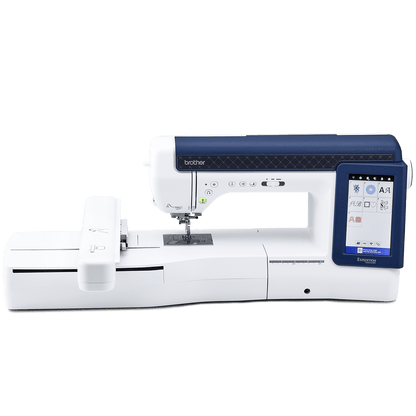

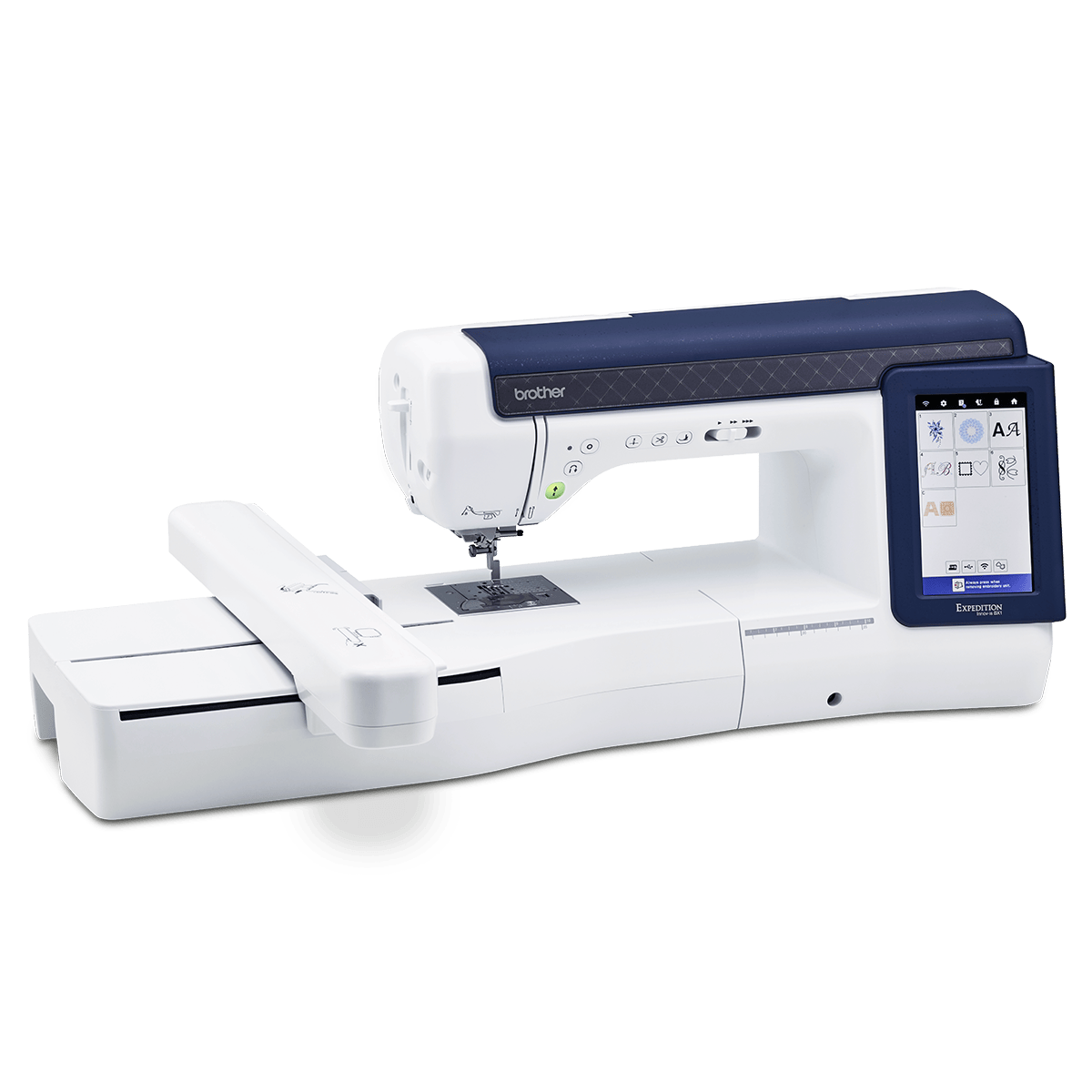

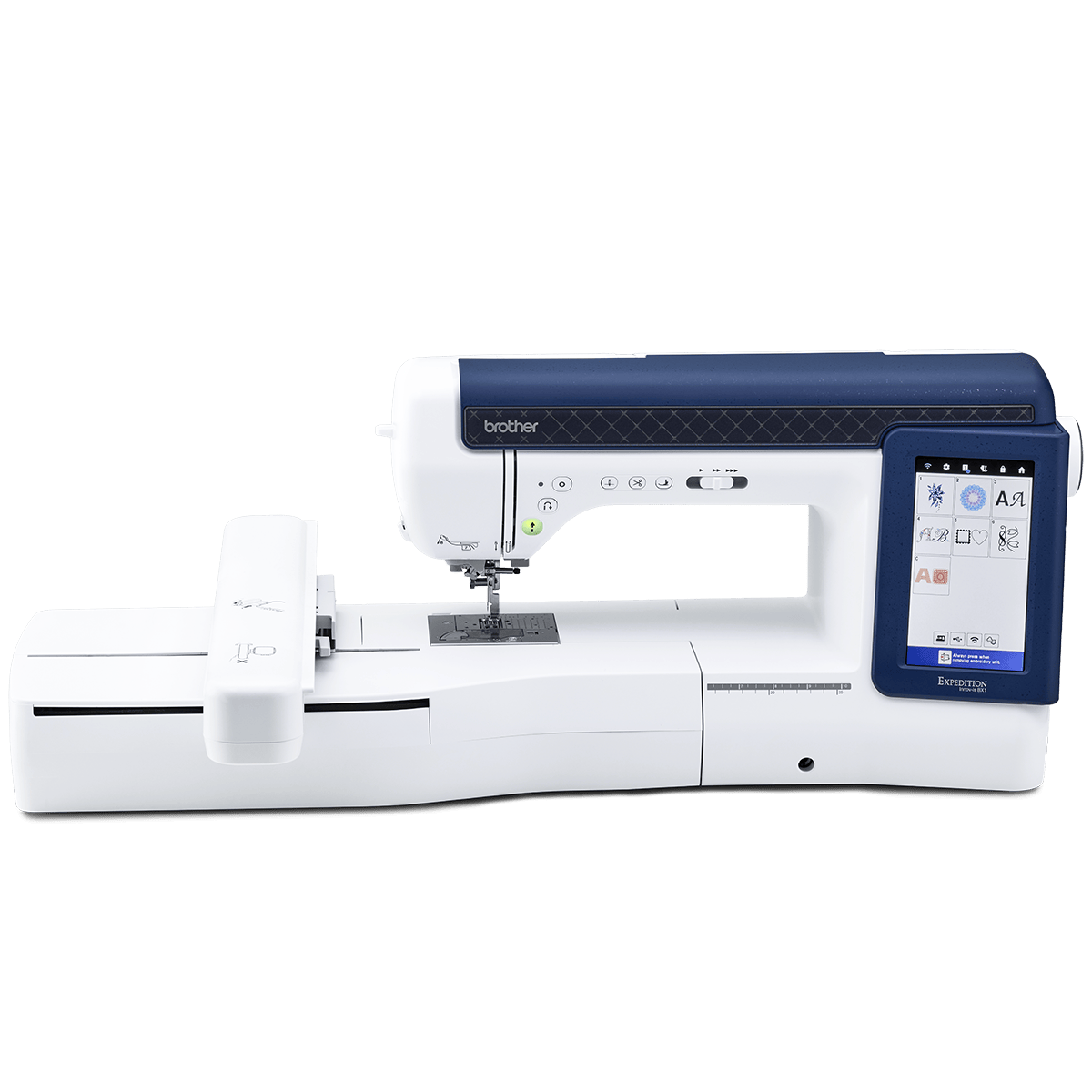

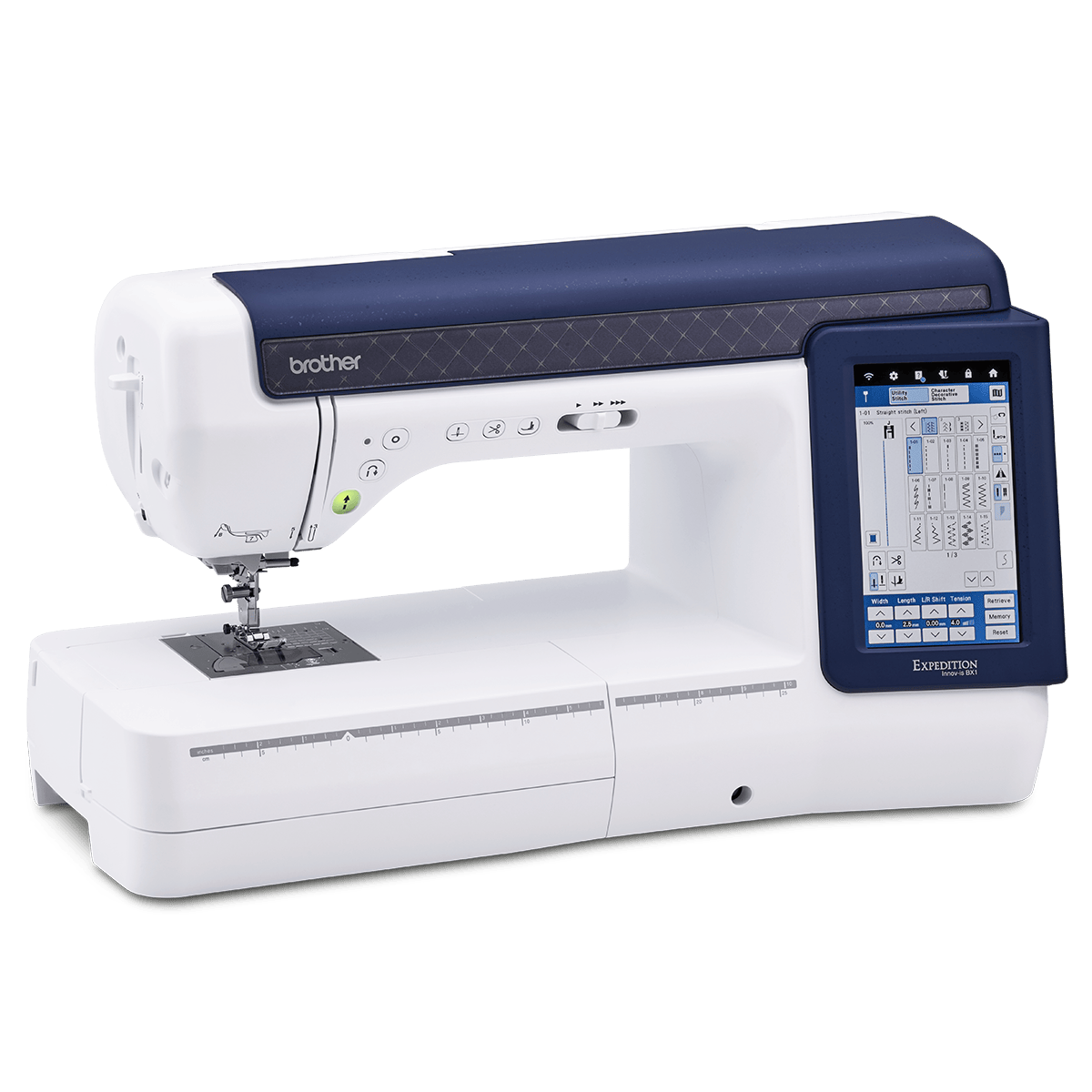

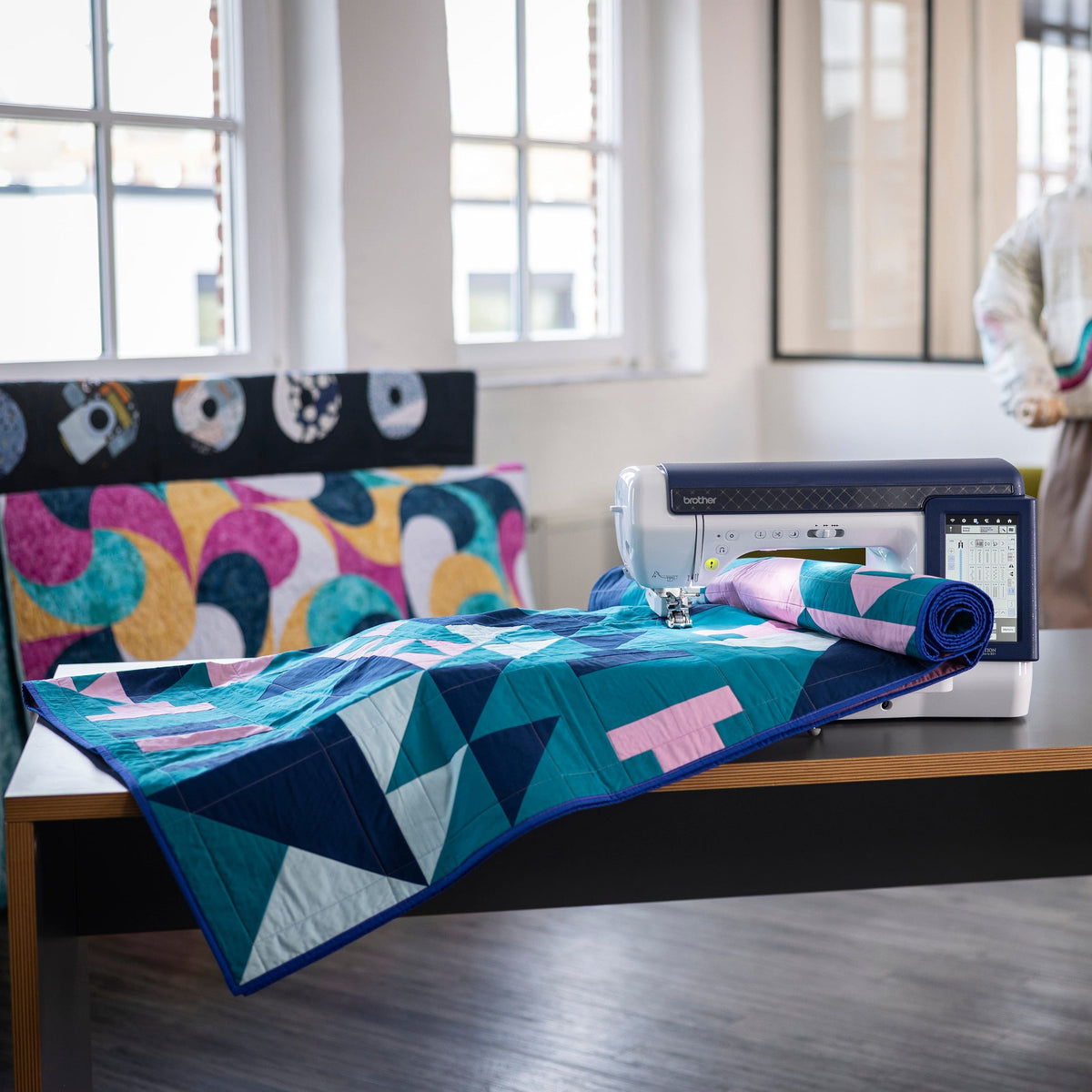

Brother Expedition Innov-is BX1 Sewing & Embroidery Machine

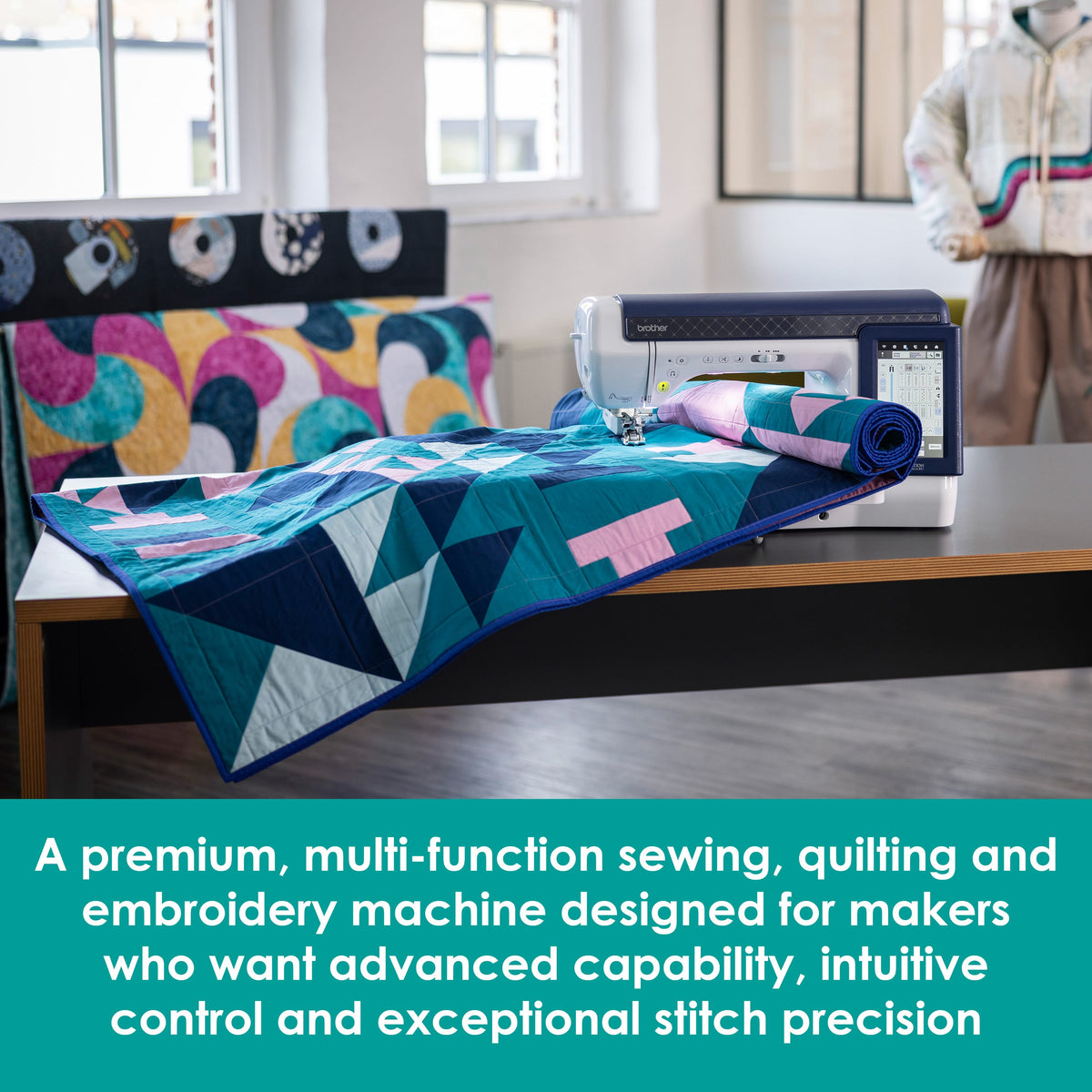

The Brother Innov‑is BX1 is a premium, multi‑function sewing, quilting and embroidery machine designed for makers who want advanced capability, intuitive control and exceptional stitch precision. Built to “perfectly blend precision with imagination” , the BX1 delivers professional‑level performance in a sleek, modern chassis suited to both creative hobbyists and small‑business sewists.

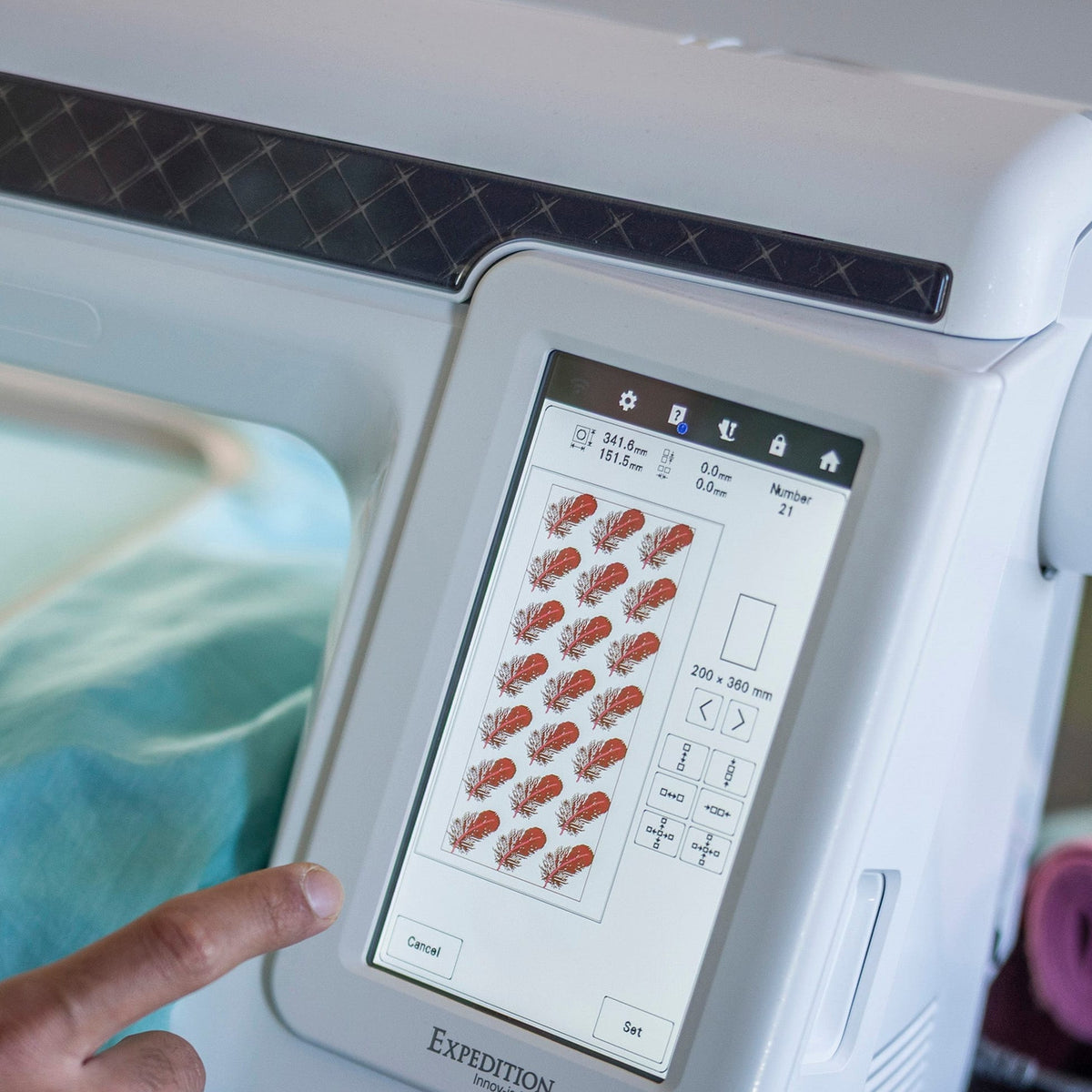

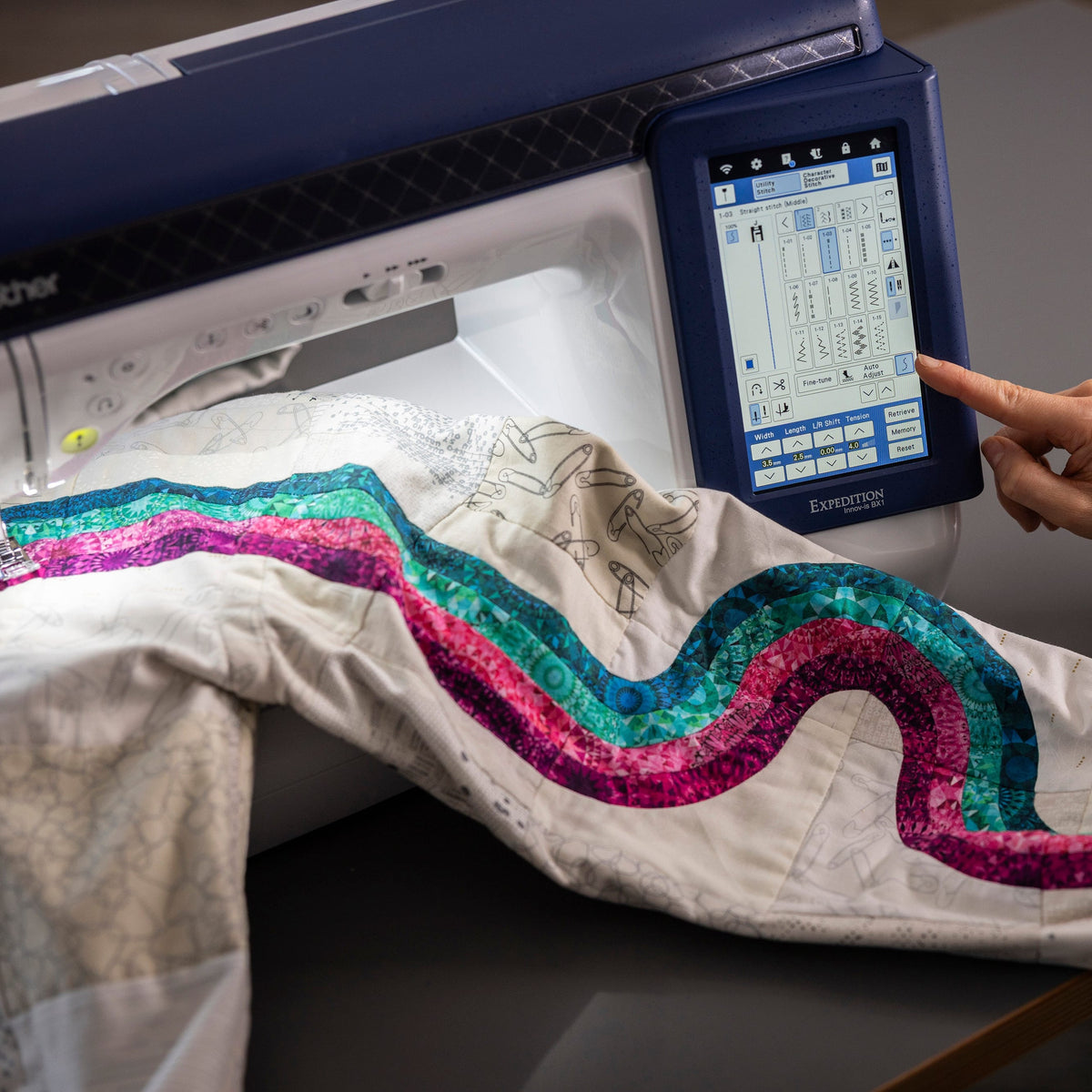

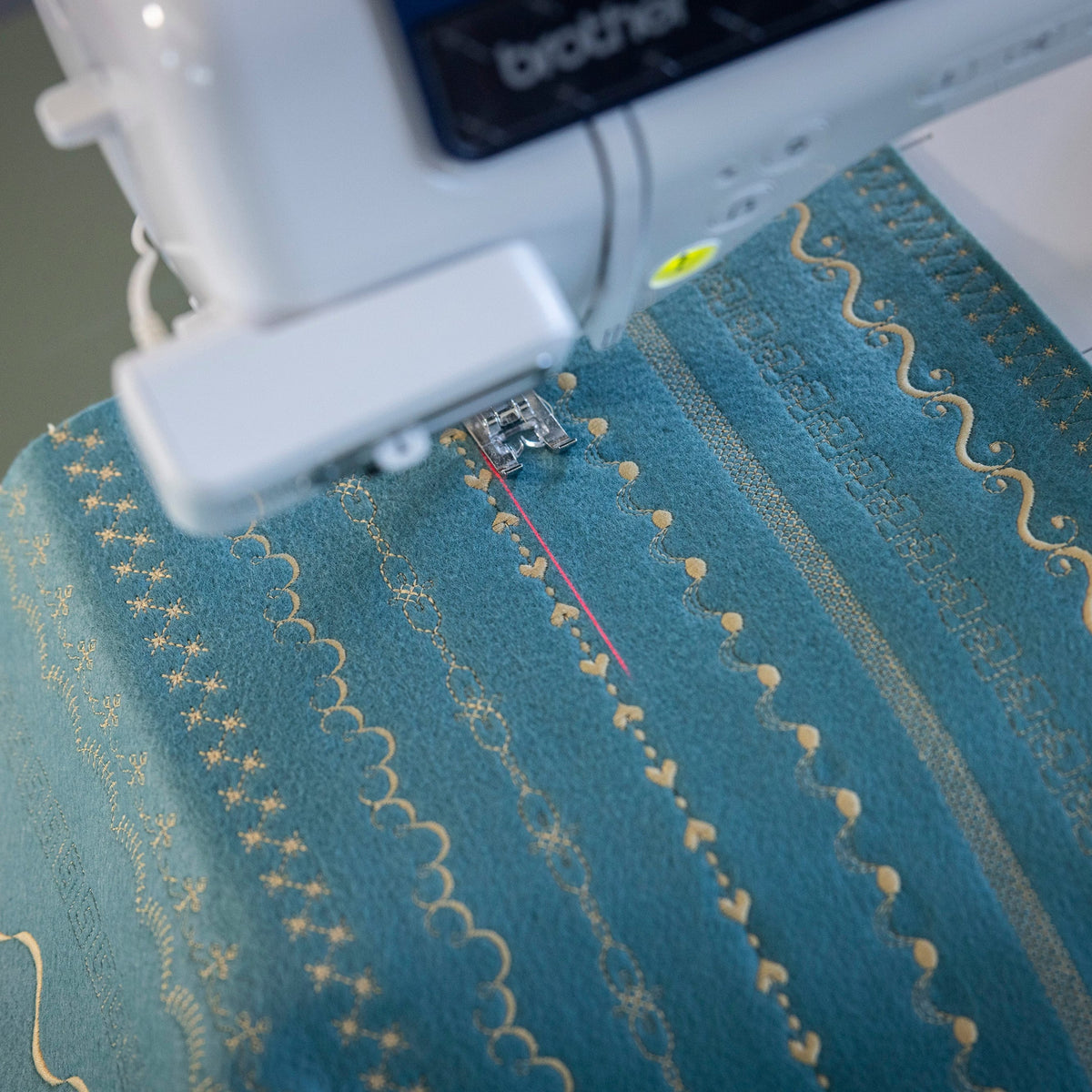

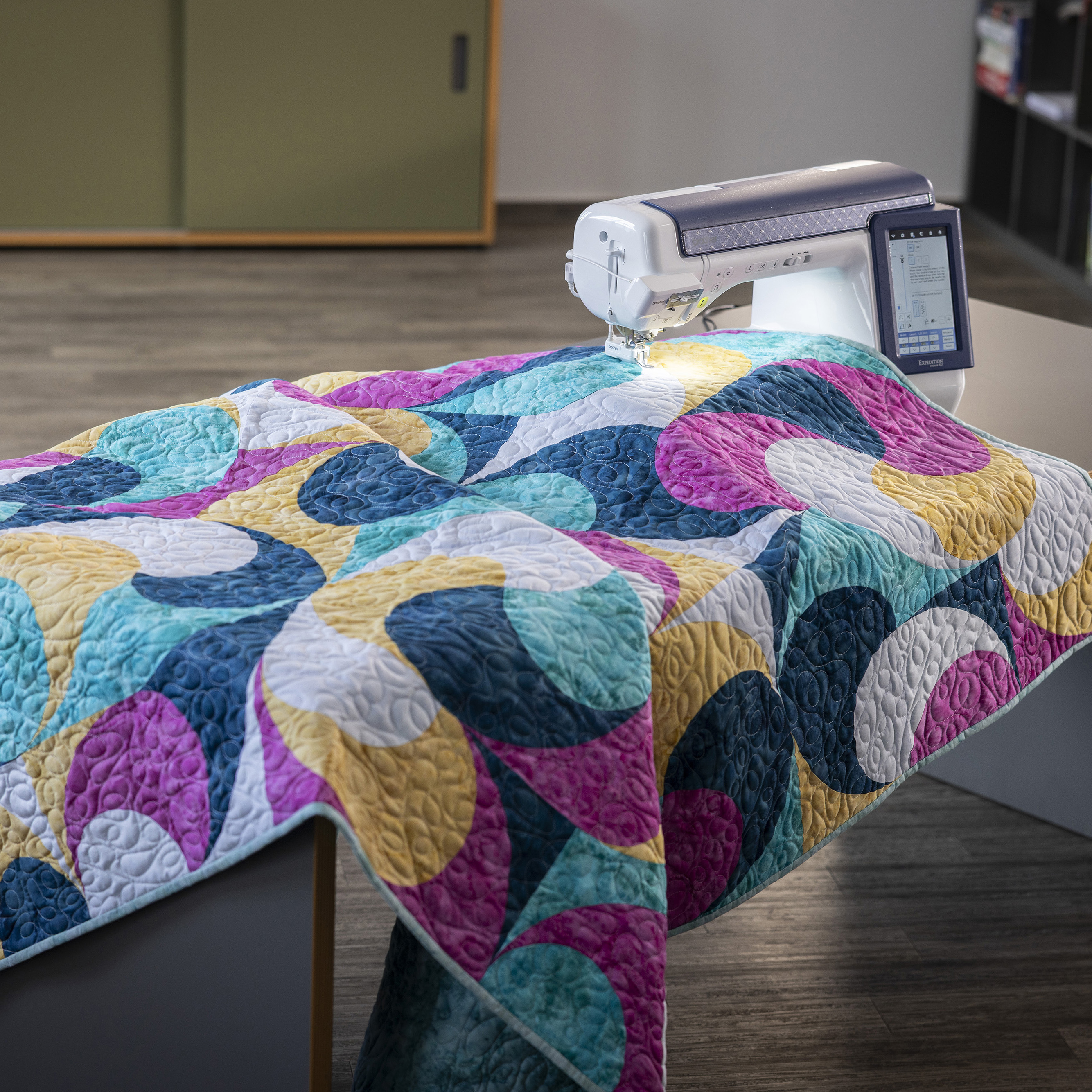

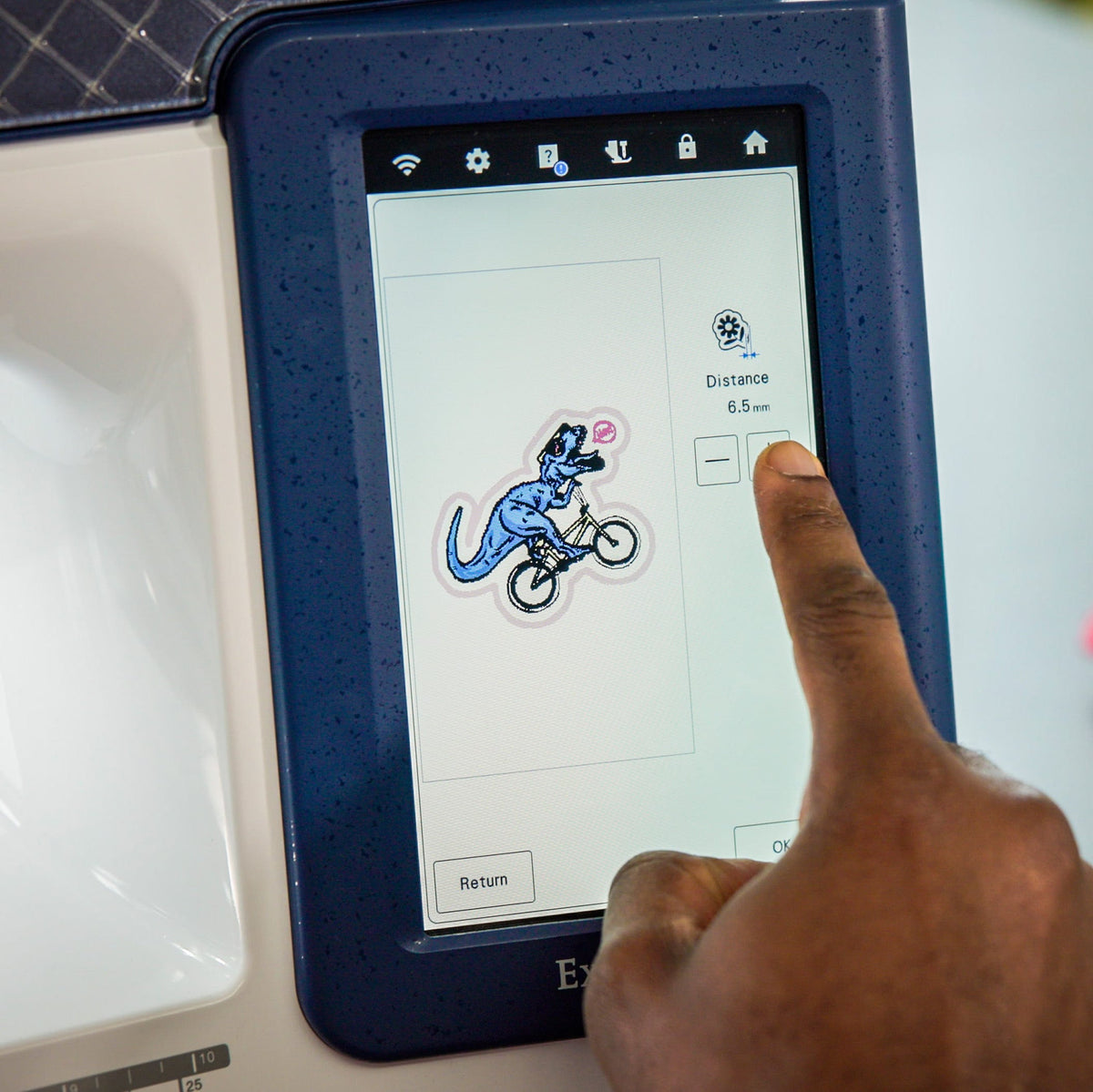

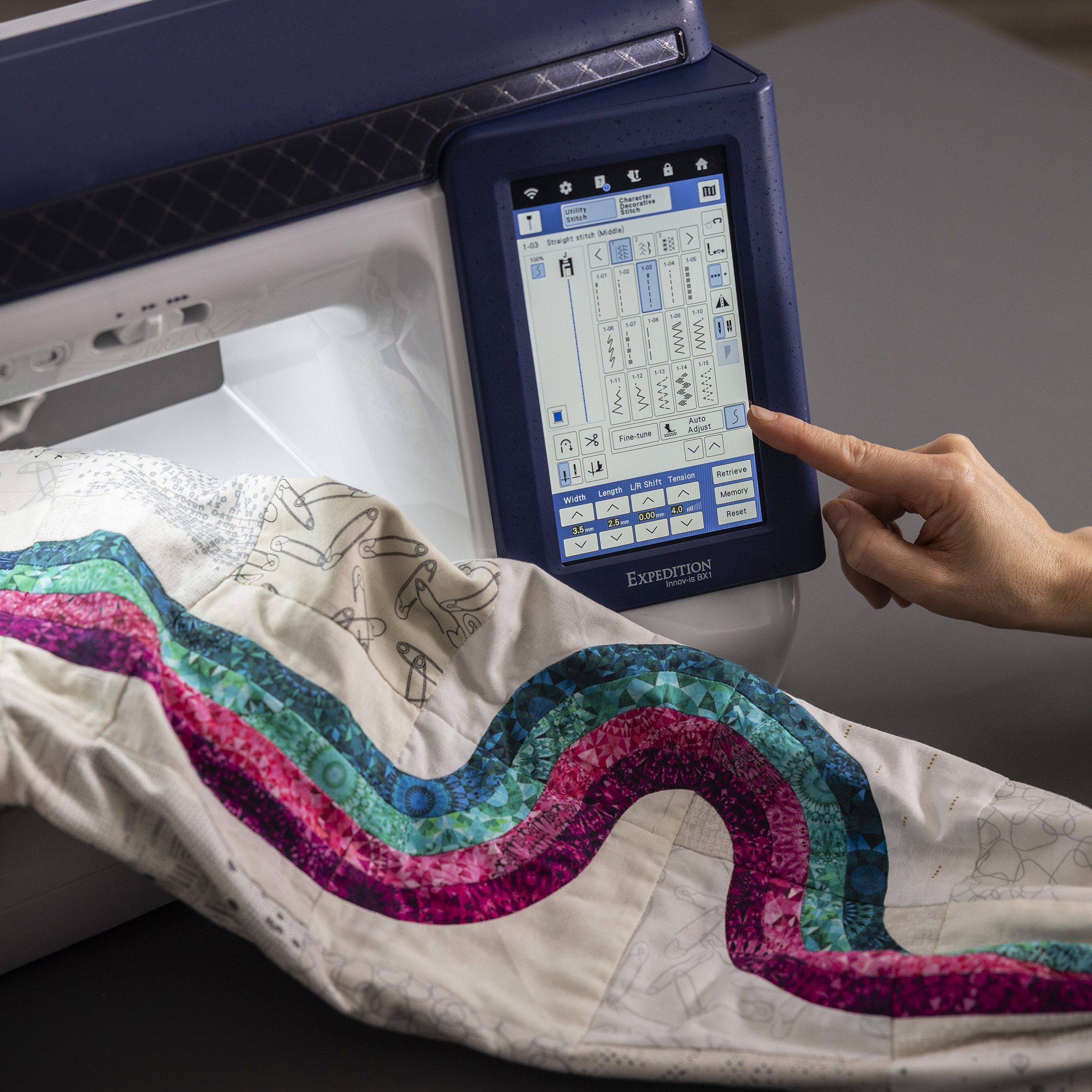

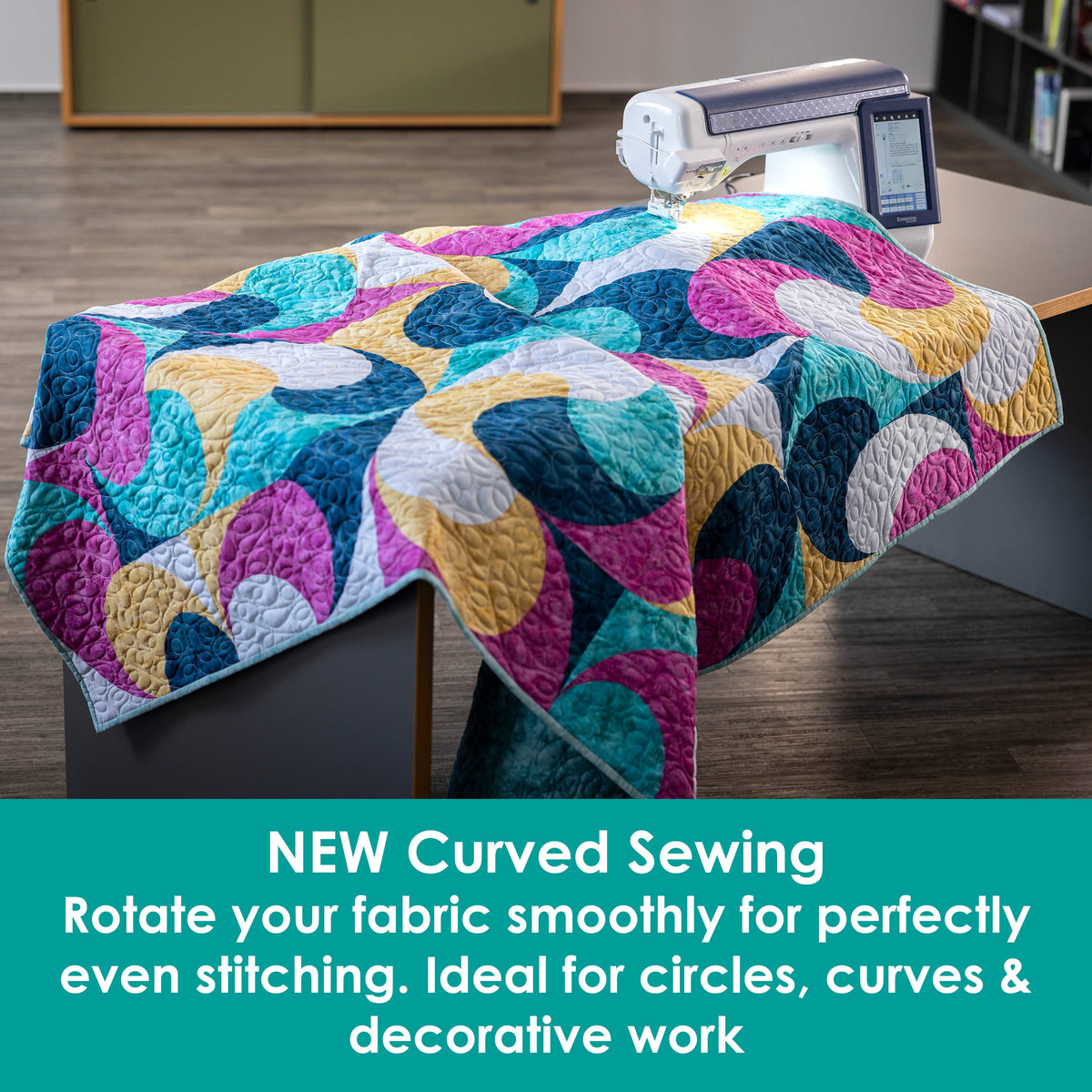

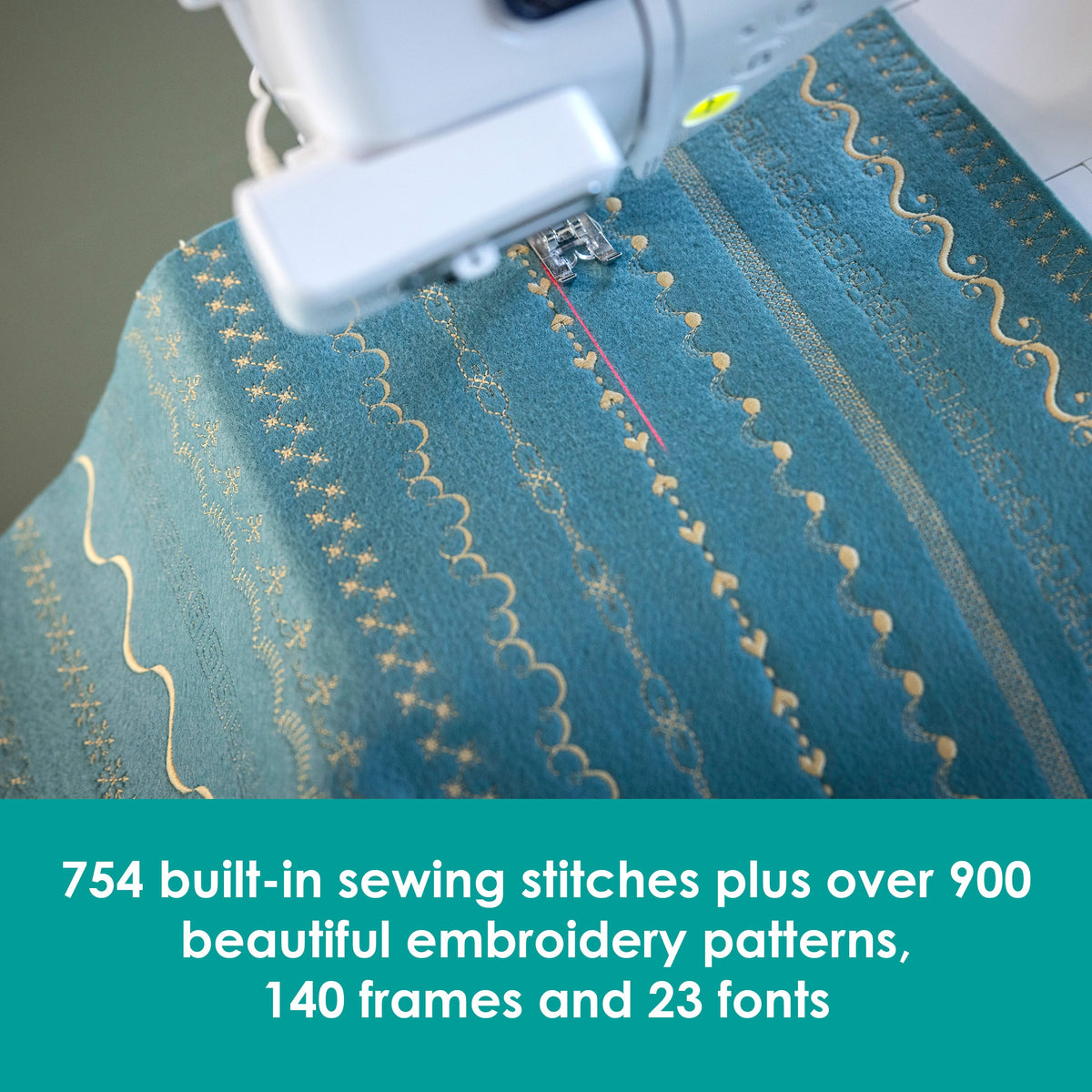

The BX1 introduces Brother’s industry‑first Curved Sewing, allowing you to rotate fabric smoothly with even stitching - ideal for circles, curves and decorative work. It includes 754 built‑in sewing stitches, over 900 embroidery patterns, 140 frames and 23 fonts, all editable directly on the large 7" colour LCD touchscreen.

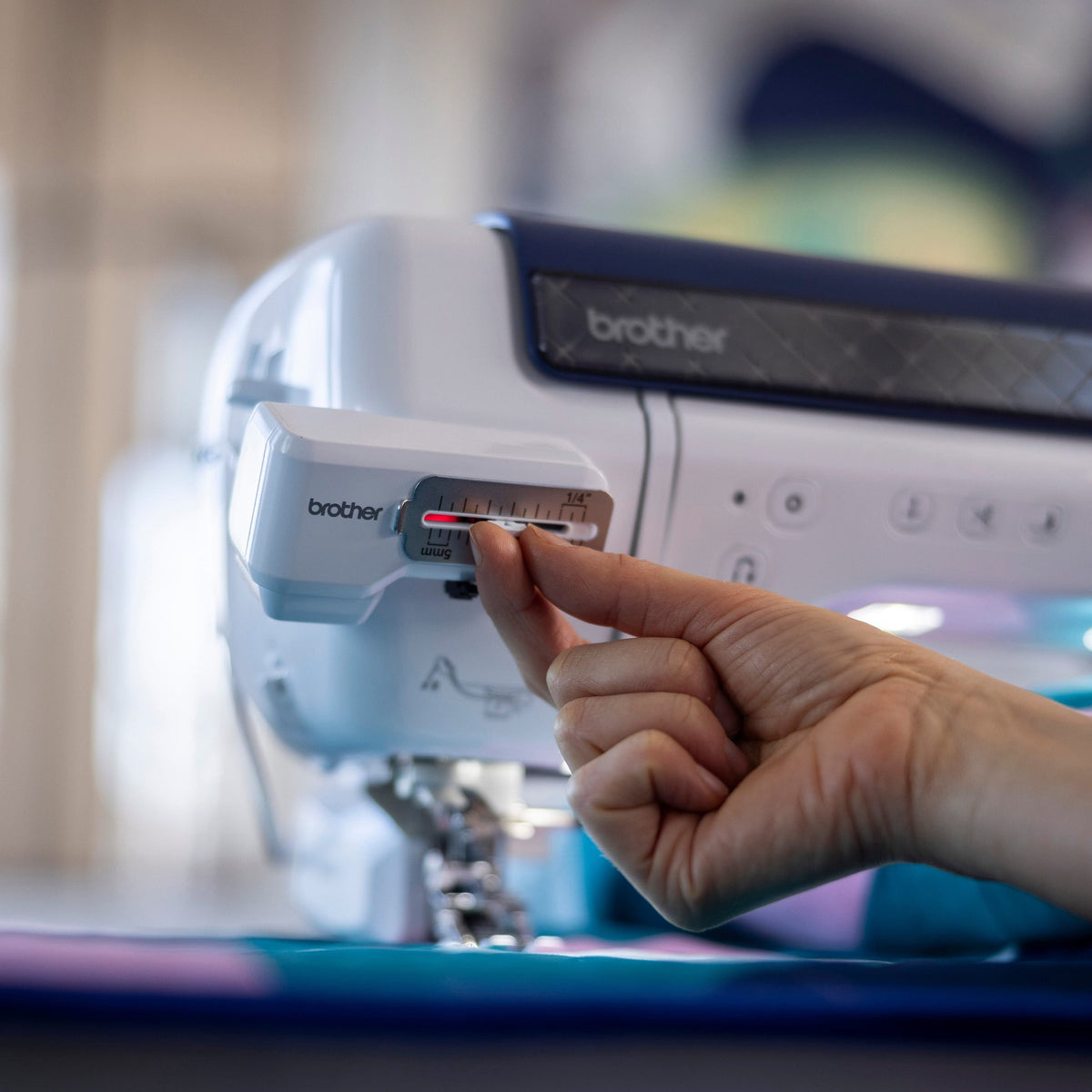

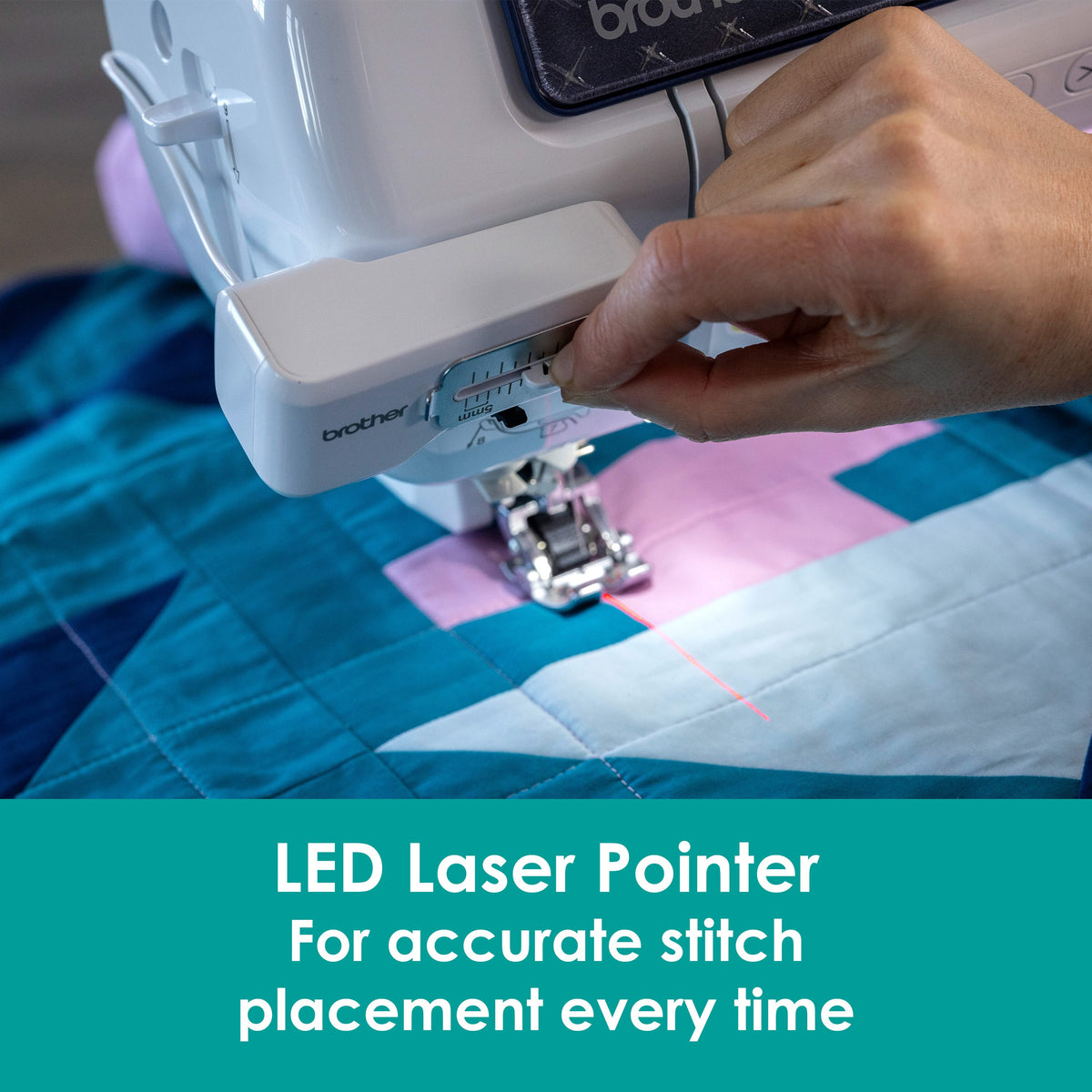

Advanced embroidery features include 3D appliqué, crochet couching, French knot embroidery, lace crochet, matrix copy, colour sorting, auto stitch density adjustment and programmable jump‑stitch cutting. Precision tools such as the LED laser pointer and two‑point positioning ensure accurate placement every time.

The BX1 is wireless‑enabled, allowing connection to Brother’s Artspira app and digitising software for seamless design transfer. With an automatic needle threader, drop‑in bobbin, upper/lower thread sensors and strong multi‑directional feed, the BX1 is engineered for smooth, reliable performance across sewing, quilting and embroidery.

A powerful, intuitive combination machine built to elevate every stitch.

• 1 x Embroidery frame set 360 mm (H) × 200 mm (W)

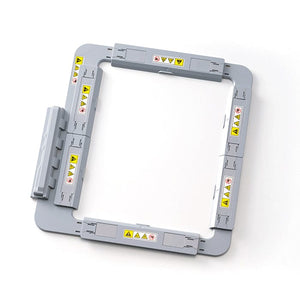

• 1 x Embroidery frame set 180 mm (H) × 130 mm (W)

• 1 x Zigzag foot "J" (on machine)
• 1 x Monogramming foot "N"
• 1 x Overcasting foot "G"
• 1 x Zipper foot "I"
• 1 x Buttonhole foot "A"
• 1 x Blind stitch foot "R"
• 1 x Button fitting foot "M"

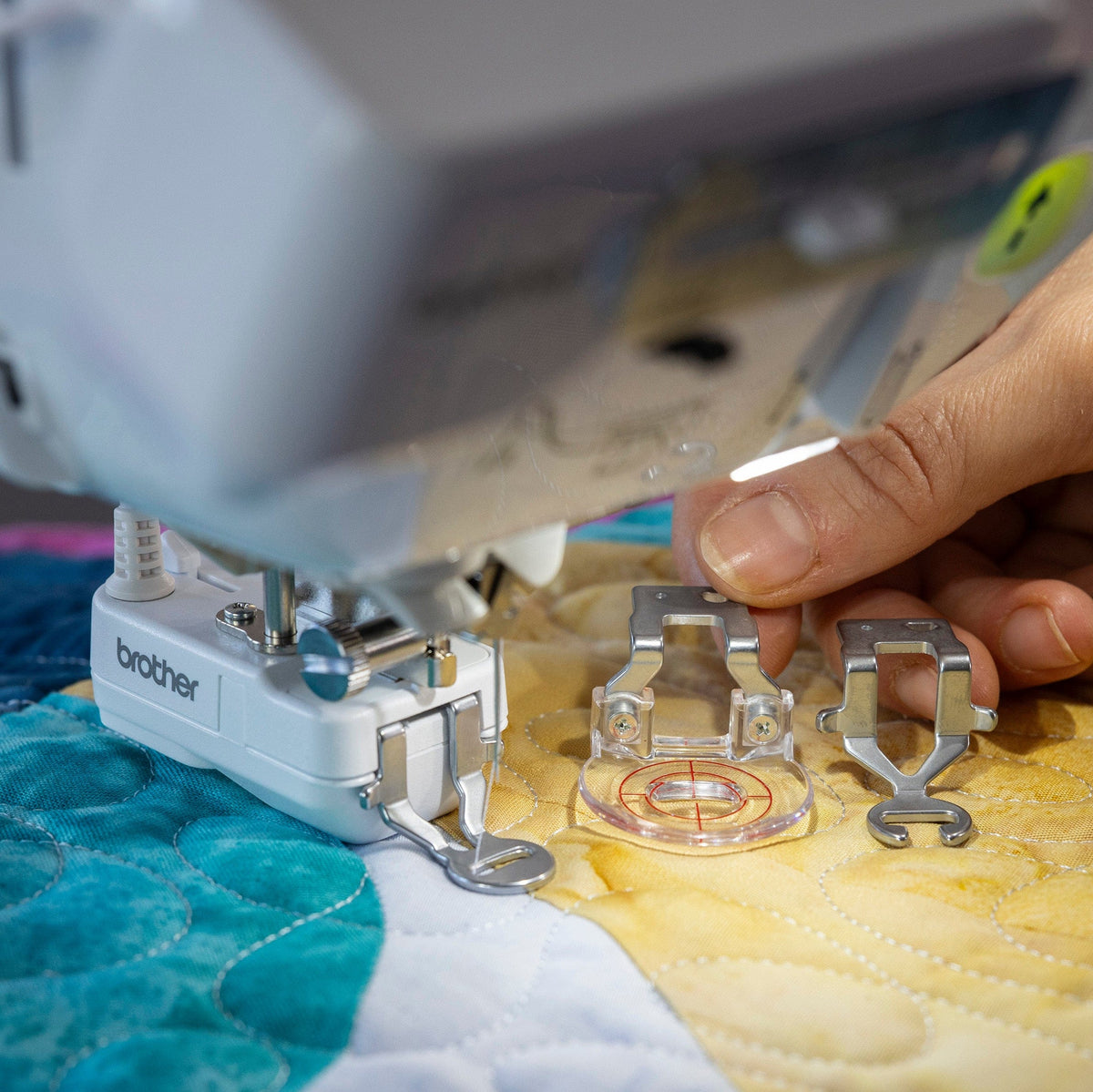

• 1 x Free motion open toe quilting foot "O"
• 1 x 1/4" Piecing foot with guide
• 1 x Straight stitch foot

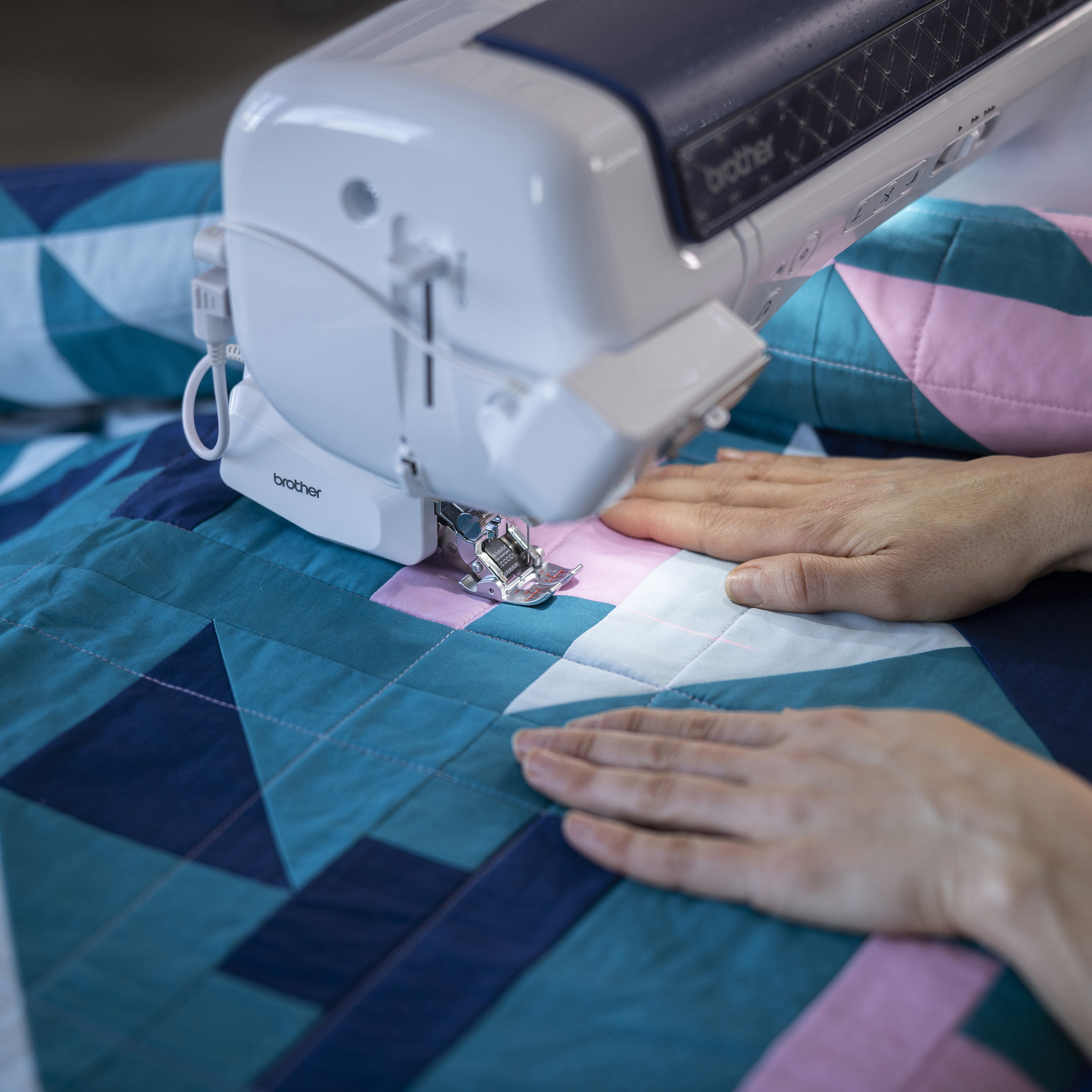

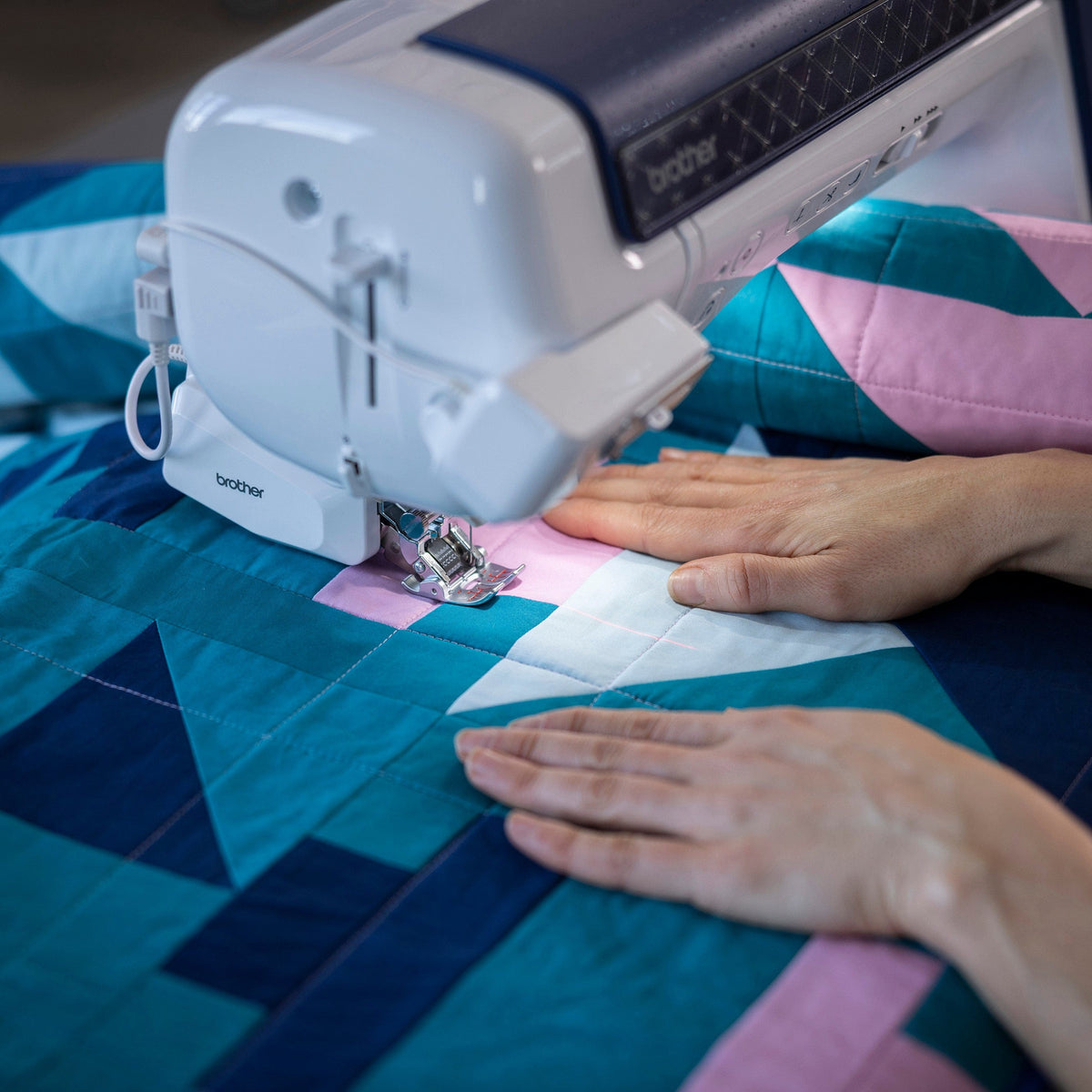

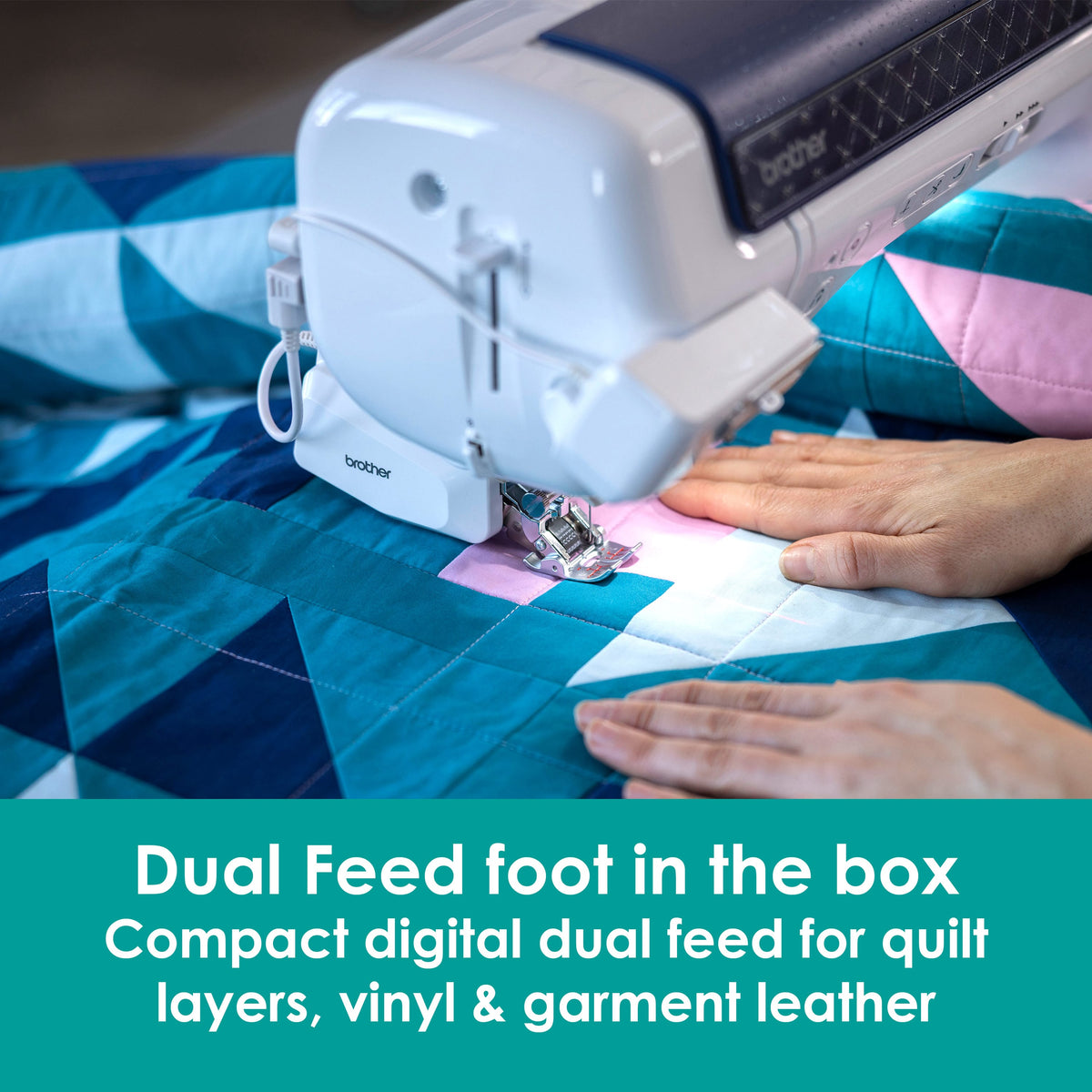

• 1 x Compact dual feed foot
• 1 x Embroidery foot "UH+" with LED pointer
• 1 x Embroidery couching foot "Y"

• Yarn guide
• Yarn threader
• Adapter
• Screw (small)
• Needle set
• Ball point needle set
• Twin needle
• Bobbin × 10 (One bobbin is on machine.)
• Bobbin clip × 10
• Seam ripper
• Scissors
• Cleaning brush
• Eyelet punch
• Screwdriver (large)
• Screwdriver (small)
• L-shaped screwdriver
• Disc-shaped screwdriver
• Spool cap (large)
• Spool cap (medium) x 2 (One spool cap is on machine.)
• Spool cap (small)
• Thread spool insert (mini king thread spool)
• Spool net
• Embroidery needle plate cover
• Knee lifter
• Standard bobbin case (green marking on the screw) (on machine)
• Alternate bobbin case (no color on the screw)
• Straight stitch needle plate
• Bobbin cover (with mark)
• Bobbin cover (with mark left mm)
• Cord guide bobbin cover
• Bobbin cover (on machine)
• Embroidery bobbin thread (#60, white)
• Stabilizer material
• Touch pen (stylus)
• Grid sheet set
• Power cord
• Accessory bag
• Horizontal spool pin
• Extra spool pin and instruction sticker
• Upper section of spool support
• Lower section of spool support
• Telescopic thread guide
• Spool pin × 2
• Spool cap (XL) × 2
• Spool cap base × 2
• Screw and washer
• Spool felt × 2
• Spool holder × 2
• Ring × 4
• Foot controller
• External guideline marker
• Guideline scale
• Cord guide
• Shell type machine cover
• Basic Operation Manual

• Machine Size: Large
• Product Type: Embroidery, Quilting, Sewing
• Skill Level: Expert, Intermediate
• Accessory Compartment: Yes
• Bobbin Type: Horizontal
• Case: Semi-rigid soft case
• Machine Type: Electronic
• Insertion of Bobbin: Quick Set Bobbin
• Lighting: 3 LEDs
• Number Of Needles: 1
• One-Finger Needle Plate Removal: Yes
• Design Database Transfer app for Windows PC: Yes
• My Stitch Monitor App: Yes
• USB Port: USB Port
• Wi-LAN Function: Yes
• Wireless firmware updates: Yes
• Display Size: 7"
• Type of Screen: LCD-Touchscreen Colour
• Built-in Embroidery Frame Patterns: 140 (10 shapes x 14 stitch types)
• Built-In Lettering Styles (Embroidery): 23
• Built-In Patterns: 914
• Couching Embroidery: Yes
• Embroidery Area in mm: 360 x 200
• Embroidery Positioning Function: LED pointer
• Font Size Selection (L-M-S): Yes
• Frames Included: 180 x 130 mm (7 x 5”), 200 x 360 mm (8 x 14”)
• Jump Stitch Trim: Yes
• LED Pointer: Embroidery foot included
• Max Embroidery Speed (Stitches per Minute): 850
• Multiple Line Text Input: Yes
• Number of Hoops (Standard Accessory): 2
• Number of Spool Stands: 2
• Pattern - Size, Change Rotation & Mirror: Yes
• 7 Point Feed Dog: Yes - SFDS (Square Feed Drive System)
• Adjustable presser foot: Yes
• Automatic reverse / reinforcement stitch: Yes
• Built-In Lettering Styles: 5
• Buttonholes: 14
• Combine stitches: Yes

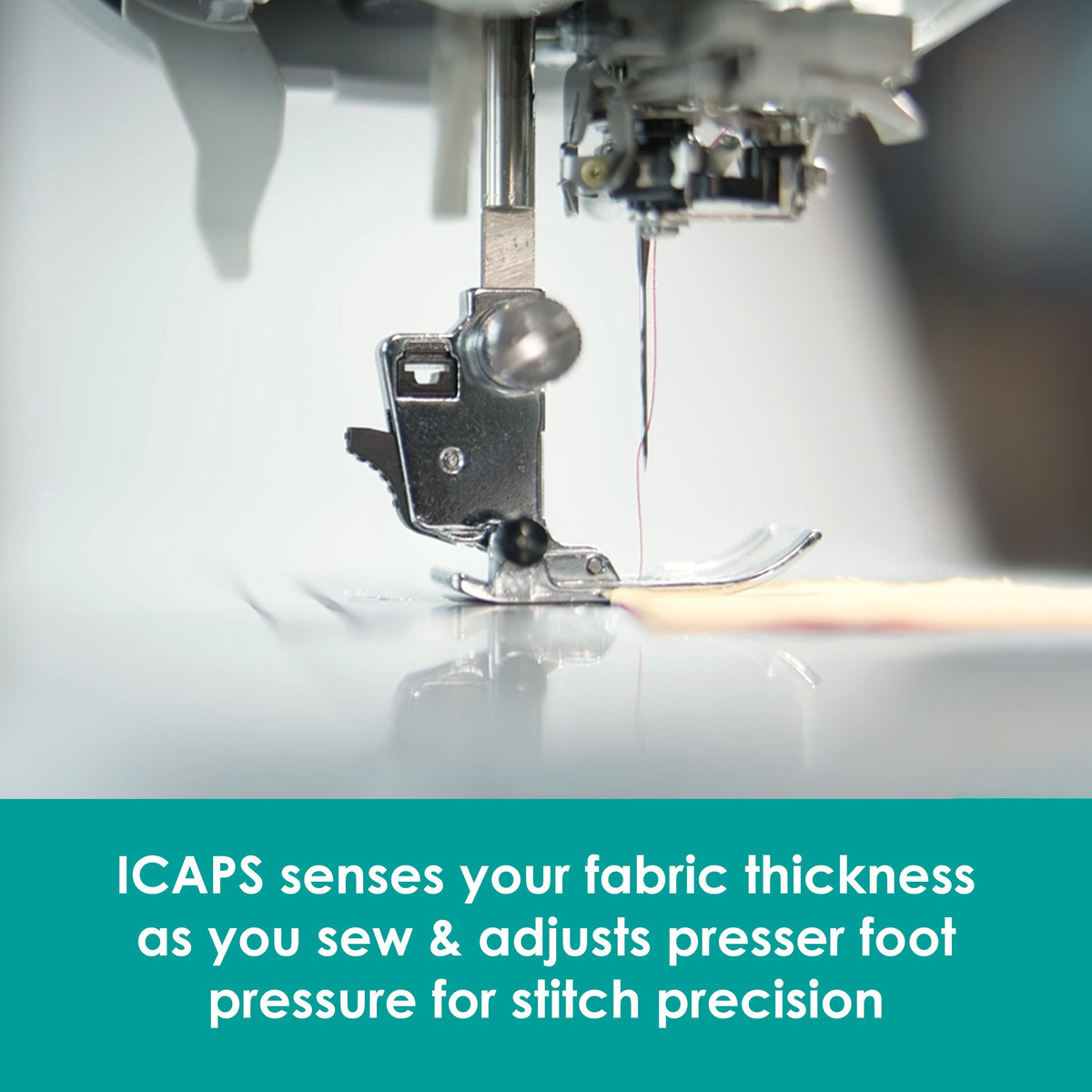

• Continuous Automatic Pressure System (ICAPS): Yes
• Direct Dual Feed: Yes
• Drop feed setting: Electronic
• Electronic slide speed control: yes

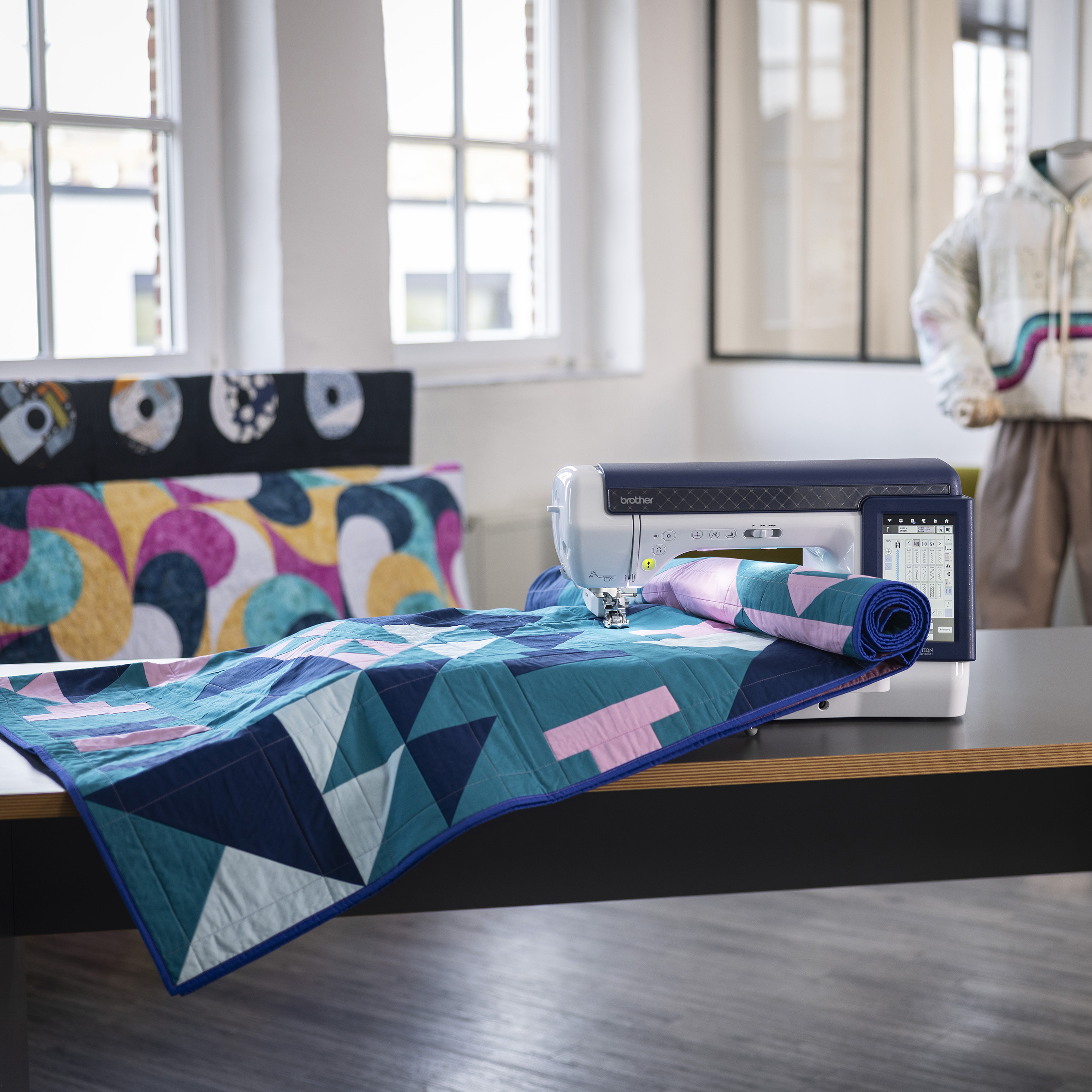

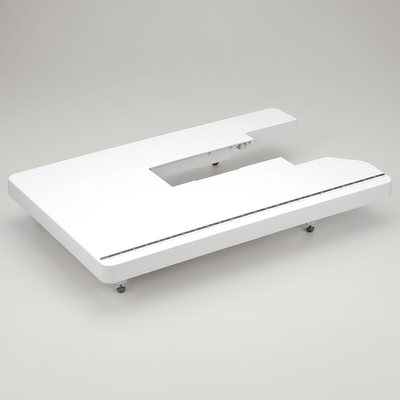

• Extension Wide Table: Optional
• Free arm sewing: Yes
• Free Motion Embroidery Kit: Optional
• Knee lift: Yes

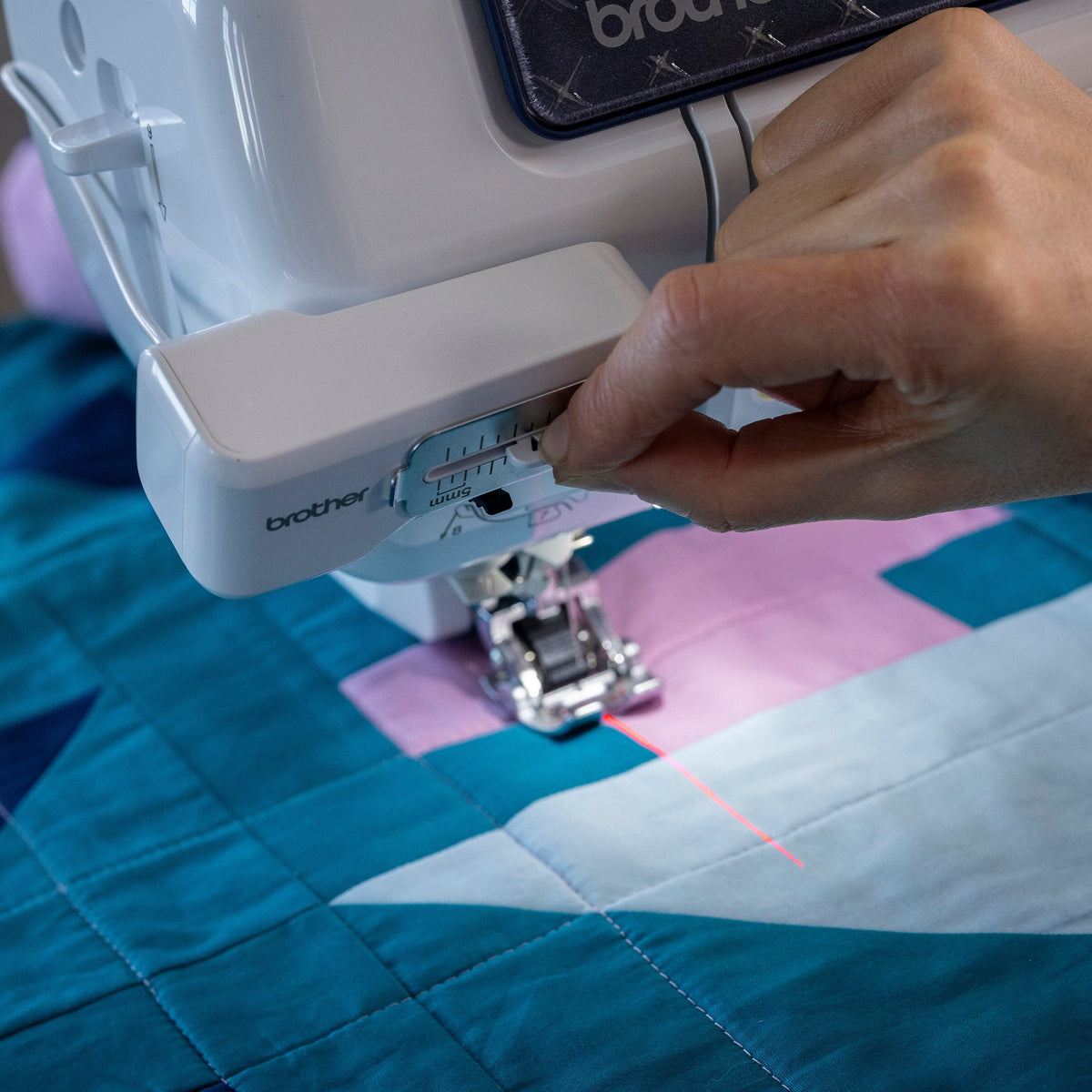

• Laser Function: Yes
• Lock stitch button: Yes
• Max. Sewing Speed (Stitches per minute): 850
• Multi-Directional Sewing: Yes (up to 8 sideways)
• Multi-function foot controller: Optional

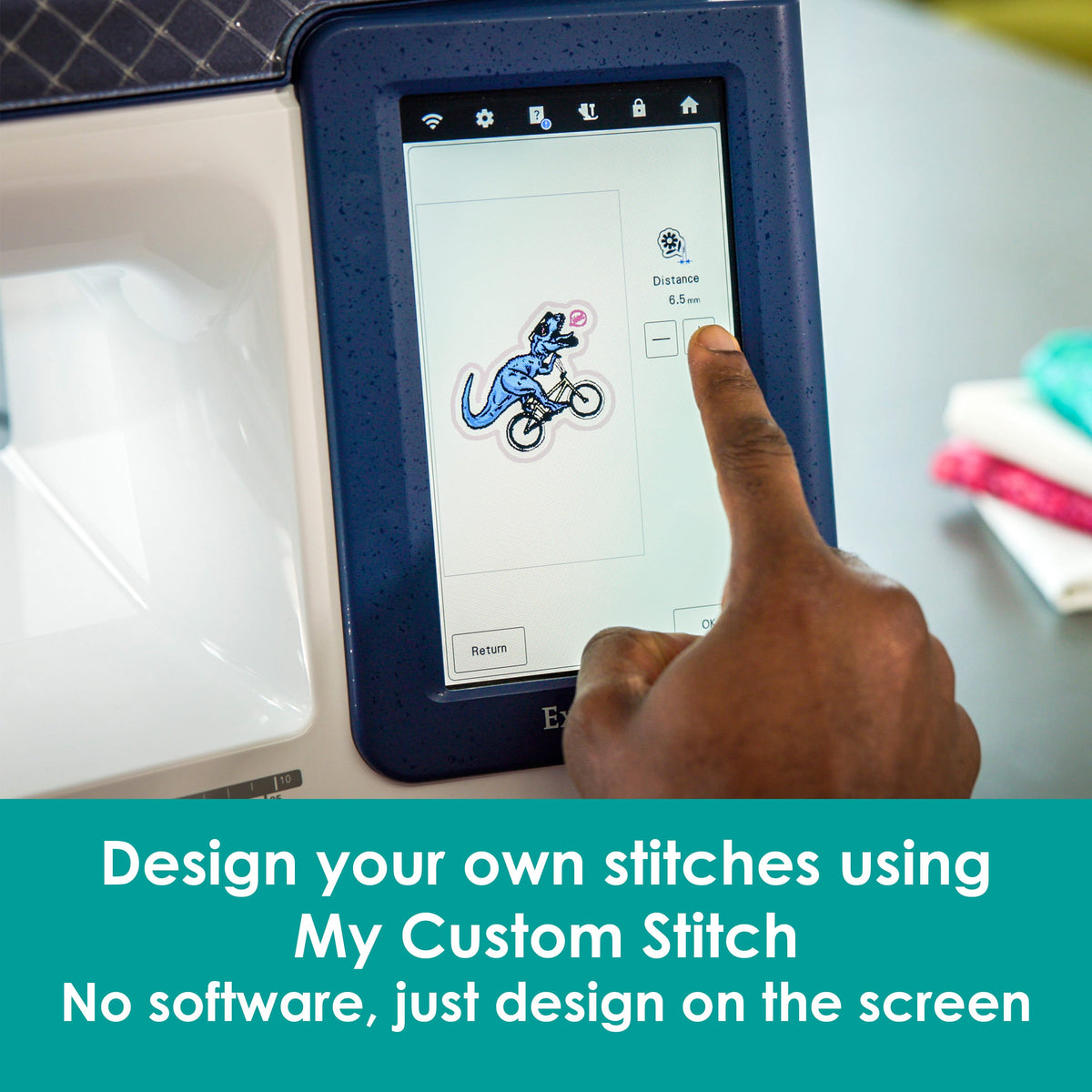

• My Custom Stitch: Yes
• Needle Stop Position Control Up/Down: Yes
• Number of sewing stitches *incl. buttonholes: 754
• Pivot function: Yes
• Presser Foot Levelling Button: Yes
• SFDS (Square Feed Drive System): Yes
• Snap on Presser Feet System: Yes
• Stitch Length (mm): 5
• Stitch Width (mm): 7
• Utility stitches *incl. buttonholes: 754

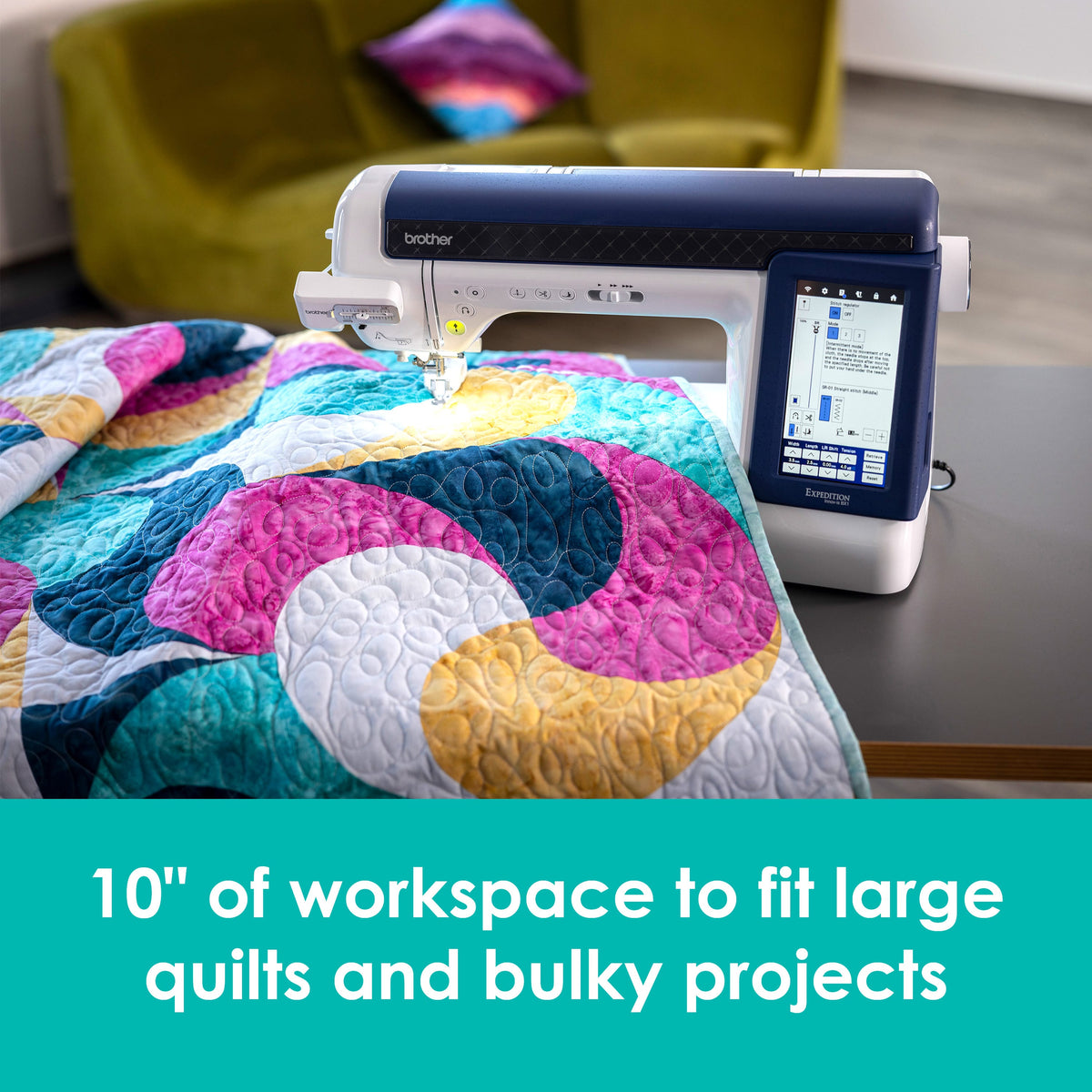

• Workspace (cm): 25.4
• Adjustable Thread Tension: Manual
• Automatic Thread Cutter: Yes
• Bobbin Winder: Yes
• Lower Thread Sensor: Yes
• Needle Threading System: Extra Advanced
• Upper Thread Sensor: Yes
• Machine Dimension (mm) 815 x 309 x 524 mm
