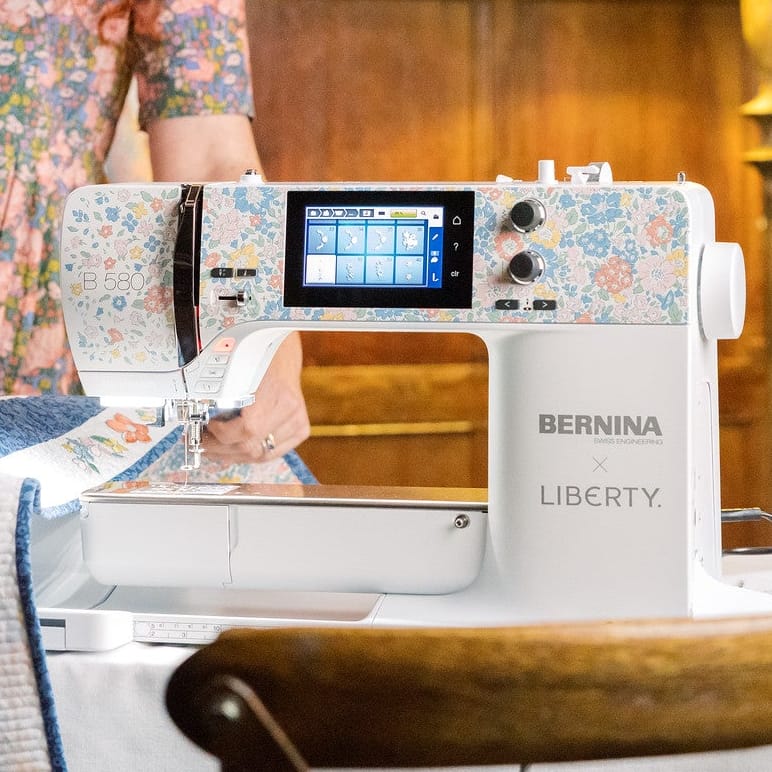

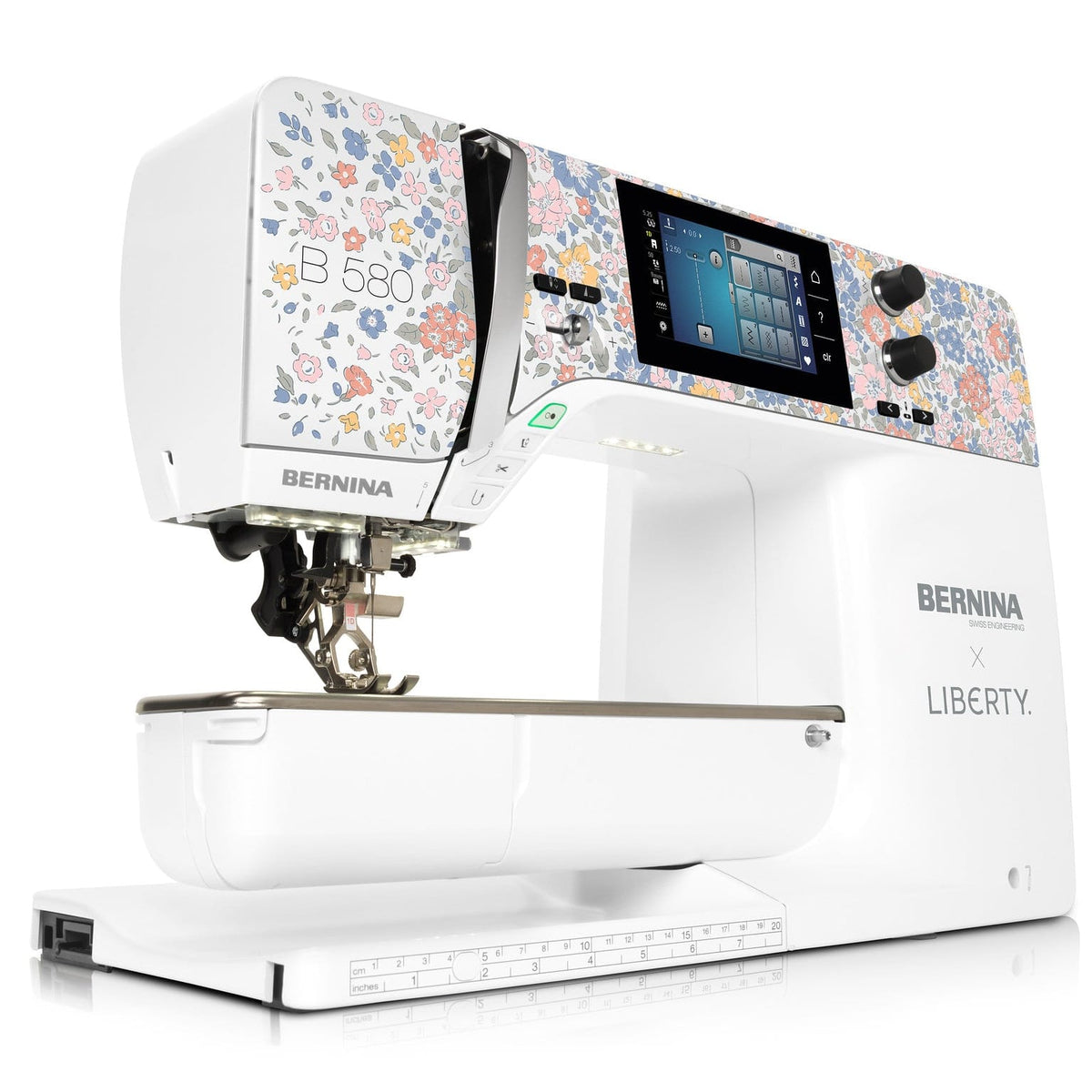

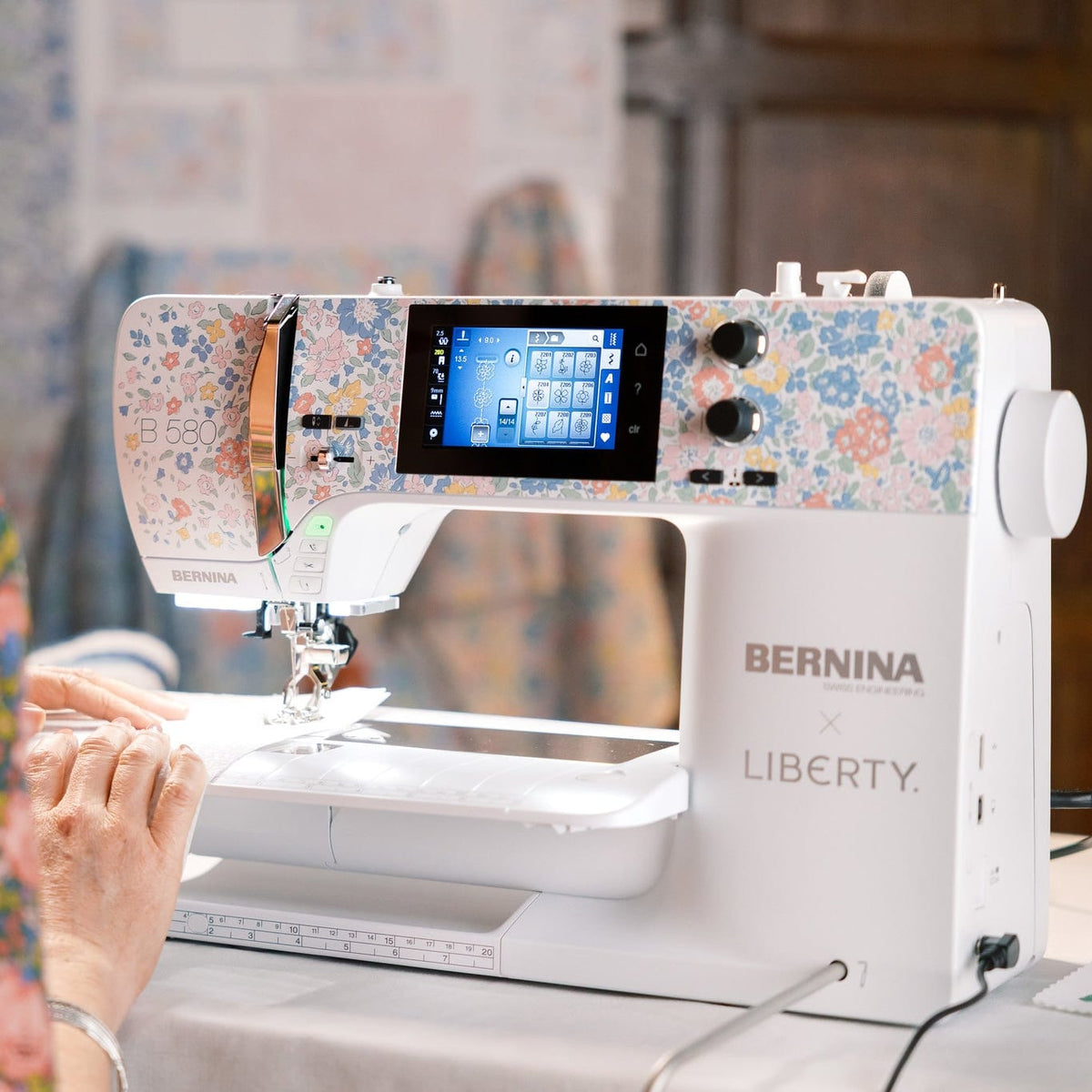

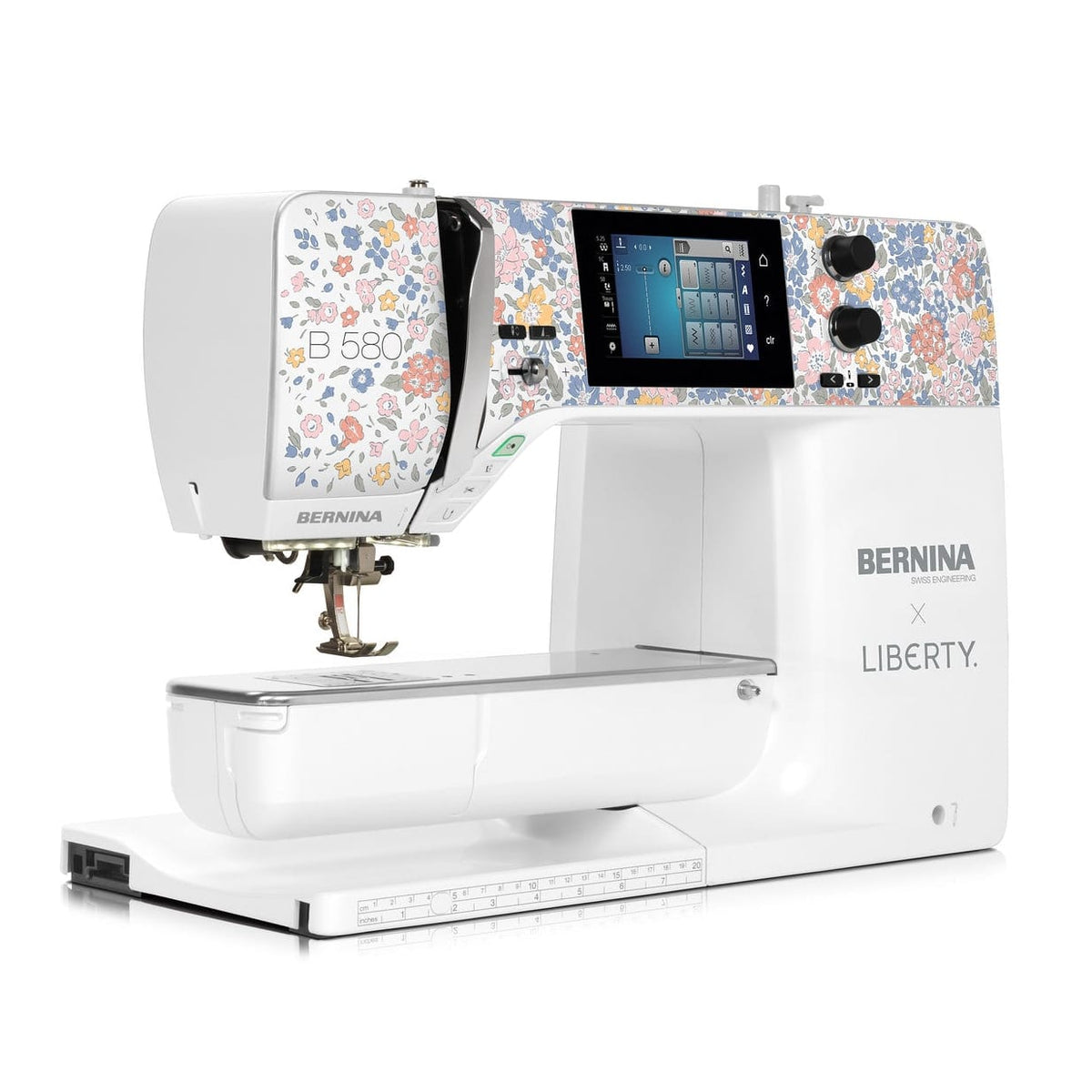

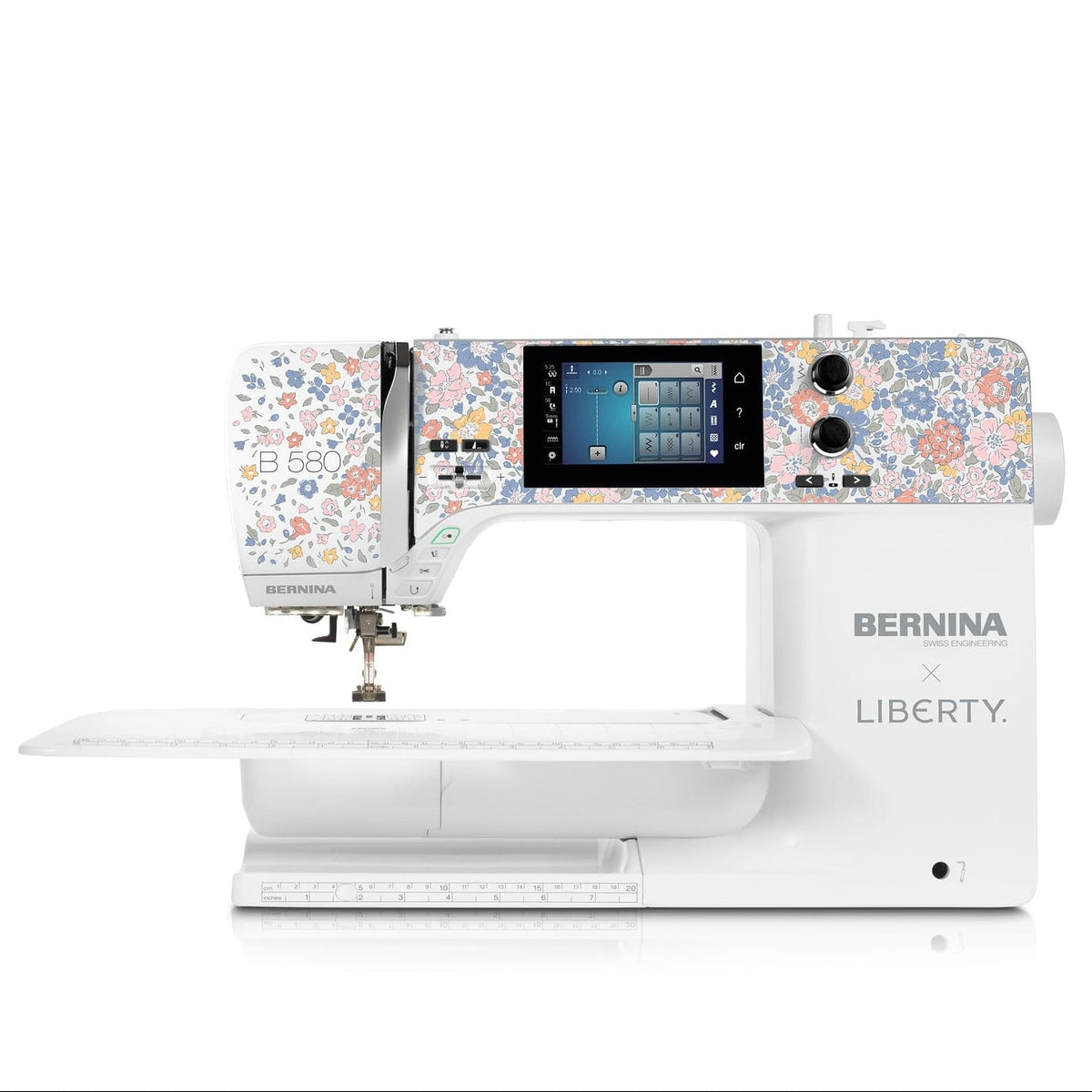

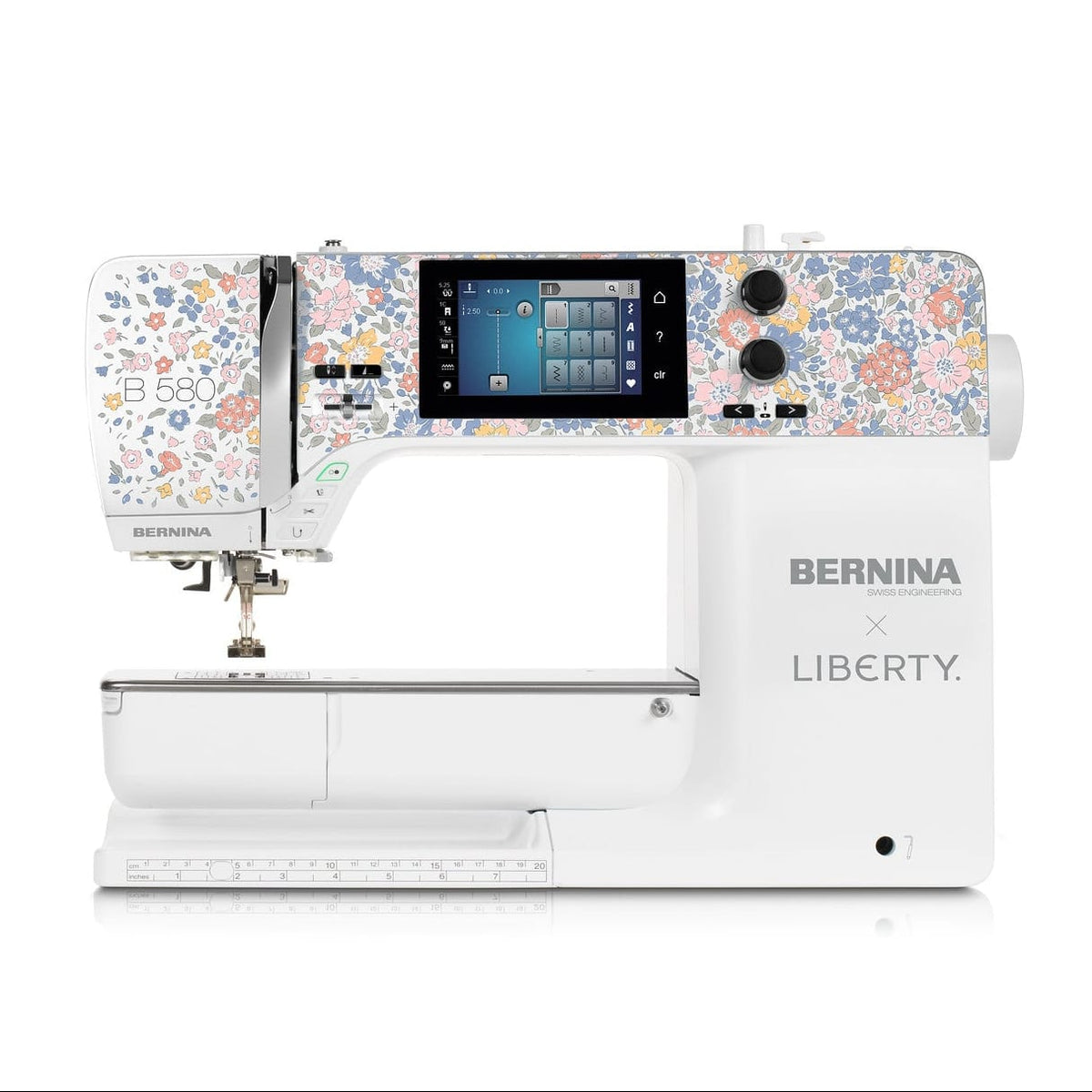

BERNINA 580 Liberty Edition Product Review
The BERNINA 580 Liberty Edition brings together two heritage brands. Designed in collaboration with Liberty to celebrate the artistry of the iconic London design house, it has a floral faceplate in Liberty's Glen Lyon Blooms print, redrawn and hand-painted in the Liberty studio. Beneath the faceplate is a full BERNINA 5 Series sewing and quilting machine that is quiet, powerful and precise, with excellent fabric feed.
With 1,482 built-in stitches, including 32 exclusive Liberty decorative stitches, the 580 Liberty Edition covers everyday construction, piecing and embellishment with the same precision the brand is renowned for. Utility, quilting and decorative stitches sit alongside 8 sewing alphabets for lettering. A 9mm maximum stitch width and 6mm maximum stitch length give satin and decorative stitches a wide, bold finish and 11 needle positions let you place topstitching exactly. Eight BERNINA presser feet come in the box: the five standard feet plus the Edgestitch Foot #10D, Open Embroidery Foot #20D and Patchwork Foot #97D.

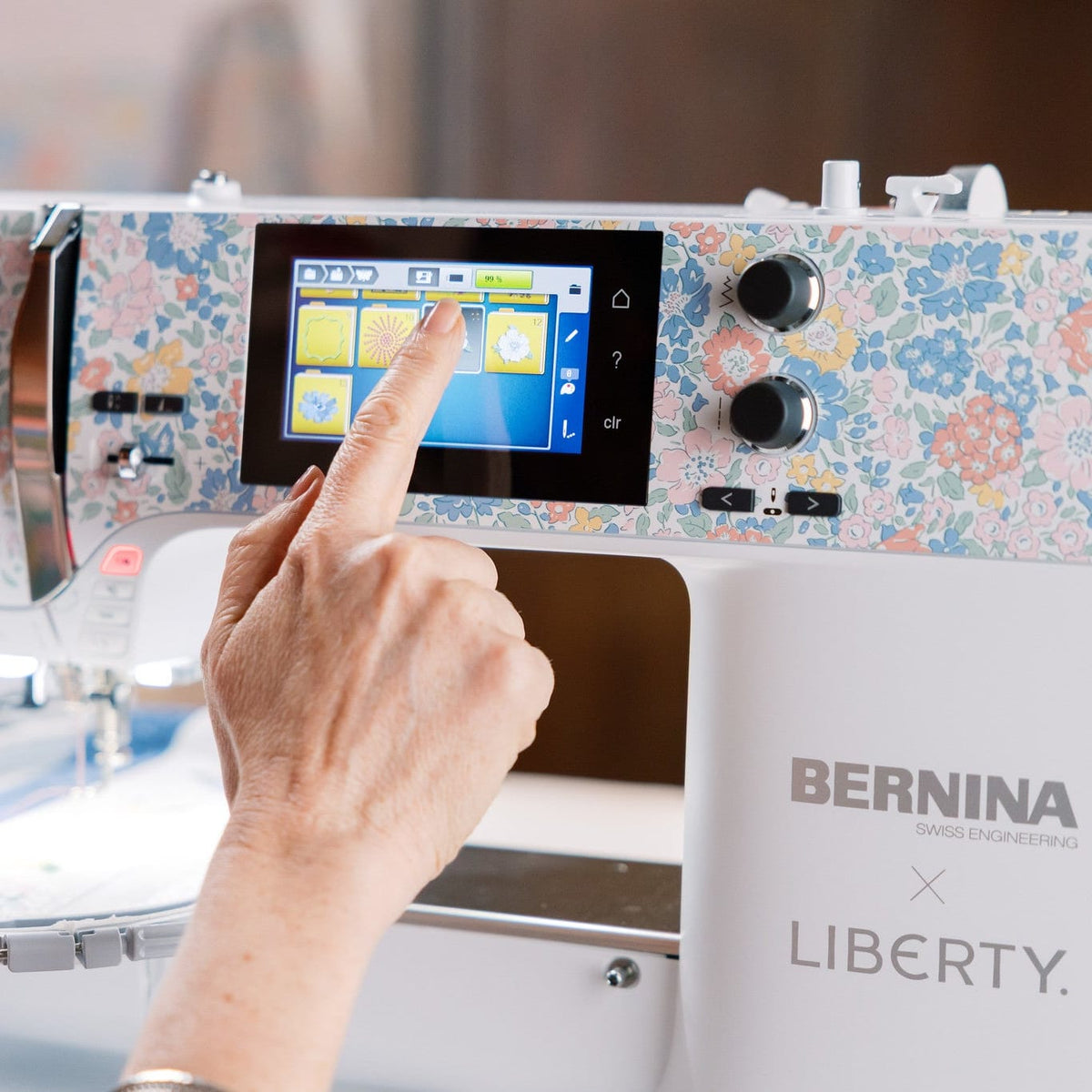

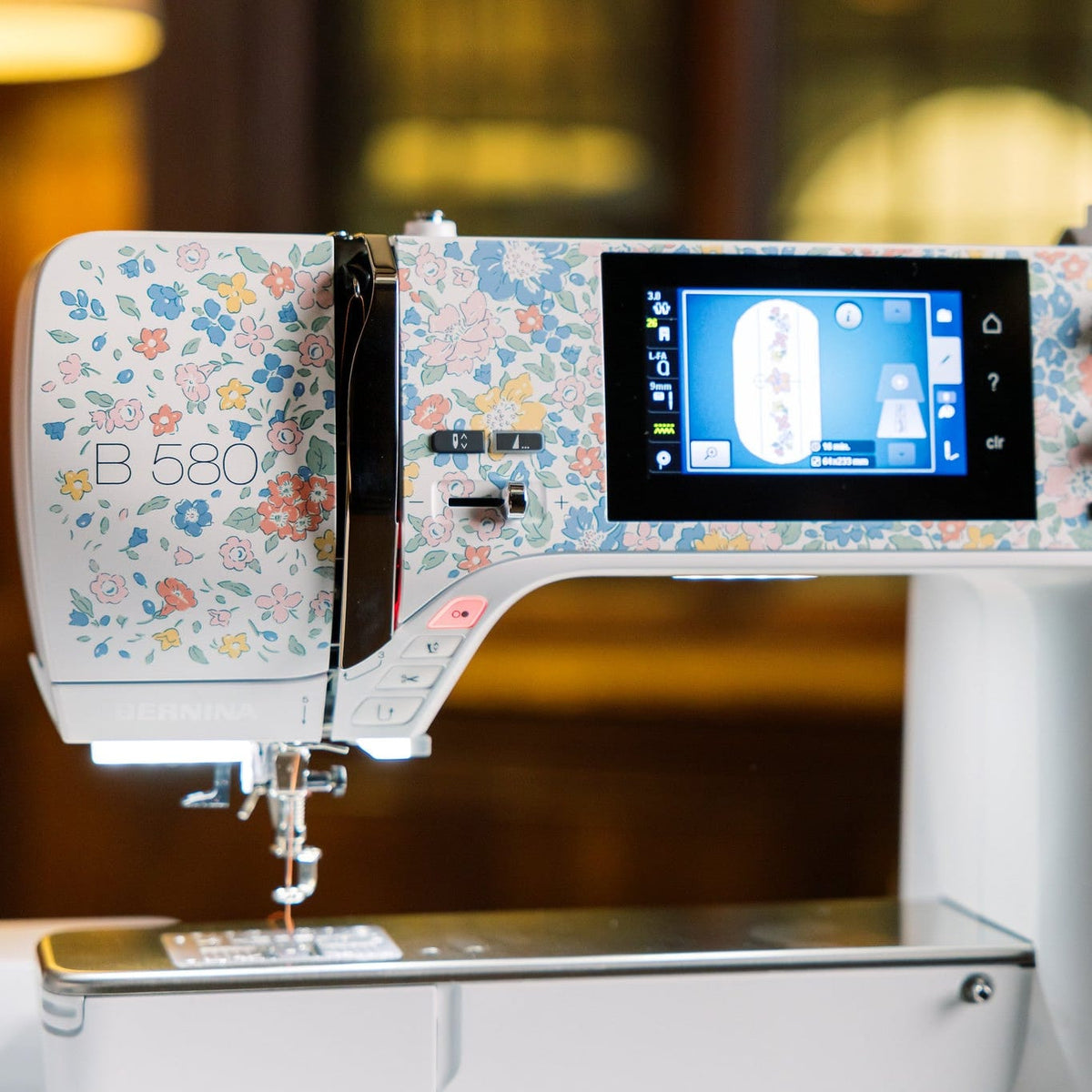

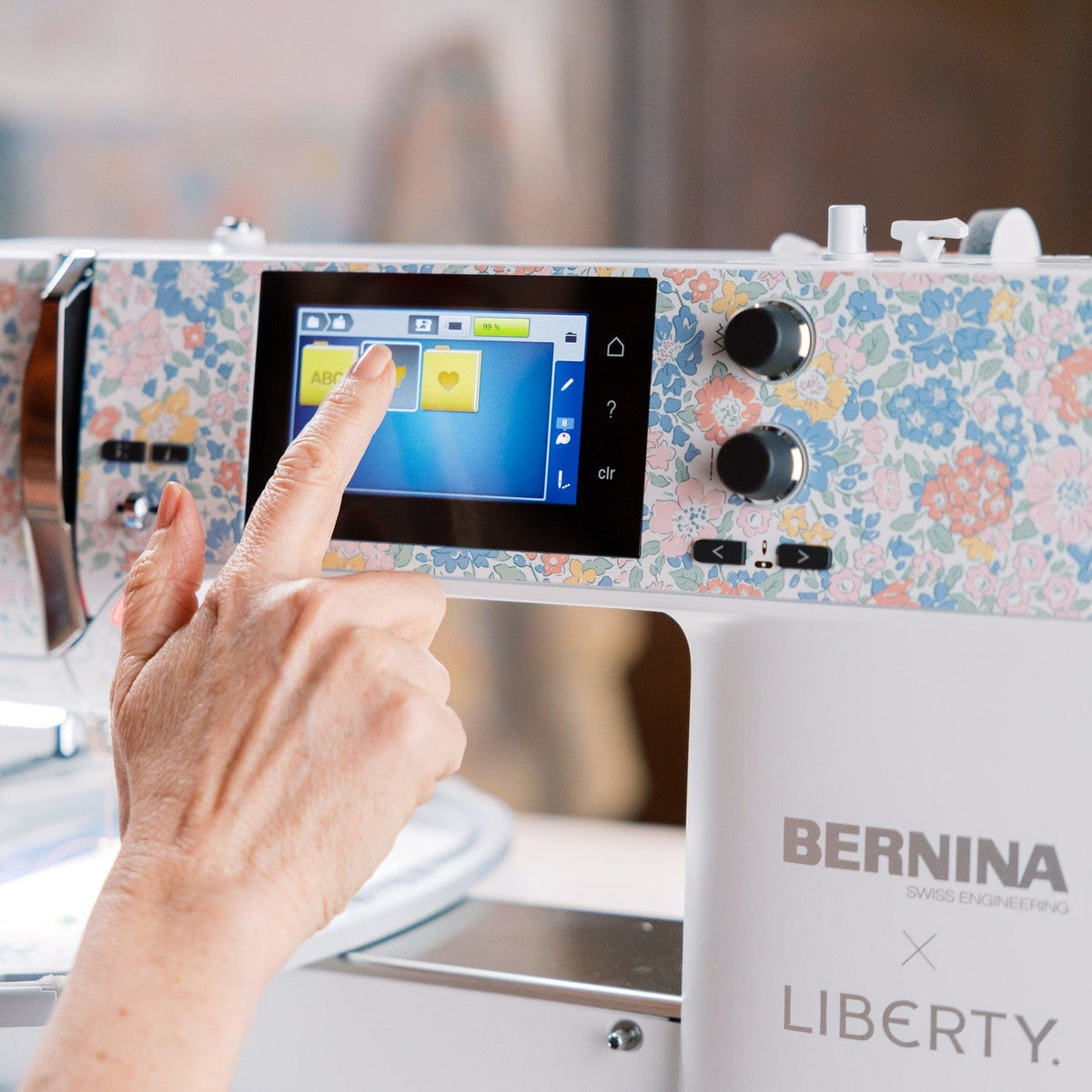

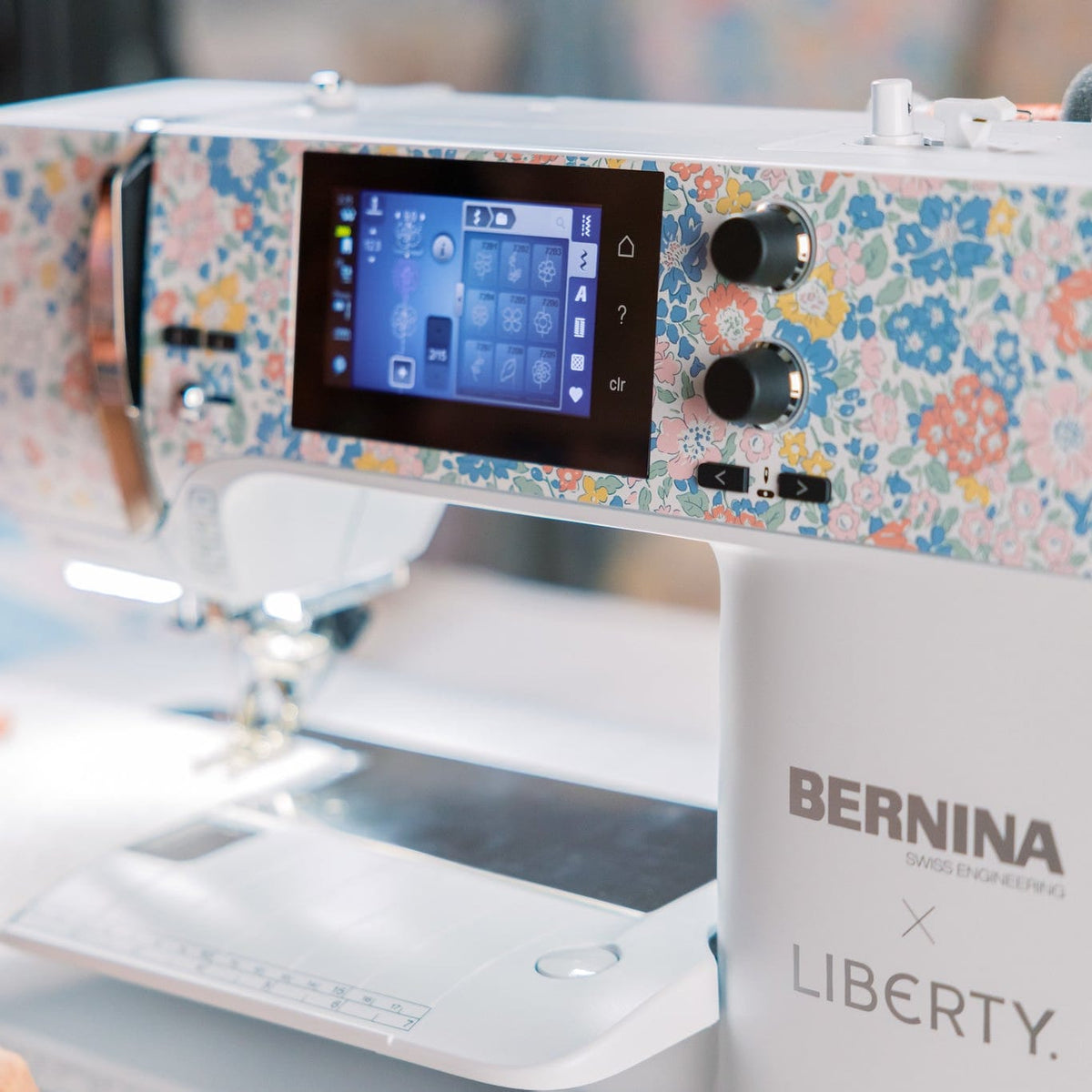

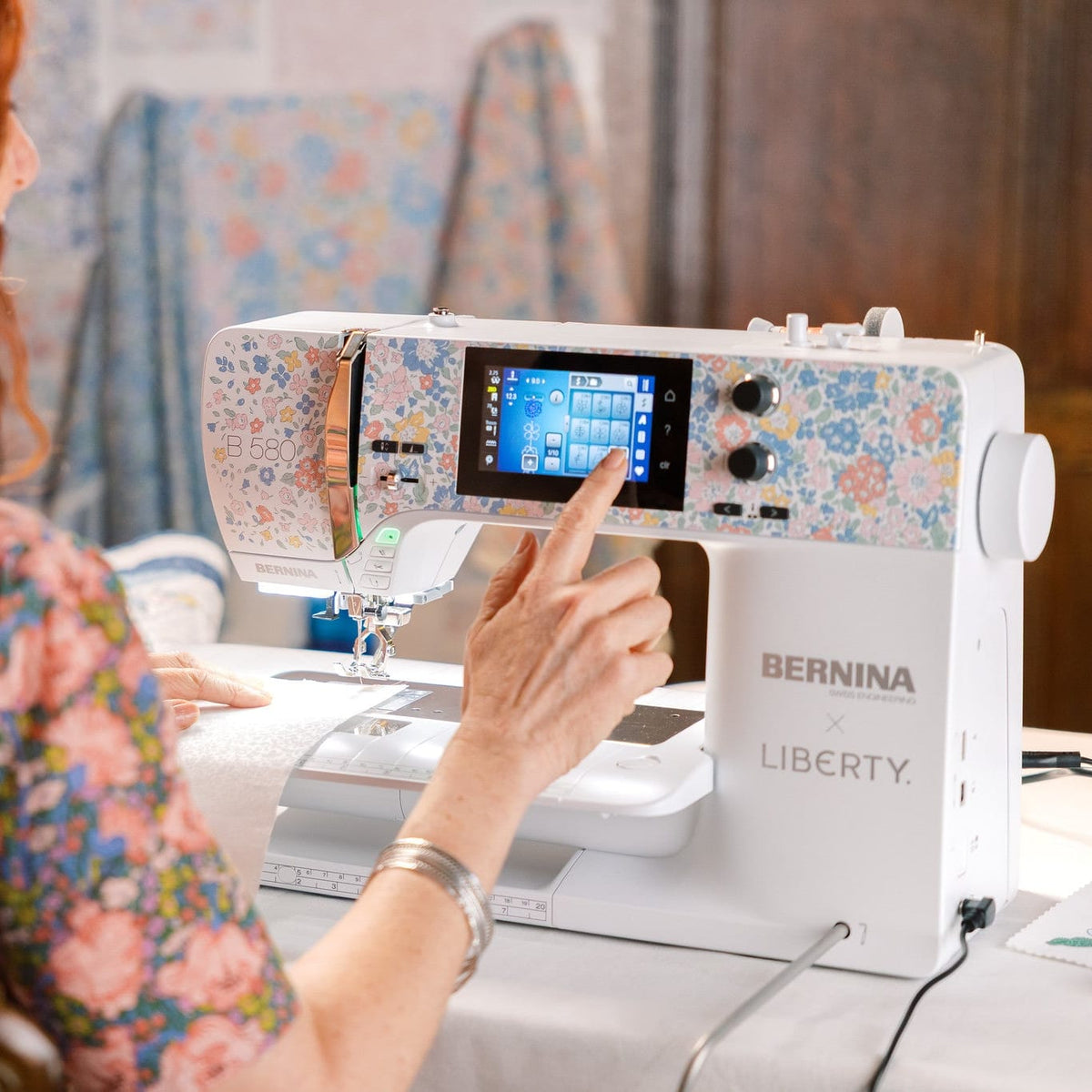

Use the modern colour touchscreen for easy navigation and on-screen support when needed.

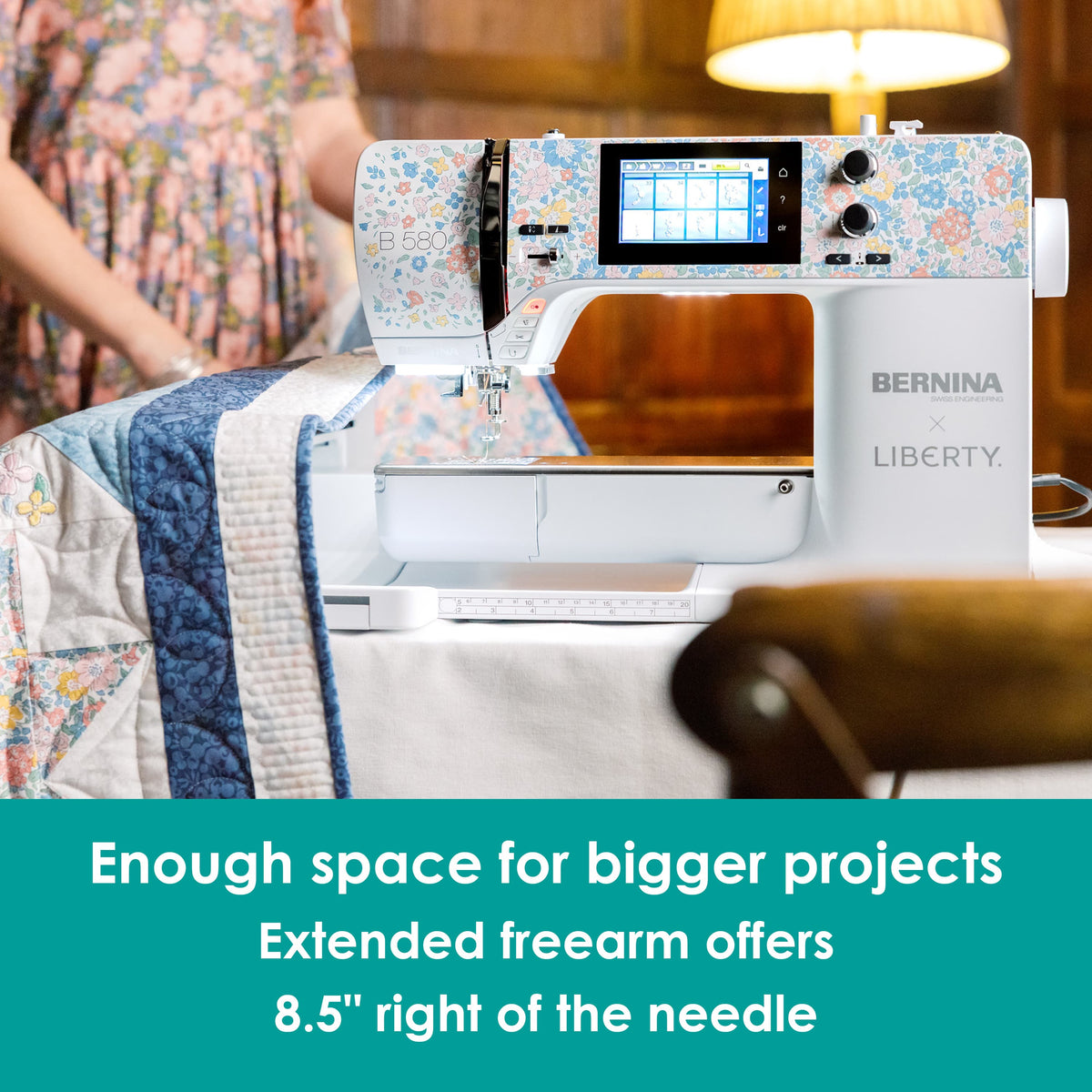

There are 8.5 inches (215mm) to the right of the needle and the included slide-on freearm extension table gives you plenty of room for large projects, big quilts and bulky garments.

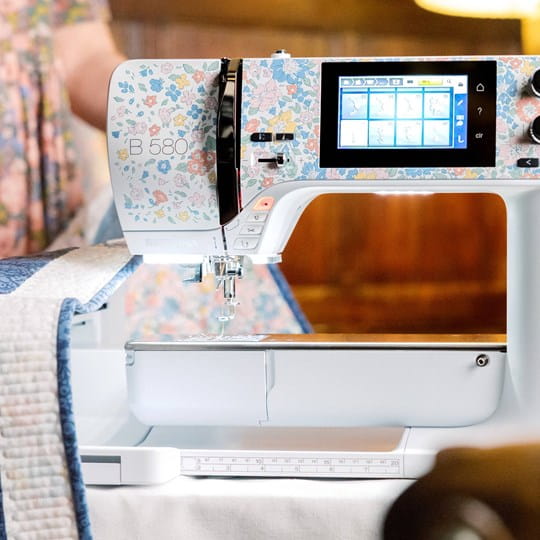

The all-metal BERNINA Hook forms consistent, precise stitches at up to 1,000 stitches per minute and the front-loading jumbo bobbin holds up to 70% more thread than a standard bobbin.
BERNINA Adaptive Thread Tension monitors the tension once you have set it for your fabric and thread, and adjusts it automatically if needed. Upper and lower thread sensors watch both threads and warn you when the bobbin runs low, while the semi-automatic needle threader speeds up setup.

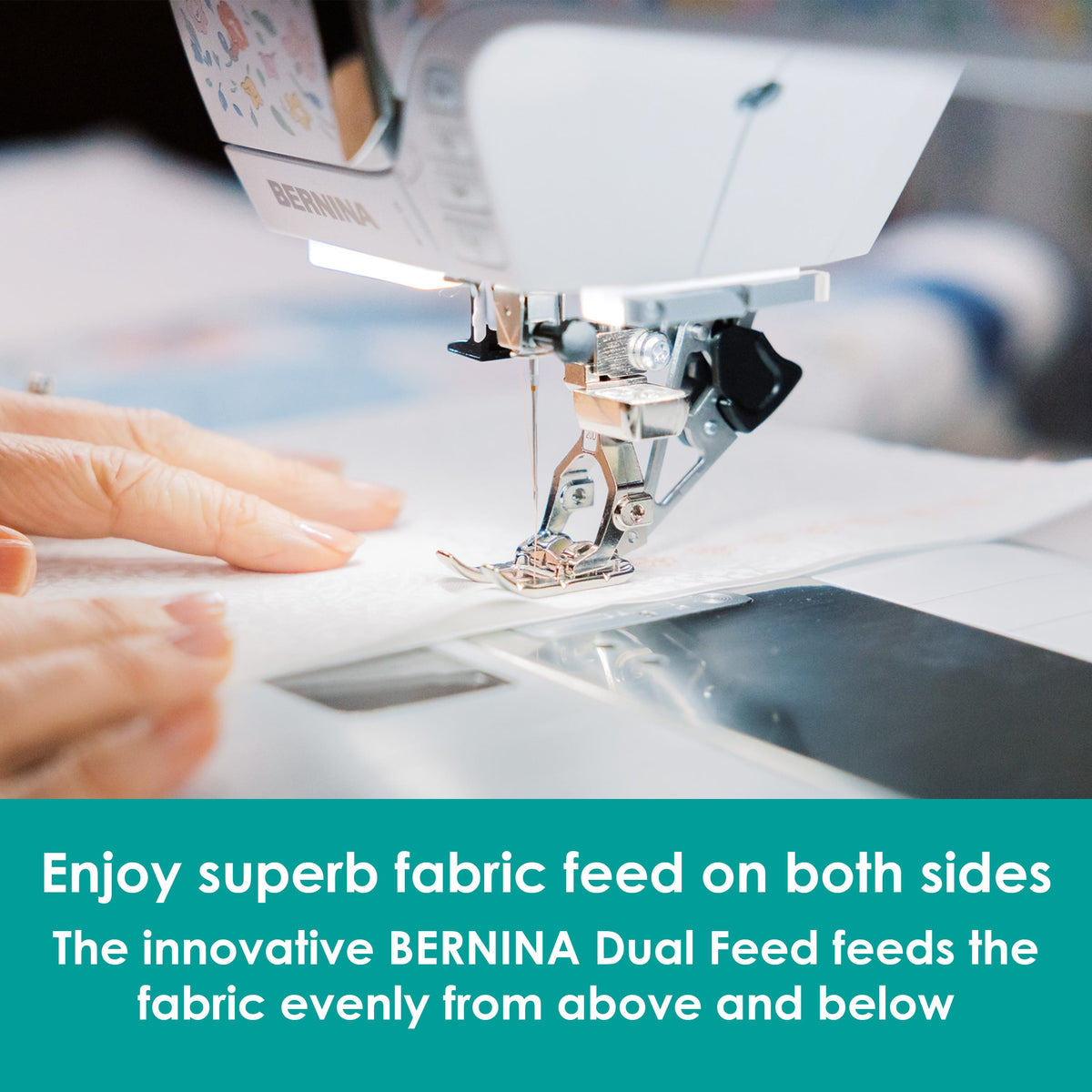

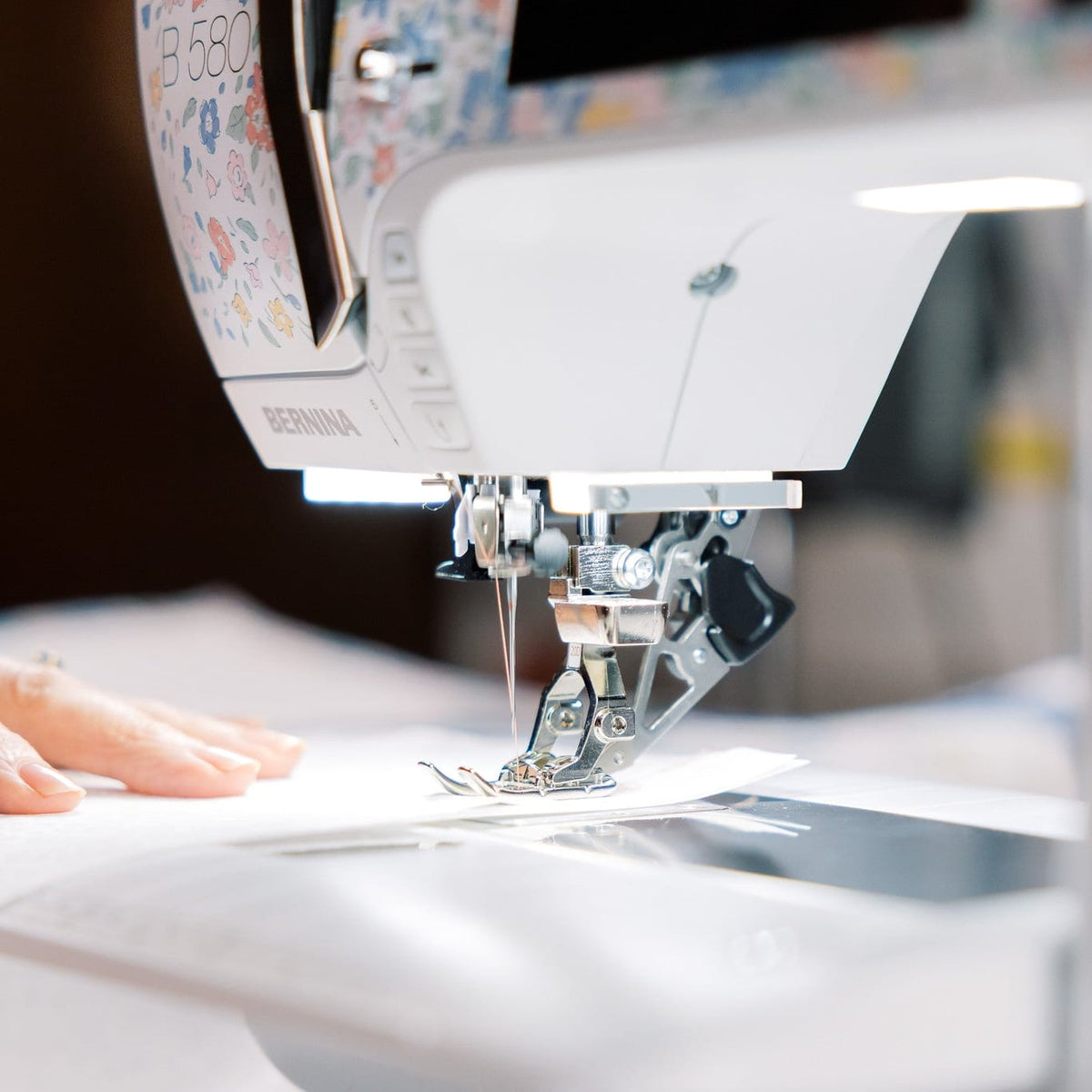

BERNINA Dual Feed moves fabric evenly from above and below, so several layers can be sewn without puckering and slippery or fine fabrics stay aligned. It is easy to engage and tucks away when you don't need it.

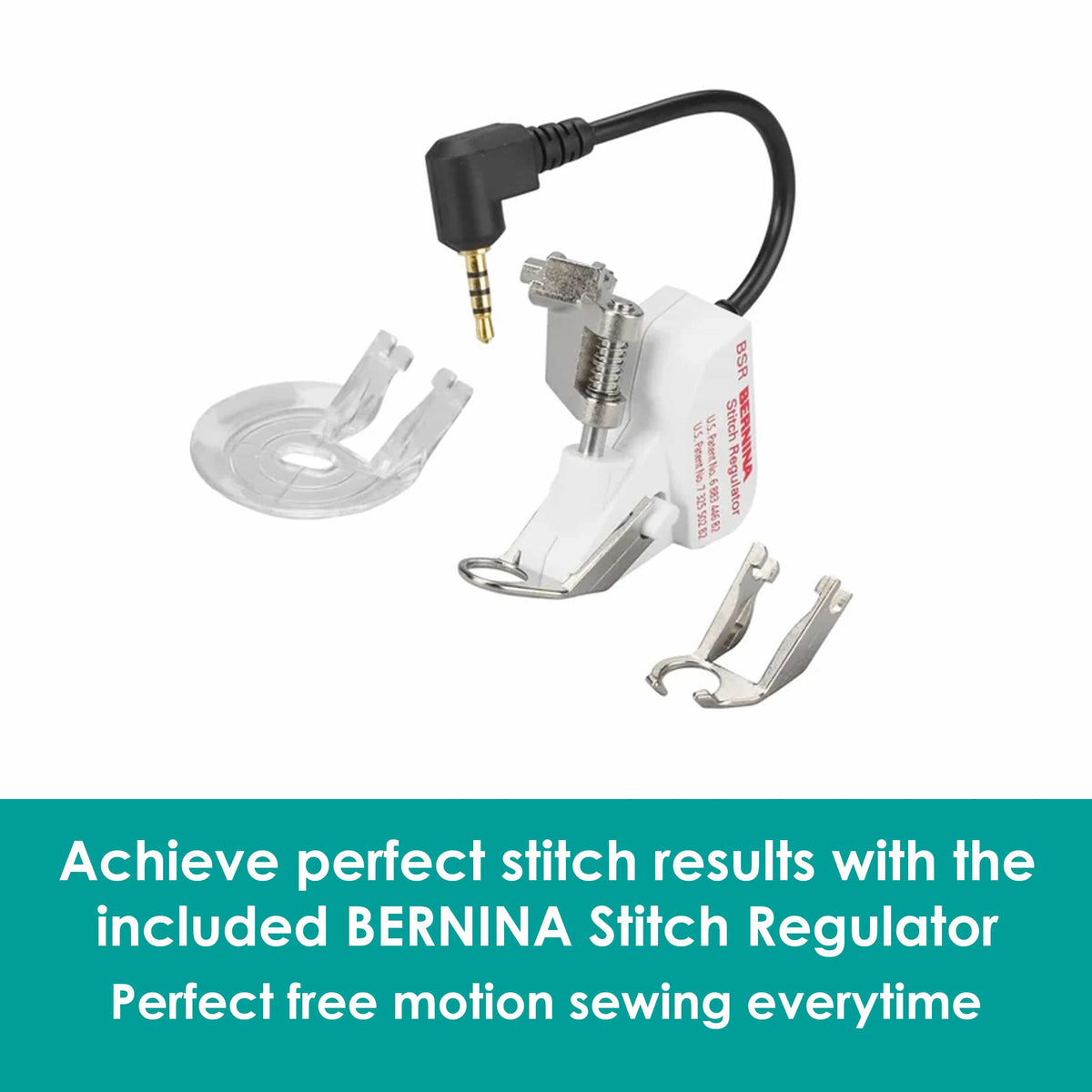

For free-motion quilting, BERNINA Stitch Regulator (BSR) functionality measures how fast you move the fabric and keeps each stitch the same length as your speed varies. You can guide the quilt in any direction and still achieve an even stitch.
A dust cover in the same Liberty print is included.

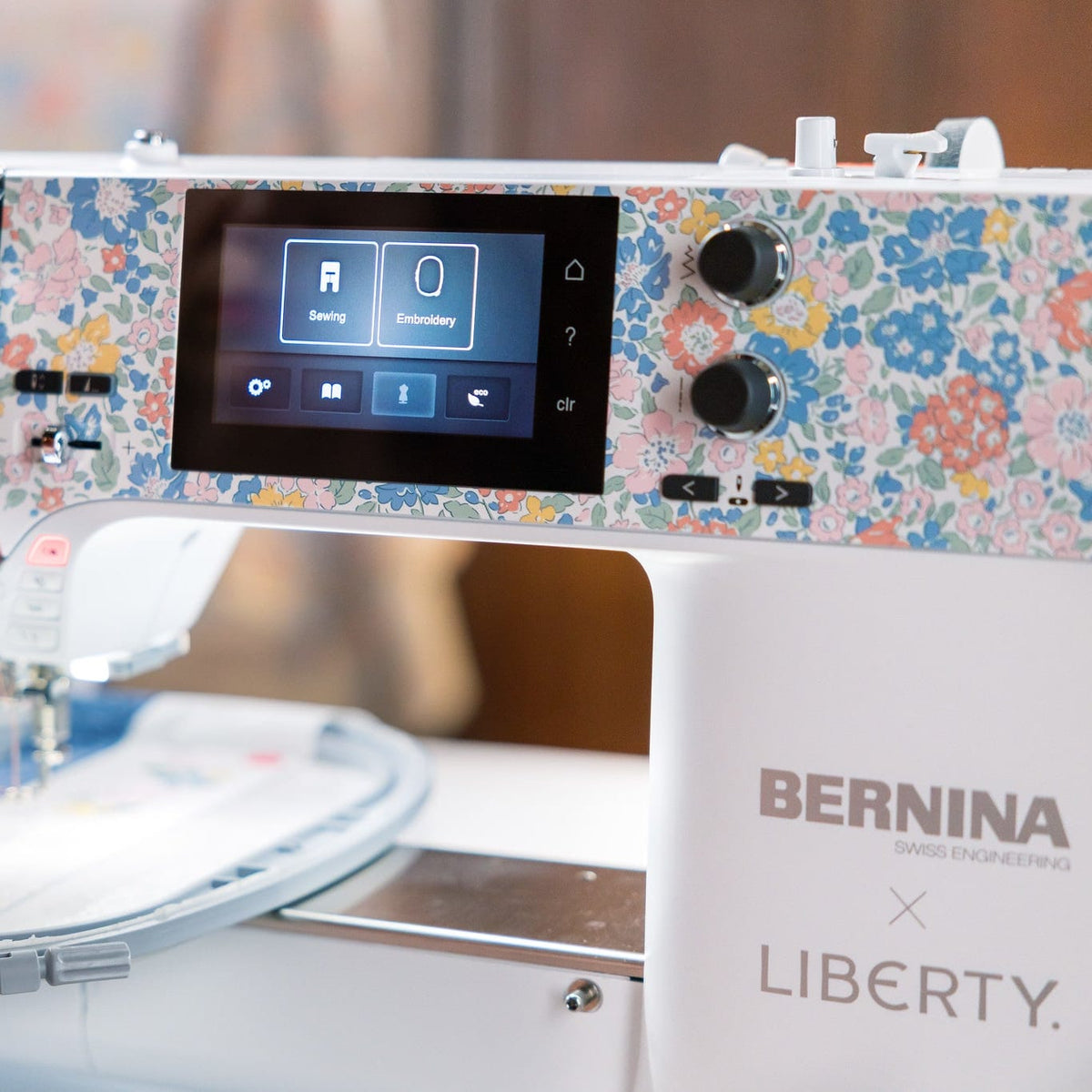

It is also embroidery-ready, so the optional Embroidery Module M can be added later.

Key Features
What makes this machine worth it
Machine Type
Limited edition sewing and quilting machine
Stitch Range
1,482 stitches, including 32 Liberty Edition decorative stitches
Control Type
4.3-inch colour touchscreen with multi-function knobs
Workspace
8.5 inches (215mm) right of the needle
Needle Configuration
11 needle positions with semi-automatic needle threader
Buttonholes
16 styles up to 30mm, including eyelets
Skill Level
Intermediate to experienced sewers and quilters
Machine Weight
Approximately 11.2kg

This machine is perfect for
- Sewers looking to upgrade to a precision engineered sewing machine with excellent fabric control that will perform reliably for years to come
- Exquisite dressmaking and couture garment construction - there are 11 needle positions and 16 buttonhole styles alongside almost 1,500 stitches with beautiful limited edition Liberty stitch designs
- Plenty of workspace - 8.5" provides ample room for larger quilts & bulky projects like curtains and garments
- Superb stitch quality when free-motion sewing & quilting - the BERNINA Stitch Regulator (BSR) comes with the machine
Can sew but not ideal for
- Long production runs of the same item, such as batches of bags or curtains to sell - this is a domestic machine built for regular home use rather than production volumes. Use our free Machine Match Service and we'll recommend a model suited to your needs.
Not suitable for
- Complete beginners may find the advanced features overwhelming
- Sewers needing a portable machine for classes - at 11.2kg it suits a dedicated sewing space
Materials and Build Quality

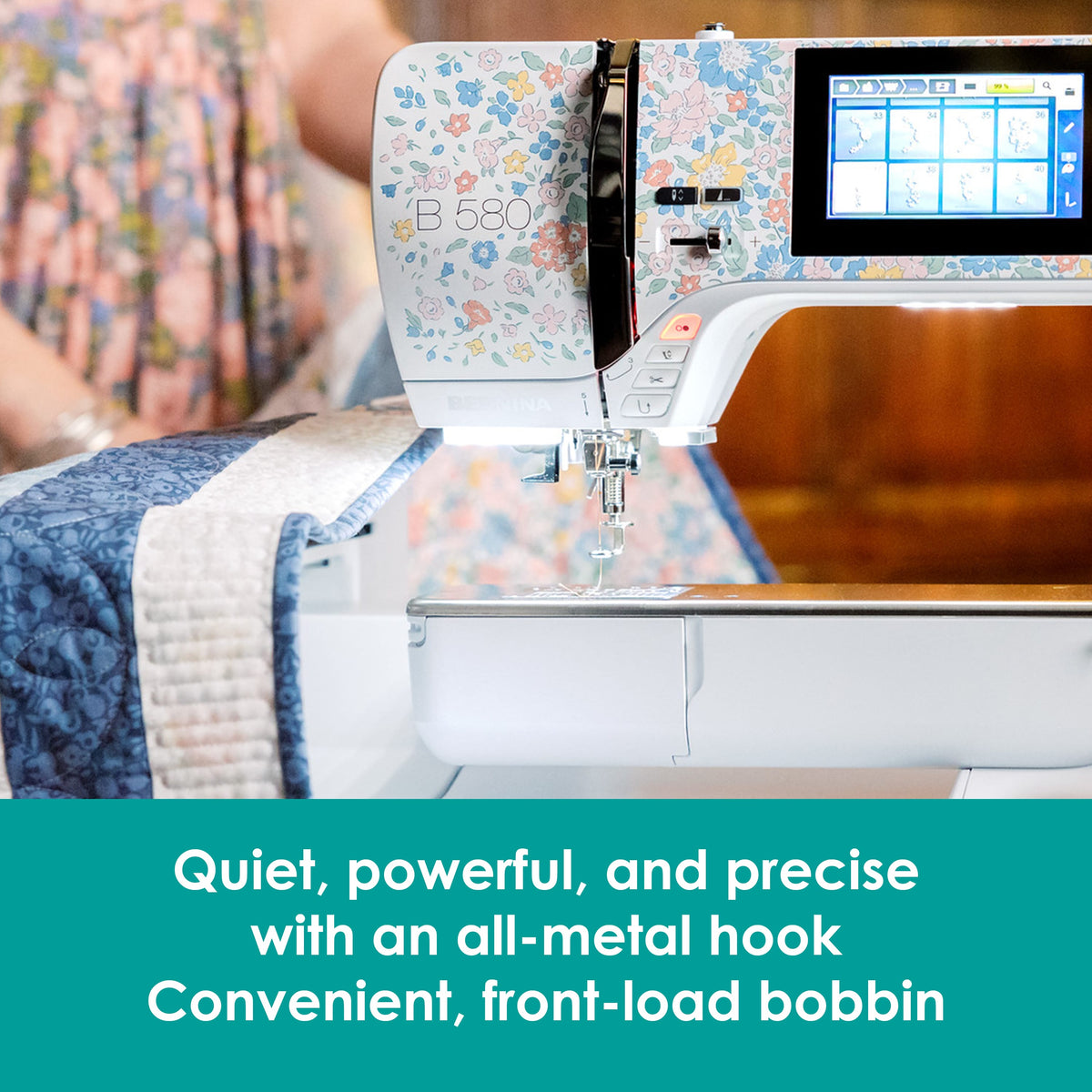

The BERNINA Hook is BERNINA's own patented, all-metal hook system. It keeps stitch formation quiet and consistent at up to 1,000 stitches per minute.
The DC motor delivers full power at every speed, so the machine keeps stitching evenly through heavy fabrics and multiple layers, even at low speeds. Hammer Mode pulses the needle through the fabric to form each stitch, giving extra piercing force where several layers meet. This is particularly useful for thick seams.

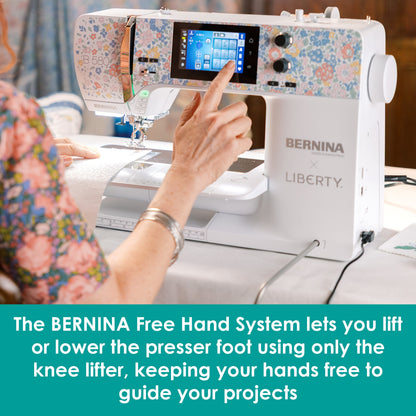

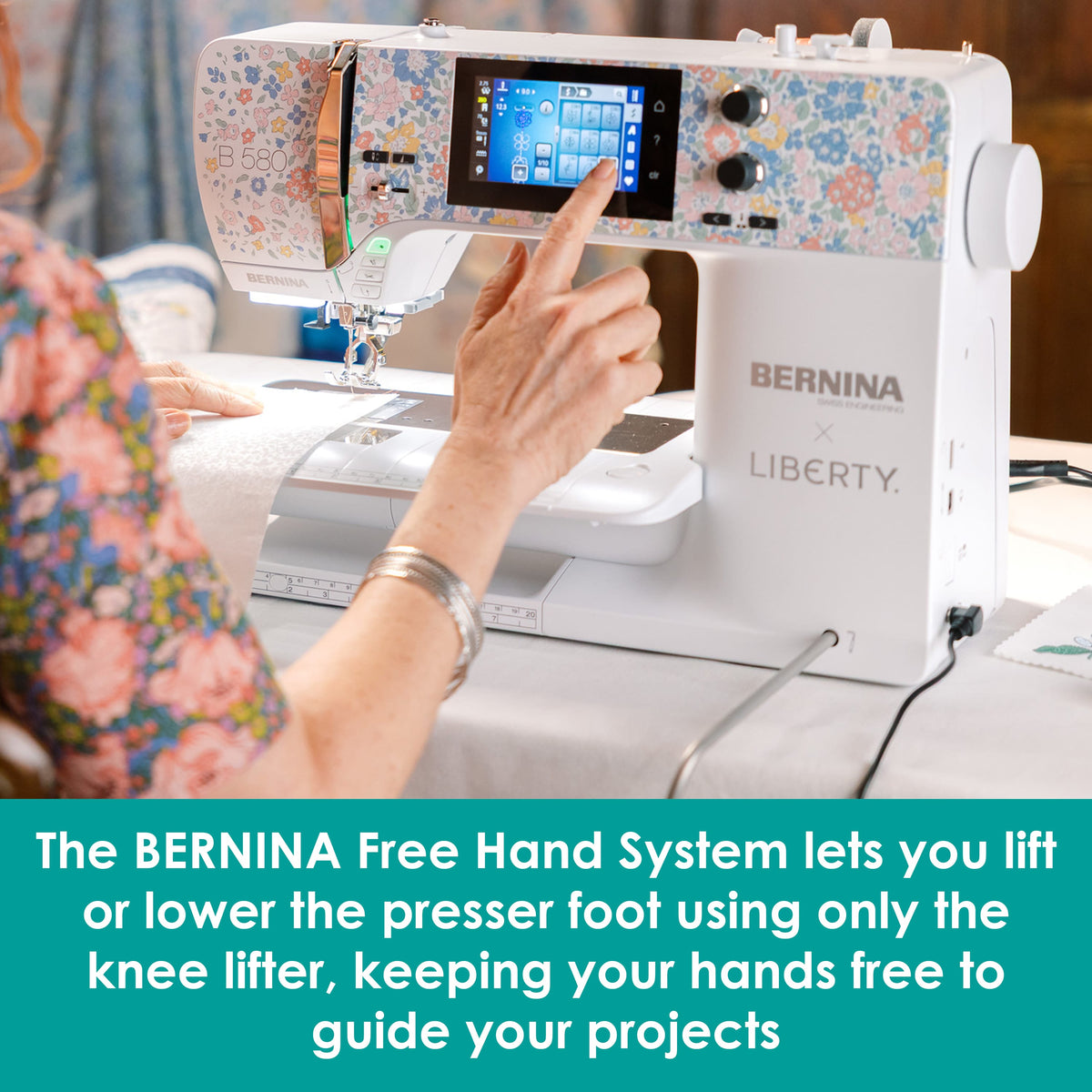

The BERNINA Free Hand System lets you lift or lower the presser foot using only the knee lifter, keeping your hands free to guide your projects.
The Difference is in the Details

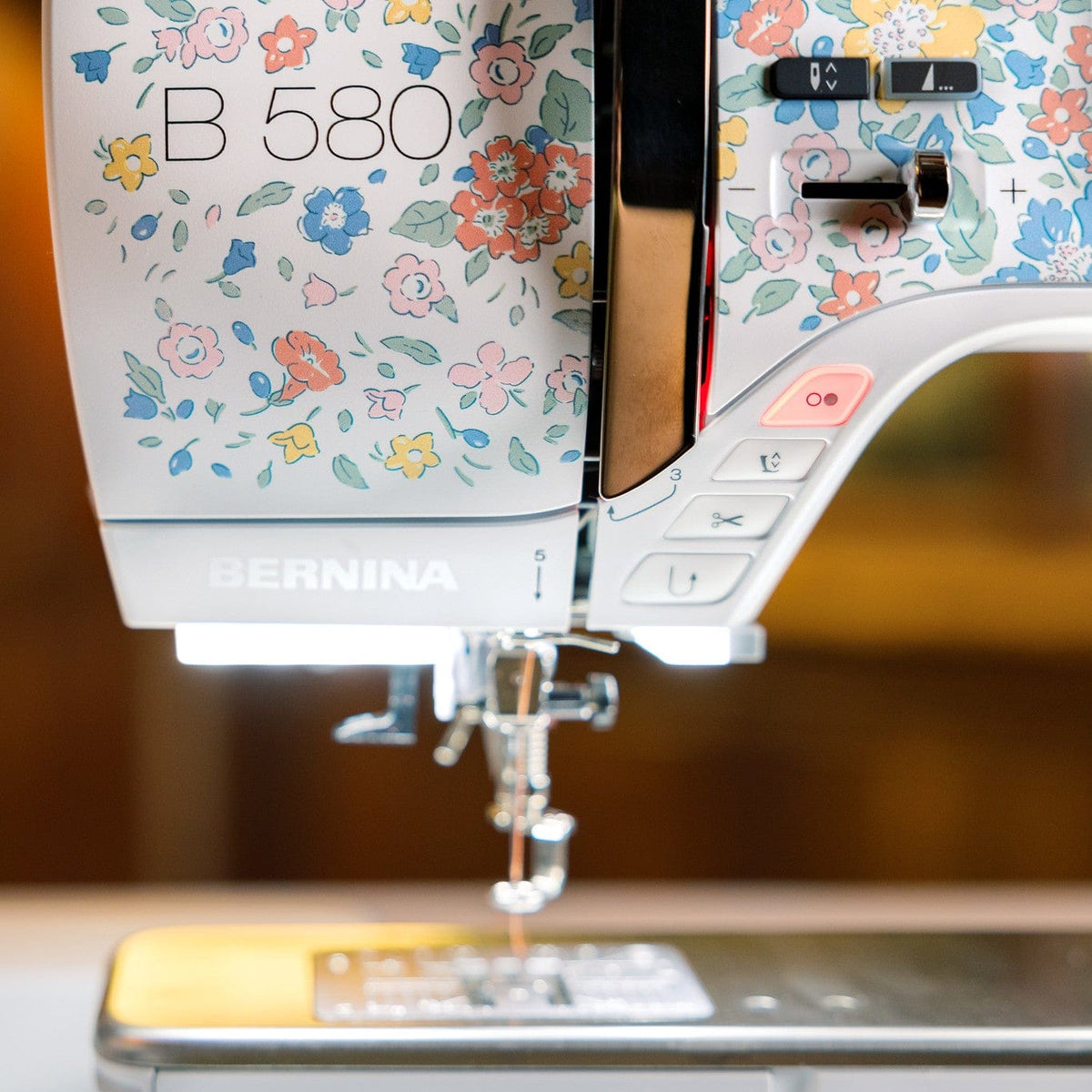

Enjoy automatic features for a refined sewing experience. One press of the automatic thread cutter trims both threads and lifts the needle. The automatic presser foot lifter raises and lowers the foot for you and needle stop up/down holds the needle in the fabric at corners.
Bobbins can be wound while you sew. The start/stop button and slide speed control let you sew without the foot control and the programmable foot control's back-kick can be set to secure stitches or cut thread.

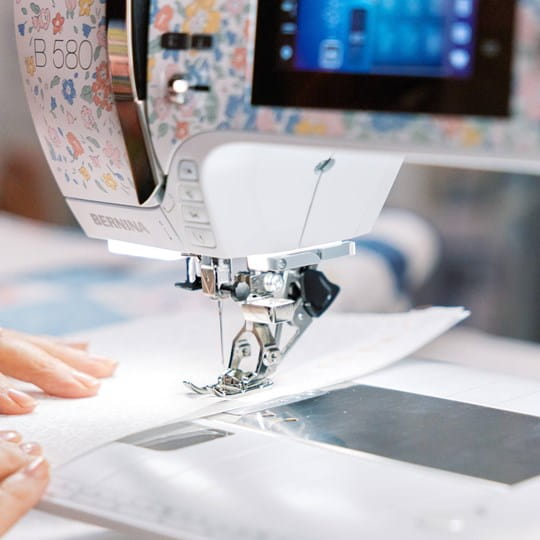

The BERNINA Dual Feed tames hard-to-manage fabrics providing superb fabric feed and optimum visibility while you sew. Easy to engage when needed, the BERNINA Dual Feed tucks completely out of the way when it's not required.
BERNINA sewing machines are built with longevity at their core, combining precision Swiss engineering with high-quality materials like robust metal components and meticulously tested parts. Each machine is designed for consistent performance over years of use. BERNINA sewing machines come with a 7-year parts and labour warranty.
The Creative Sewing Consultant suggests settings for your fabric and sewing technique. The presser foot indicator shows which foot suits the selected stitch, so your setup is clear before the first seam. The setup program lets you adjust the machine to your own preferences.
Our in-house team at The Sewing Studio are authorised BERNINA retailers with over twenty years of experience matching sewers to the right machine. Our team of experts are available to support you with questions before you purchase as well as advice after you've bought your machine.
The built-in sewing tutorial and on-screen help explain techniques and functions on the touchscreen, so you can try something new without reaching for the manual.

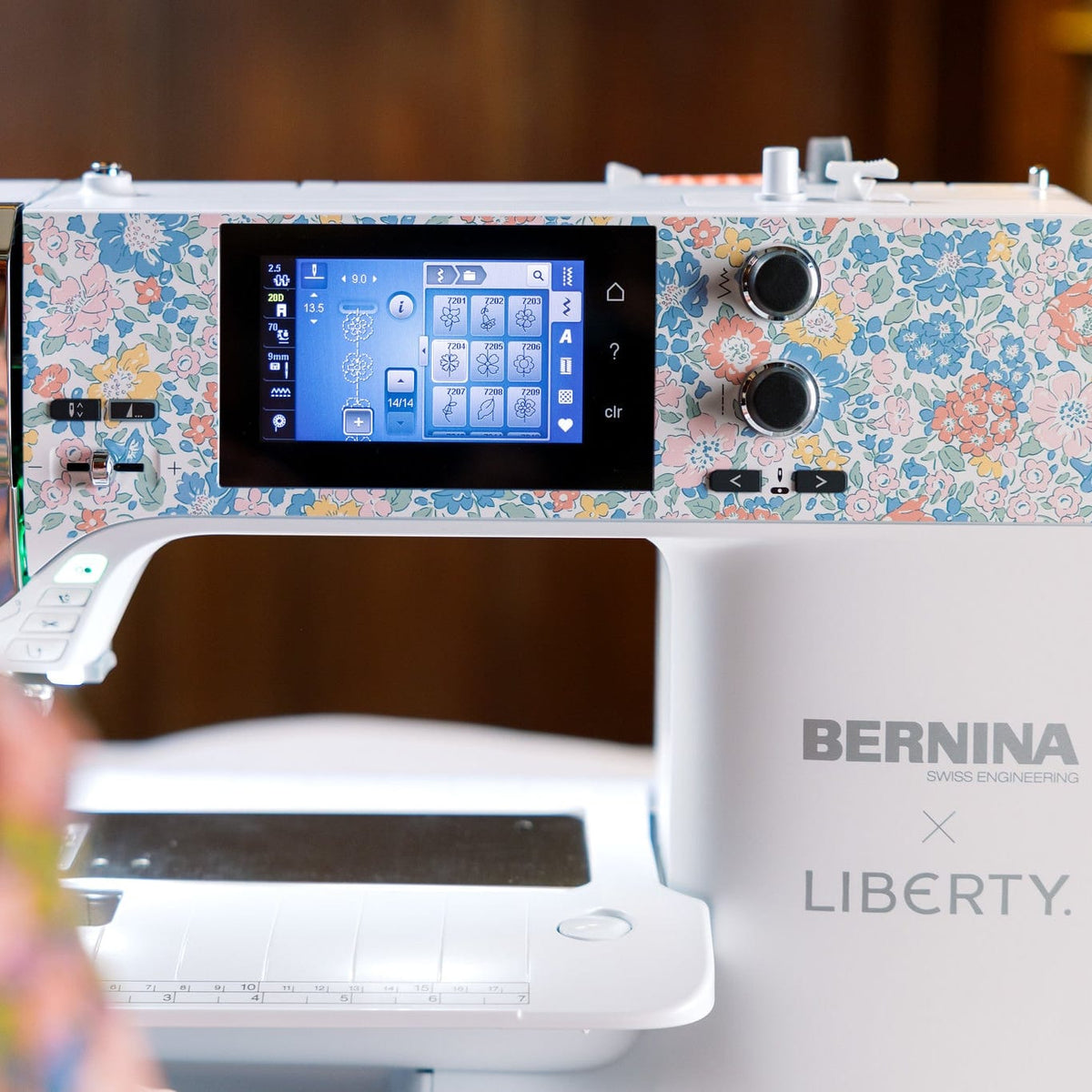

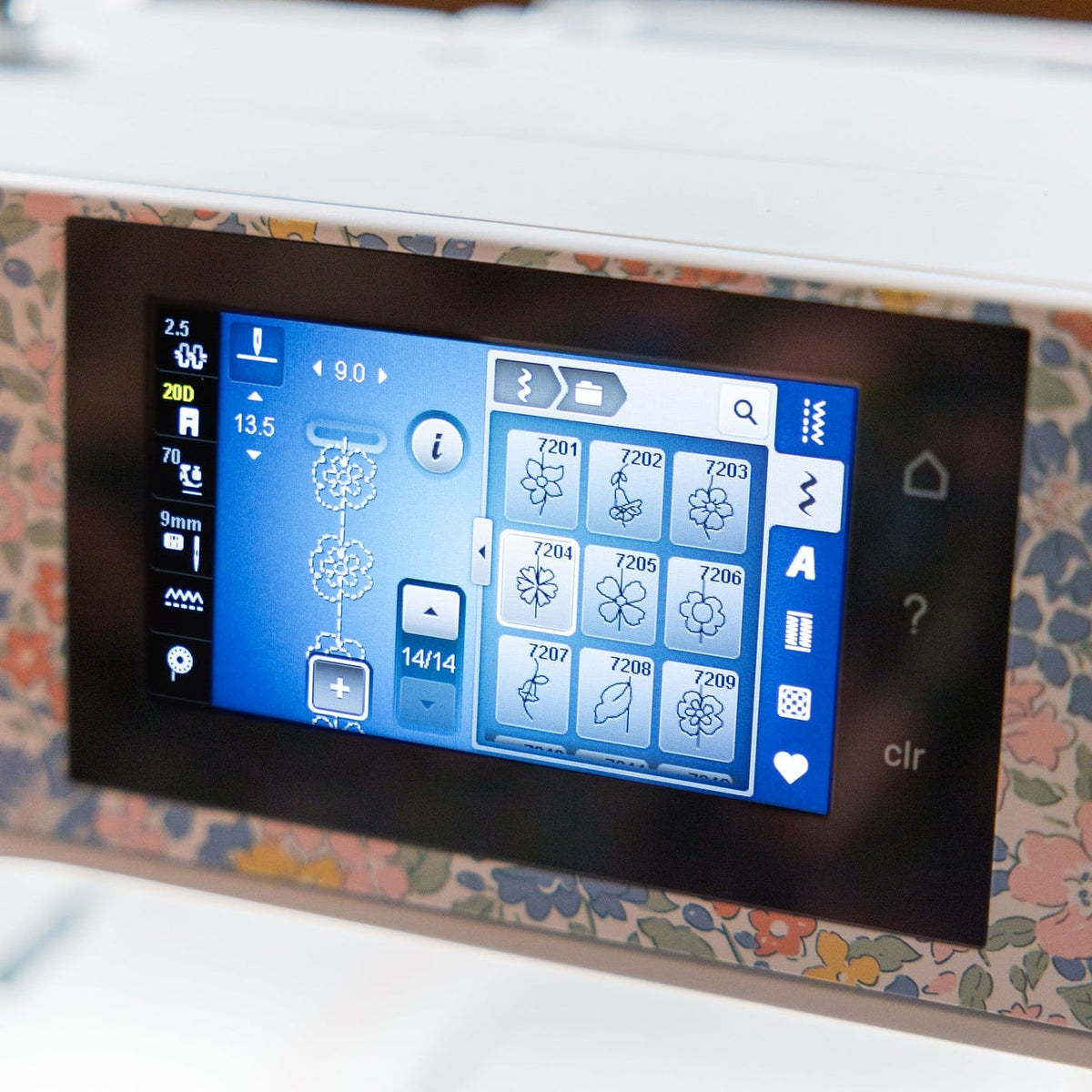

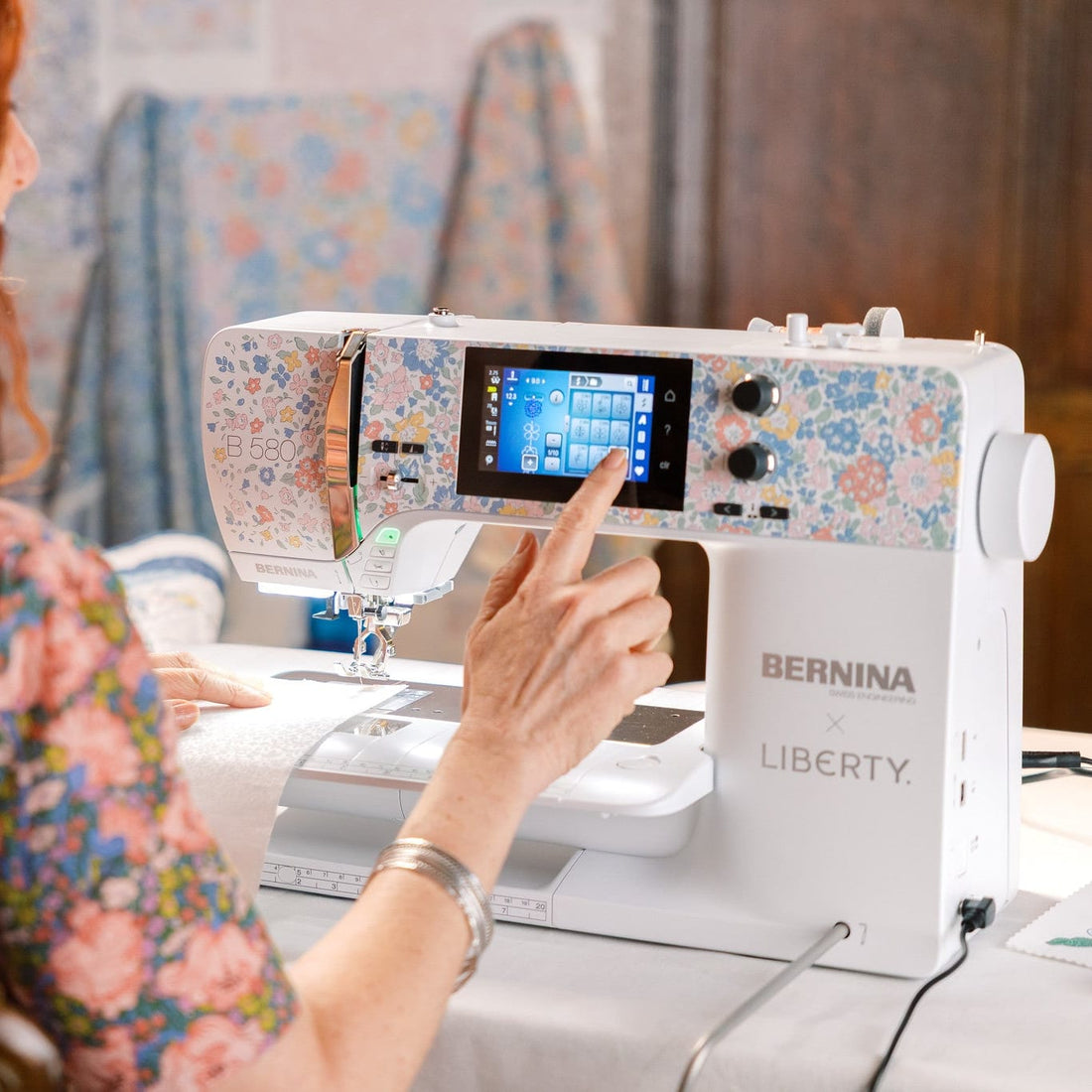

The touchscreen's central position makes it easy to read as you sew, and the included touch pen helps with small on-screen selections.
Multi-function knobs fine-tune stitch width, length and other settings, even mid-seam.
The BERNINA Free Hand System knee lever raises the presser foot and lowers the feed dog together, keeping both hands on the fabric. A tap of the start/stop button activates Hover for repositioning work, and 12 LEDs light the sewing area.
BERNINA 580 Liberty Edition: A Machine for Every Maker
And every project
Quilting and Patchwork
Accomplished quilters looking to explore more ambitious designs, intricate piecing, free-motion quilting and larger projects will appreciate the versatility, creativity and stitch precision offered by the BERNINA 580 Liberty Edition.
Embellish your quilts with the 32 exclusive Liberty Edition decorative stitches, carefully selected to bring fabrics to life with fine details, charm and the unmistakable Liberty style.
The included Patchwork Foot #97D gives an accurate quarter-inch seam for piecing blocks.
The included BSR ensures stitch precision no matter what speed or direction you sew in.
With the optional Embroidery Module M, Customisable Quilt Designs (.bqm) bring longarm-style quilting to your BERNINA. You can scale designs freely, change the stitches per inch (SPI) and use enhanced quilt-securing functions for precise computerised quilting.
Dressmaking and Garment Details
The BERNINA 580 Liberty Edition is designed for makers who approach garment making as an art form. Ideal for everything from couture and bridalwear to cosplay and advanced dressmaking, it delivers exceptional precision throughout construction, finishing and decorative detailing. Its outstanding stitch quality ensures beautiful results on delicate fabrics such as lace and chiffon, as well as more challenging materials including silk, velvet and netting.
Garment makers can choose from 16 buttonhole styles up to 30mm long, including eyelets, and repeat the same size down a shirt or cardigan front. The Edgestitch Foot #10D keeps topstitching straight along collars, pockets and facings, the freearm makes hemming sleeves and trouser legs straightforward and the button sew-on program finishes the garment.
Decorative Work
Add romantic details to your work with 32 exclusive Liberty decorative stitches for an unmistakable Liberty style. The Open Embroidery Foot #20D gives a clear view as each motif forms.
Adding the optional Embroidery Module M opens up 349 built-in embroidery designs and 91 exclusive Liberty embroidery designs, which means the Liberty style can carry through to embroidered projects.
Inside the BERNINA 580 Liberty Edition
Total Stitch Control and Elongation
Stitch length, width and needle position can be altered temporarily or saved permanently. Elongation lengthens decorative patterns for bolder repeats.
Stitch Memory and Combinations
Stitch combinations and altered settings can be saved to long-term memory. Arrange patterns with drag and drop, then import or export stitches via USB.
Presser Foot Selection
Selecting the attached foot on screen tells the machine how wide the needle can safely swing, reducing the risk of the needle hitting the foot when switching to 9mm stitches.
Balance and Buttonhole Adjustment
Balance evens out forward and reverse stitches to suit the fabric, keeping decorative stitches and buttonholes in shape. Buttonhole slit width can also be adjusted for thick or heavy fabrics.

Product Specifications
Accessories in the Box
- Slide-on freearm extension table
- Seam guide for slide-on table
- Free Hand System (FHS) knee lifter
- Touchscreen pen
- Magnetic BERNINA accessories box
- 4 bobbins
- 2 foam pads
- Spool cap D12
- Needle assortment
- Brush
- Seam ripper
- Height compensation tool
- Sewing machine oil
- Foot control
- Power cable
- Dust cover in Liberty print
Feet in the Box
- BERNINA Stitch Regulator (BSR)
- Reverse-pattern foot #1C
- Reverse-pattern foot #1D
- Overlock foot #2A
- Buttonhole foot with slide #3A
- Zipper foot #4D
Additional presser feet

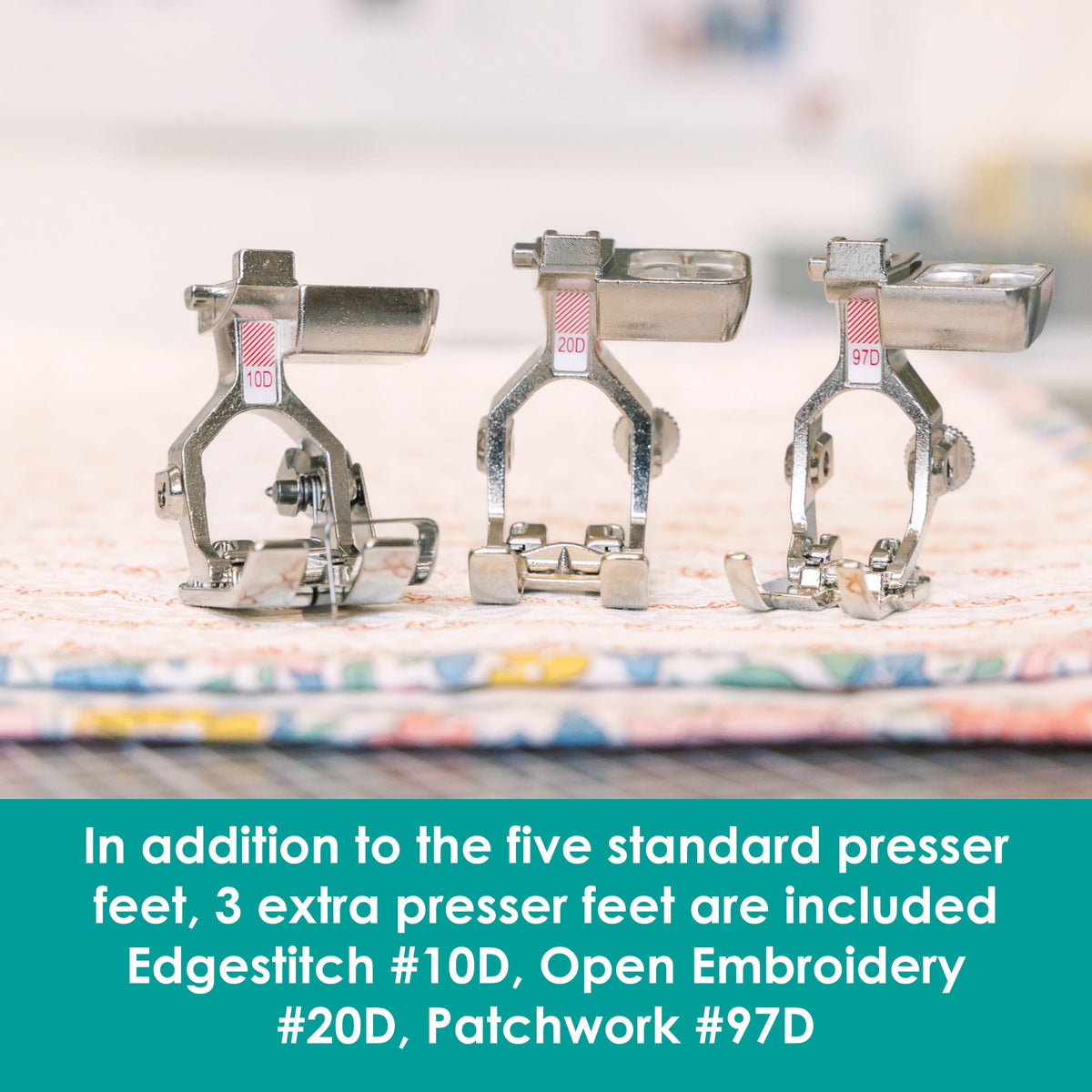

- Edgestitch foot #10D
- Open embroidery foot #20D
- Patchwork foot #97D

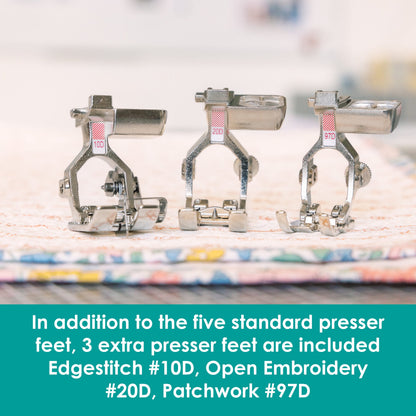

In addition to the five standard presser feet, three extra presser feet are included, offering precise support for a wide range of projects: perfect topstitching with the Edgestitch Foot #10D, a clear view and smooth gliding for decorative stitches with the Open Embroidery Foot #20D, and precise guidance for patchwork and precision work with the Patchwork Foot #97D.
Machine Dimensions & Weight
- Machine weight: approximately 11.2kg
- Workspace: 8.5 inches (215mm) to the right of the needle
- Colour touchscreen: 4.3 inches
Stitch Options & Controls
- Total built-in stitches: 1,482
- Liberty Edition decorative stitches: 32
- Utility stitches: 35
- Decorative stitches: 482
- Quilting stitches: 74
- Sewing alphabets: 8
- Buttonholes (including eyelets): 16, up to 30mm
- Maximum stitch width: 9mm
- Maximum stitch length: 6mm
- Maximum sewing speed: 1,000 stitches per minute
- Needle positions: 11, with sewing in every needle position
- Elongation: 10% to 1,000%
- Multi-function knobs
- Slide speed control
Sewing Features & Functions

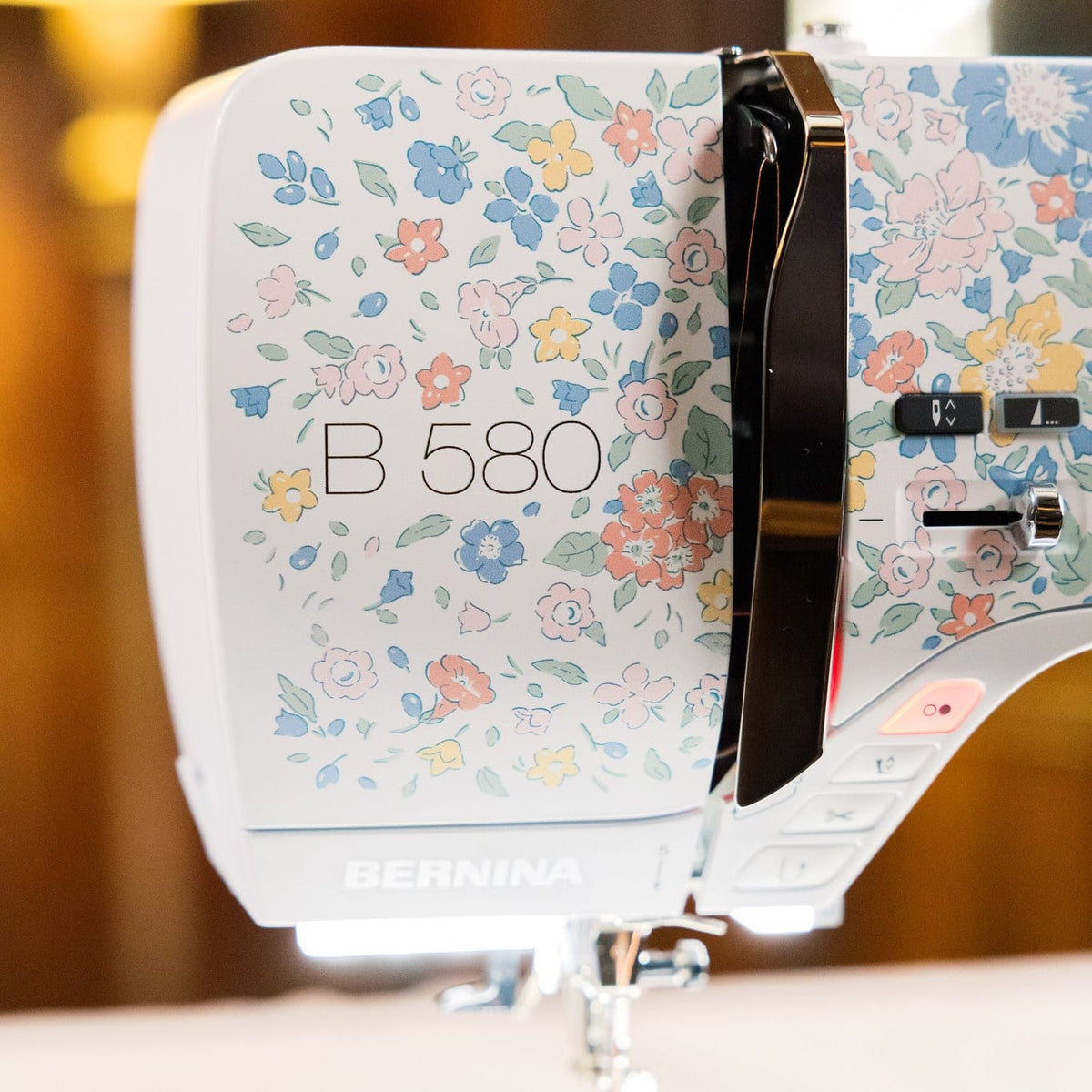

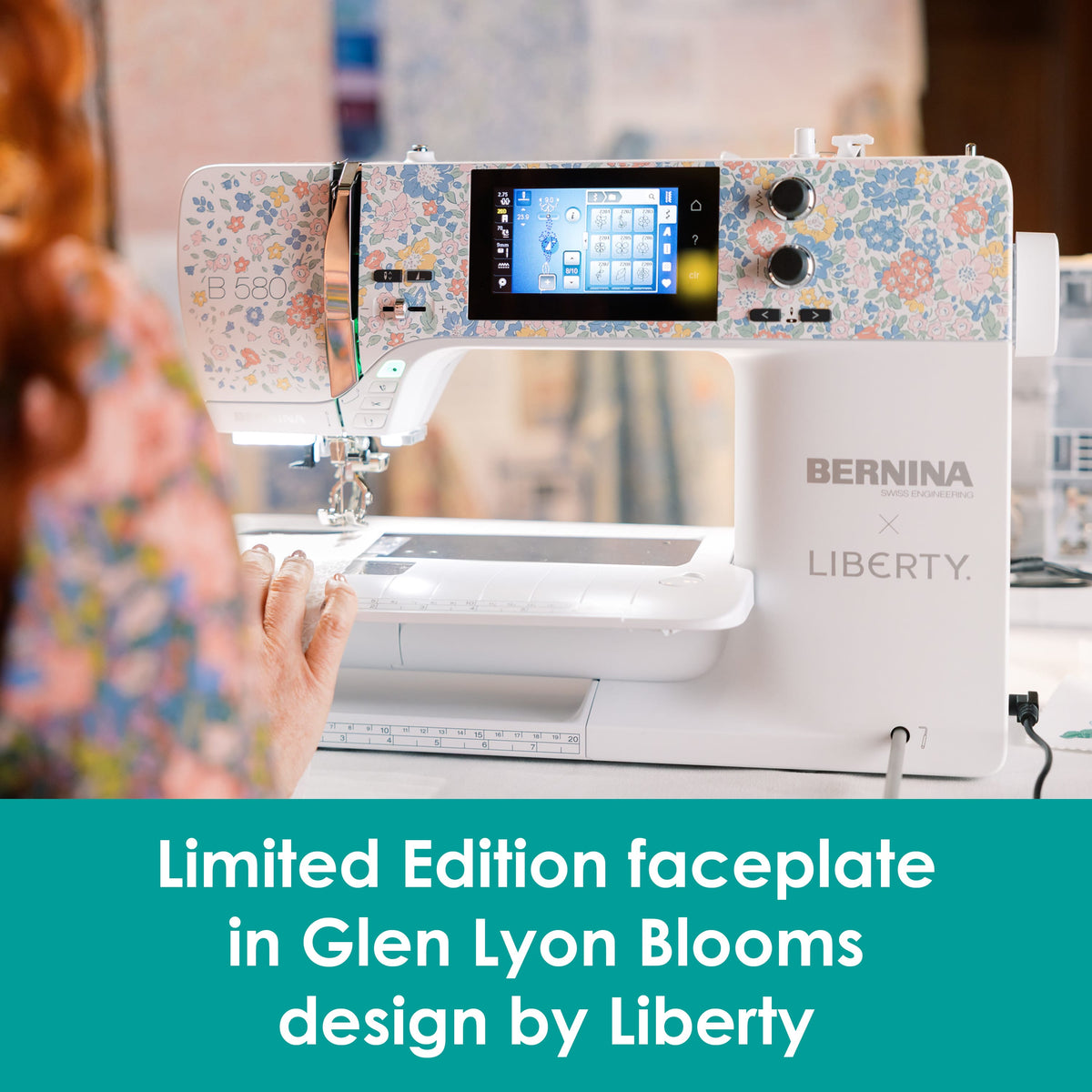

- Limited production model with faceplate in Liberty's Glen Lyon Blooms print
- BERNINA Dual Feed (BDF)
- BERNINA Stitch Regulator (BSR) functionality
- BERNINA Adaptive Thread Tension
- Powerful DC motor
- Automatic thread cutter
- Automatic presser foot lifter
- Automatic presser foot pressure
- Pivot/Hover function
- Start/stop button
- Needle stop up/down
- Programmable BERNINA foot control with back-kick function
- Upper and lower thread sensors
- LED sewing lights: 12
- Manual thread cutters: 4
- Automatic buttonhole with automatic length measuring system
- Manual multi-step buttonhole
- Adjustable buttonhole slit width
- Button sew-on program
- Darning programs
- Balance setting
- Basting stitch
- Triple stitch
- Continuous reverse and backstepping
- Securing stitches and programmable securing function
- Pattern start/end and programmable pattern end
- Freearm sewing
- Total stitch control, including changes while sewing
- Create and save stitch combinations, with drag and drop
- Presser foot recommendation and presser foot selection
- Creative Sewing Consultant
- Sewing tutorial
- On-screen help
- Setup program
Bobbin & Needle System
- Hook system: BERNINA Hook, all metal

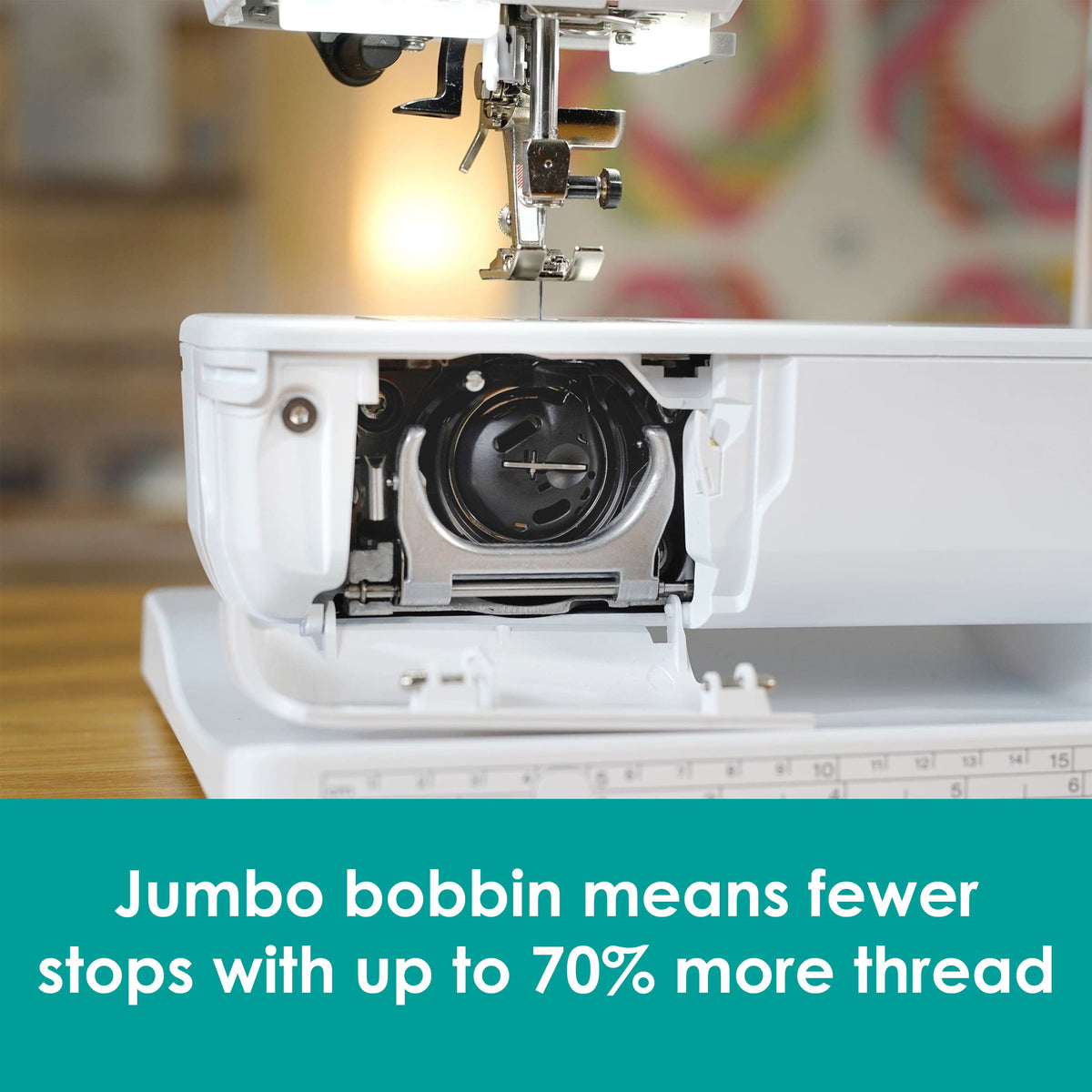

- Bobbin: front-loading jumbo bobbin, holds up to 70% more thread than a standard bobbin
- Bobbin winding while sewing or embroidering
- Semi-automatic needle threader
- Spool holders: 2 (horizontal and vertical)
Connectivity
- USB interface
- Import and export of sewing stitches via USB
- Import and export of embroidery designs via USB (with Embroidery Module M)
- Embroidery design formats read: EXP, DST, PES, PEC, JEF, SEW, PCS and XXX
Warranty & Support
- Warranty: 7-year BERNINA parts and labour, when registered and serviced every 3 years by an authorised BERNINA engineer
- The Sewing Studio: authorised BERNINA dealer and certified service centre
Product Downloads
Frequently Asked Questions
Let us help with the answers.
How is the 580 Liberty Edition different from a standard BERNINA 5 Series machine?
The 580 Liberty Edition shares the sewing and quilting features of the BERNINA 5 Series. The key difference is the Glen Lyon Blooms faceplate and matching dust cover, 32 exclusive Liberty decorative stitches, 91 Liberty embroidery designs (with the optional Embroidery Module M) and three extra presser feet.
Do I need the Embroidery Module to use the Liberty designs?
The 32 Liberty decorative stitches are built into the machine and ready to sew straight away. The 91 Liberty embroidery designs need the optional Embroidery Module M.
Is the BERNINA Stitch Regulator included?
Yes. The BERNINA Stitch Regulator is included with the 580 Liberty Edition, so free-motion quilting with even stitch lengths is possible straight from the box.
Can the 580 Liberty Edition handle thick fabrics like denim?
Yes. Denim and multiple layers are well within its range, including the bulky points where seams cross. The knee lever also raises the presser foot higher than usual, so thick seams slide under it more easily.
Is the 580 Liberty Edition suitable for a beginner?
It is best suited to intermediate and experienced sewers and quilters, though a confident beginner will grow into it quickly with help from the built-in learning tools. If you are newer to sewing and unsure which machine fits, chat with one of our machine experts online or contact us to compare the options.
