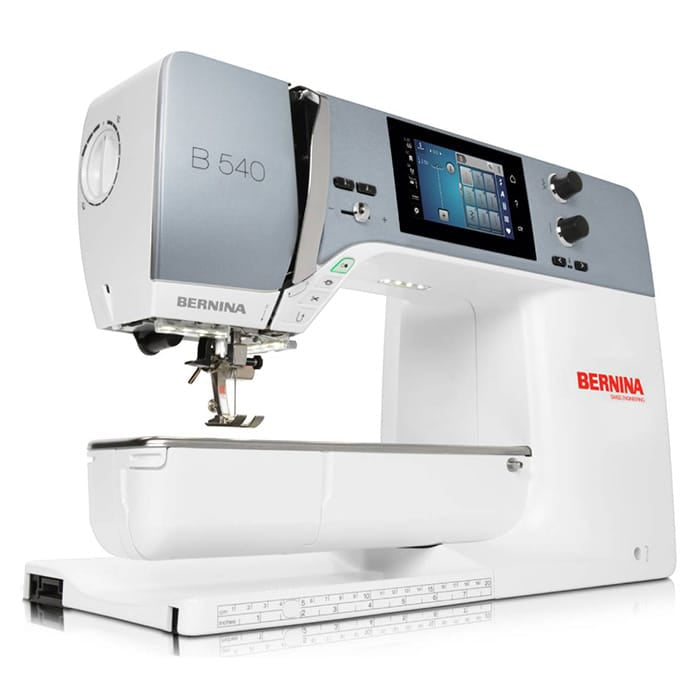

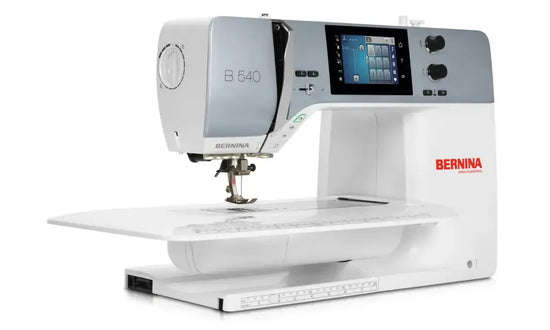

BERNINA 540 Sewing Machine
A feature packed professional grade sewing machine precision engineered for ambitious sewers, dressmakers and quilters
Spread the cost from
£58.33 per month over 48 months*
Shop with confidence today knowing that our sewing machine prices are the lowest possible. If we lower our prices within 14 days of your purchase, we'll refund you the difference.
Terms and Conditions apply*
This machine is covered by a full BERNINA 7-year parts and labour warranty. When you need support or servicing, our team are here to help.
Changed your mind? You've got 30 days to return any new, unused items in their original packaging.
Need advice?
Our in-house team knows every detail of this machine. Call, message or chat and get honest, expert advice from people who actually sew.
Start a live chat
Our standard width fabric can be cut as a Fat Quarter, measuring 50cm x 1/2 the width of the bolt. Above is an example of how your fabric will be received, depending on the quantity ordered.
We also offer a sample service, where you can order 1 single fat quarter of any standard width fabric, to have at home and compare colours. When you are finished, you can send them back to us for a refund (feel free to contact us for more information on this service).
Our fabric can be cut as a Long Quarter, measuring a minimum of 25cm x width of bolt. We will supply the fabric as a continuous length (eg; if you bought 1.25m it will be sent as one piece of fabric).

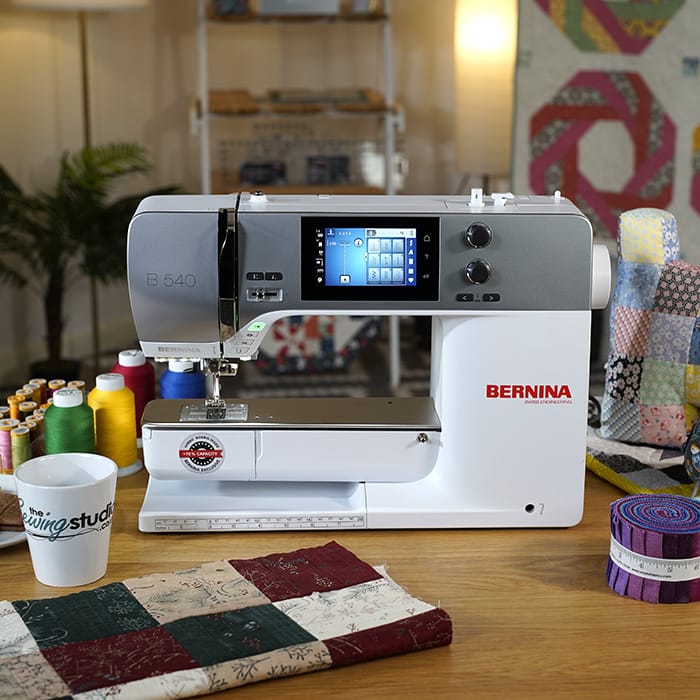

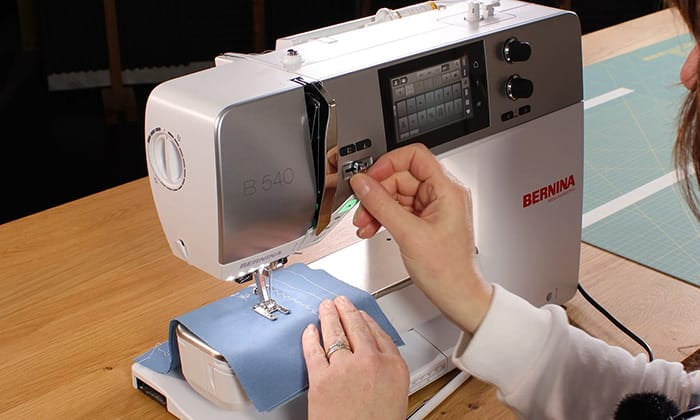

BERNINA 540 Product Review & Demonstration
The BERNINA 540 is a sewing and quilting machine that brings Swiss engineering to a wide range of everyday projects. It boasts a stitch library that covers everything from utility seaming to detailed decorative work. There are 1,048 stitch patterns including 300 decorative stitches, 44 quilting stitches, 31 cross-stitch programmes and 5 alphabets. The 4.3-inch colour touchscreen makes navigation straightforward and the multi-function knobs on the front of the machine give you quick, tactile control over stitch length, width and needle position without going into menus.
The BERNINA Hook system sits at the heart of the 540's stitch performance, keeping stitches consistent and precise at up to 1,000 stitches per minute. The front-loading jumbo bobbin holds 70% more thread than a standard bobbin and is conveniently inserted from the front so no need to remove your project. The upper thread indicator gives you advance notice before it runs out for convenience.
Adaptive Thread Tension handles tension automatically for clean results on both sides without manual adjustment. Adjustable presser foot pressure allows you to fine-tune for different fabric weights, which is particularly useful when moving between lightweight and heavier materials. The Free Hand System knee lifter is included, so you can raise and lower the presser foot without lifting your hands from the fabric, helpful when pivoting on patchwork or appliqué work.
The 8.5-inch workspace to the right of the needle gives you room for larger quilts and home furnishing projects, and the included slide-on extension table adds further support around the needle area. The 540 is also BSR-enabled (straight stitch and zigzag), so you can add the BERNINA Stitch Regulator when you're ready to tackle free-motion quilting. An optional Embroidery Module M is available separately. With the optional Maxi Hoop, maximum embroidery area is 15.7" × 5.9" (400 × 150 mm).
The BERNINA 540 also comes with a good variety of accessories and presser feet as standard. As with all BERNINA feet, they are full-shank metal. Also included is a well-designed accessory box that displays the contents clearly. For convenience, it magnetically attaches to the machine.
Key Features
What makes this machine worth it
Machine Type
Sewing and quilting machine, medium size
Stitch Range
1,048 built-in stitches including 300 decorative and 5 alphabets
Control Type
4.3-inch colour touchscreen with multi-function knobs
Workspace
8.5 inches (215mm) to the right of the needle
Needle Configuration
11 needle positions with semi-automatic needle threader
Buttonholes
14 buttonhole styles including automatic and manual multi-step
Skill Level
Intermediate to advanced sewers and quilters
Machine Weight
11kg
This machine is perfect for
- Sewers looking to upgrade to a precision engineered sewing machine that will perform reliably for years to come
- Garment makers wanting professional stitch quality - this model will deliver superb dressmaking results
Can sew but not ideal for
- Complete beginners, the feature set is rich and a simpler machine like the Bernette 35 or Bernina 335 may be a better starting point
- Sewers who only need basic utility stitches, the 540's stitch library and price point are wasted on plain seaming alone
Not suitable for
- High volume commercial or industrial sewing, for that, look at an industrial machine or Janome HD9
- Sewing very thick saddle leather, harness work or webbing belts thicker than 6mm
Materials and Build Quality
The patented BERNINA Hook system keeps stitch formation consistent and precise across all fabric types, running at up to 1,000 stitches per minute. It works with a jumbo bobbin that holds 70% more thread than a standard bobbin, reducing how often you need to stop mid-project. The front-loading design means bobbin changes are straightforward and quick.
Adaptive Thread Tension reads the stitch type and fabric being used and adjusts continuously while you sew, so results are clean and consistent on both sides of the fabric. Adjustable presser foot pressure works alongside this, allowing you to increase or decrease the pressure applied to the fabric depending on its weight and construction.

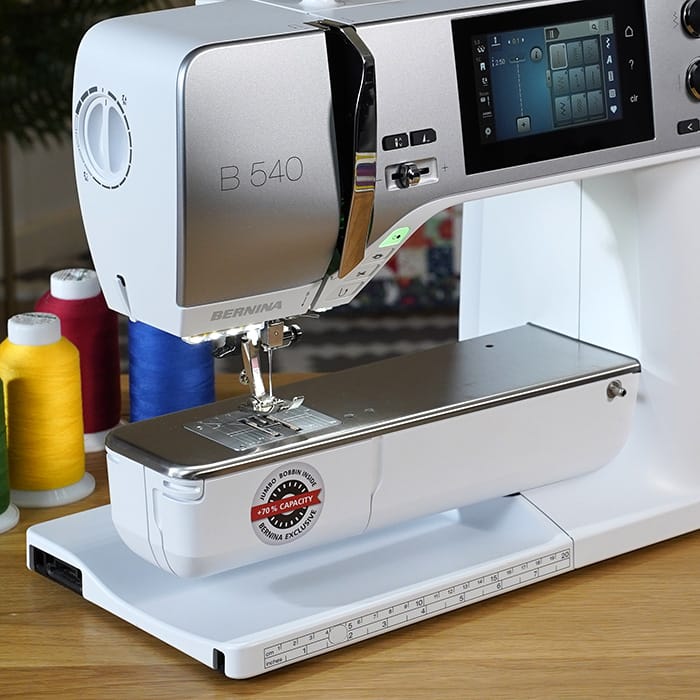

The 540's extended freearm provides 8.5 inches of sewing space to the right of the needle, with the included slide-on table extending the working area further for large projects. Twelve LED sewing lights illuminate the needle zone clearly, reducing eye strain during detailed work. The machine's construction keeps it stable and quiet throughout sustained use.
The Difference is in the Details

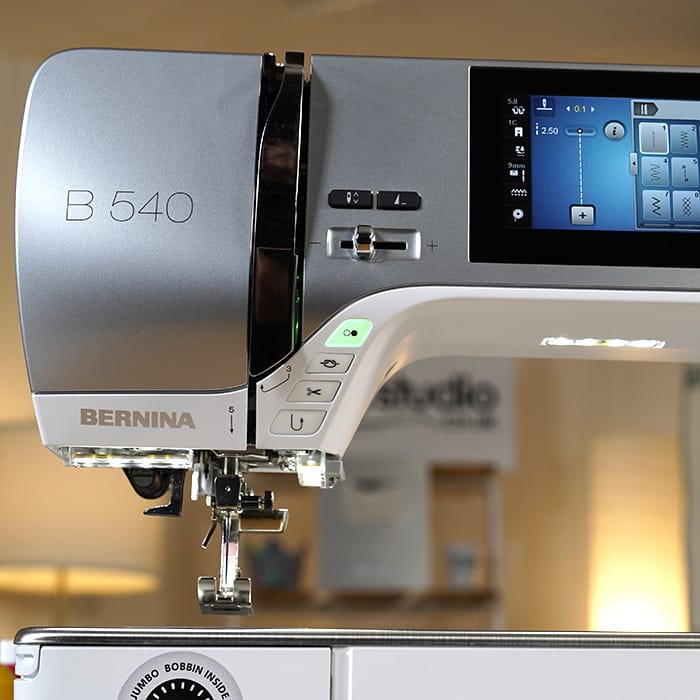

Sew at up to 1,000 stitches per minute. The automatic thread cutter trims threads and raises the needle in a single operation so you can move quickly from one seam to the next. Bobbin winding while sewing or embroidering means preparation time doesn't interrupt your progress. The start/stop button and slide speed control give you hands-free operation when you need it.

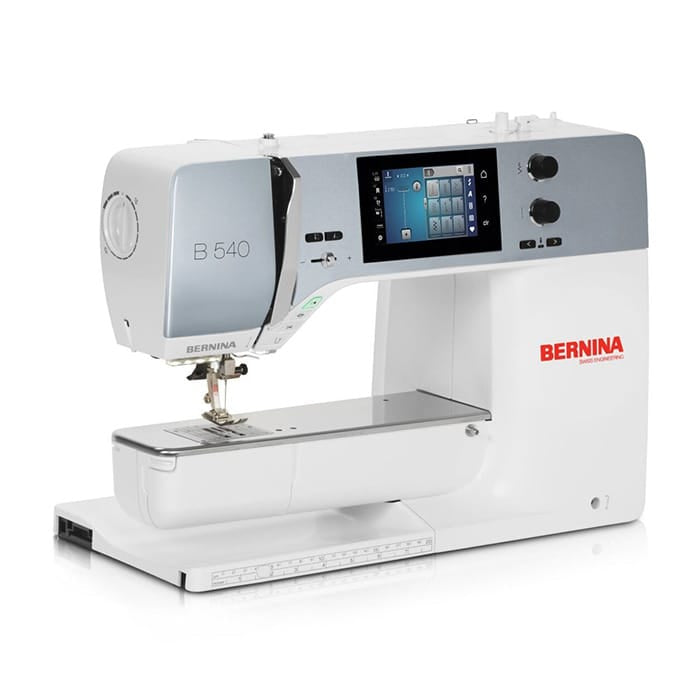

BERNINA sewing machines are built with longevity at their core, combining precision Swiss engineering with high-quality materials like robust metal components and meticulously tested parts. Each machine is designed for consistent performance over years of use. BERNINA sewing machines come with a 7-year parts and labour warranty.

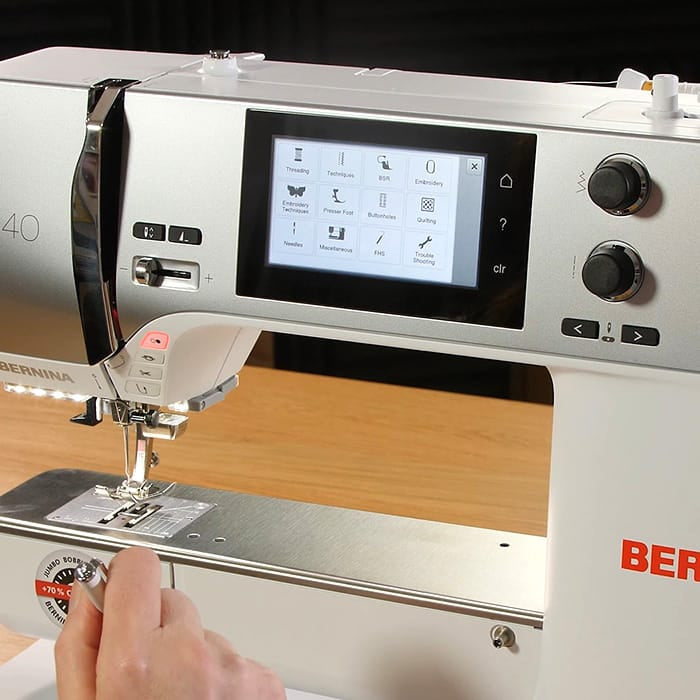

The on-screen Creative Consultant guides you to the right presser foot and settings for each stitch, which is particularly useful when working through an unfamiliar stitch type or technique. There are built-in sewing tutorials and on-screen help that cover the 540's feature set at your own pace, so you can work through functions without needing to refer back to a manual.

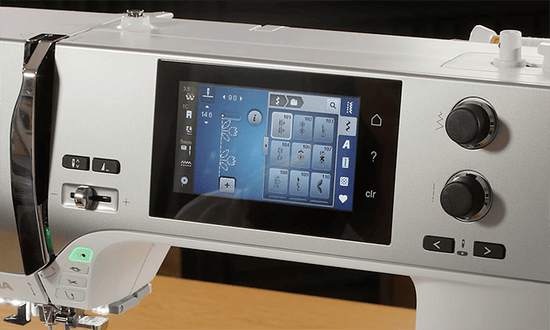

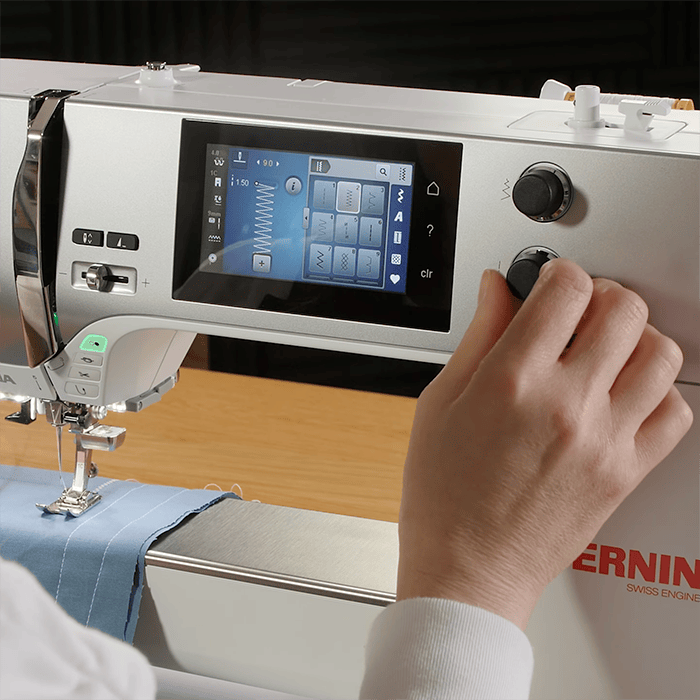

The 540 is a joy to sew with. The Free Hand System knee lifter keeps both hands on the fabric when pivoting during patchwork or appliqué work. The 4.3-inch touchscreen with simple navigation and the multi-function knobs on the machine body mean adjustments are quick without interrupting your flow.
BERNINA 540: A Machine for Every Maker
And every project
Ideal for Large Projects
With 8.5 inches of workspace and the included extension table, this model is ideal for large quilts, garments, home furnishings and bulky projects. The front-loading jumbo bobbin keeps interruptions to a minimum when working across long seam runs.
Endless Stitch Designs
The 540 offers hundreds and hundreds of decorative stitches and 5 alphabets including utility, decorative, quilting and cross-stitch. From perfectly balanced utility stitches to intricate decorative patterns, you'll have the freedom to personalise everything from garment details to quilt blocks and home décor. Combine, mirror, or adjust stitches directly on the machine. The stitch memory stores your favourite configurations so they're ready when you return to a project.

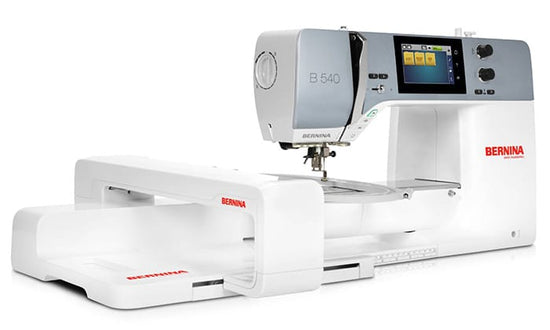

Add Embroidery When You Are Ready
The optional BERNINA embroidery module means the 540's capabilities can expand as your skills develop. The Sewing Consultant and on-screen guidance support your learning journey.
Inside the BERNINA 540

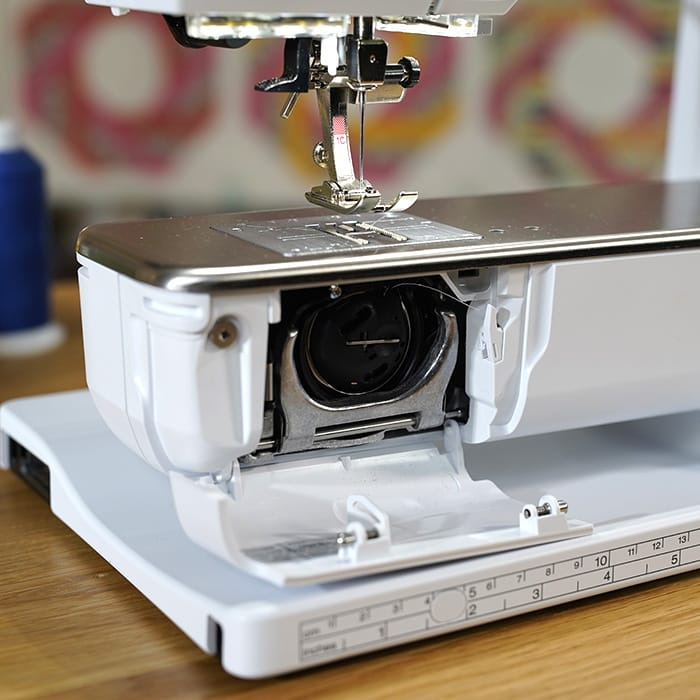

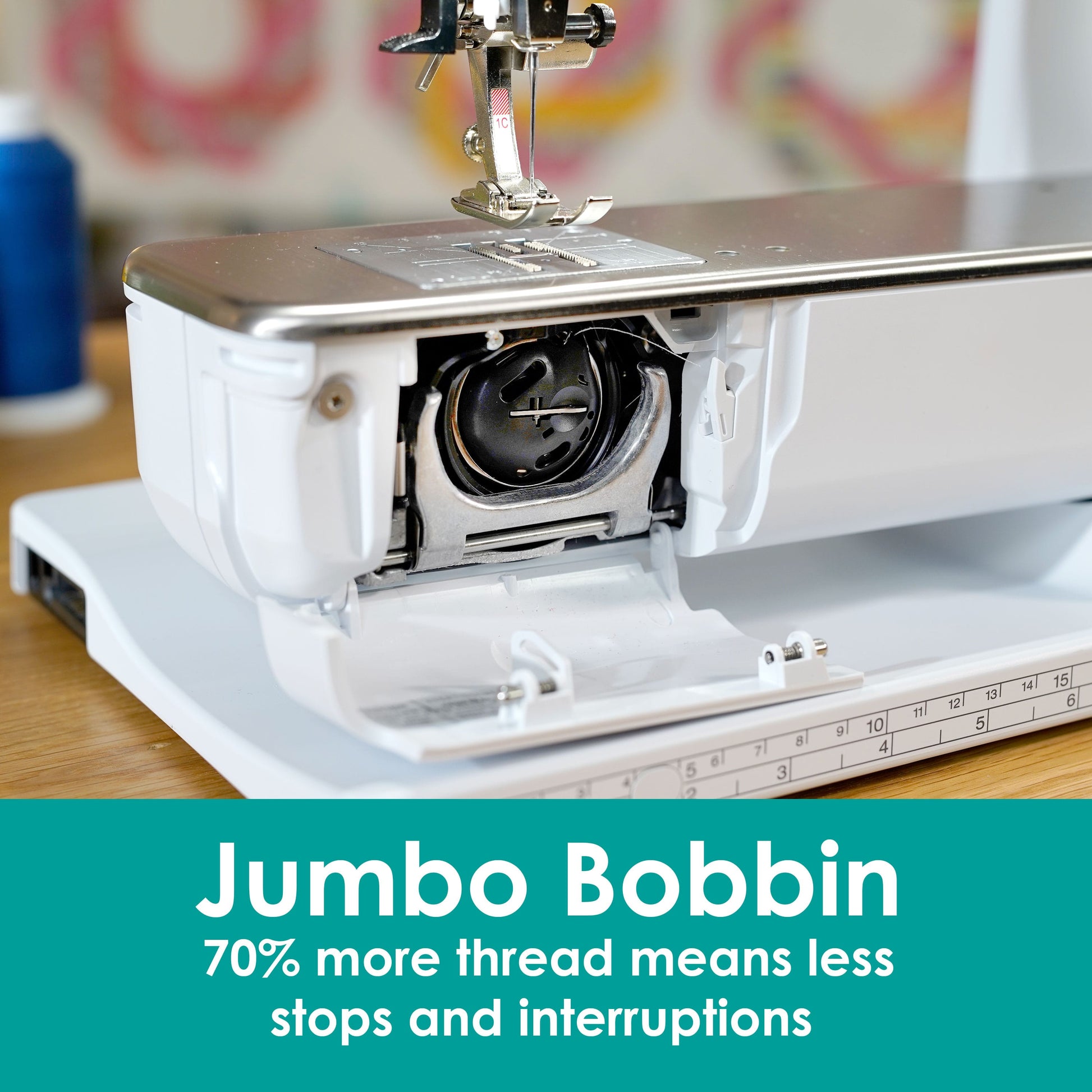

BERNINA Hook System and Jumbo Bobbin
The patented BERNINA Hook keeps every stitch consistent and precise at up to 1,000 stitches per minute. A jumbo bobbin holds more thread than standard, with front-loading access for quick changes mid-project.

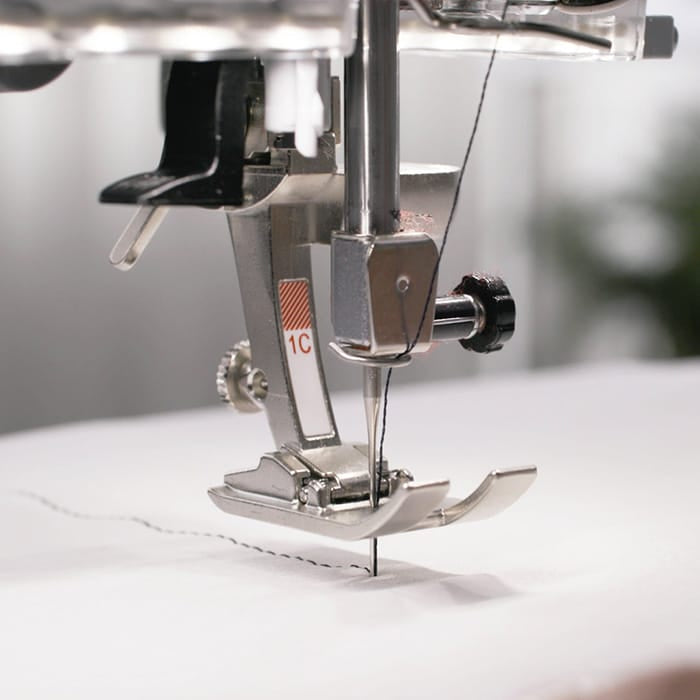

Adaptive Thread Tension, Presser Foot Pressure and Needle Threader
Adaptive Thread Tension reads your stitch type and fabric continuously, adjusting tension automatically for clean results on both sides. Adjustable presser foot pressure fine-tunes the machine for different fabric weights. The semi-automatic needle threader gets you sewing faster with less effort at the start of every session.
Free Hand System and Automatic Thread Cutter
The included knee lifter raises and lowers the presser foot hands-free, keeping fabric positioned accurately during pivots and turns. The automatic thread cutter trims and raises the needle in one operation, saving time between seams.
Sewing Consultant and Stitch Memory
The on-screen Sewing Consultant recommends the correct presser foot and settings for each stitch selected. Short-term and long-term stitch memory stores your altered configurations, so preferred settings are retained between projects and sessions.
BSR Compatibility and Optional Embroidery Module
The 540 is enabled for the BERNINA Stitch Regulator (straight stitch and zigzag), available as a separate purchase for free-motion quilting work. An optional Embroidery Module M is available separately. With the optional Maxi Hoop, maximum embroidery area is 15.7" × 5.9" (400 × 150 mm).
Product Specifications
Accessories In The Box
- 1 x Dust Cover
- 1 x Accessory box
- 1 x Knee lifter
- 1 x Slide-on table
- 3 x Spool discs
- 4 x Bobbins
- 1 x Height compensation tool
- 1 x Selection of needles
- 1 x Lubricator
- 1 x Red screwdriver
- 1 x Brush
- 1 x Power cable
- 1 x Foot control
Feet In The Box
- Reverse-pattern foot #1
- Reverse-pattern foot #1C
- Overlock foot #2
- Overlock foot #2A
- Buttonhole foot with slide #3A
- Zipper foot #4
- Zipper foot #4D
- Open embroidery foot #20C
Manufacturers Specifications
- Hook system - BERNINA Hook
- Maximum sewing speed (stitches per minute) - 1000
- Sewing space to the right of the needle - 8.5 Inch / 215 mm
- Colour touch screen - 4.3 Inch / 10 cm
- LED sewing lights - 12 LED
- Multi-function knobs
- Maximum stitch width - 9mm
- Maximum stitch length - 6mm
- Needle positions - 11
- Sewing in each needle position
- Number of spool holders - 2
- Semi-automatic needle threader
- Automatic thread cutter
- Adjustable presser foot pressure
- Manual thread cutter
- Adaptive Thread Tension
- Create and save stitch combinations
- Memory (short-term/altered stitches)
- Memory (long-term/altered stitches)
- BSR enabled, straight stitch and zigzag (separate BSR foot required)
- Start/stop button (stitching without foot control)
- Slide speed control
- Upper thread indicator
- USB interface for PC connection
- Changing stitch settings while sewing
- BERNINA foot control with back-kick function
- Needle stop up/down
- Drag & Drop
- Bobbin winding while sewing/embroidering
- On-screen help
- Sewing tutorial
- Sewing consultant
- Setup program
- Machine weight - 11 kg
Machine Dimensions & Weight
- Machine size (W x D x H): 18.3" x 7.9" x 13.0" / 465 x 200 x 330mm
- Machine weight: 11kg
- Workspace: 8.5 inches (215mm) to the right of the needle
- Colour touchscreen: 4.3 inches (10cm)
- LED sewing lights: 12
Stitch Options and Controls
- Total built-in stitch patterns (including alphabets): 1,048
- Utility stitches: 30
- Decorative stitches: 300
- Quilting stitches: 44
- Cross-stitch programmes: 31
- Sewing alphabets: 5
- Buttonholes (including eyelet): 14
- Maximum stitch width: 9mm
- Maximum stitch length: 6mm
- Maximum sewing speed: 1,000 stitches per minute
- Needle positions: 11
- Sewing in each needle position: Yes
- Number of spool holders: 2
Sewing Features and Functions
- BERNINA Hook system
- Adaptive Thread Tension
- Adjustable presser foot pressure
- Semi-automatic needle threader
- Automatic thread cutter
- Manual thread cutter: 4
- Start/stop button (stitching without foot control)
- Slide speed control
- Needle stop up/down
- Bobbin winding while sewing
- Upper thread indicator
- BSR enabled: straight stitch and zigzag (separate BSR foot required)
- Changing stitch settings while sewing
- Create and save stitch combinations
- Stitch memory: short-term and long-term altered stitches
- Pattern start/end function
- Programmable securing function
- Automatic buttonhole with length measuring system
- Manual multi-step buttonhole
- Button sew-on programme
- Darning programmes
- Drag & Drop stitch selection
- Sewing Consultant
- On-screen help
- Sewing tutorial
- Setup programme
- BERNINA foot control with back-kick function
- Multi-function knobs
- USB interface for PC connection
Bobbin and Needle System
- Hook system: BERNINA Hook
- Bobbin: jumbo bobbin, holds 70% more thread than a standard bobbin
- Bobbin loading: front-loading
Connectivity
- USB interface for PC connection
Warranty & Support
The BERNINA 540 is covered by a full BERNINA 7-year warranty. Our support team is here if you ever need help or servicing.
Product Downloads
Ratings & Reviews
Frequently Asked Questions
Let us help with the answers.
What is the difference between the BERNINA 540 and a standard sewing machine?
The 540 goes beyond standard sewing machine functionality with features like Adaptive Thread Tension, a jumbo bobbin, BSR compatibility and an optional embroidery module. The Sewing Consultant and touchscreen navigation make it accessible, while the stitch range and workspace suit more demanding projects that a basic machine cannot handle comfortably.
Do I need the embroidery module to use the BERNINA 540?
No. The 540 is a fully capable sewing and quilting machine without it. The embroidery module is an optional separate purchase that adds embroidery functionality, including a 15.7" x 5.9" embroidery area, when you're ready to expand in that direction.
Is the BERNINA Stitch Regulator included with the 540?
The 540 is BSR-enabled on straight stitch and zigzag, but the BSR foot is purchased separately. If free-motion quilting is part of your plans, it is worth adding at the time of purchase so the machine is ready to use straight away.
How does Adaptive Thread Tension work in practice?
The machine reads the stitch and fabric combination continuously and sets tension automatically, so you don't need to adjust manually when changing between fabric types or stitch patterns. The result is consistent stitch quality on both sides of the fabric without trial and error.
What quilting features does the BERNINA 540 have?
The 540 includes 44 dedicated quilting stitches, 8.5 inches of workspace, the Free Hand System knee lifter and BSR compatibility for free-motion work. The included extension table gives additional support around the needle for larger quilt projects, and the front-loading jumbo bobbin keeps thread running longer between stops.
