Brother Innov-is F540E Embroidery Machine
An affordable embroidery machine with all the essential features including wireless connectivity, pattern customisation and monogramming
£1,099.00
Was £1,199.00
Saving £100.00
Spread the cost from
£29.21 per month over 48 months*
Save £100 + FREE Magnetic Frame and Madeira Thread Set worth £279!
£0.00 Worth £179.00
Brother Magnetic Embroidery Frame for F-Series 180x100mm (MF180N)
£0.00 Worth £100.00
£46.99 £42.30 Save 10%
£1,099.00 £609.00 Save £490.00
£399.00 £219.00 Save £180.00
£33.95 £30.56 Save 10%
£26.99 £22.95 Save 15%
What our customers say
Shop with confidence today knowing that our sewing machine prices are the lowest possible. If we lower our prices within 14 days of your purchase, we'll refund you the difference.
Terms and Conditions apply*
This machine is covered by a full 3-year Brother warranty for home use (commercial use is covered by a 1-year warranty). Brother warranty is handled directly by Brother via their authorised service centres. Our team are always here to help with advice and guidance.
Changed your mind? You've got 30 days to return any new, unused items in their original packaging.
Need advice?
Our in-house team knows every detail of this machine. Call, message or chat and get honest, expert advice from people who actually sew.
Start a live chat
Our standard width fabric can be cut as a Fat Quarter, measuring 50cm x 1/2 the width of the bolt. Above is an example of how your fabric will be received, depending on the quantity ordered.
We also offer a sample service, where you can order 1 single fat quarter of any standard width fabric, to have at home and compare colours. When you are finished, you can send them back to us for a refund (feel free to contact us for more information on this service).
Our fabric can be cut as a Long Quarter, measuring a minimum of 25cm x width of bolt. We will supply the fabric as a continuous length (eg; if you bought 1.25m it will be sent as one piece of fabric).
Brother Innov-is F540E Product Review & Demonstration
The Brother Innov-is F540E is a dedicated embroidery machine designed with ease of use, intuitive automatic features and an impressive embroidery area in mind. Straight out of the box, there are 193 built-in designs to play with from florals, animals, geometrics and seasonal motifs, plus 13 font styles available in three sizes. For full customisation, the Wireless LAN connectivity allows design transfer from a Windows PC or via the Artspira app.
The 180 x 130mm embroidery area, equivalent to a 7 x 5 inch hoop, hits the sweet spot size for monograms, personalised gifts, clothing details and customised home accessories. On-screen editing tools let you resize, rotate, mirror and combine designs until they are just right. The colour sorting function groups same-colour sections of a design together so the machine works through them in sequence which means fewer thread changes per design.
Finally, it's the little details that make all the difference: automatic jump stitch trimming keeps things neat as you go, while upper and lower thread sensors give you a heads-up before you run out mid-design. The F540E will deliver smooth stitching, less fuss and beautifully finished pieces every time.
Key Features
What makes this machine worth it
Machine Type
Dedicated embroidery machine, medium size
Design Options
193 built-in designs, 13 font styles, 140 frame pattern combinations (10 shapes × 14 stitch types)
Control Type
3.7-inch colour LCD touchscreen
Embroidery Area
180 x 130mm (7 x 5 inches)
Needle System
Single needle with advanced auto-threading system
Connectivity
Wireless LAN and USB port, Artspira app compatible
Skill Level
Beginner to intermediate
Machine Weight
8kg
This machine is perfect for
- Ideal for sewers who want to learn machine embroidery skills - this is an easy and intuitive embroidery-only machine for beginners
- Home crafters who want professional-looking results without a steep learning curve
- Monograms, personalisation and gift-making - perfect for towels, children's clothing and baby items or tote bags
- Those wanting WiFi connectivity
Can sew but not ideal for
- High-volume production with many colour changes - the single-needle means thread changes at every colour change
Not suitable for
- Anyone needing sewing capabilities - this is embroidery-only
- Hat or cap embroidery - the optional cap frame is available but the machine is not optimised for this
- Commercial embroidery work or production volumes
- Brother software is optimised for Windows operating systems. Ask us for more details if you only use macOS
Materials and Build Quality
The 3.7-inch colour LCD touchscreen displays designs in full colour so you can see each colour block as it will stitch out. The editing screen brings size adjustment, rotation in 1-degree increments, mirror imaging and zoom up to 300% into one place.

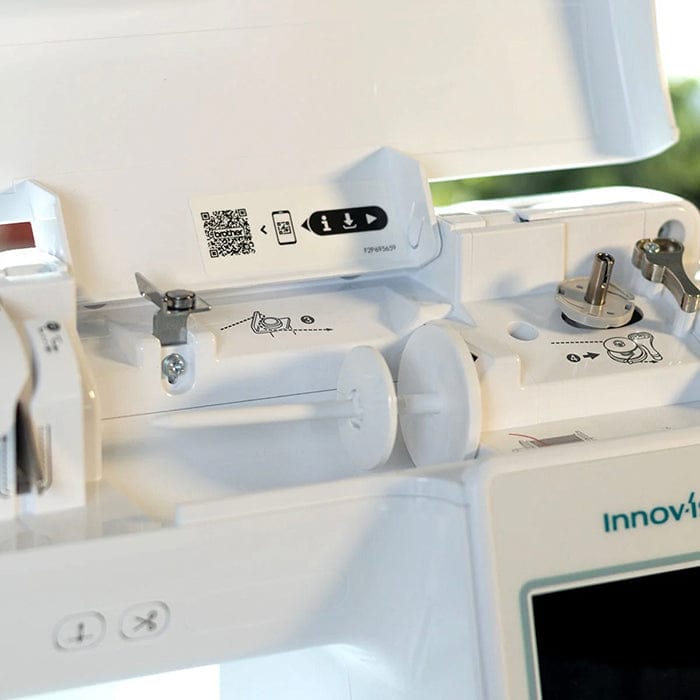

The advanced needle threading system works by lowering a single lever, removing the need for manual needle threading. The quick-set drop-in bobbin loads from the top, and upper and lower thread sensors monitor both threads while the machine runs. The automatic thread cutter trims top and bobbin threads together at the end of each colour block, pulling the upper thread to the underside.
Say goodbye to cables! This machine's built-in Wi-Fi lets you send designs wirelessly from your Windows PC or straight from the Artspira app - Brother's on-the-go design hub for phones and tablets. Alternatively just pop in a USB flash drive and you're ready to stitch in seconds.
The Difference is in the Details
At up to 650 stitches per minute and with colour sorting grouping same-colour areas automatically, the F540E works through multi-colour designs with fewer interruptions. Jump stitch trimming handles the thread between colour blocks, so there is less tidying once the hoop is removed. The slide speed setting lets you set the pace to suit the design and your confidence level.
The 3-year Brother warranty covers the machine for home use (1-year for commercial use), with the option of extending capability over time through optional frames and accessories designed for the F-series. The machine's design library can grow via USB import or wireless transfer from Artspira, so the F540E does not become limited as your ambitions grow.
As an authorised Brother retailer, The Sewing Studio team can advise on design compatibility, hoop selection and getting the most from your machine before and after purchase. Brother's dedicated support resources are available throughout your ownership, and our in-house team is on hand for servicing and technical queries. Chat with one of our machine experts online or contact us.
With 193 ready-to-use designs built in, you can begin stitching straight away. The on-screen editing tools are straightforward to navigate, and the colour touchscreen guides you through each step of setting up and running a design. Our YouTube channel and website carry additional tutorials to help you get more from your machine.
At 8kg the F540E is a portable machine. The drop-in bobbin loads quickly from the top and the lever-operated needle threader removes one of the more fiddly aspects of machine embroidery setup. The two LED lights illuminate the needle area clearly during stitching.
Brother Innov-is F540E: A Machine for Every Maker
And every project
Built-In and Ready to Go
With 193 designs and 13 font styles to play with, there is no need to import anything before your first project. Start designing, personalising and creating straight out of the box.
Personalisation Made Practical
The 5 x 7 inch hoop area covers monograms, name labels and garment details with room to work. Font editing and on-screen text alignment mean finished results look considered rather than rushed.
More Designs When You Need Them
Wireless transfer via Artspira and the USB port mean the built-in collection is just the starting point. Customise your designs with unique motifs to create one-off pieces for creativity with no limits.
Inside the Brother Innov-is F540E
193 Built-In Designs and 13 Font Styles
Explore 193 designs spanning florals, animals, geometrics and seasonal themes, plus 13 font styles in three sizes for personalised gifts and crafts.
Colour Sorting and Jump Stitch Trimming
Colour sorting groups same-colour sections so the machine stitches them together before moving on, reducing thread changes. Jump stitch trimming cuts connecting threads between colour blocks automatically.
Thread Management System
Upper and lower thread sensors monitor both threads during stitching. The automatic thread cutter trims top and bobbin threads together at the end of each colour block, pulling the upper thread to the underside.
Product Specifications
Accessories In The Box
- Needle set
- Bobbin x 4 (One bobbin is on machine)
- Seam ripper
- Scissors
- Cleaning brush
- Screwdriver (large)
- Screwdriver (small)
- Disc-shaped screwdriver
- Spool cap (large)
- Spool cap (medium) (On machine)
- Spool cap (small)
- Thread spool insert (mini king thread spool)
- Spool net
- Alternate bobbin case (no color on the screw)
- Embroidery bobbin thread (90 weight, white)
- Accessory bag
- Dust cover
- Operation Manual
- Quick Reference Guide
- Embroidery Design Guide
Hoops In The Box
- 1 x Embroidery frame set (large) 18cm (H) × 13cm (W)
Manufacturer Specifications
Machine Information
- Machine Size: Medium
- Product Type: Embroidery
- Skill Level: Beginner
General Features
- Accessory Compartment: Yes
- Bobbin Type: Horizontal
- Case: Hard Case
- Machine Type: Electronic
- Insertion of Bobbin: Quick Set Bobbin
- Number Of Needles: 1
- Lighting: 2 LEDs
Connectivity
- Design Database Transfer app for Windows PC: Yes
- My Design Snap App: Yes
- USB Port: USB Port
- Wi-LAN Function: Yes
Display
- Type of Screen: LCD-Touchscreen Colour
- Display Size: 3.7 Inch
Embroidery Features
- Font Size Selection (L-M-S): Yes
- Max Embroidery Speed (Stitches per Minute): 650
- Number of Hoops (Standard Accessory): 1
- Number of Spool Stands: 1
- Pattern - Size, Change Rotation & Mirror: Yes
- Realistic Preview of Patterns: Yes
- Built-in Embroidery Frame Patterns: 140 (10 shapes x 14 stitch types)
- Built-In Lettering Styles (Embroidery): 13
- Built-In Patterns: 193
- Embroidery Area in mm: 180x 130
- Font Editing Functions/Multiple Lines and Alignment (L-C-R): C
- Jump Stitch Trim: Yes
- Thread Colour Sorting: Yes
Environment
- Voltage: 220 - 240V
- Warranty Information
- Warranty: Brother 3 year Warranty
- Commercial use only 1 year warranty
Threading
- Automatic Thread Cutter: Yes
- Bobbin Winder: Yes
- Lower Thread Sensor: Yes
- Needle Threading System: Extra Advanced
- Upper Thread Sensor: Yes
- Adjustable Thread Tension: Automatic
Weight and Measurements
- Machine Dimension (mm): 444 x 248 x 300
- Weight (kg): 8
Machine Dimensions & Weight
- Machine dimensions (W x D x H): 444 x 248 x 300mm
- Machine weight: 8kg
- Machine size classification: Medium
Design Options and Controls
- Built-in embroidery designs: 193 (55 new to the F-series)
- Built-in embroidery frame patterns: 140 (10 shapes x 14 stitch types)
- Built-in font styles: 13 (available in 3 sizes)
- Embroidery area: 180 x 130mm (7 x 5 inches)
- Maximum embroidery speed: 650 stitches per minute
- Display: 3.7-inch colour LCD touchscreen
- Pattern editing: resize, rotate (1-degree increments), mirror, zoom to 300%
- Text editing: multiple lines, left/centre/right alignment, font selection and rotation from single panel
- Realistic on-screen design preview: yes
- Colour sorting: yes
- Jump stitch trimming: yes
Embroidery Features and Functions
- Thread colour sorting: yes
- Jump stitch trim: yes
- Automatic thread cutter: yes
- Advanced needle threading system: yes (lever operated)
- Upper thread sensor: yes
- Lower thread sensor: yes
- Drop-in bobbin (quick set): yes
- Bobbin winding system: yes
- Combine embroidery patterns: yes
- Font editing functions including left, centre and right alignment: yes
- Font size selection (large, medium, small): yes
- Pattern size, rotation and mirror adjustment: yes
- Realistic design preview: yes
- 2 LED lights: yes
- Number of needles: 1
- Number of spool stands: 1
- Number of hoops included (standard accessory): 1
Bobbin and Needle System
- Bobbin type: horizontal drop-in (quick set)
- Needle threading: advanced lever-operated system
- Alternate bobbin case included: yes (no colour on screw)
Connectivity
- Wi-Fi LAN function: yes
- USB port: yes
- Artspira app compatible: yes (iOS and Android)
- Design database transfer for Windows PC: yes
Warranty & Support
The Brother Innov-is F540E is covered by a full 3-year Brother warranty for home use (commercial use is covered by a 1-year warranty). Our team at The Sewing Studio is on hand for advice, servicing and support throughout the life of your machine.
Ratings & Reviews
Frequently Asked Questions
Let us help with the answers.
Is the Brother Innov-is F540E a sewing machine as well as an embroidery machine?
No. The F540E is a dedicated embroidery-only machine. It does not sew utility or decorative stitches in the way a combined sewing and embroidery machine does. If you already own a sewing machine and want to add embroidery capability alongside it, the F540E is well suited to that setup.
What size projects can I embroider on the F540E?
The included hoop covers a maximum area of 180 x 130mm, which is 7 x 5 inches. This is a practical size for monograms, personalised labels, garment details and cushion panels. Optional frames in smaller sizes are available for items like cuffs and pockets, and a larger 30 x 13cm frame can be purchased separately for border work.
How do I transfer new designs to the machine?
There are two ways. The machine connects to your home Wi-Fi network, which allows wireless transfer from a Windows PC or via the Artspira app on a smartphone or tablet. Alternatively, you can load designs from a USB flash drive directly into the USB port on the machine.
Does the colour sorting function work automatically?
Yes. When activated, colour sorting analyses the design and groups sections that use the same thread colour so the machine works through them together before moving to the next colour. This reduces the number of times you need to change thread during a multi-colour design, without any manual input beyond switching it on.
What warranty does the F540E come with?
The machine is covered by a 3-year Brother warranty for home use. Commercial use is covered by a 1-year warranty. As an authorised Brother retailer, The Sewing Studio can support you with advice and servicing throughout your ownership.
